Name: Памет 16GB (2x 8GB) DDR4 2133MT/s, Kingston KVR21N15D8K2/16, 1.2V - 0.00 лв. (≈ 0.00 EUR)
Brand: Kingston
SKU: MRAMKINGSTONKVR21N15D8K216
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

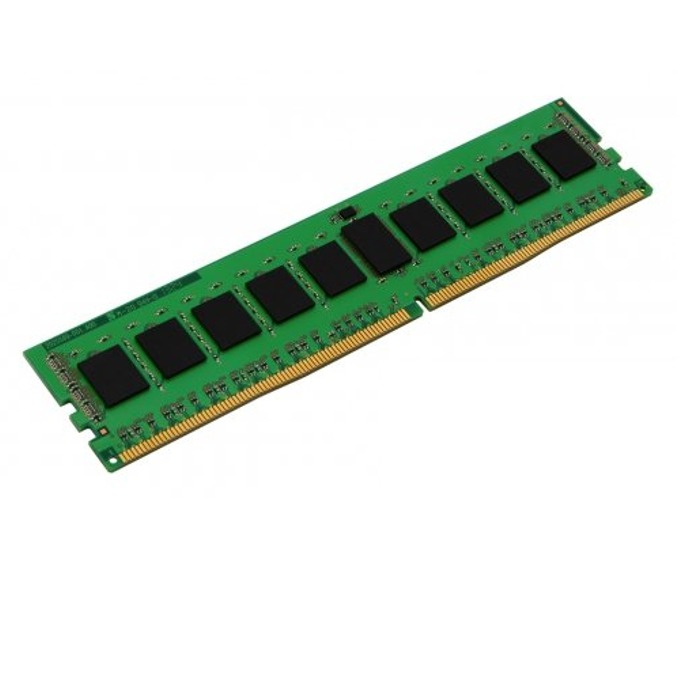

16GB Kit (2x8GB) - DDR4 2133MHz
KVR21N15D8K2/16

Power Supply: VDD=1.2V Typical
• VDDQ = 1.2V Typical
• VPP - 2.5V Typical
• VDDSPD=2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free

CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
Maximum Operating Power
UL Rating
Operating Temperature
Storage Temperature
15 cycles
46.5ns(min.)
260ns(min.)
33ns(min.)
TBD W*
94 V - 0
0o
C to +85o
C
-55o
C to +100o
C
