Environmental Conditions | ||
---|---|---|
Maximum Operating Temperature | 40°C | |
General Information | ||
Product Type | Power Supply | |
Manufacturer Part Number | BP024EU | |
Manufacturer Website Address | http://www.listan.de | |
Manufacturer | Listan GmbH & Co. | |
Product Model | L13-M-550W | |

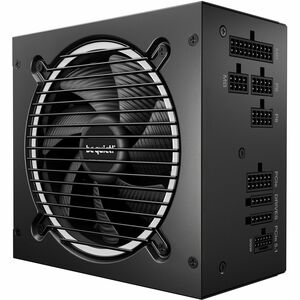

Product Name | Pure Power 13 M L13-M-550W Power Supply | |
Product Line | Pure Power 13 | |
Product Series | M | |
Brand Name | be quiet! | |
Marketing Information | Exceptional quiet, superior features Pure Power 13 M 550Wxa0is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Pure Power 13 M 550W offers the best combination of features with outstanding compatibility.
80 PLUS® GOLD CERTIFIED | Very high operating efficiency Pure Power 13 M 550W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.8%.xa0The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 13 M 550W is always the correct choice for quiet systems and gaming PCs! FUTURE-PROOF YOUR SYSTEM | Fulfills all ATX 3.1 specifications Pure Power 13 M 550W is an ATX 3.1xa0PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 2xa0PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come. THE NEW STANDARD OF POWER | For massive transient loads Pure Power 13 M offers 550W of continuous power with one massive 2V rail. Even if the graphics card demands excessive power for a short time: Pure Power 13 M 550W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards. SEMI-PASSIVE ZERO-RPM COOLING | Enjoy the silence While under low load, the fan turns off completely until its services are needed again for more demanding operations. This feature, combined with the reliable be quiet! fan and its airflow-optimized fan blades, make Pure Power 13 M 550W exceptionally silent in all load scenarios. HIGH-CLASS TECHNOLOGIES | Rock-solid stability With its LLC topology Pure Power 13 M 550W provides best-in-class voltage regulation and efficiency. That makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. MODULAR CABLES | Utmost convenience and compatibility Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 13 M 550W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case. | |
Interfaces/Ports | ||
Number of SATA Power Connectors | 5 | |
PCI Express Connector | Yes | |
Number of (4+4 pin) CPU Power Connectors | 1 | |
Number of (6+2 pin) PCI Express Power Connectors | 2 | |
PCI Express Version | 5.1 | |
Miscellaneous | ||
Package Contents | ||
Certifications & Standards |
| |
Country of Origin | China | |
Energy Star | Yes | |
Energy Efficiency Certification | 80 Plus Gold | |
Energy Efficiency Compliance | Energy-related Products Directive (ErP) | |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) | |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) | |
Physical Characteristics | ||
Weight (Approximate) | 2.23 kg | |
Form Factor | Internal | |
Height | 86 mm | |
Width | 150 mm | |
Depth | 160 mm | |
Product Color | Black | |
Color Family | Black | |
Power Description | ||
Input Voltage | 120 V AC | |
Input Voltage | 230 V AC | |
Output Power | 550 W | |
Output Voltage | 5 V | |
Output Voltage | -12 V | |
Output Voltage | 12 V | |
Output Voltage | 3.3 V | |
Output Voltage | 5 V SB | |
Output Current | 45.80 A | |
Output Current | 20 A | |
Output Current | 3 A | |
Output Current | 300 mA | |
Input Frequency | 50 - 60 Hz | |
Number of +12V Rails | 1 | |
Output Voltage Detail | 5 V @ 20 A | |
Output Voltage Detail | 5 V SB @ 3 A | |
Output Voltage Detail | 3.3 V @ 20 A | |
Output Voltage Detail | 12 V @ 45.8 A | |
Output Voltage Detail | -12 V @ 0.3 A | |
Technical Information | ||
Efficiency | 93.8% | |
Fan Diameter | 120 mm | |
Protection Type | Over Current | |
Protection Type | Over Temperature | |
Protection Type | Overpower | |
Protection Type | Surge & Inrush Protection | |
Protection Type | Short Circuit | |
Protection Type | Over Voltage | |
Protection Type | Under Voltage | |
Fan Bearing Type | Rifle Bearing | |
Cooling Type | Semi-passive | |
Number of Fans | 1 | |
Modular | Yes | |
Specification Compliance | EPS 2.92 | |
Specification Compliance | ATX 3.1 | |
Specification Compliance | EPS12V |
