XPG CORE REACTOR II – 850W
Intelligent Fan-Curve Design
The intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan.

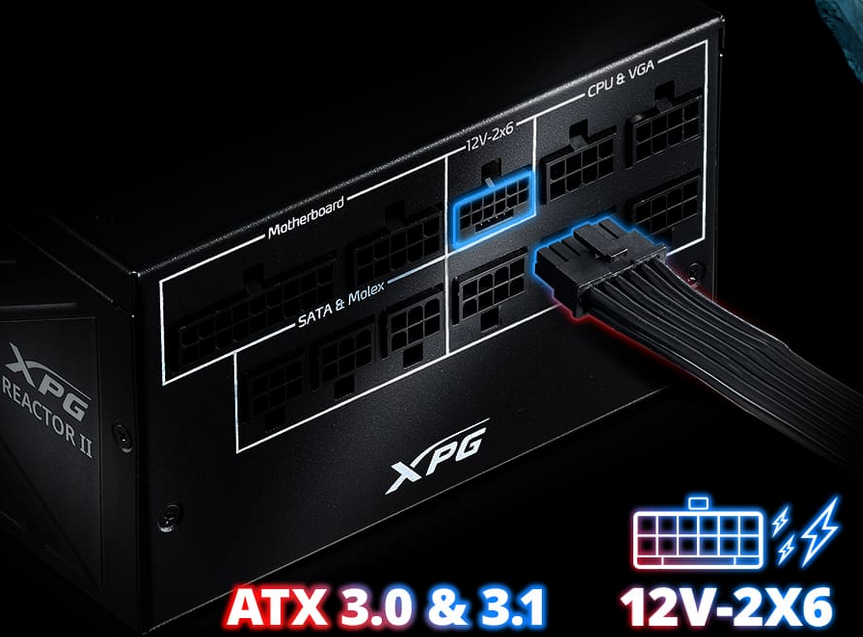

Next-Gen Ready - ATX 3.0 & ATX 3.1 COMPLIANT
CORE REACTOR II series power supply units meet Intel ATX 3.0 & ATX 3.1 design guide specifications and feature a 12V-2x6 / 12VHPWR connector. By upgrading to an ATX 3.0 & ATX 3.1-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 & ATX 3.1 PSU, the new standard in PC hardware.
.png)
Specifications:
| Category | Value (850W Model) |
|---|---|
| Dimensions (L x W x H) | 140 × 150 × 86 mm |
| Cybenetics Rating | Platinum |
| 80 Plus Rating | Gold |
| ATX Version | ATX 3.0 & ATX 3.1 |
| Protections | OCP, OVP, OPP, OTP, UVP, SCP, NLO, SIP |
| Certification | CE, CB, FCC(IC), TUV, cTUVus, TUV S-Mark, NOM, BSMI, UKCA, EAC, CCC, RCM |
| PFC | > 0.99 |
| Input Voltage | 100–240V |
| Input Current | 12A |
| Input Frequency | 47–63Hz |
| DC Output Voltage | +5V, +3.3V, +12V, -12V, +5Vsb |
| Total Output | +5V/+3.3V: 22A +12V: 70.8A -12V: 0.3A +5Vsb: 3A |
| Power Excursion | 1997W (up to 235% of rated power for 100μs) |
| Operating Temperature | 50°C |
| Fan Size | 120mm FDB Fan |
| Fan Bearing | Fluid Dynamic Bearing (FDB) |
| Fan Speed | 2400 RPM |
| MTBF | 100K hours at full load |
| ATX 24 Pin Connector | 1 |
| EPS 8 Pin Connector | 2 |
| PCI-E 6+2 Pin Connector | 6 |
| Molex 4 Pin Connector | 4 |
| 12V-2x6 / 12VHPWR (600W) | 1 |
| SATA Connector | 8 |
| Weight | Product + cables: 1.596 kg + 1.254 kg With package: 3.1 kg |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри A-Data
Виж всички Захранвания Настолни компютри в категорията
| Изходна мощност: | 850 W |
|---|---|
| Форм фактор: | ATX |
