IP камера Vivotek SD8363E, управляема PTZ(Pan/Tilt/Zoom), 2.0Mpix(1920x1080@30FPS), 2.8mm, IR-Cut filter, H.264, MJPEG/4, външна, IP67 защита, PoE(IEEE 802.3at), SD/SDHC/SDXC slot, RJ45, 3.5mm jack

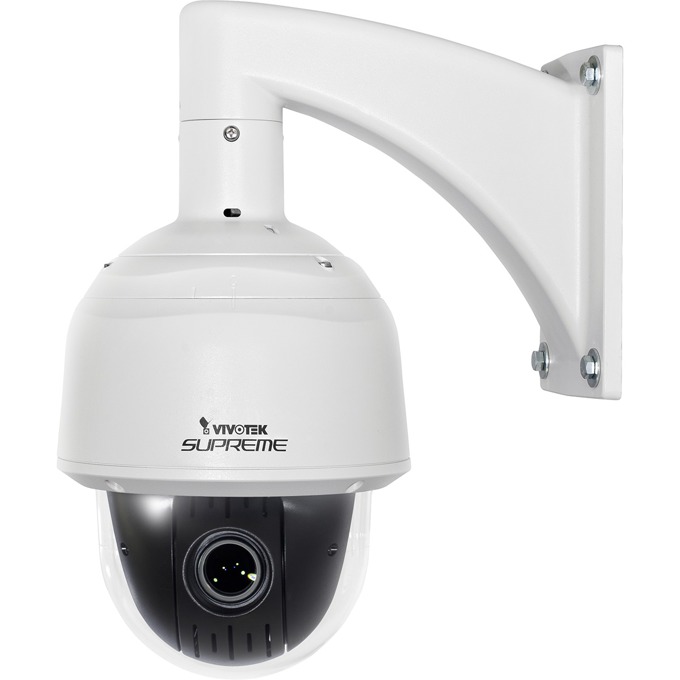

Vivotek SD8363E

Overview

VIVOTEK SD8363E is part of the SUPREME series product line offering 1080p Full HD resolution with superb image quality. Adopting a 20x optical zoom lens, the SD8363E is able to capture details at top-notch quality. The IP67- and NEMA 4X-rated housing protects the camera body against rain, dust, and corrosion within a wide temperature range of between -40°C to 55°C. This feature ensures operation under extreme weather conditions and hazardous environments. It is especially suitable for monitoring wide open indoor/outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are always required.

The SD8363E supports high-performance H.264/MPEG-4/MJPEG compression technology and offers extra smooth video quality with resolution up to 30 fps @ 1080p. Boasting WDR Pro technology, the SD8363E can also cope with challenging lighting conditions and generate image quality close to the capabilities of the human eye. With a sophisticated pan/tilt mechanism, the camera provides fast, precise movement with continuous 360-degree pan and 220-degree tilt. Users can also easily control the lens position via a mouse or a joystick to track the object of interest and set up to 256 preset positions. With the built-in auto tracking feature, the SD8363E provides instantaneous reaction to suspicious moving objects in wide area locations before operators are aware of activity.

As with all VIVOTEK true day/night cameras, the SD8363E features a removable IR-cut filter, maintaining clear images 24 hours a day. With Audio Detection, by recognizing increases or decreases in sound volume, an additional layer of intrusion detection is ensured. Zoom enhancement provides 60x optical zoom at 640x360 resolution by which VGA-level bandwidth is used to obtain image details as high as 1080p resolution. With other advanced features such as SD/SDHC/SDXC card slot, 802.3at compliant PoE Plus and 60 fps high quality video, the SD8363E is the best choice for the most demanding outdoor surveillance applications.

Key Features

- 1080p HD SONY CMOS Sensor
- 30 fps @ 1080p Full HD
- 60 fps @ 720p HD
- 20x Zoom Lens
- Removable IR-cut Filter for Day & Night Function
- 360° Continuous Pan and 220° Tilt
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- Weather-proof IP67-rated and NEMA 4X Housing
- -40°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions
- Audio Detection for Instant Alerts
- Auto Tracking for Moving Objects
- Built-in 802.3at Compliant PoE Plus
- 3D Privacy Masks for Additional Protection
- Built-in SD/SDHC/SDXC Card Slot for On-board Storage

Specifications

System Information
CPU Multimedia SoC (System-on-Chip)
Flash 128 MB
RAM 256 MB

Camera Features

Image sensor 1/2.8" Progressive CMOS
Maximum Resolution 1920x1080
Lens Type 20x optical zoom, auto focus
Focal Length f = 4.7 ~ 94 mm
Aperture 1.6 (wide), 3.5 (tele)
Auto-iris DC-iris

Field of View
3° ~ 55° (horizontal)
2° ~ 32° (vertical)
3° ~ 64° (diagonal)

Shutter Time 1/1 sec. to 1/10,000 sec.
WDR Technology WDR Pro
Day & Night Removable IR-cut filter for day & night function

Minimum Illumination
0.02 Lux @ F1.6 ( Color ), 50 IRE (Color)
0.001 Lux @ F1.6 ( B/W ), 50 IRE (B/W)

Pan speed 0.05° ~ 450° / sec.
Pan range 360° endless
Tilt speed 0.05° ~ 450° / sec.
Tilt range 220° ( -110° ~ +110° )
Preset Locations 256 preset locations, 40 presets per tour
Pan / Tilt / Zoom 48x digital zoom (4x on IE plug-in, 12x built-in)
Auto pan mode
Auto patrol mode
On-board Storage SD/SDHC/SDXC card slot

Video

Compression
H.264, MJPEG & MPEG-4

Maximum Frame Rate
H.264: 30 fps @ 1920x1080, 60 fps @ 1280x720
MPEG-4: 30 fps @ 1920x1080, 60 fps @ 1280x720
MJPEG: 30 fps @ 1920x1080, 60 fps @ 1280x720
(Up to 30/15 fps in WDR mode)

Maximum Streams 4 simultaneous streams
S/N Ratio Above 60 dB
Dynamic Range 108 dB
Video Streaming Adjustable resolution, quality and bit rate
Zoom enhancement for better image quality under limited bandwidth
Image Settings Adjustable image size, quality and bit rate
Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24)
Scheduled profile settings

Audio

Audio Capability Audio input / Audio output (Full duplex)
Compression GSM-AMR
AAC
G.711
G.726

Interfacе
External microphone input
External line output

Network
Users Live viewing for up to 10 clients

Protocols

IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
Interface 10Base-T / 100BaseTX Ethernet (RJ-45)
* It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.
ONVIF Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection Triple-window video motion detection
Auto-Tracking Auto-tracking on moving object

Alarm and Event
Alarm Triggers Video motion detection, manual trigger, periodical trigger, system boot, recording notification, audio detection
Alarm Events Event notification using digital output, HTTP, SMTP, FTP and NAS server
File upload via HTTP, SMTP, FTP and NAS server

General

Connectors
RJ-45 cable connector for Network/PoE connection
Audio input
Audio output
AC 24V power input
Digital input*4
Digital output*2
RS-485 for PTZ control (PelcoD protocol, Baud rate 2400)
LED Indicator System power and status indicator
Power input PoE plus (IEEE 802.3at compliant)
High Power PoE
AC 24V

Power consumption

PoE plus:
Max. 19W
AC 24V:
Max. 48W (heater on)
Max. 19W (heater off)
High Power PoE:
Max. 48W (heater on)
Max. 19W (heater off)

Dimensions

Ø: 205 mm x 321 mm
Weight Net: 3660 g
Casing Weather-proof IP67- and NEMA 4X-rated metal housing
Built-in electrical dehumidifier device (SD8363E-M)
Safety Certifications CE, C-Tick, FCC Class A, NEMA 4X, VCCI
Operating Temperature -5°C ~ 55°C (PoE Plus)
-40°C ~ 55°C (AC 24V / High Power PoE)

System Requirements

Operating System Microsoft Windows 7/Vista/XP/2000
Browser Mozilla Firefox 7~10 (Streaming only)
Internet Explorer 7.x or 8.x
Other Players VLC: 1.1.11 or above
QuickTime: 7 or above
