Проектор ViewSonic LSD401HD, DLP, Full HD (1920x1080), 3 000 000:1, 4000lm, HDMI, USB, LAN, RS232

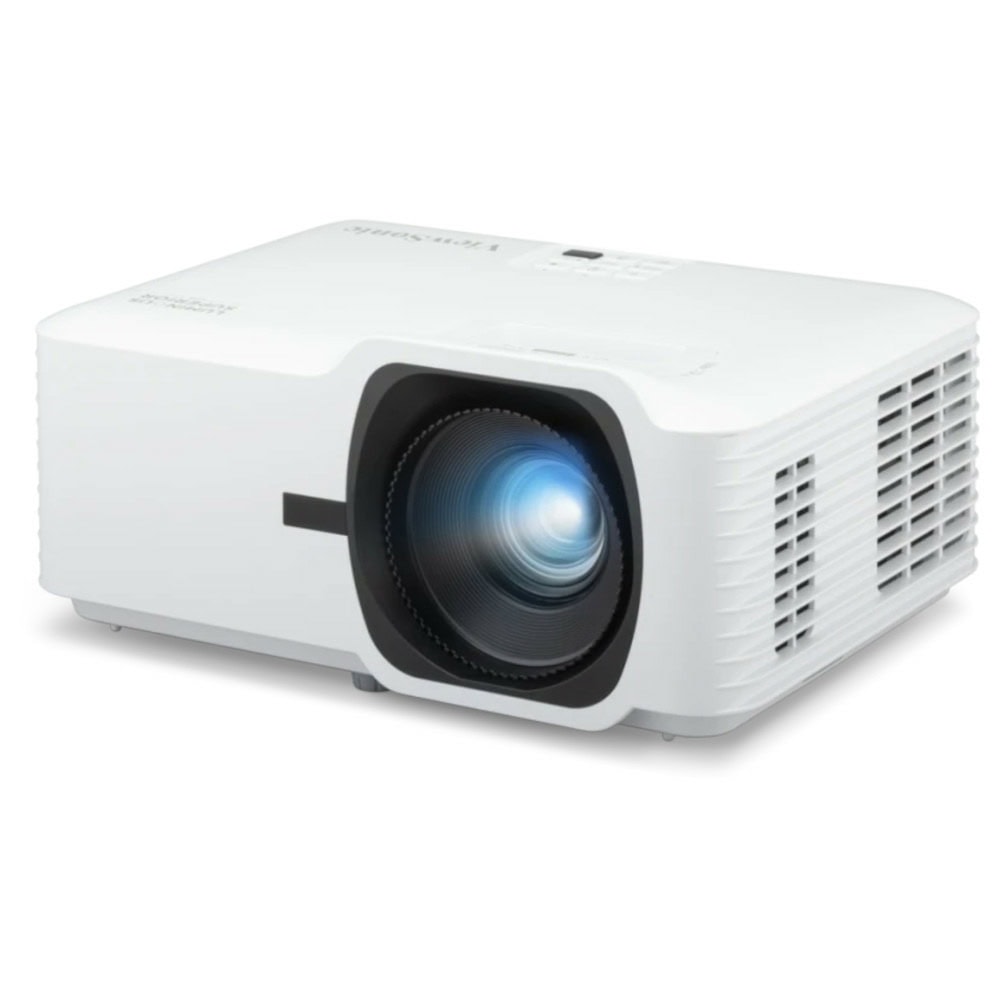

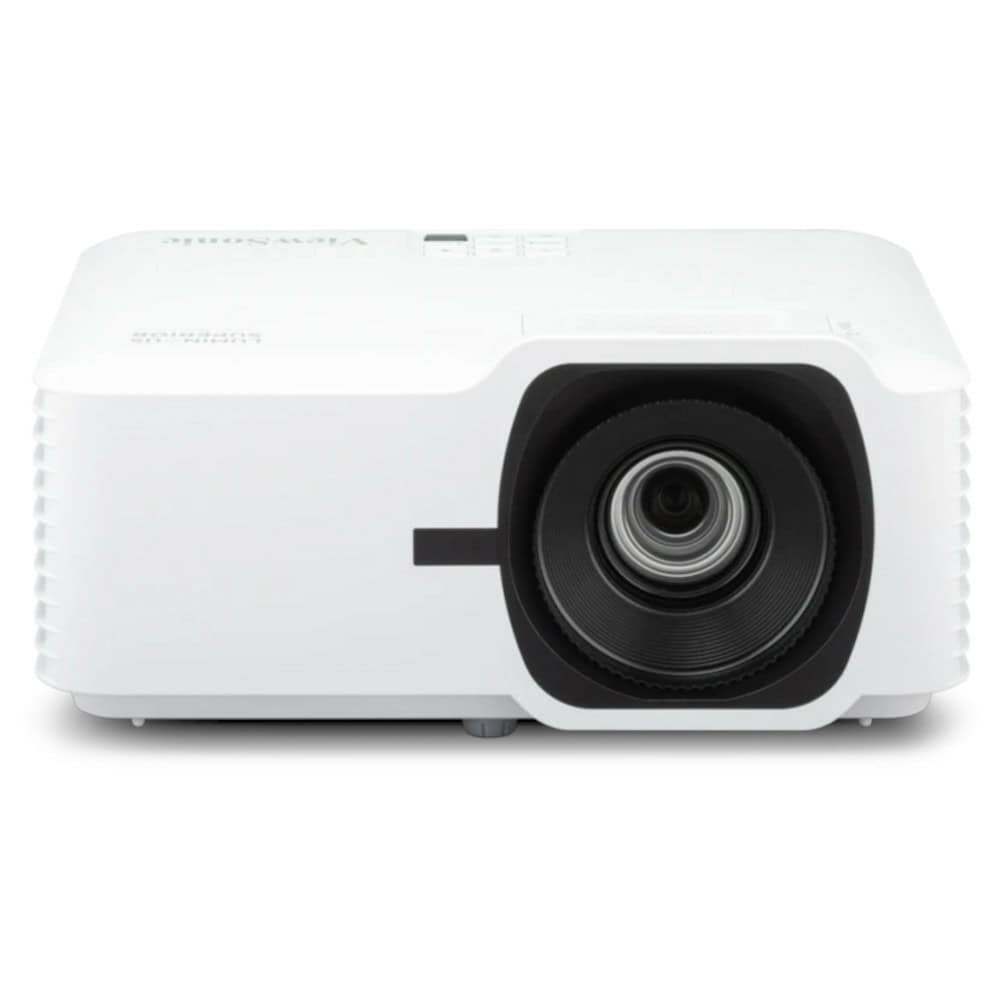

ViewSonic LSD401HD

4,000 ANSI Lumens 1080p Laser Business/Education Projector

• 3rd generation laser phosphor technology with a lifespan of up to 30,000 hours
• 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
• High native contrast ratio powered by a 0.65” DMD chip and DLP technology
• Up to a 300" ultra-large screen with a lower cost-per-inch
• Installation flexibility: 1.3x optical zoom, H/V keystone, and 360° projection
• Centralized LAN control for efficient management

Bright, Compact, Durable

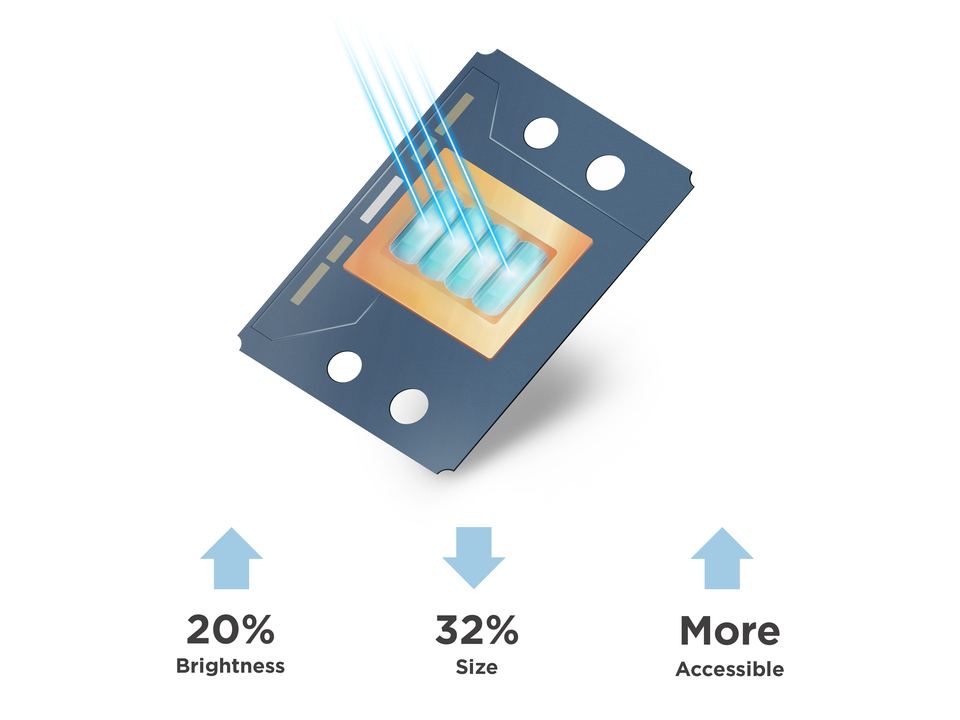

The LSD401HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

3rd-gen Laser Phosphor Technology

Unmatched Contrasts, Enhanced Visibility

Experience enhanced visuals with the LSD401HD, boasting high contrast thanks to DLP technology and an advanced 0.65" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.

0.65” DMD Chip, High Native Contrast Ratio

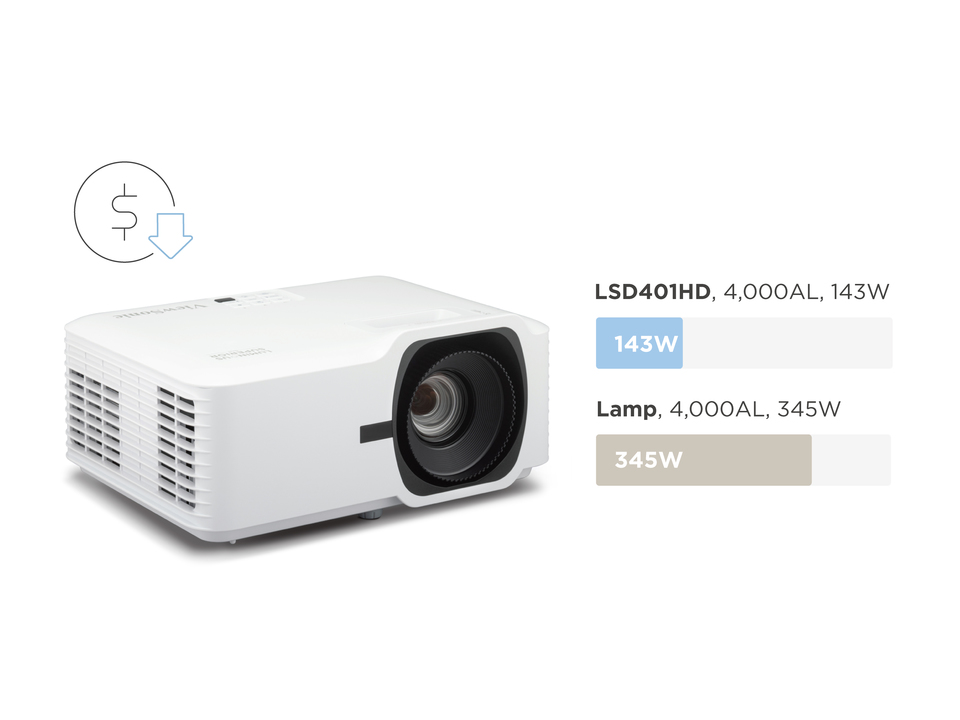

Save on Costs and Energy

With its advanced lamp-free light source, the LSD401HD offers a highly energy-efficient and cost-saving display solution by consuming up to 59% less power than competing projectors.

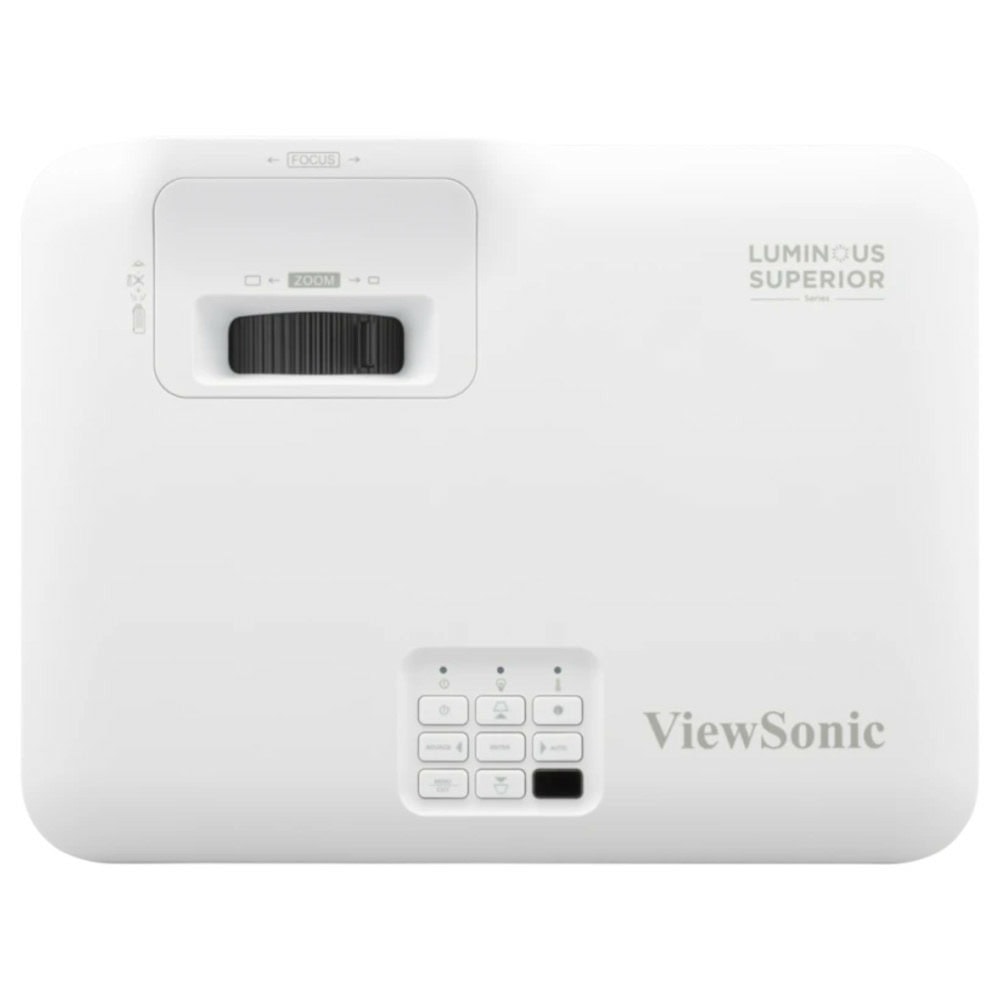

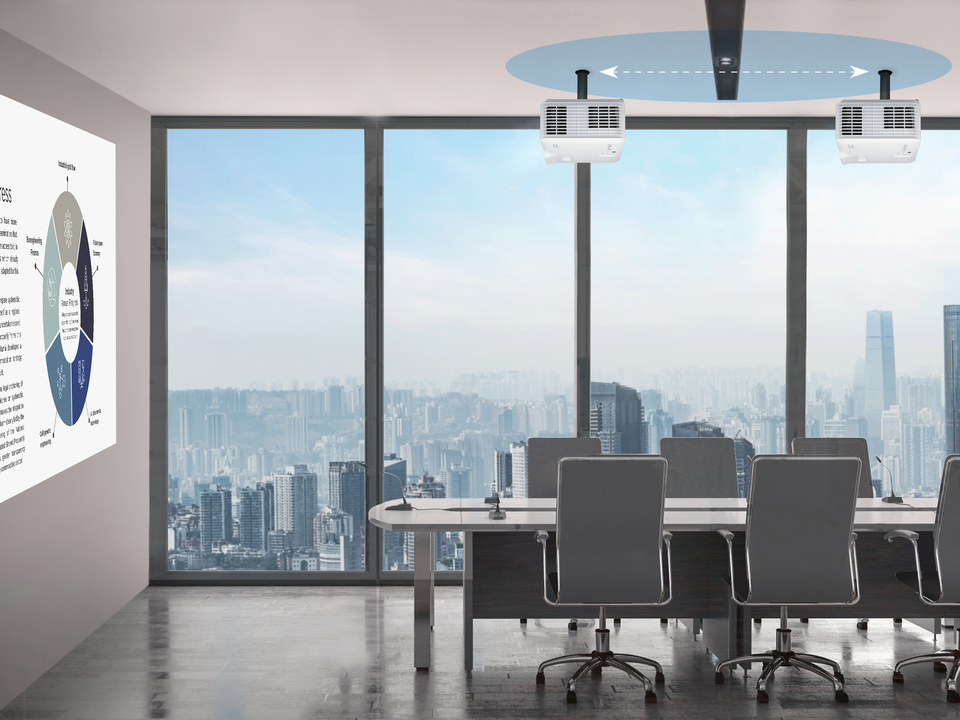

Enhanced Installation Flexibility

Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design.

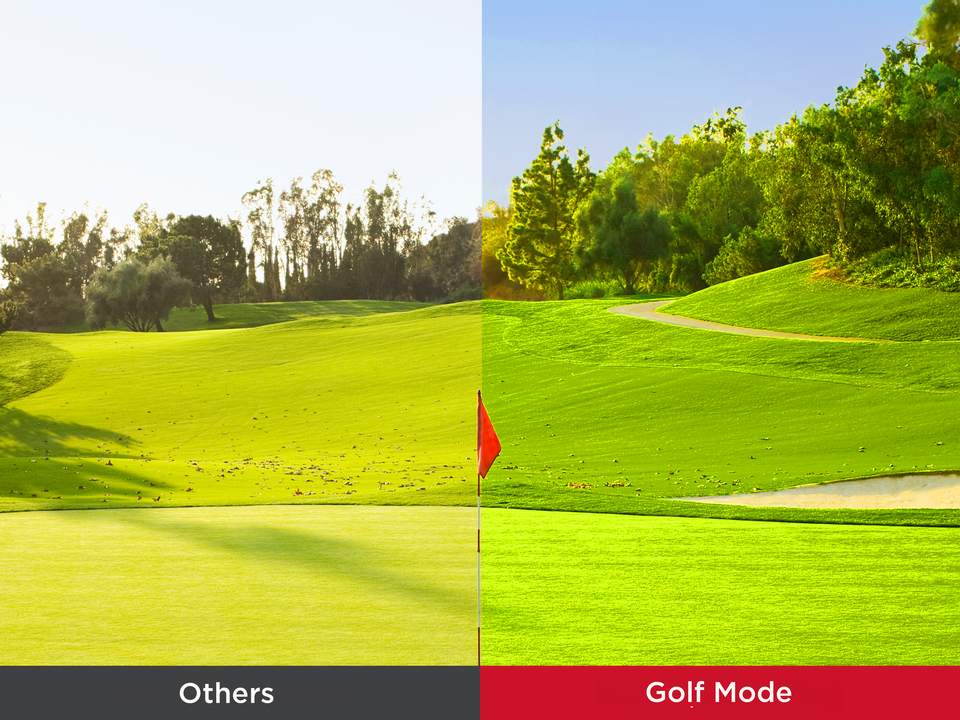

Brilliant Colors for an Authentic Golf Experience

Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible.

SPECIFICATIONS


• Specification

  Projection System: 0.65" 1080P
  Native Resolution: 1920x1080
  Brightness: 4000 (ANSI Lumens)
  Brightness (Center Lumens): 4400
  Contrast Ratio: 3000000:1
  Display Color: 1.07 Billion Colors
  Light Source Type: Laser Phosphor
  Light Source Life (hours) with Normal Mode: 20000
  Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
  Lens: F=2.43-2.78, f=16.90-21.61mm
  Projection Offset: 132%+/-10%
  Throw Ratio: 1.13-1.47
  Optical Zoom: 1.3X
  Digital Zoom: 0.8x-2.0x
  Image Size: 30"-300"
  Throw Distance: 0.75-9.76m
  (100"@2.50m)
  Keystone: H:+/-30° , V:+/-30°
  Audible Noise (Normal): 32dB
  Audible Noise (Eco) : 27dB
  Input Lag: 16.7ms
  Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160)
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
  Horizontal Frequency: 15K-135KHz
  Vertical Scan Rate: 24-120Hz

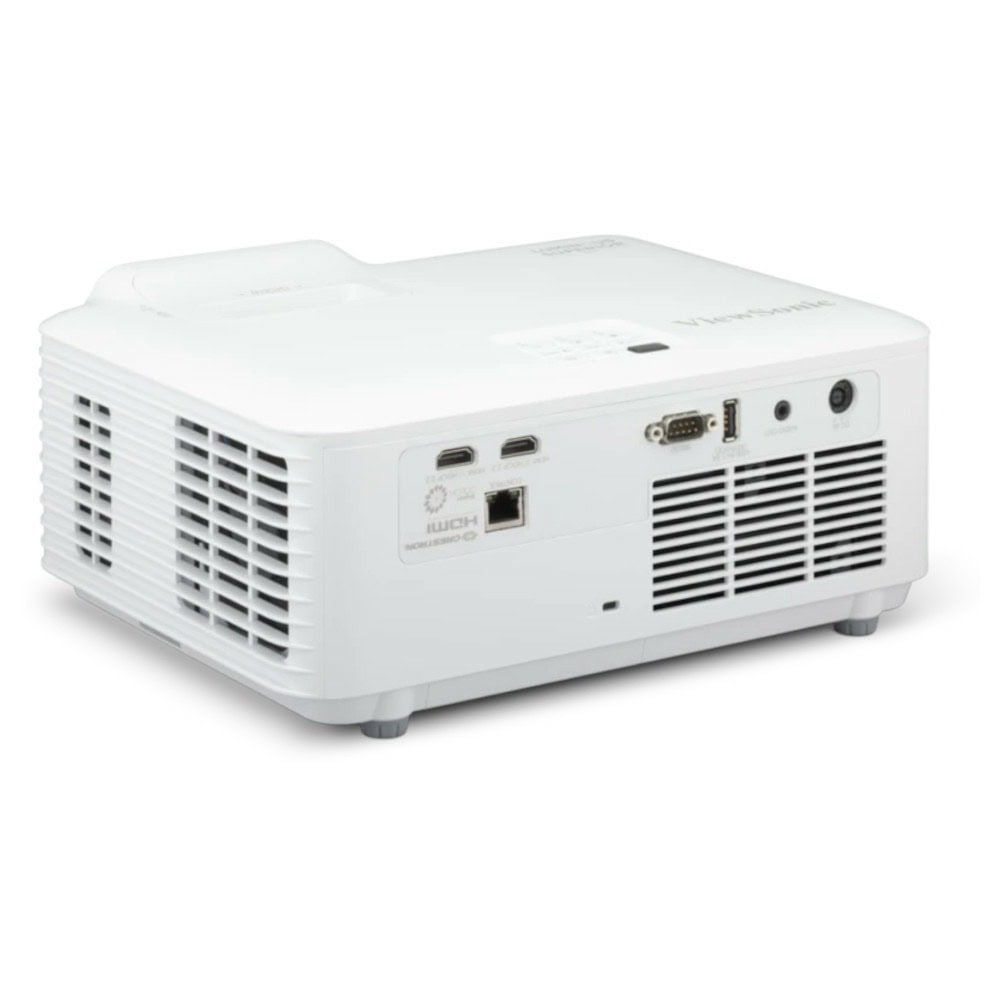

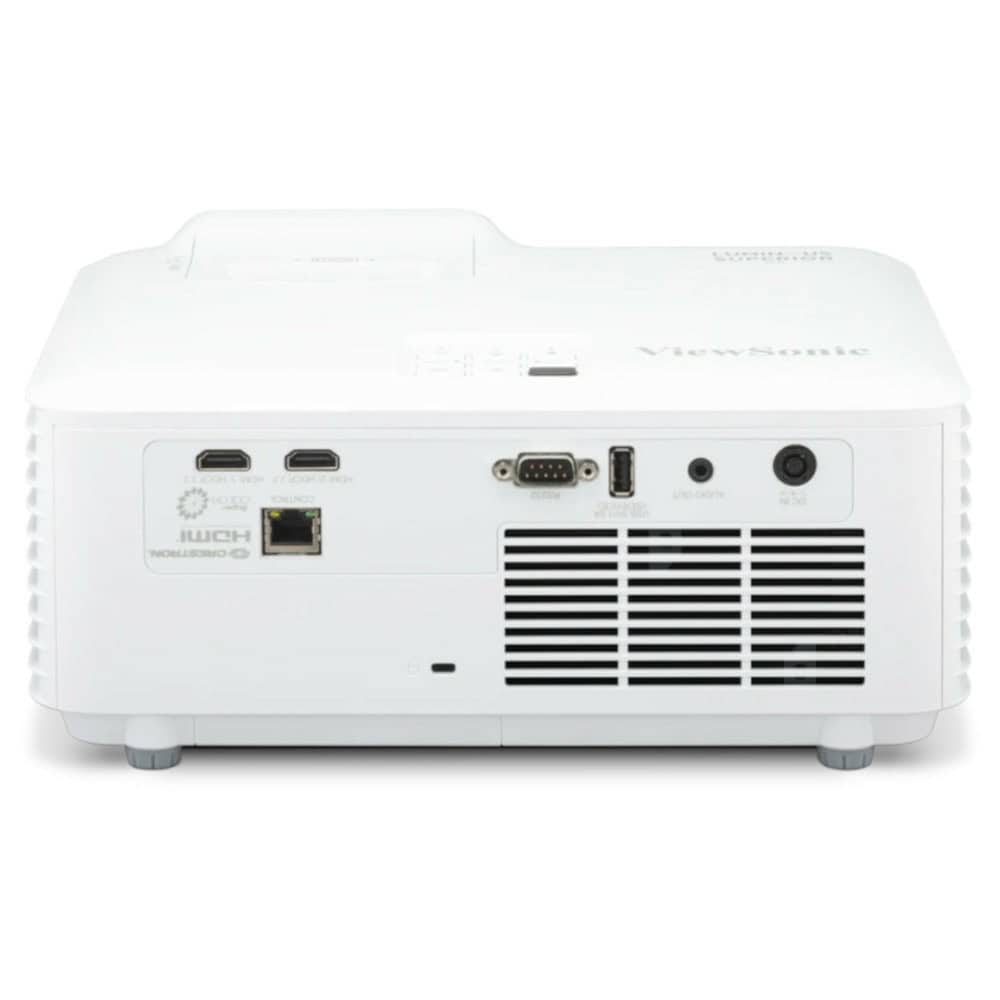

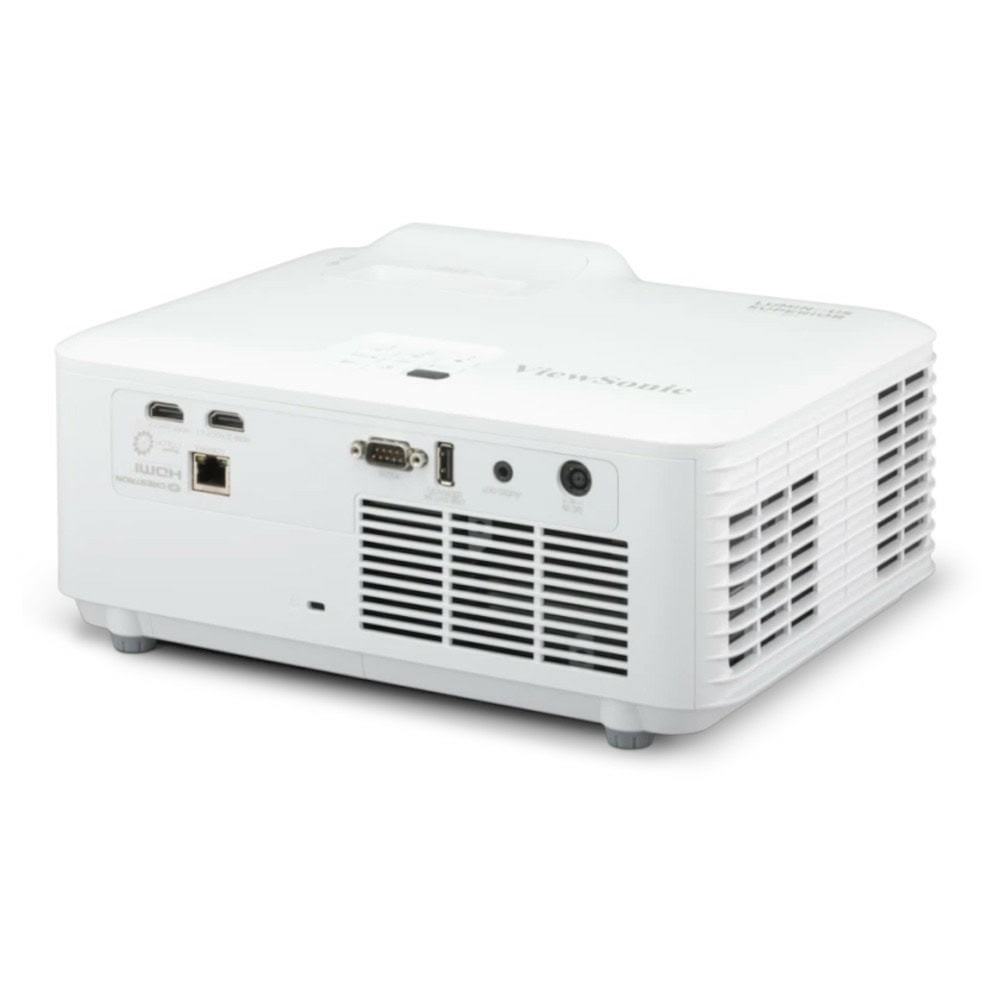

• Input

  HDMI: 2
  (HDMI 2.0, HDCP 2.2)


• Output

  Audio-out (3.5mm): 1
  Speaker: 15W
  USB Type A (Power): 1 (5V/ 1.5A)


• Control

  RS232 (DB 9-pin male): 1
  RJ45 (LAN control): 1
  USB Type A (Services): 1
  (share with USB A Output)


• Others

  Power Supply Voltage: Power adaptor:
  Input: 100~240V
  Output: 19.5VDC / 9.23A
  Power Consumption: Normal: 143W
  Standby: <0.5W
  Operating Temperature: 0~40℃
  Carton: Brown
  Net Weight: 3.00kg
  Gross Weight: 4.50kg
  Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm
  Packing Dimensions: 400x280x155mm
  OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages
  User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
