Проектор BenQ MH560C, DLP, Full HD (1920x1080), 15 000:1, 9120lm, HDMI, USB Mini-B, RS-232

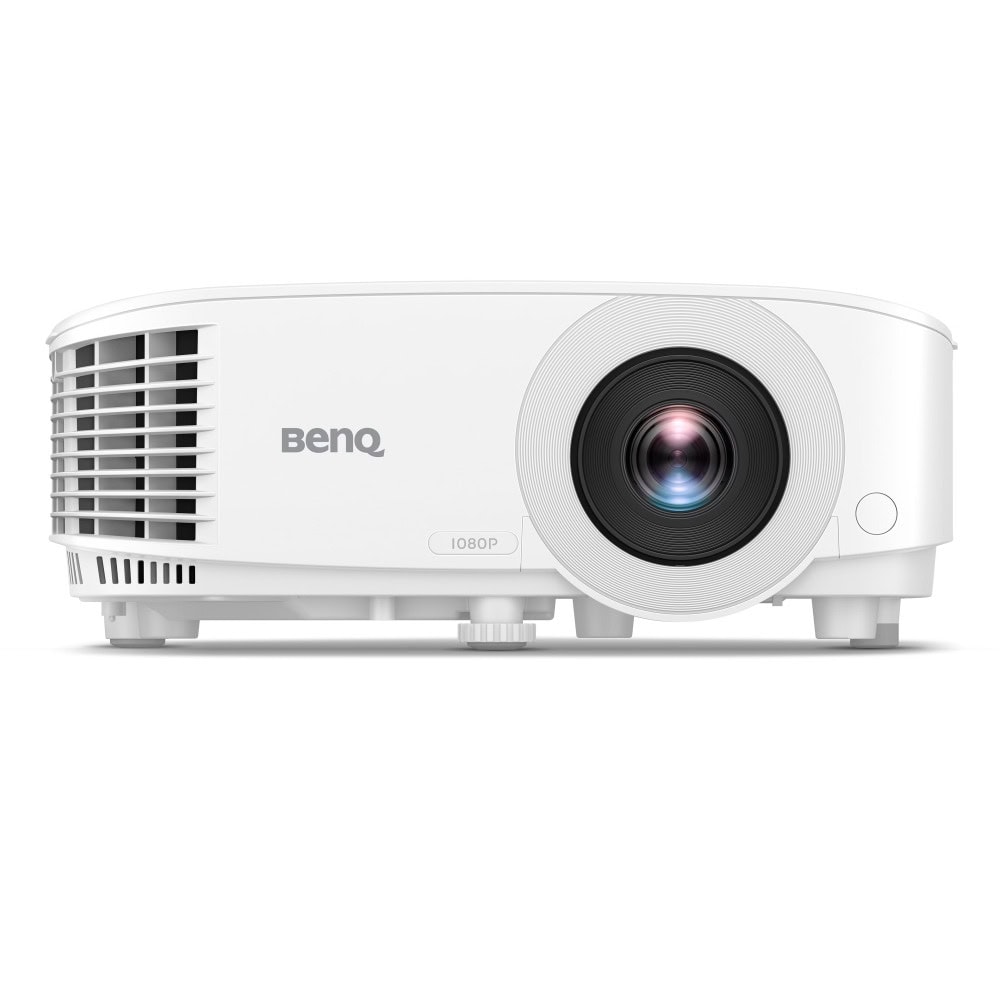

BenQ MH560C

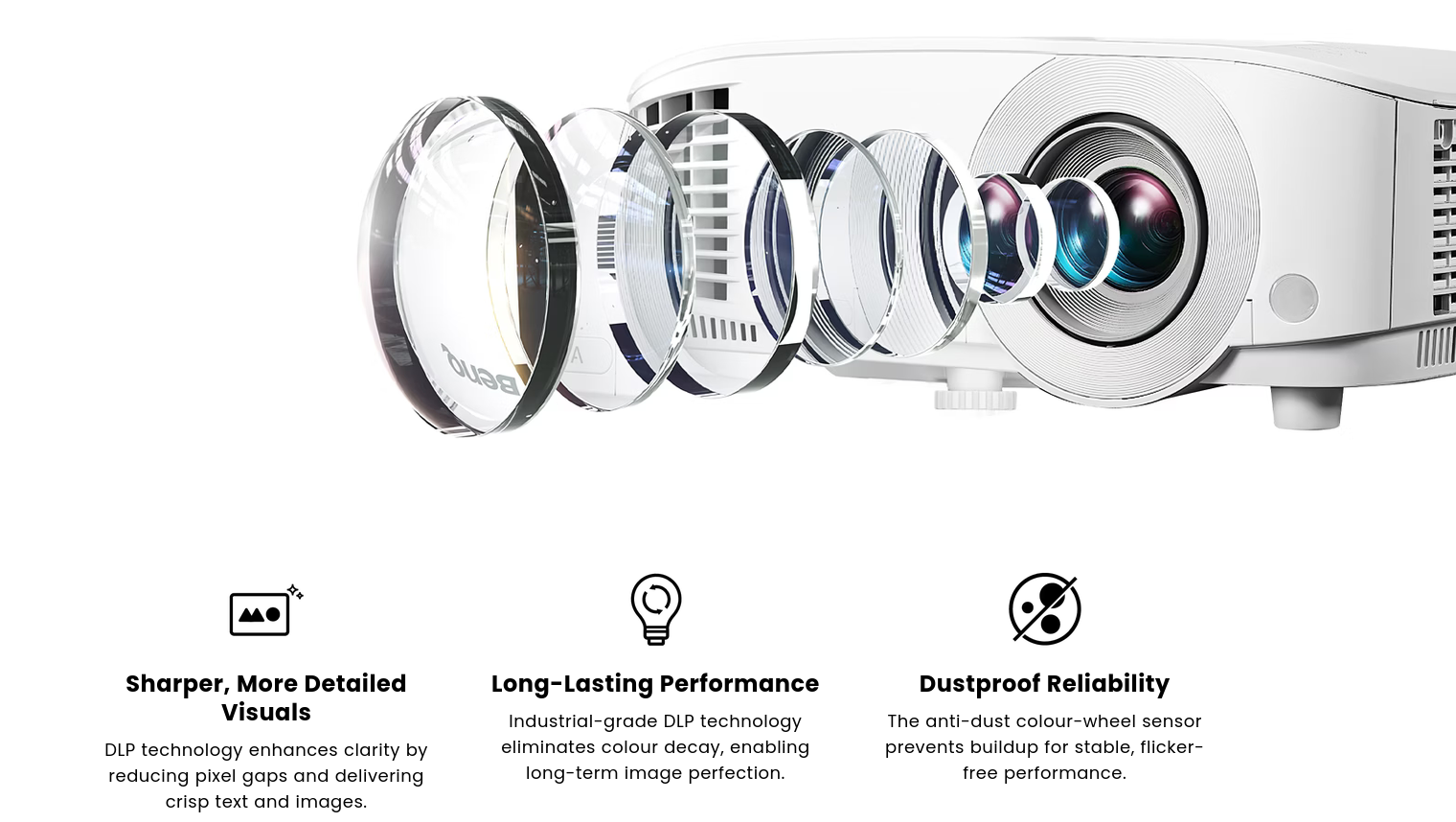

Precision Glass Optics for Crystal-Clear & Lasting Visuals

BenQ’s pure glass lenses minimise distortion and enhance image precision, ensuring every detail is displayed with stunning clarity and sharpness.

Precision Glass Optics for Crystal-Clear & Lasting Visuals

BenQ’s pure glass lenses minimise distortion and enhance image precision, ensuring every detail is displayed with stunning clarity and sharpness.

Specifications

Display

Brightness (ANSI lumens)

3800

Resolution

1080P (1920x1080)

Native Aspect Ratio

16:9

Contrast Ratio (FOFO)

15,000:1

Display Color

30-bit (1.07 billion colors)

Light Source

Lamp

Light Source Life

a. Normal 6000 hrs, c. SmartEco 10000 hrs, d. LampSave 15000 hrs, b. ECO 10000 hrs

Projection System

DLP

Optical

Throw Ratio

1.49~1.64

Zoom Ratio

1.1x

Lens

F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm

Projection Offset (Full-Height)

108%

Keystone Adjustment

1D, (Auto) Vertical ± 40 degrees


Rec. 709 Coverage

88%

Picture Modes

3D, Bright, Cinema, Game, Living Room, Sports, User 1, User 2

Compatibility

Input Lag

16.7 ms (1080P 60Hz)

Resolution Support

VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking

Horizontal Frequency

15K~102KHz

Vertical Scan Rate

24~120Hz

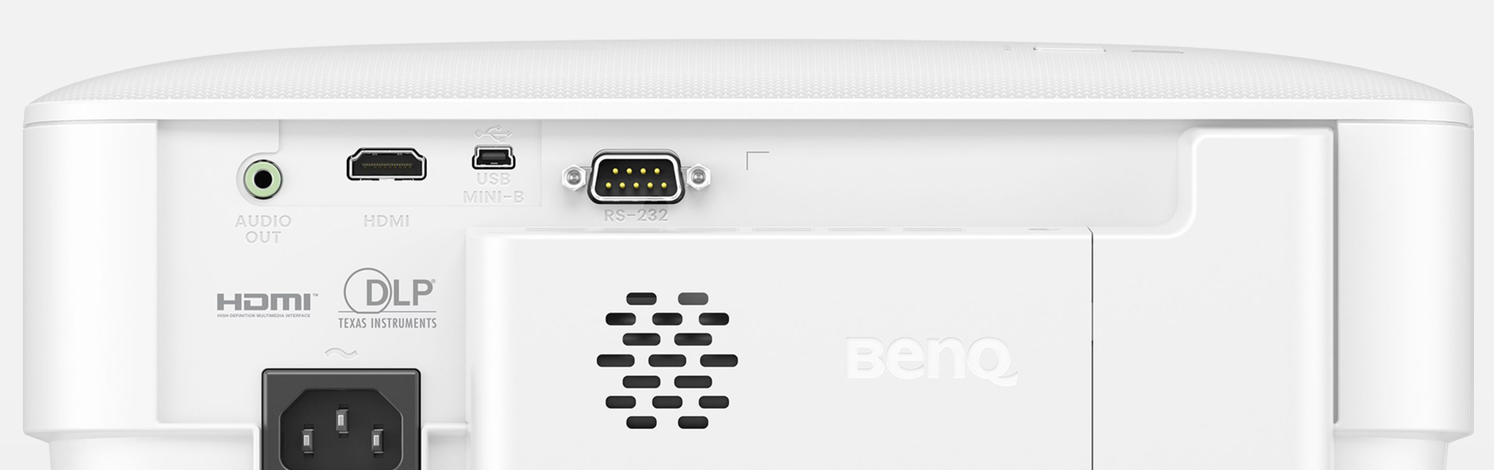

I/O Interface

HDMI in

HDMI-1 (1.4a/HDCP1.4)

USB Type Mini B

(x1)

RS232 in (DB-9pin)

(x1)

Audio

Speaker

10W

Audio out (3.5mm Mini Jack)

(x1)

Environment

Operating Temperature

0~40℃

Power Supply

AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V)

295W

Acoustic Noise (Typ./Eco.)(dB)

34/29

Dimension & Weight

Dimensions (WxHxD) (mm)

296*120*236.8 mm

Net Weight (kg)

2.3kg
