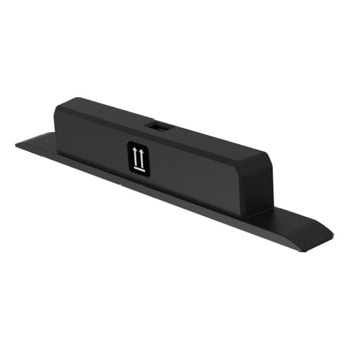

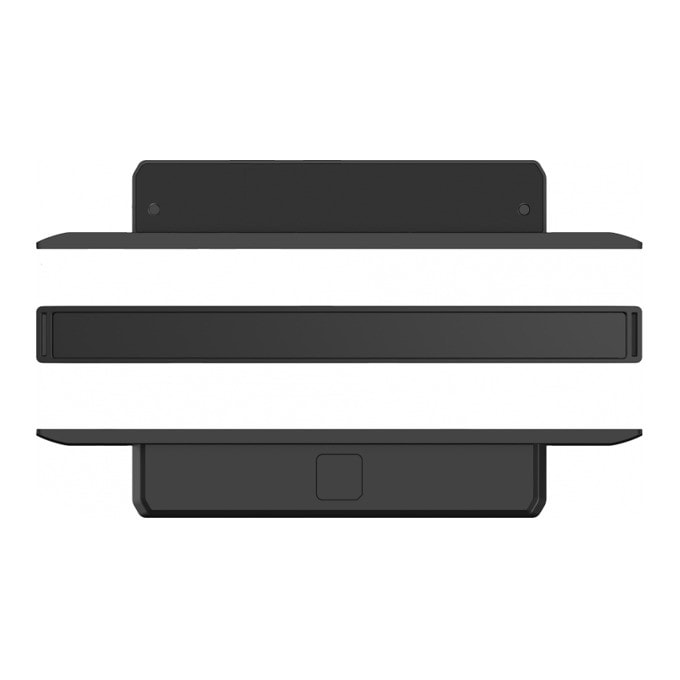

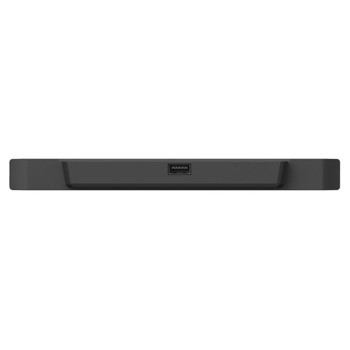

Wi-Fi модул ViewSonic VB-WIFI-004, за ViewSonic ViewBoard, Bluetooth v5.0, Wi-Fi 6

Faster Connections

An optional Wi-Fi module for the ViewBoards facilitates smooth lesson flow and drives a more interactive discussion in the classroom.

Dual Band Wireless Support​

Supported by both 2.4 GHz and 5 GHz dual-band wireless transmission, teachers can smoothly stream multimedia content such as videos and images without any delays and create higher student engagement. The 2.4 GHz connection travels farther at lower speeds, while 5 GHz frequencies provide faster speeds at a shorter range.

Specifications

Wifi-Standard

802.11 a/b/g/n/ac/ax


BT

Bluetooth: Support 2.1+EDR/3.0/4.2/5.0 BLE

Operating Frequency

2.4GHz & 5GHz

Power

Requirements: 5V DC
Consumption: ＜5W

Dimension

Physical: 208×30×20mm / 8.19x1.18x0.79 in
Packaging: 212×35×25mm / 8.35x1.38x0.98 in


WEIGHT

Net: 85g / 0.187lb


OPERATING CONDITION

Temperature: 32°F to 104°F (0°C to 40°C)
Humidity: 10% ~ 90% non-condensing

STORAGE / SHIPPING CONDITION

Temperature: -4°F to 140°F (-20°C to 60°C)
Humidity: 10% ~ 90% non-condensing

COMPLIANCE

CE(EMC-safety), CE-RED, WPC, LVD, RCM, FCC ID, IC ID
