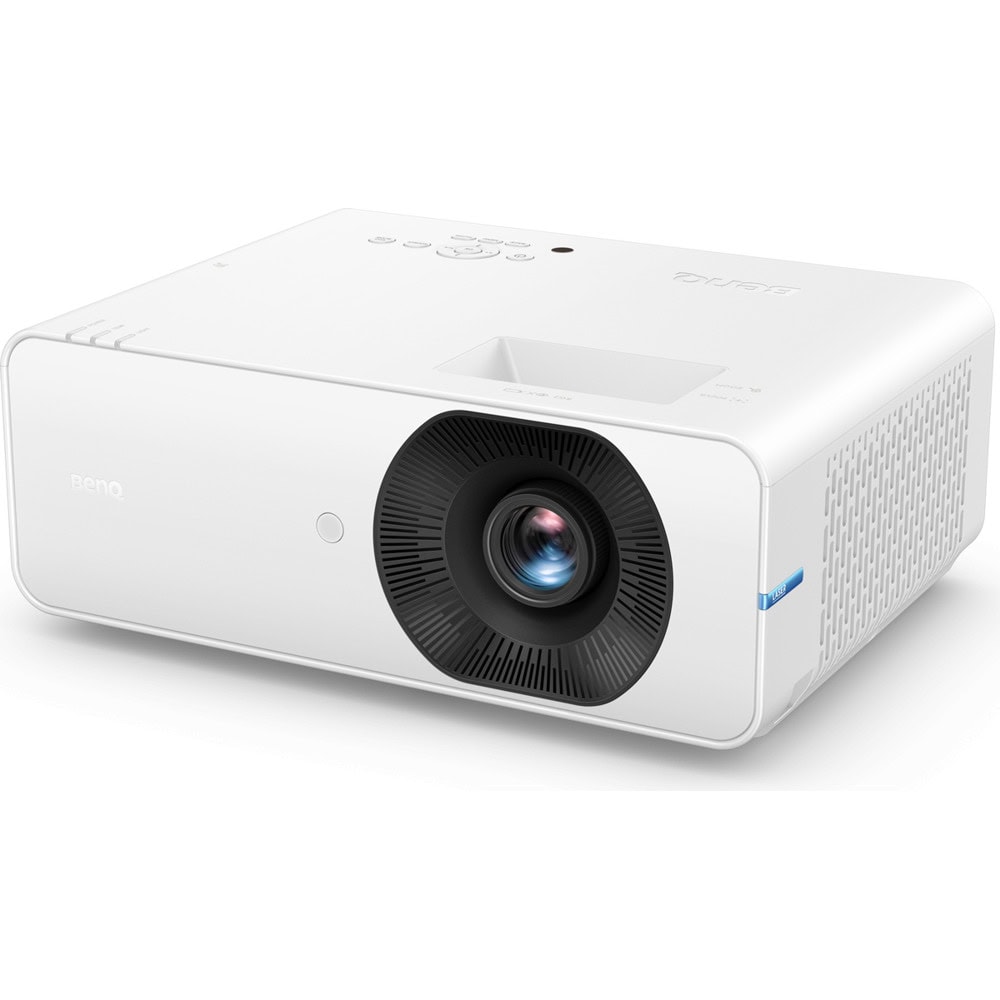

Проектор BenQ LH660, DLP, FHD (1920x1080), 3 000 000:1, 4600lm, HDMI, USB, LAN, RS232

LH660 4600AL 1080P Laser Meeting Room Projector

• RJ45 built-in enables seamless centralized network control
• 1.3x zoom delivers flexible projection across varied distances
• Optional QP30 enables easy wireless BYOD sharing

Always Connected, Always Up to Date

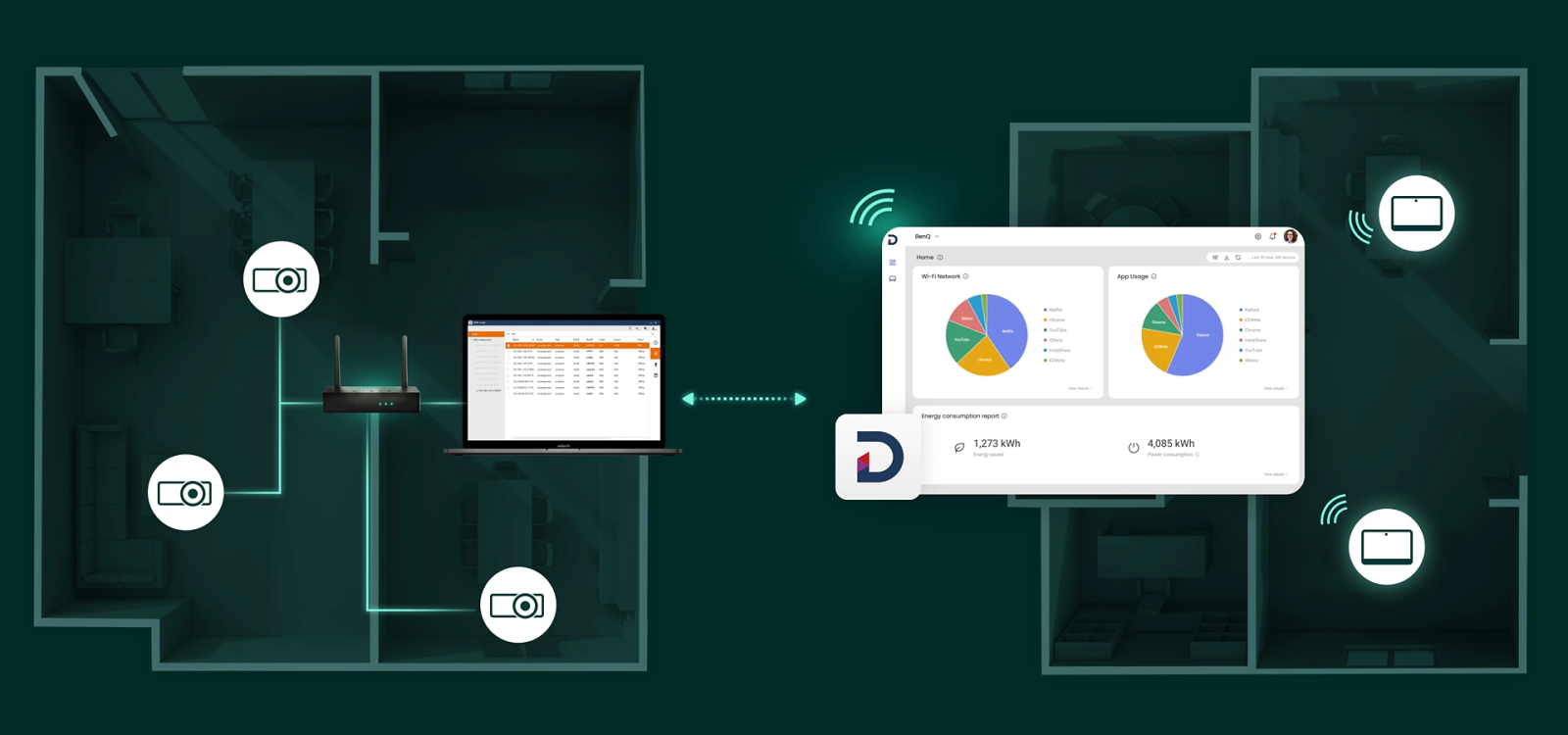

Manage Every BenQ Device with BenQ DMS

Monitor and manage all your BenQ devices through the BenQ Device Management System (DMS) software from your administration computer over your company LAN (DMS Local) — and stay connected even outside the office with the DMS App (DMS Cloud *). Gain complete visibility, centralized control, and seamless access from anywhere.

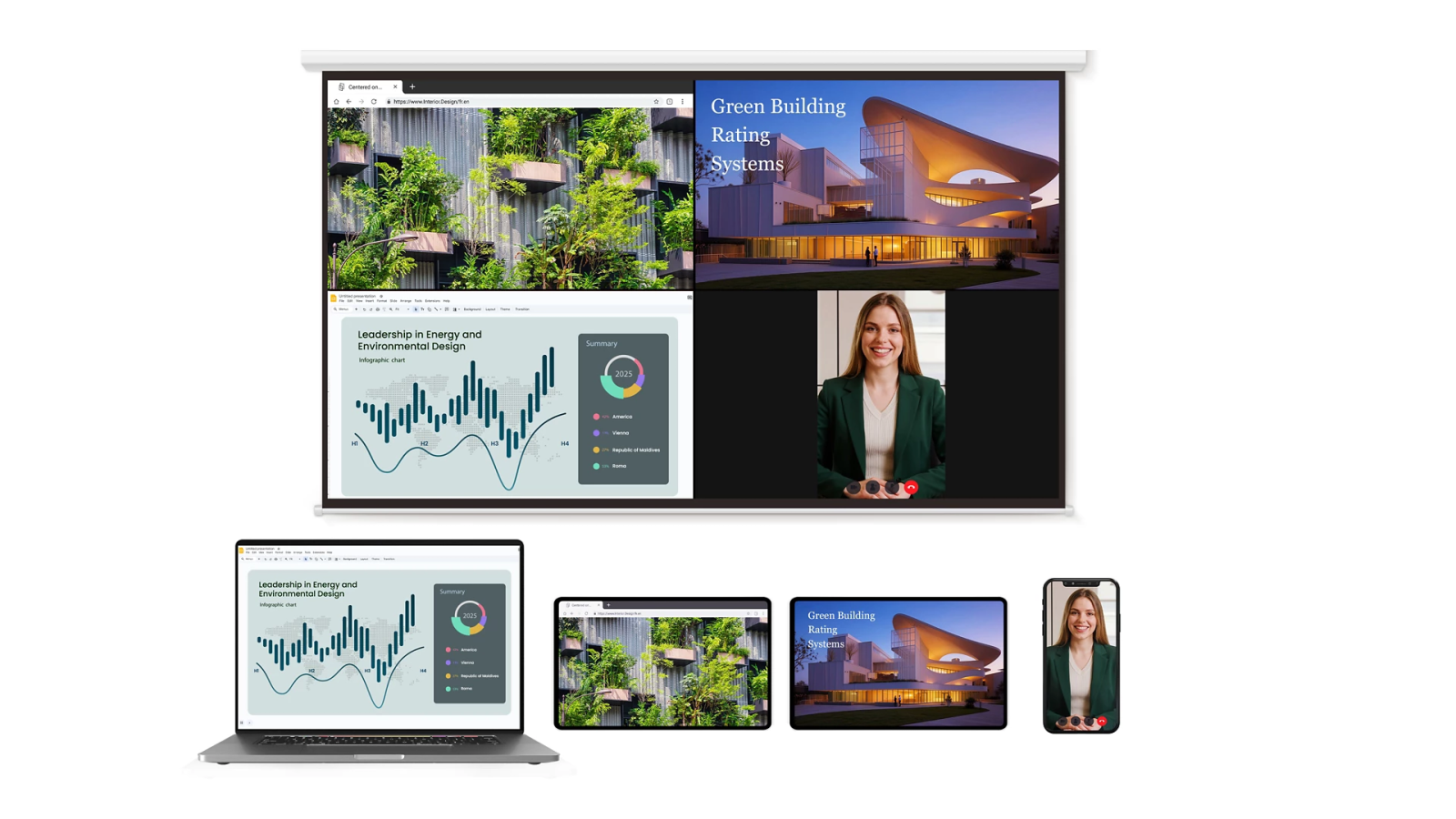

Casting Your Screen Wirelessly

Enjoy driver-free wireless casting with seamless support for iOS, Android, and Windows. Display up to Four devices at once with 4-way split screen for effortless collaboration.

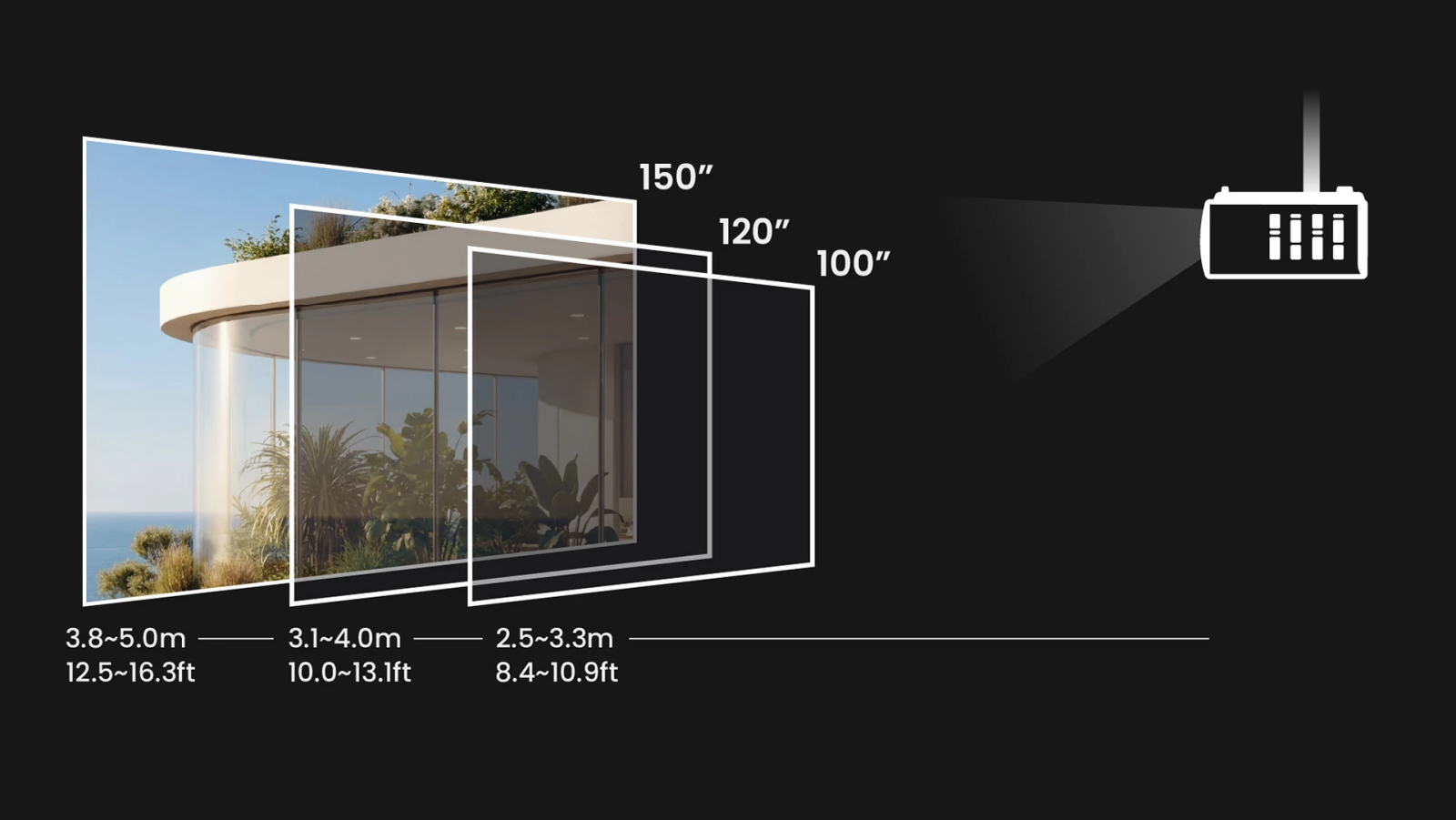

Projection Fits for Every Room

Project images larger than 100” from just 2 m~3 m away (via 1.3X zoom), enabling easy big-screen viewing in rooms of any size.

All Specifications

Display

Brightness (ANSI lumens)

4600

Resolution

1080P (1920x1080)

Native Aspect Ratio

16:9

Contrast Ratio (FOFO)

3,000,000:1

Display Color

30-bit (1.07 billion colors)

Light Source

Laser

Light Source Life

a. Normal 20000 hrs, b. ECO 30000 hrs

Optical

Throw Ratio

1.15~1.5

Zoom Ratio

1.3x

Lens

F = 2.59 ~ 2.87 f = 16.88~21.88 mm

Projection Offset (Full-Height)

105.75%

Keystone Adjustment

2D, (Auto) Vertical ± 40 degrees; Horizontal ± 40 degrees


Rec. 709 Coverage

93%

Picture Modes

DICOM Simulation, High Detail, 3D, Bright, Presentation, User, Video Conference, Vivid

Compatibility

Input Lag

16.7 ms (1080P 60Hz)

Resolution Support

VGA (640 x 480) to 4K UHD (3840 x 2160)

Horizontal Frequency

15K~155KHz

Vertical Scan Rate

23~120Hz

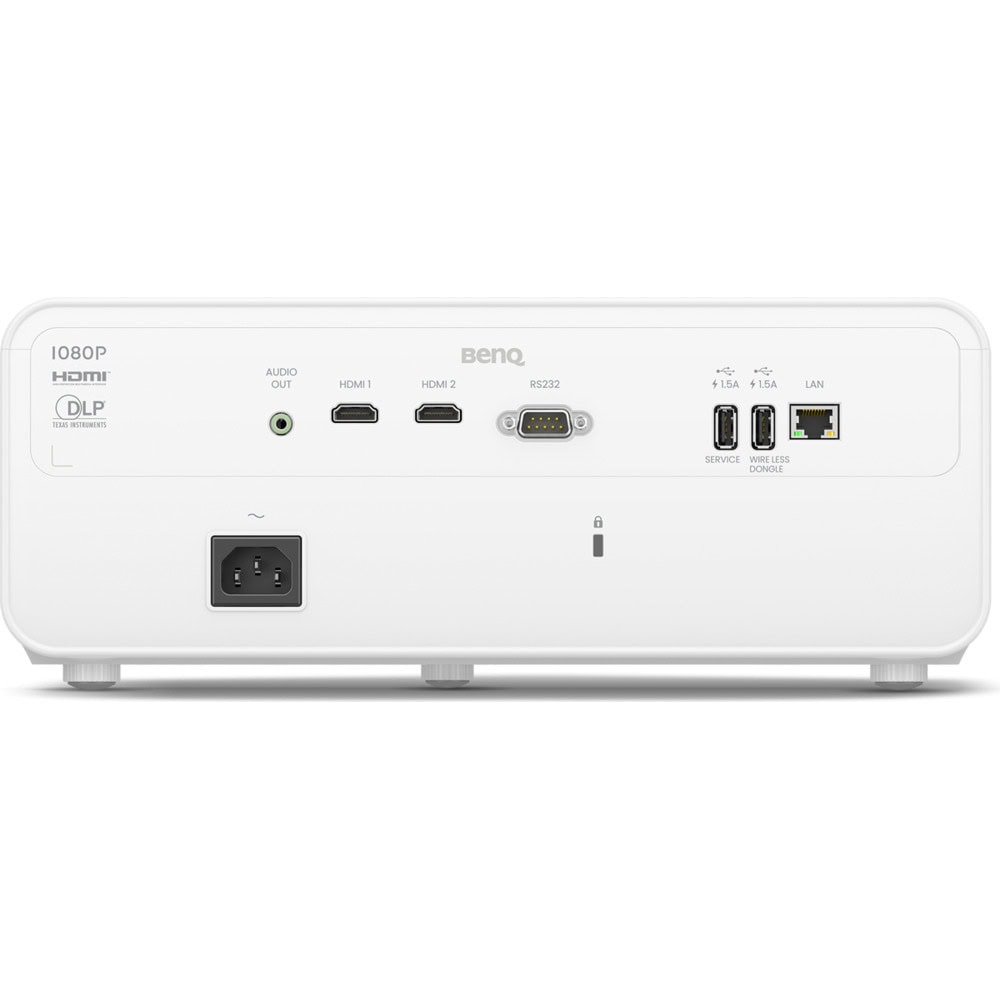

I/O Interface

HDMI in

(x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)

LAN (RJ45)

(x1)

USB Type A

USB Type A-1 (2.0/Power Supply 1.5A/FW Upgrade), USB Type A-2 (2.0/Power Supply 1.5A/Wireless Dongle), (x2)

RS232 in (DB-9pin)

(x1)

Audio

Speaker

15W

Audio in (3.5mm Mini Jack)

(x1)

Environment

Operating Temperature

0~40℃

Power Supply

AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V)

310W

Stand-by Power Consumption

<0.5W

Network Stand-by Power Consumption

<2W

Acoustic Noise (Typ./Eco.)(dB)

34/29

Accessories

Wireless USB dongle

EZC-5201BS (Wi-Fi/BT), (Optional)

Remote Control w/ Battery

RCA011

Power Cord (by region)

x1 (1.8M)

Quick Start Guide

(x1) 21L

Warranty Card (by region)

Yes

Battery

Yes, 8000 mAh Li-ion Battery

Universal Ceiling Mount

CM00G3, (Optional)

Dimension & Weight

Dimensions (WxHxD) (mm)

343.8 x 136 x 256

Net Weight (kg)

4.5 Kg +/- 100g

Projection System

DLP
