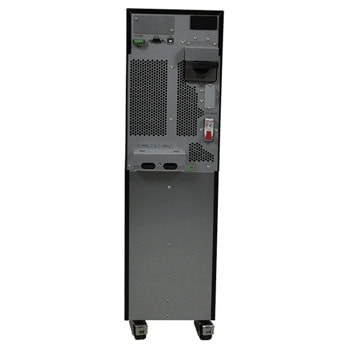

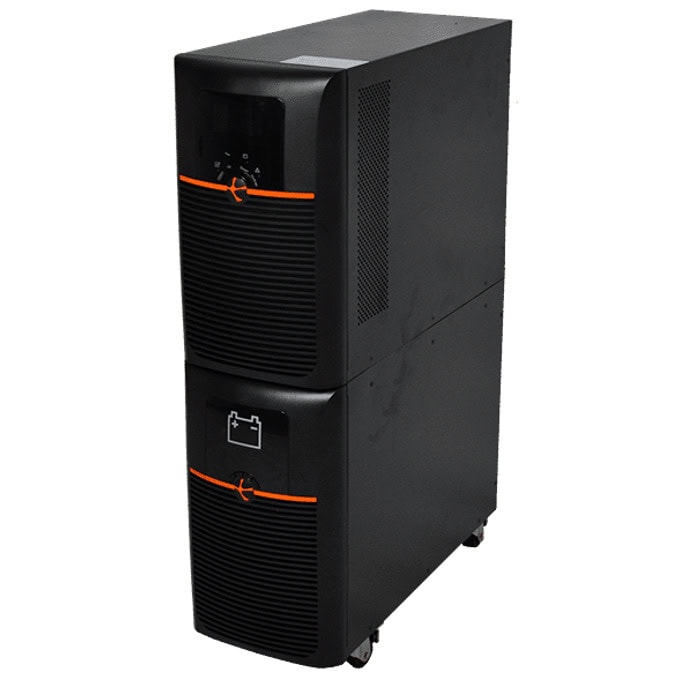

Name: UPS Tunchmatik PowerUP ONE 10 kVA, 10000VA/10000W, On-Line, Tower
Brand: Tuncmatik
SKU: UPSTUNCMATIKTSK10095
Price: 2601.13 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

PowerUP ONE 10 kVA

True double conversion online technology

Online UPSs are the most suitable choice, especially for computers and other sensitive devices. These types of UPSs completely isolate your sensitive devices from the network, charge their batteries with electricity from the network, and feed your connected sensitive devices with the help of various filters. As a result, all unwanted situations that may occur in the network are filtered by the online UPS and your sensitive devices are fed with clean energy.

Specification	Details
Phase	One phase + Neutral + Earth
Rated Voltage	220 / 230 / 240 Vac
Voltage Range	120 ~ 276 Vac
Frequency Range	50 Hz (45–55 Hz) / 60 Hz (54–66 Hz), automatic selection
Current (THDi)	≤3% (linear load); ≤5% (non-linear load)
Bypass Voltage Range	220Vac: +25% max (optional +10%, +15%, +20%)230Vac: +20% max (optional +10%, +15%)240Vac: +15% max (optional +10%)Minimum voltage: −45% (optional −20%, −30%)Bypass frequency range: ±1%, ±2%, ±4%, ±5%, ±10%
Power Factor	>0.99 (input THDv ≤1%)
Phase	One phase + Neutral + Earth
Rated Voltage	220 / 230 / 240 Vac
Power Factor	0.9
Voltage Regulation	±1.0%
Frequency	Normal mode: same as mainsBattery mode: 50 / 60 Hz ±0.1%
Crest Factor	3:1
THD	≤2% (linear load); ≤5% (non-linear load)
Efficiency	<92%
Type & Quantity	12V 9Ah × 16
Charging Current	1.0 A
Transfer Time	Mains → Battery: 0 msMains → Bypass: 0 ms
Overload (AC Mode)	60 min @ 105–110% load10 min @ 110–125% load1 min @ 125–150% load>200 ms @ 150% load
Overload (Battery Mode)	10 min @ 105–110% load1 min @ 110–125% load>200 ms @ 125% load
Overload (Bypass Mode)	63A fuse
Over Temperature	Alarm
Battery Low	Alarm and shutdown
Test	Via software
EPO	UPS shuts down immediately
Battery Management	Smart battery management
Dimensions (D × W × H)	460 × 191 × 720 mm
Weight	121 kg
Status LED & LCD	Mains mode, Bypass mode, Battery low, Battery faulty, Overload, Fault
LCD Panel	Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Battery temperature
Voice & Display Alarm	Mains error, Battery low, Overload, System error
Operating Temperature	0°C ~ 40°C
Humidity	0–95% non-condensing
Altitude	<1500 m
Noise Level	<55 dB @ 1 meter
Interfaces	USB, RS232, SNMP card (optional)
