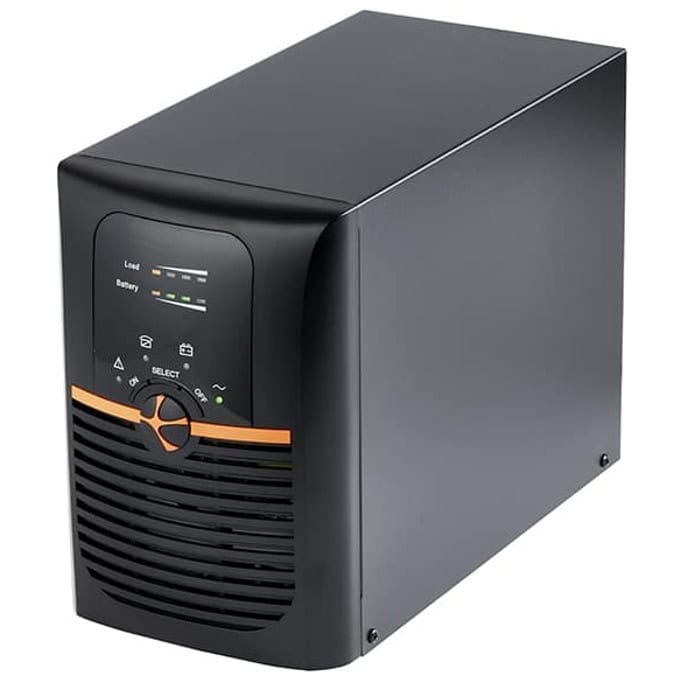

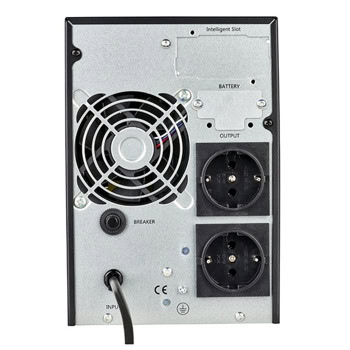

Name: UPS Tunchmatik Newtech PRO3 ONE LED 1 kVA, 1000VA/1000W, On-Line, Tower
Brand: Tuncmatik
SKU: UPSTUNCMATIKTSK10091
Price: 479.52 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

Newtech PRO3 ONE LED 1 kVA

True double conversion online technology

Online UPSs are the most suitable choice, especially for computers and other sensitive devices. These types of UPSs completely isolate your sensitive devices from the network, charge their batteries with electricity from the network, and feed your connected sensitive devices with the help of various filters. As a result, all unwanted situations that may occur in the network are filtered by the online UPS and your sensitive devices are fed with clean energy.

Specification	Details
Phase	Single phase and earth
Rated Voltage	200 / 208 / 220 / 230 / 240 VAC
Low Voltage Transfer	160Vac ±5% @100–80% load; 140Vac ±5% @80–70%; 120Vac ±5% @70–60%; 110Vac ±5% @60–0% load (<35℃)
Low Voltage Correction	175Vac ±5% @100–80%; 155Vac ±5% @80–70%; 135Vac ±5% @70–60%; 125Vac ±5% @60–0% load (<35℃)
High Voltage Transfer	145 or 300Vac ±5%
High Voltage Correction	140 or 290Vac ±5%
Frequency Range	40–70 Hz
Input Power Factor	0.990 @100% load (rated input voltage)
Bypass Voltage Range	High: adjustable 230–264Vac (factory 264Vac); Low: adjustable 170–220Vac (factory 170Vac)
Generator Compatible	Yes
Output Voltage	200 / 208 / 220 / 230 / 240 Vac
Output Power Factor	1
Frequency	Network Mode: 47–53Hz or 57–63Hz; Battery Mode: 50/60 ±0.1Hz
Crest Factor	3:1
Harmonic Distortion (THDv)	≤3% (linear load); ≤6% (non-linear load)
Waveform	Pure sine wave
Transfer Time	AC ↔ Battery: 0 ms; Inverter ↔ Bypass: 4 ms (typ.)
Efficiency	>88% (AC mode); >83% (DC mode)
Battery Type	12V 7Ah
External Battery Type	Depends on external battery capacity
Number of Batteries	2
External Battery Quantity	2
Backup Time	Depends on battery capacity
Typical Charging Time	4 hours to 90% capacity
Charging Voltage	27.4 VDC ±1%
Charging Voltage (External)	27.4 VDC ±1%
Charging Current	1A
Charging Current (External)	12A
Overload Protection	Network & Battery Mode (<35℃): 105–110% → bypass after 10 min; 110–130% → bypass after 1 min; >130% → bypass after 3 sec. 35–40℃: 105–110% → bypass after 1 min; >110% → bypass after 3 sec
Bypass Mode Protection	8A (input fuse)
Short Circuit	Output cut off
Over Temperature	Network Mode: transfer to bypass; Battery Mode: UPS shuts down
Low Battery	Alarm sounds, UPS shuts down
Operating Temperature	0℃ ~ 40℃
Storage Temperature	-25℃ ~ 55℃
Humidity	20–90% RH @ 0–40℃ (non-condensing)
Altitude	< 1500 m
Noise Level	< 50 dBA @ 1 meter
Dimensions (DxWxH)	293 × 144 × 209 mm (Standard / External Battery Model)
Weight	8.9 kg / 4.2 kg (External Battery Model)
