InSight S455

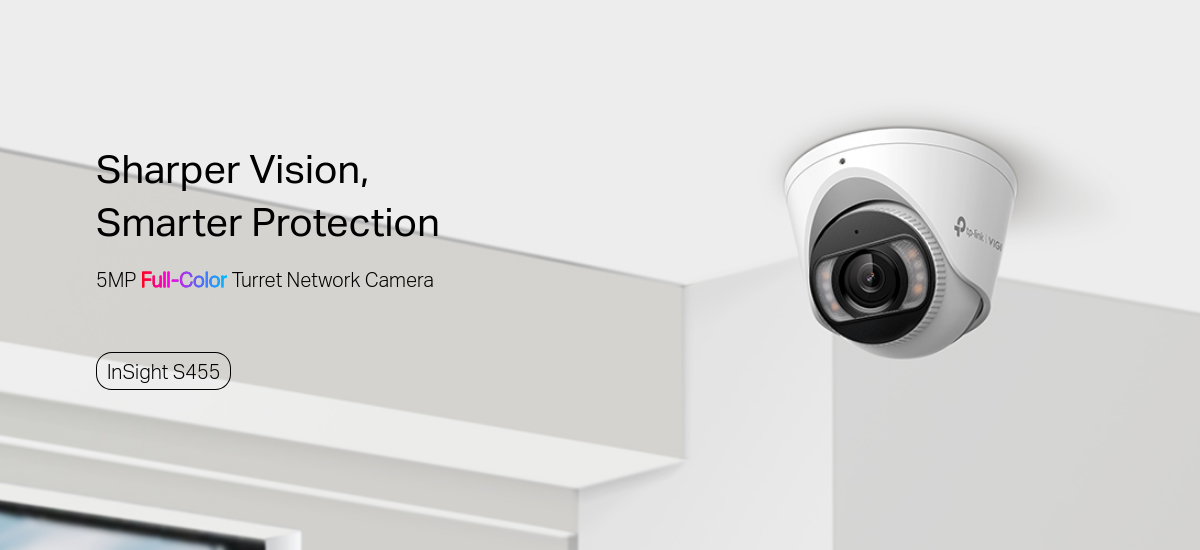

VIGI 5MP Full-Color Turret Network Camera
- 5MP Super-High Definition and 24h Full-Color
- People & Vehicle Analytics§
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
| Category | Specification |
|---|---|
| Камера | |
| Светлочувствителен сензор | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| FOV (2.8 mm) | Horizontal: 111.4°, Vertical: 58.8°, Diagonal: 134° |
| Lens Mount | M12*P 0.5 |
| DORI Distance (2.8 mm) | Detect: 64 m, Observe: 27 m, Recognize: 13 m, Identify: 6 m |
| Angle Adjustment (Manual) | Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360° |
| ILLUMINATOR | |
| IR LED | 4 pcs, 30 m range, 850 nm |
| White LED | 4 pcs, 30 m range |
| Illuminator Control | Auto / Scheduled / Always on / Always off |
| VIDEO | |
| Max. Resolution | 2880 x 1620 |
| Main Stream Frame Rate | 50Hz: 1–25fps; 60Hz: 1–30fps |
| Main Stream Resolution | 2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
| Sub-Stream Frame Rate | 50Hz: 1–25fps; 60Hz: 1–30fps |
| Sub-Stream Resolution | 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 |
| Note | With image rotation (90°/270°): max 20fps |
| Bit Rate Control | CBR, VBR |
| Видео компресия | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264 |
| H.264 Type | High Profile |
| H.265 Type | Main Profile |
| H.264+ / H.265+ | Main Stream Supported |
| Video Bit Rate | Main: 256 Kbps–6 Mbps; Sub: 64 Kbps–512 Kbps |
| Image | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, IR Overexposure Prevention, HLC |
| Image Enhancement | BLC, 3D DNR, HLC, SmartIR |
| Wide Dynamic Range | 120 dB (DWDR only with analytics) |
| SNR | ≥ 52 dB |
| Image Parameter Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| АУДИО | |
| Аудио комуникация | Two-Way Audio |
| Аудио вход / изход | Yes / Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| МРЕЖА | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/IPv6, ARP |
| ONVIF | Yes |
| API | ONVIF Profile S/T/G |
| Simultaneous Streams | 3 Main + 3 Sub |
| Client Software | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Browser Compatibility | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud Support | Yes |
| Security | Password, HTTPS, IP Filter, Digest Auth |
| АЛАРМИ И СЪБИТИЯ | |
| Smart Events | Intrusion, Line Crossing, Region Enter/Exit, Object Abandon/Removal, Loitering, People/Vehicle Detection, Abnormal Sound, Scene Change |
| Basic Events | Motion (Human/Vehicle Enhanced), Tampering, Exception (Illegal Login) |
| Alarm Linkage | SD Recording, Push Message, Audible Warning, White Light Flash |
| Deep Learning | People & Vehicle Analytics – Search by attributes |
| ИНТЕРФЕЙСИ | |
| Network | 1x RJ45 10/100M Ethernet Port (PoE) |
| Alarm | N/A |
| Reset Button | Yes |
| Power Port | DC |
| On-board Storage | MicroSD Slot (up to 512 GB) |
| Built-in Mic / Speaker | Yes / Yes (15-ft range) |
| Audio | N/A |
| ОБЩИ ХАРАКТЕРИСТИКИ | |
| Operating Temp | -30–60°C |
| Storage Temp | -40–60°C |
| Humidity (Op/Storage) | ≤95% (Non-condensing) |
| Material | Metal |
| Net Weight | 0.48 kg |
| Power Supply | 12V DC ± 5% (11W), PoE 802.3af/at Class 0 (12W) |
| Protection | IP67 |
| Dimensions (L×W×H) | 111 × 111 × 83.7 mm (4.4 × 4.4 × 3.3 in) |
Виж още Цифрови IP камери TP-Link
Виж всички Цифрови IP камери в категорията
Технически характеристики
| Вид: | Куполни камери |
|---|---|
| Резолюция: | QHD |
| Аудио: | Двупосочно |
| Безжична: | Не |
| Външен монтаж: | Да |
| IR Осветление: | Да |
