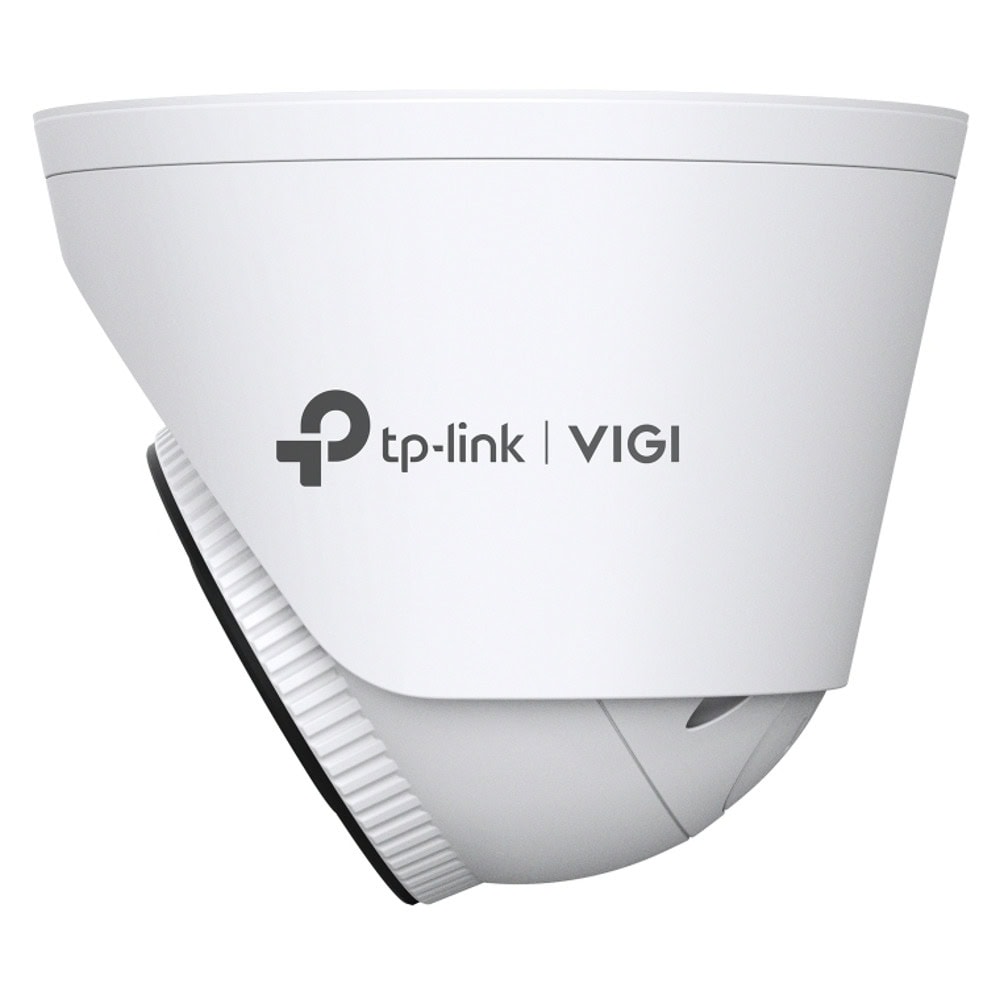

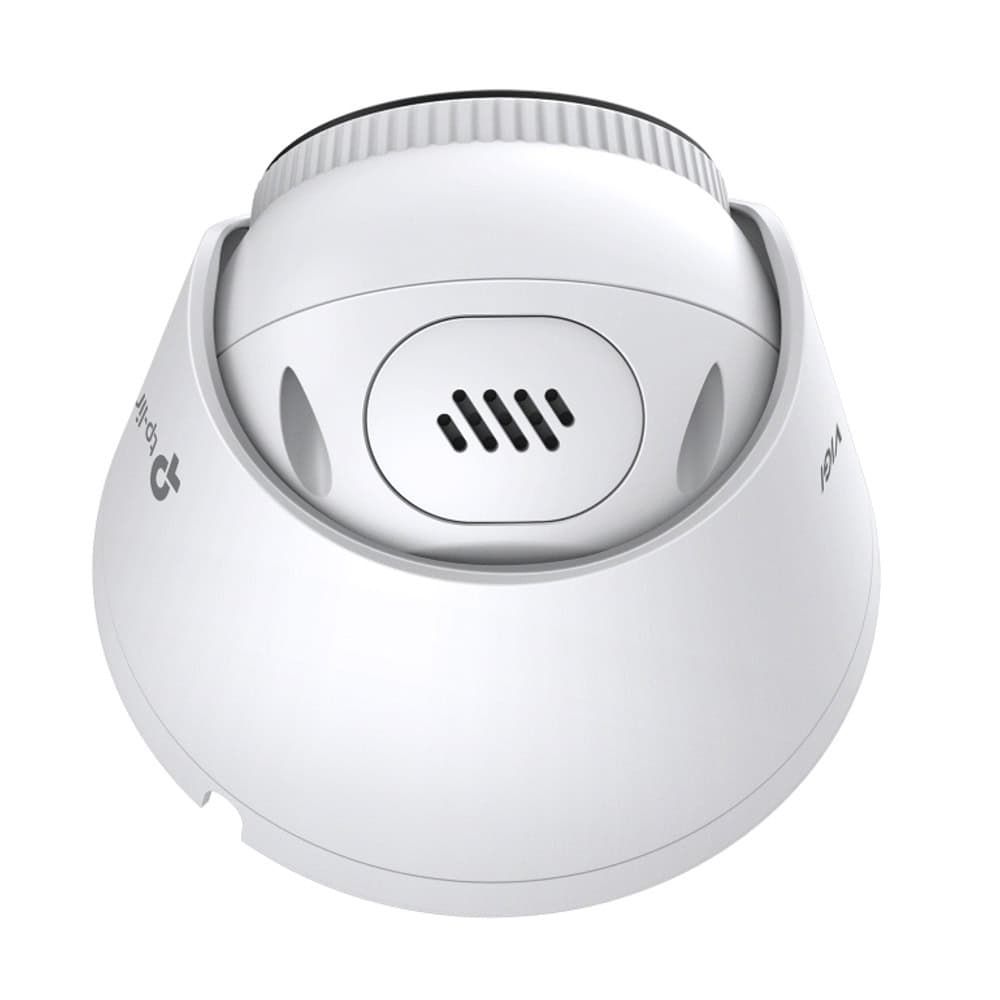

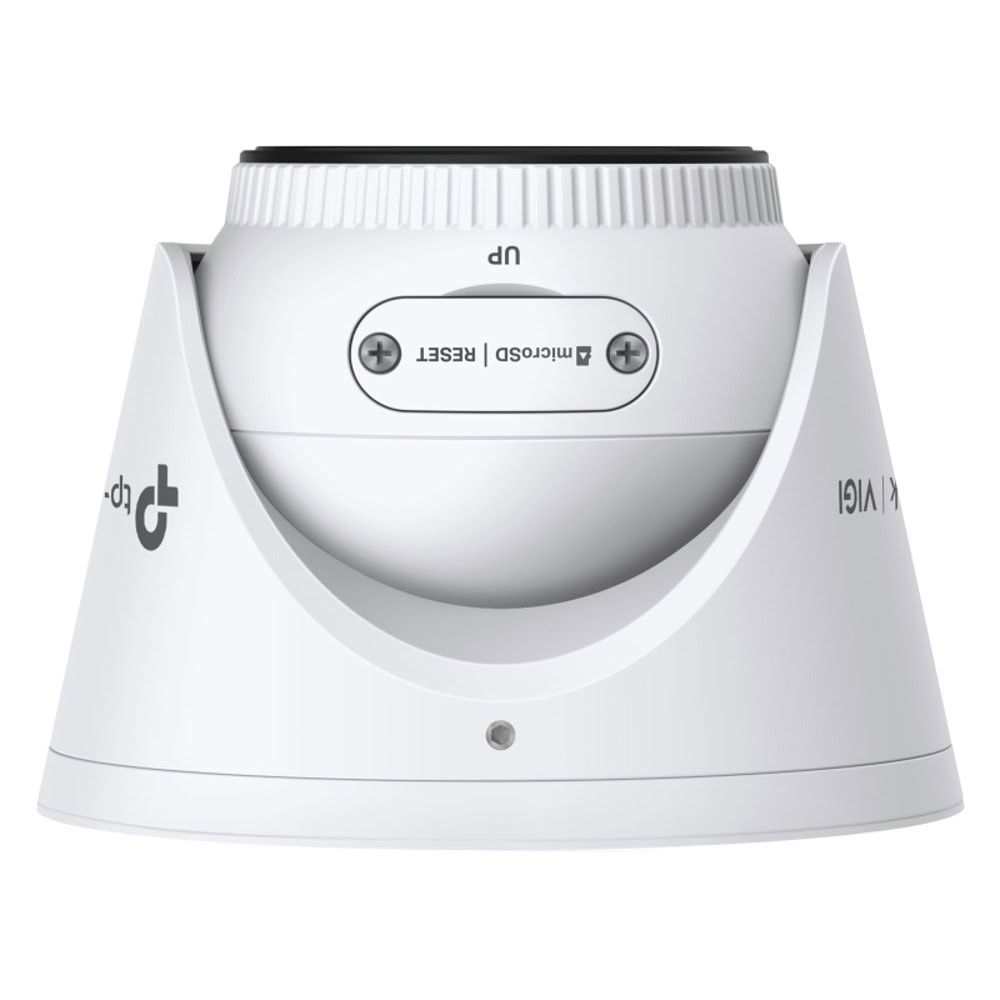

TP-Link VIGI InSight S445
- 4MP Super-High Definition and 24h Full-Color
- People & Vehicle Analytics§
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
Surveillance Camera Specifications
| Category | Specification |
|---|---|
| Camera | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | 4 mm: Horizontal 80.4°, Vertical 41.8°, Diagonal 98.7° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | 4 mm: Detect 80 m, Observe 33 m, Recognize 16 m, Identify 8 m |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360° |
| Illuminator | |
| IR LED | 4 LEDs, 30 m Range, 850 nm Wavelength |
| White LED | 4 LEDs, 30 m Range |
| Illuminator Control | Auto / Scheduled / Always On / Always Off |
| Video | |
| Max Resolution | 2688 x 1520 |
| Main Stream | Frame Rate (50Hz): 1–25 fps Frame Rate (60Hz): 1–30 fps Resolutions: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
| Sub-Stream | Frame Rate (50Hz/60Hz): 1–30 fps Resolutions: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 |
| Note | Frame rate limited to 20fps at 90° or 270° rotation |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | Main: 256 Kbps – 6 MbpsSub: 64 Kbps – 512 Kbps |
| Image | |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Overexposure Prevention, HLC |
| Image Enhancement | BLC, 3D DNR, HLC, SmartIR |
| Wide Dynamic Range | 120 dB (DWDR only when People/Vehicle Analytics enabled) |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio | |
| Audio Communication | Two-Way Audio |
| Audio Input / Output | Yes / Yes |
| Audio Compression | Yes |
| Sampling Rate | 8 KHz |
| Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Network | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/IPv6, ARP |
| ONVIF | Yes (Profile S/T/G) |
| Simultaneous Streams | 3 Main + 3 Sub |
| Client Support | VIGI App, Security Manager, Web UI, VMS, Cloud VMS |
| Browsers | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud Support | Yes |
| Security | Password Protection, HTTPS, IP Filter, Digest Authentication |
| Alarms & Events | |
| Smart Events | Intrusion, Line-Crossing, Region Entering/Exiting, Object Abandoned/Removed, Loitering, People/Vehicle Detection, Abnormal Sound, Scene Change |
| Basic Events | Motion Detection (with Human/Vehicle Classification), Video Tampering, Illegal Login |
| Alarm Linkage | Memory Card Recording, Push Notification, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| AI Features | |
| People & Vehicle Analytics | Attribute-based search for faster post-event investigation |
| Interfaces | |
| Network Port | 1 x RJ45 (10/100M, PoE) |
| Reset Button | Yes |
| Power Interface | DC Port |
| On-board Storage | MicroSD up to 512 GB |
| Built-in Mic / Speaker | Yes / Yes (15-ft voice pickup radius) |
| General | |
| Operating Temp | -30°C to 60°C |
| Storage Temp | -40°C to 60°C |
| Operating / Storage Humidity | ≤ 95% (Non-Condensing) |
| Materials | Metal |
| Net Weight | 0.48 kg |
| Dimensions | 111 × 111 × 83.7 mm (4.4 × 4.4 × 3.3 in) |
| Power Supply | 12V DC ±5%, Max. 11 WPoE (802.3af/at), Max. 12 W |
| Protection | IP67 |
Виж още Цифрови IP камери TP-Link
Виж всички Цифрови IP камери в категорията
Технически характеристики
| Вид: | Куполни камери |
|---|---|
| Резолюция: | QHD |
| Аудио: | Микрофон |
| Безжична: | Не |
| Външен монтаж: | Да |
| IR Осветление: | Да |
