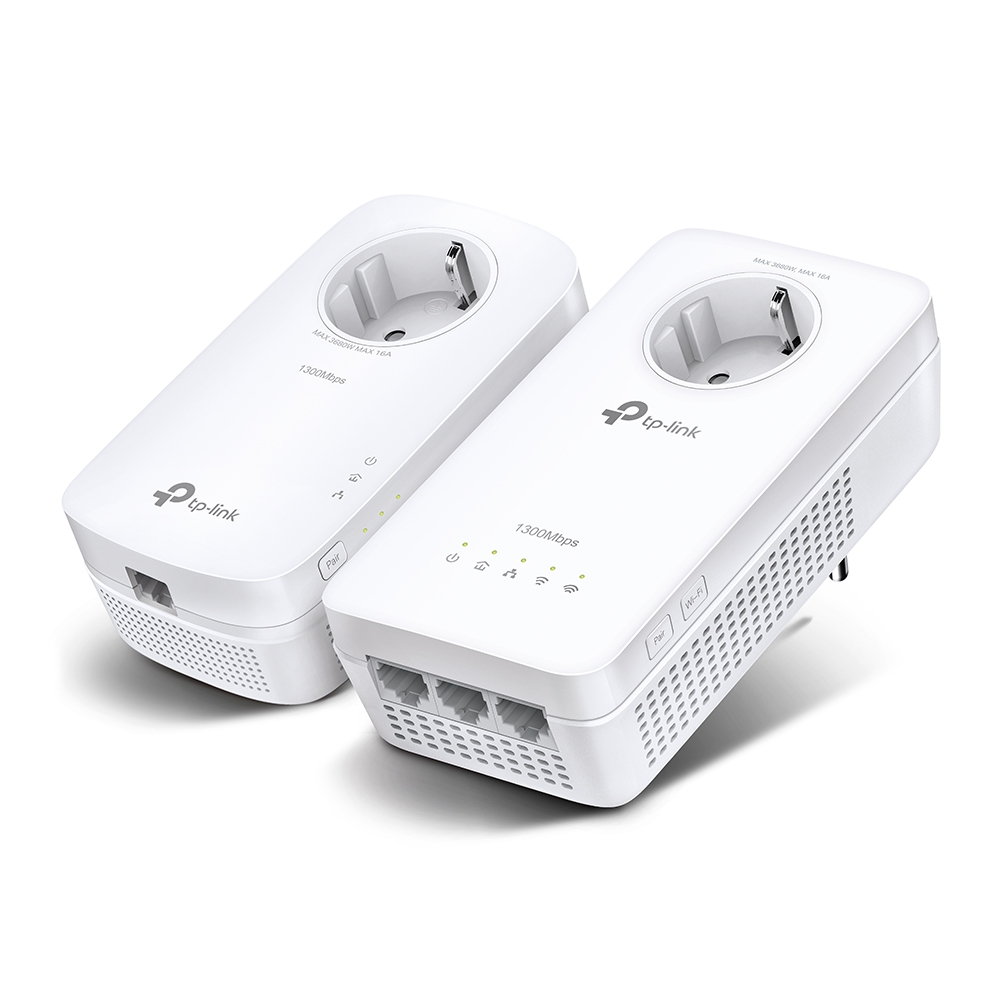

AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit
- HomePlug AV2 Standard - Provides ultra-fast powerline transfer speeds of up to 1300 Mbps*
- AC1200 Dual-Band Wi-Fi - Extends ultra-fast dual-band Wi-Fi with speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz*
- OneMeshTM - Works with your OneMeshTM router to form a unified mesh network for seamless streaming while moving around your home
- 2 × 2 MIMO - Establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability
- One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network
- Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
- Plug and Play - Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes
- Extra Power Socket - Get power from the outlet for your other devices with the integrated power socket
- 3 × Gigabit Ports - Provide secure wired networks for desktops, smart TVs or games consoles
Specifications:
| HARDWARE FEATURES | |
|---|---|
| SOFTWARE FEATURES | |
| OTHERS | |
| Plug Type | EU |
| Standards and Protocols | HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4 GHz), IEEE 802.11a/n/ac (5 GHz) |
| Interface | 3 Gigabit Ethernet Ports, 1 Power Socket |
| Button | Pair, LED On/Off, Wi-Fi, Reset |
| Power Consumption | TL-WPA8631P: Maximum: 13.7W, Typical: 11W TL-PA8010P: Maximum: 4.9W, Typical: 4.6W |
| LED Indicator | Power, Powerline, Ethernet, Wi-Fi (2.4 GHz), Wi-Fi (5 GHz) |
| Dimensions ( W x D x H ) | TL-WPA8631P: 3.0 × 1.7 × 6.0 in. (75 × 42 × 152 mm) TL-PA8010P: 2.8 × 1.7 × 5.2 in. (72 × 42 × 131 mm) |
| Range | Up to 300 meters/1000 feet over existing electrical wiring* |
| Compatibility | Compatible with all HomePlug AV & HomePlug AV2 standard powerline adapters* |
| Transmission Speeds | Powerline: up to 1300 Mbps Ethernet: 10/100/1000 Mbps |
| Security | Wireless: WPA-PSK/WPA2-PSK, WEP Encryptions, Powerline: 128-bit AES Encryption |
| Management | TP-Link tpPLC App, or download new tpPLC Utility on PCs: www.tp-link.com/support/download |
| Modulation Technology | OFDM |
| Certification | CE, RoHS |
| Package Contents | AV1300 Gigabit Passthrough Powerline ac Wi-Fi KIT: 1× TL-WPA8631P, 1× TL-PA8010P; 2× Ethernet Cables; 1× Quick Installation Guide |
| System Requirements | System Requirements: Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux System Requirements for tpPLC Utility: Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later) |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Operating Humidity: 10%~90% non-condensing |
Виж още Powerline мрежи TP-Link
Виж всички Powerline мрежи в категорията
Документация
TP-Link Powerline TL-WPA8631P KIT - Wi-Fi Kit - bridge - 802.11a/b/g/n/ac - wall-pluggable Brochure- TP-Link Powerline TL-WPA8631P KIT - Wi-Fi Kit - bridge - 802.11a/b/g/n/ac - wall-pluggable User manual
- TP-Link Powerline TL-WPA8631P KIT - Wi-Fi Kit - bridge - 802.11a/b/g/n/ac - wall-pluggable Quick start guide
- TP-Link Powerline TL-WPA8631P KIT - Wi-Fi Kit - bridge - 802.11a/b/g/n/ac - wall-pluggable Brochure
- TP-Link Powerline TL-WPA8631P KIT - Wi-Fi Kit - bridge - 802.11a/b/g/n/ac - wall-pluggable User manual
- TP-Link Powerline TL-WPA8631P KIT - Wi-Fi Kit - bridge - 802.11a/b/g/n/ac - wall-pluggable Quick start guide
Технически характеристики
| Максимална скорост: | 1300 Gbit/s |
|---|---|
| Пакет: | 2 устройства |
