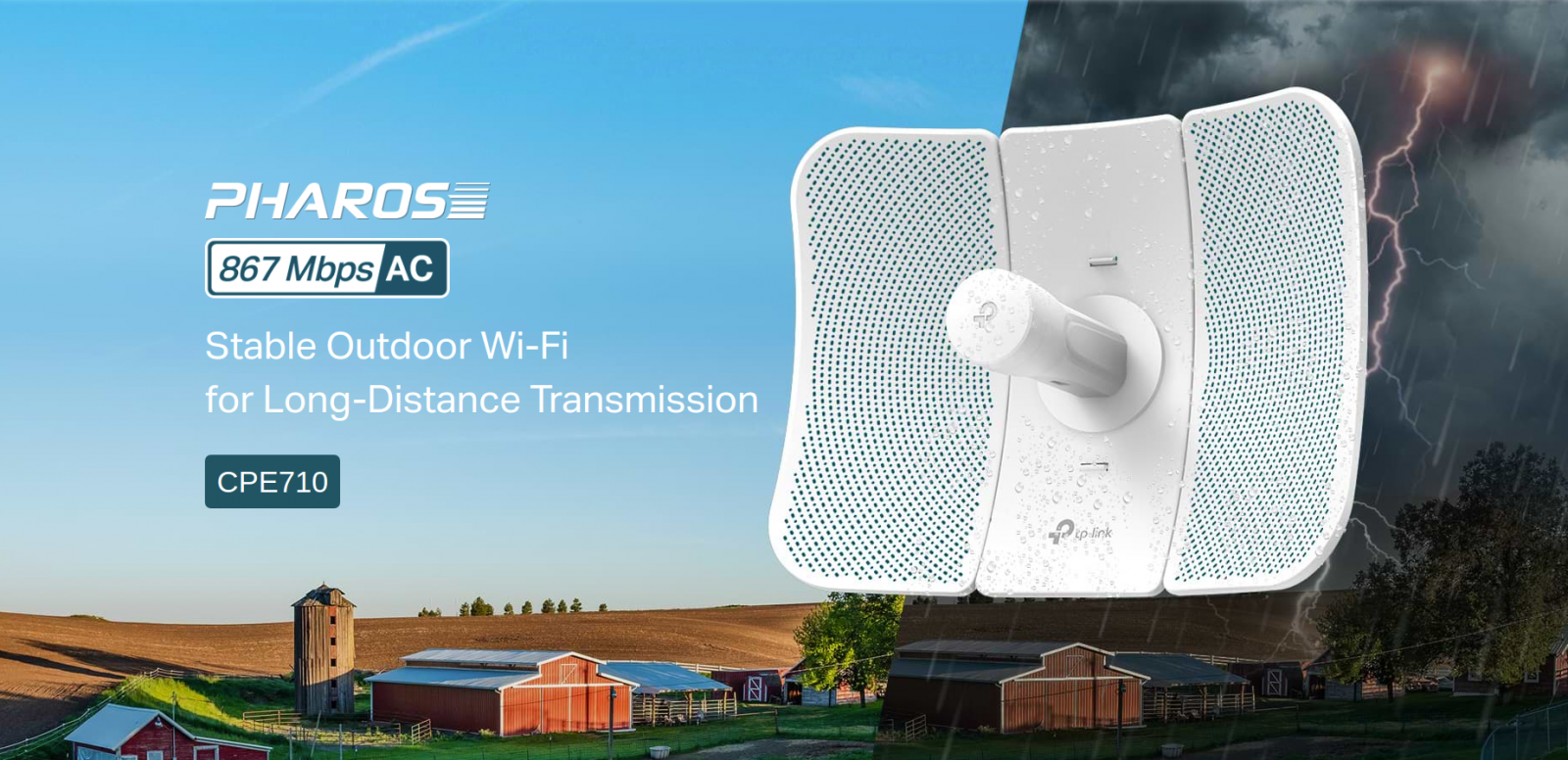

5GHz AC 867Mbps 23dBi Outdoor CPE
CPE710
- 802.11ac for up to 867Mbps on 5GHz wireless data rate
- 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
(7).png)

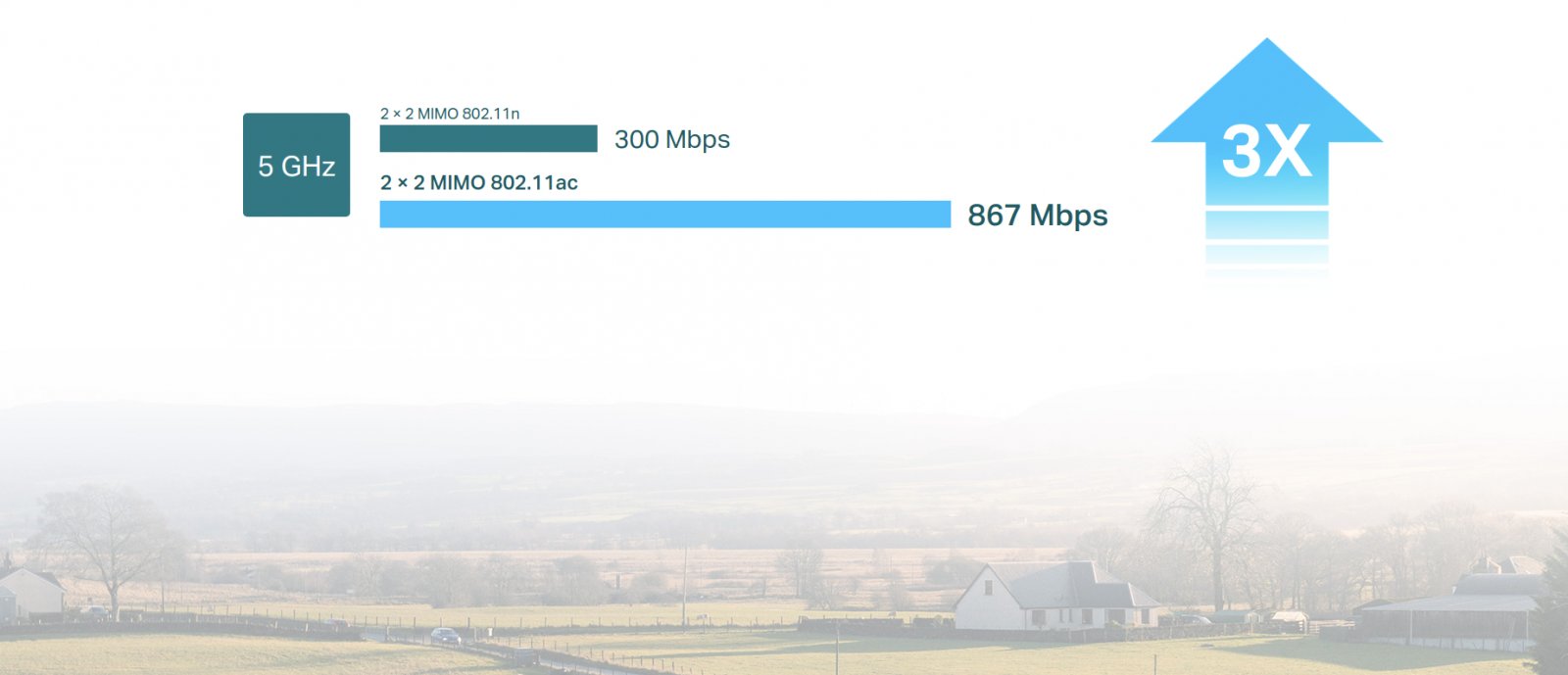

Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.
(6).png)
ХАРДУЕРНИ ХАРАКТЕРИСТИКИ | |
|---|---|
| Процесор | Qualcomm 750MHz CPU, MIPS 74Kc |
| Памет | 128 MB DDR2 RAM, 16 MB Flash |
| Интерфейс | 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button |
| Захранване | Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27V DC |
| Размери (Ш x Д x В ) | 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) |
| Усилване на антената | 23 dBi |
| Ширина на лъча на антената | 9° (Azimuth)/7° (Elevation) |
| Защита | 15 KV ESD Protection 6 KV Lightning Protection |
| Корпус | Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design |
БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ | |
|---|---|
| Безжични стандарти | IEEE 802.11a/n/ac |
| Безжични скорости | Up to 867 Mbps (80 MHz, Dynamic) Up to 400 Mbps (40 MHz, Dynamic) Up to 173.4 Mbps (20 MHz, Dynamic) |
| Честотa | 5.15~5.85 GHz |
| Предавателна мощност | Max. 27 dBm (Adjustable power by 1dBm) |
СОФТУЕРНИ ХАРАКТЕРИСТИКИ | |
|---|---|
| Мрежова конфигурация | WAN: Static/ Dynamic/ PPPoE LAN: Static/ Dynamic/ DHCP Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger Security: SPI Firewall/ Ping Forbidden/ DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding |
| Безжични конфигурации | Selectable Channel Width: 20/40/80MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/ Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, SSID Broadcast Enable/ Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia Long Range PtP |
| Управление | Discovery and Remote Management via Pharos Control application HTTP/ HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server |
| Системни инструменти | Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP Spectrum Analyzer Speed Test Ping Traceroute Antenna Alignment |
| Оптимизации на системно ниво | Optimized IGMP Snooping / Proxy for multicast applications |
POE ADAPTER FEATURES | |
|---|---|
| Размери(W x D x H) | 85.8×43.9×29.7 mm |
| Interfaces | 1 AC Jack with Earth Ground 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data) 1× 10/100/1000 Mbps Shielded Ethernet Port (Data) |
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Efficiency | >84.29% |
| Сертификати | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
ДРУГИ | |
|---|---|
| Сертификати | CE, FCC, RoHS, IP65, IC |
| Съдържание на пакета | Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Kits AC Power Cord Installation Guide |
| Системни изисквания | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
| Околна среда | Operating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
