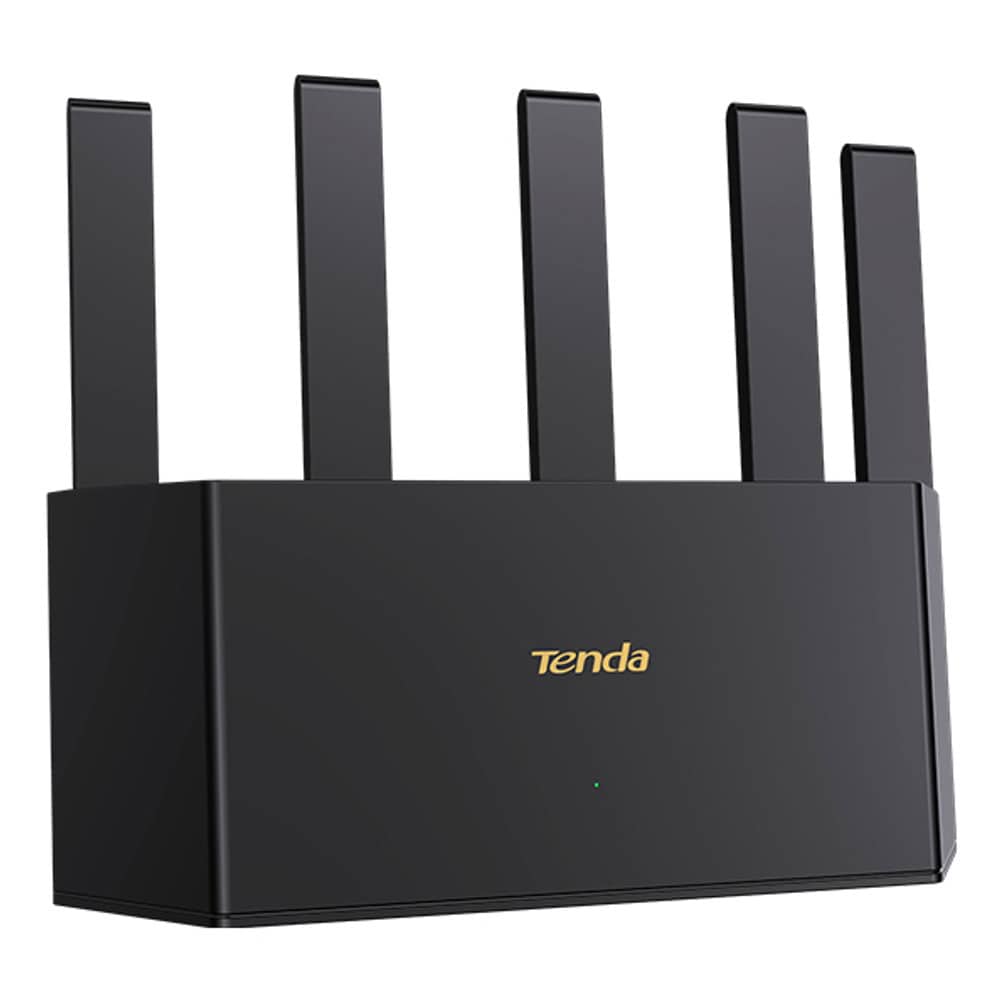

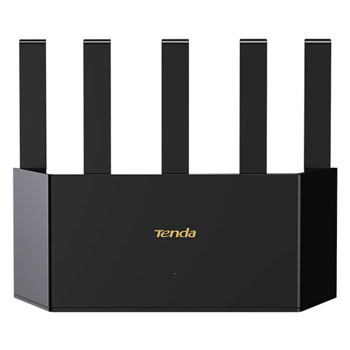

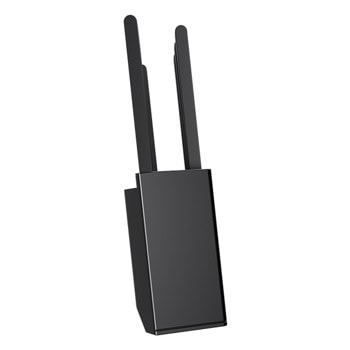

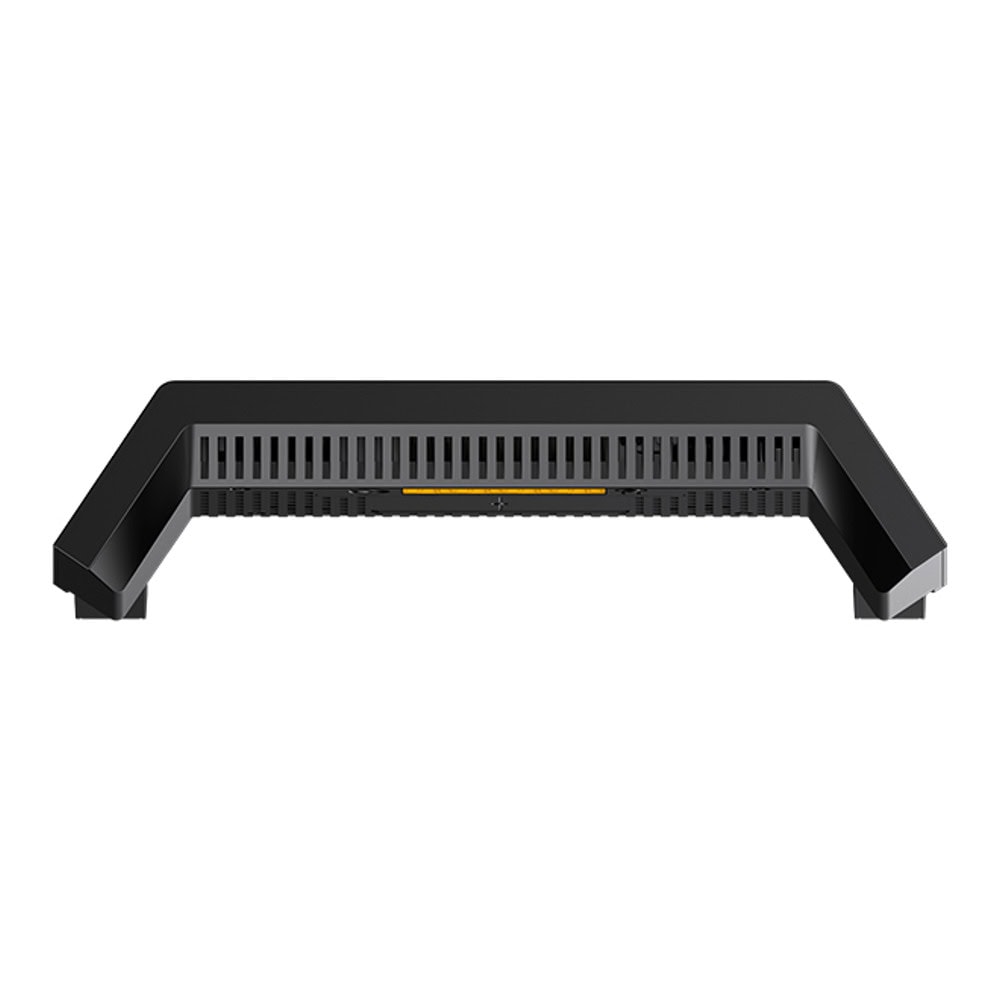

Рутер Tenda TX12L PRO, 3000Mbps, 2.4Ghz(574Mbps)/5GHz(2402Mbps), Wireless AX, 1x 10/100/1000Mbps WAN, 3x 10/100/1000Mbps LAN, 5 външни антени

TX12L Pro

AX3000 Dual Band Gigabit Wi-Fi 6 Router

• MU-MIMO，OFDMA，IPV6、VPN、Wi-Fi+
• Max. No. of Connected Devices: 40-45
• Interface: 4*1000Mbps Ports
• Antenna: 5
• Wi-Fi6，2.4G: 574Mbps，5G:2402Mbps

TX12L Pro is a dual-band Gigabit Wi-Fi 6 wireless router designed for users who pursue performance experience. Both its dual-bands support Wi-Fi 6 (802.11ax) technology and the concurrent rate is up to 2976Mbps (5GHz:2402Mbps, 2.4GHz: 574Mbps). TX12L Pro is equipped with a 12nm process dual-core 1.3GHz CPU to ensure a stable and smooth network environment; supports Wi-Fi+, which can easily solve the problem of stable Wi-Fi coverage in very large homes; equipped with 5 built-in high-power FEMs , Wi-Fi has stronger wall penetration capabilities and longer transmission distances; it uses OFDMA+MU-MIMO technology to allow more devices to access the Internet at the same time, significantly improving transmission efficiency and significantly reducing latency.

Smooth Internet Experience with AX3000

The TX12L Pro has a dual-band concurrent rate of up to 2976Mbps, with 2402Mbps for the 5GHz band and 574Mbps for the 2.4GHz band. It also supports an ultra-large 160MHz bandwidth, which can be used with mobile phones that support the same bandwidth. This allows the signal to travel freely over a wider channel, maximizing the performance of your devices and enhancing your internet experience.

Dual-Core Processor, Smooth Network

TX12L Pro is equipped with a 1.3GHz dual-core CPU, which uses an advanced 12nm process. Its comprehensive computing power is 30% higher than that of the old dual-core AX3000 router. This makes the router consume less power and generate less heat, and its strength ensures a stable and smooth network.

Strong Wi-Fi Signal for Multi-Wall Penetration

TX12L Pro has 5 built-in high-performance signal enhancement modules. Compared with the 4 FEMs of the old AX3000 router, the signal strength is effectively increased by 3dB, comprehensively improving signal transmission and reception sensitivity, and achieving whole-house Wi-Fi 6 coverage for medium and large apartments. There is a good signal wherever you go.

• Hardware

  Standard&Protocol

  IEEE802.3, IEEE802.3u, IEEE802.3ab

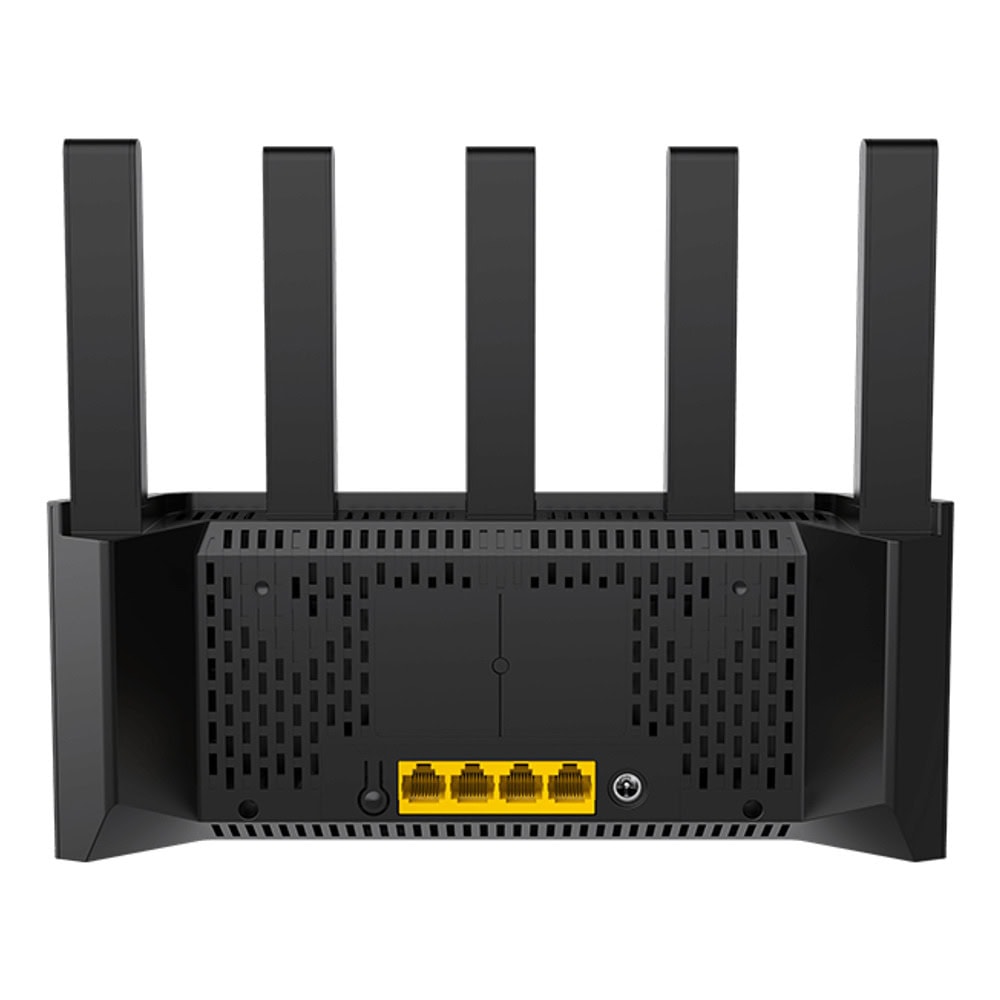

  Interfaces

  1*10/100/1000Mbps WAN port
  3*10/100/1000Mbps LAN ports

  Antenna

  5*external antennas

  Button

  1*WPS/Reset button

  Power

  Input：AC 100-240V~50/60Hz
  Output:DC 12V⎓1A

  LED Indicator

  1* LED

  Dimension

  244*56*200mm(L*W*H)

• Wireless

  Wireless Standard

  IEEE 802.11ax/ac/n/a 5 GHz
  IEEE 802.11ax/n/b/g 2.4 GHz

  Data Rate

  5 GHz: 2402 Mbps (802.11ax, HE160)
  2.4 GHz: 574 Mbps (802.11ax)

  Frequency

  CE:
  2.4G: 2412-2472MHz(CH1-CH13)
  5G: 5150-5350MHz(CH36-CH64)
  FCC:
  2.4G: 2412-2462MHz(CH1-CH11)
  5G: 5150-5350MHz(CH36-CH64)
  5725-5850MHz(CH149-CH165)

  Transmission Power

  CE:
  <20 dBm (2.4 GHz)
  <23 dBm (5 GHz)
  FCC:
  <30 dBm (2.4 GHz)
  <30 dBm (5 GHz)

  Basic Features

  SSID broadcasting and hiding
  MU-MIMO
  Beamforming signal directional transmission technology
  160MHz
  OFDMA
  1024-QAM

  Wireless Security

  WPA2-PSK
  WPA3-SAE/WPA2-PSK
  Wireless Security: Enable/Disable
  WPS(WiFi Protected Set-up)
  fast encryption

• Software

  Internet Connection Type

  PPPoE, Dynamic IP, Static IP
  PPPoE(Russia), PPTP(Russia), L2TP(Russia)
  Unify,Maxis,Maxis-special,Celcom,Digi

  Network Protocol

  IPv4&IPv6

  Operating Mode

  Router Mode
  AP Mode
  Universal Repeater Mode（Client+AP,WISP）

  Parental Control

  Client Filter
  URL Filter
  Time Limit

  DHCP

  DHCP Server
  DHCP Client List
  DHCP Static IP Address Reservation and Allocation

  Virtual Server

  Port Forwarding, DMZ Host, UPnP

  Firewall

  ICMP Flood Attack Defense
  TCP Flood Attack Defense
  UDP Flood Attack Defense
  Block Ping From WAN

  DDNS

  DynDNS, no-ip, oray, 88ip

  VPN

  IPSec Transparent Transmission
  PPTP Transparent Transmission
  L2TP Transparent Transmission
  PPTP VPN Server
  PPTP VPN Client
  L2TP VPN Client
  OpenVPN Client
  WireGuard Client

  Special Features

  Wi-Fi+(Mesh System)
  Smart diagnosis
  IPTV
  IPv6
  Smart LED on/off

  Other Function

  Support App and web management
  Bandwidth Control
  Guest Network
  MAC Address Clone
  Supports black list and white list
  Unify 2.4 GHz & 5 GHz
  Static Routing
  Remote Web Management
  Backup & Restore configurations
  Firmware upgrade online
