Разширителен блок Synology DX1222, 12x bay 3.5"/2.5", съвместим със Synology DS3622xs+/DS2422+

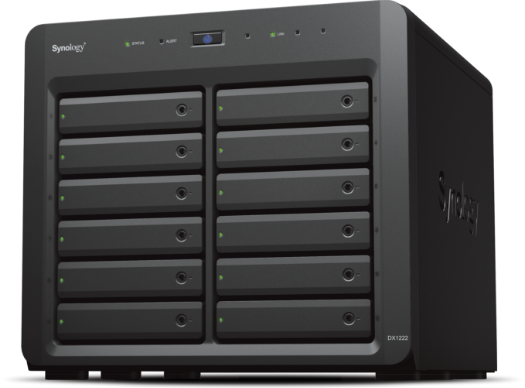

Synology DX1222



Add 12 bays to your DiskStation on the fly

Use Synology Expansion Unit DX1222 to add 12 additional bays to your deployment while keeping your storage and services online and uninterrupted.



Fast setup

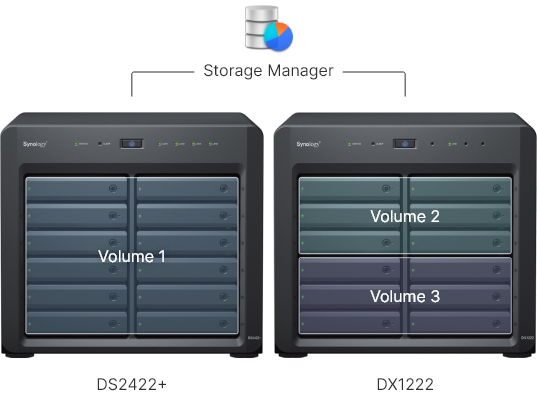

Your additional storage will be ready to use in a matter of moments after you connect it to your host NAS.1 Online volume expansion enables you add a new volume or expand RAID volumes without reformatting drives through DiskStation Manager (DSM).



Specifications:

Applied Models	Supports creating volumes across different units	22 series:DS3622xs+, DS2422+
	Notes	To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.
Storage	Drive Bays	12
	Compatible Drive Type*	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
	Maximum Internal Raw Capacity	192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
	Hot Swappable Drive*	Yes
	RAID Management through Synology DSM	Yes
External Ports	Expansion Port	1
Appearance	Size (Height x Width x Depth)	270 mm x 300 mm x 340 mm
	Weight	9.02 kg
Power	Power Recovery	Synchronized with the Synology DiskStation
	Power Supply Unit / Adapter	550 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	57.71 W (Access) 16.25 W (HDD Hibernation)
	British Thermal Unit	194.96 BTU/hr (Access) 55.48 BTU/hr (HDD Hibernation)
	Notes	Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Others	System Fan	120 mm x 120 mm x 2 pcs
	Easy Replacement System Fan	Yes
	Noise Level*	24.6 dB(A)
	Notes	Noise Level Testing Environment: Fully loaded with Seagate ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology expansion unit at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
