Мрежови диск (NAS) Synology DS2422+, четириядрен AMD Ryzen Embedded V1500B 2.2GHz, без твърд диск (12x 3.5" SATA 6Gb/s), 4GB DDR4, 4x 1GbE, 2x USB 3.2

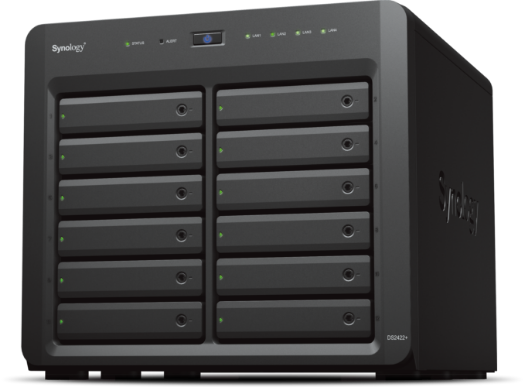

Synology DS2422+



Built for high-performance mass storage

The 12-bay Synology DiskStation DS2422+ is a capable choice for small and medium businesses with large storage, file sharing, and data protection requirements in a multi-user environment. It comes with powerful storage management, file syncing, surveillance, and backup software, and is suitable for editing high-quality video and as VM storage.



Specifications:

CPU	CPU Model	AMD Ryzen V1500B
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	4-core 2.2 GHz
	Hardware Encryption Engine (AES-NI)	Yes
Memory	System Memory	4 GB DDR4 ECC SODIMM
	Memory Module Pre-installed	4 GB (4 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	32 GB (16 GB x 2)
Storage	Drive Bays	12
	Maximum Drive Bays with Expansion Unit	24 (DX1222 x 1)
	Compatible Drive Type*	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
	Hot Swappable Drive*	Yes
External Ports	RJ-45 1GbE LAN Port*	4 (with Link Aggregation / Failover support)
	USB 3.2 Gen 1 Port*	2
	Expansion Port	1
	Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe	PCIe Expansion	1 x Gen3 x8 slot (x4 link)
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
	Notes	exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance	Size (Height x Width x Depth)	270 mm x 300 mm x 340 mm
	Weight	9.5 kg
Others	System Fan	120 mm x 120 mm x 2 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan	Yes
	Power Recovery	Yes
	Noise Level*	25 dB(A)
	Scheduled Power On / Off	Yes
	Wake on LAN / WAN	Yes
	Power Supply Unit / Adapter	550 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	73.11 W (Access) 32.12 W (HDD Hibernation)
	British Thermal Unit	249.63 BTU/hr (Access) 109.67 BTU/hr (HDD Hibernation)
	Notes	Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL



Compatible drives:

HAT5310-18T	Твърд диск 18TB Synology HAT5310-18T, SATA 6Gb/s, 7200rpm, 512MB кеш, 3.5" (8.89 cm)
HAT5310-8T	Твърд диск 8TB Synology HAT5310-8T, SATA 6Gb/s, 7200rpm, 256MB кеш, 3.5" (8.89 cm)
HAT5300-16T	Твърд диск 16TB Synology HAT5300 (HAT5300-16T), SATA 6Gb/s, 7200 rpm, 512MB кеш, 3.5" (8.89 cm)
HAT5300-12T	Твърд диск 12TB Synology HAT5300 (HAT5300-12T), SATA 6Gb/s, 7200 rpm, 256 MB кеш, 3.5" (8.89 cm)
HAT5300-8T	Твърд диск 8TB Synology HAT5300 (HAT5300-8T), SATA 6Gb/s, 7200 rpm, 256MB кеш, 3.5" (8.89 cm)
HAT5300-4T	Твърд диск 4TB Synology HAT5300-4T, SATA 6Gb/s, 7200 rpm, 3.5" (8.89 cm)
