A-Data Legend 970
Extraordinary Speed
The LEGEND 970 adopts the latest generation PCIe Gen5 x4 transmission interface and complies with the NVMe 2.0 standard to deliver amazing read and write capabilities. The LEGEND 970 also supports the latest Intel and AMD platforms. Whether in dynamic or static output, it always provides full performance.
Unreal Performance
Complete every task in moments. The LEGEND 970 has a sequential read/write speed of 10,000/10,000MB per second, double the speed of PCIe Gen4 SSDs and 6 times faster than Gen3 SSDs, and is fully backward compatible with PCIe 4.0 and 3.0 platforms.

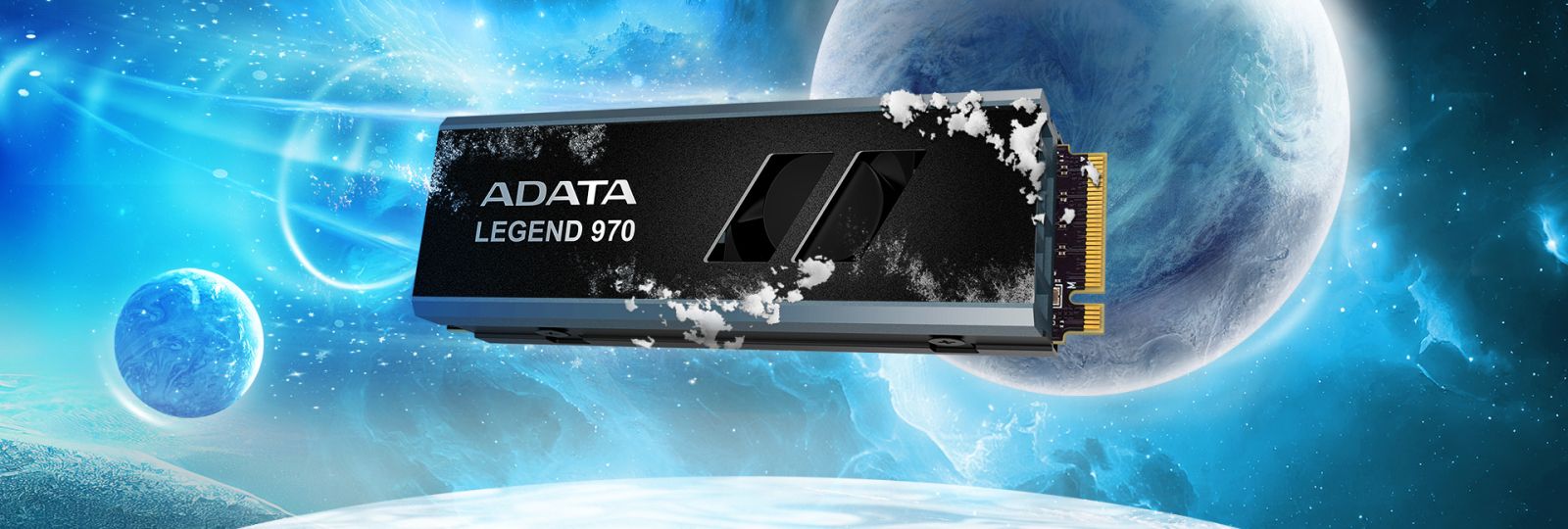

QuiKTIPS : Active Cooling Analysis
How does active cooling work? Active cooling works by using a tightly adhered heat dissipation pad and a metal heat dissipator to transfer heat from the SSD. The double-layered aluminum fins help facilitate the heat transfer process. Additionally, a built-in fan draws cold air from openings on the nameplate and directs it towards the aluminum fins. The hot and cold air meet, and the rotation of the fan quickly expels the heat from both sides of the aluminum fins. This design provides superior heat dissipation compared to fanless heatsinks.
Tech specs
| Capacity | 2000GB |
|---|---|
| Form factor | M.2 2280 |
| NAND Flash | 3D NAND |
| Controller | Phison PS5026 E26 |
| Dimensions (L x W x H) | 80.6 x 24.2 x 17.9mm |
| Weight | 57.1g |
| Interface | PCIe Gen5 x4 |
| Sequential Read (Max) | Up to 10,000MB/s |
| Sequential Write (Max) | Up to 10,000MB/s |
| 4KB Random Read IOPS(Max) | Up to 1,400K |
| 4KB Random Write IOPS(Max) | Up to 1,400K |
| Operating temperature | 0°C - 70°C |
| Storage temperature | -40°C-85°C |
| Shock resistance | 1,500G/0.5ms |
| MTBF | 1,600,000 hours |
| Terabytes Written (TBW) | 1,400TB |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още SSD дискове A-Data
Виж всички SSD дискове в категорията
datasheet_legend_970_pcie_gen5_x4_m2_2280_solid_state_drive_20230630.pdf| Капацитет: | 2000 GB |
|---|---|
| Интерфейс: | NVMe |
| Монтаж: | Вътрешни |
| Размер: | M.2 (2280) |
