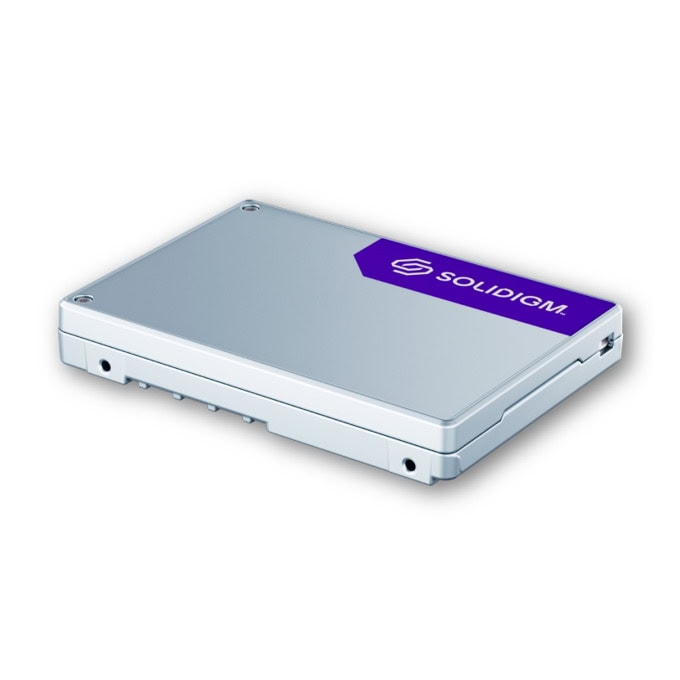

Памет SSD 3.84TB, Solidigm D7-P5520, U.2 NVMe, 2.5" (6.35 cm), скорост на четене до 6700MB/s, скорост на запис до 3600MB/s

SSD D7-P5520 Series (3.84TB, 2.5in PCIe 4.0 x4, 3D4, TLC) Generic No OPAL Single Pack

Product Details:
Capacity
3.84TB
Sequential Bandwidth - 100% Read (up to)
6700 MB/s
Sequential Bandwidth - 100% Write (up to)
3600 MB/s
Form Factor
U.2 15mm
Interface
PCIe 4.0 x4, NVMe
Weight
165g +/- 5g
Lithography Type
144L TLC 3D NAND
Use Conditions
Server/Enterprise

Performance:
Random Read (100% Span)
1000000 IOPS (4K Blocks)
Random Write (100% Span)
200000 IOPS (4K Blocks)
Power - Active
15W
Power - Idle
5W
Latency - Random Read (typ.)
75μs
Latency - Random Write (typ.)
15μs
Latency - Sequential Read (typ.)
10μs
Latency - Sequential Write (typ.)
13μs

Reliability:
Endurance Rating (Lifetime Writes)
7.0 PBW
Mean Time Between Failures (MTBF)
2 million hours
Uncorrectable Bit Error Rate (UBER)
1 sector per 10^17 bits read
Vibration - Operating
2.17 GRMS (5 - 700 Hz) Max
Vibration - Non-Operating
3.13 GRMS (5 - 800 Hz) Max
Shock (Operating and Non-Operating)
1,000 G (Max) at 0.5 msec
Operating Temperature Range
0°C to 70°C
