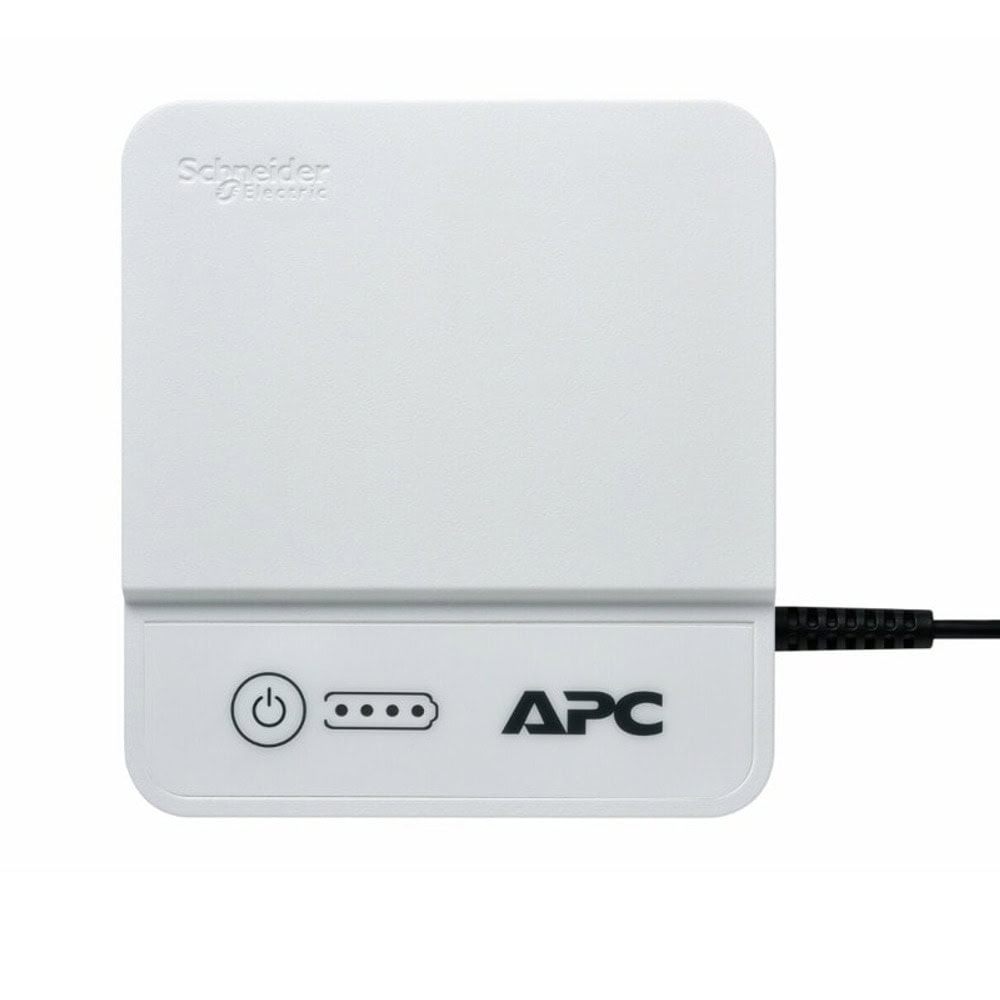

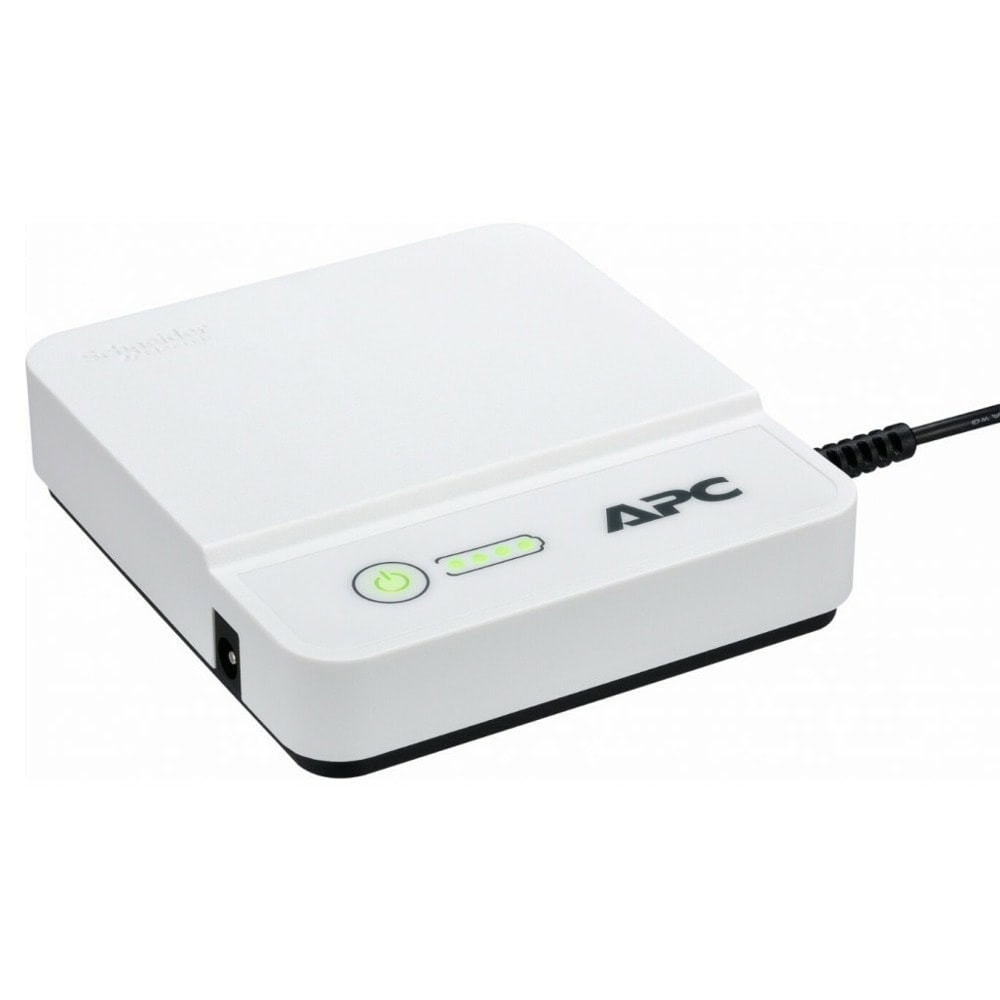

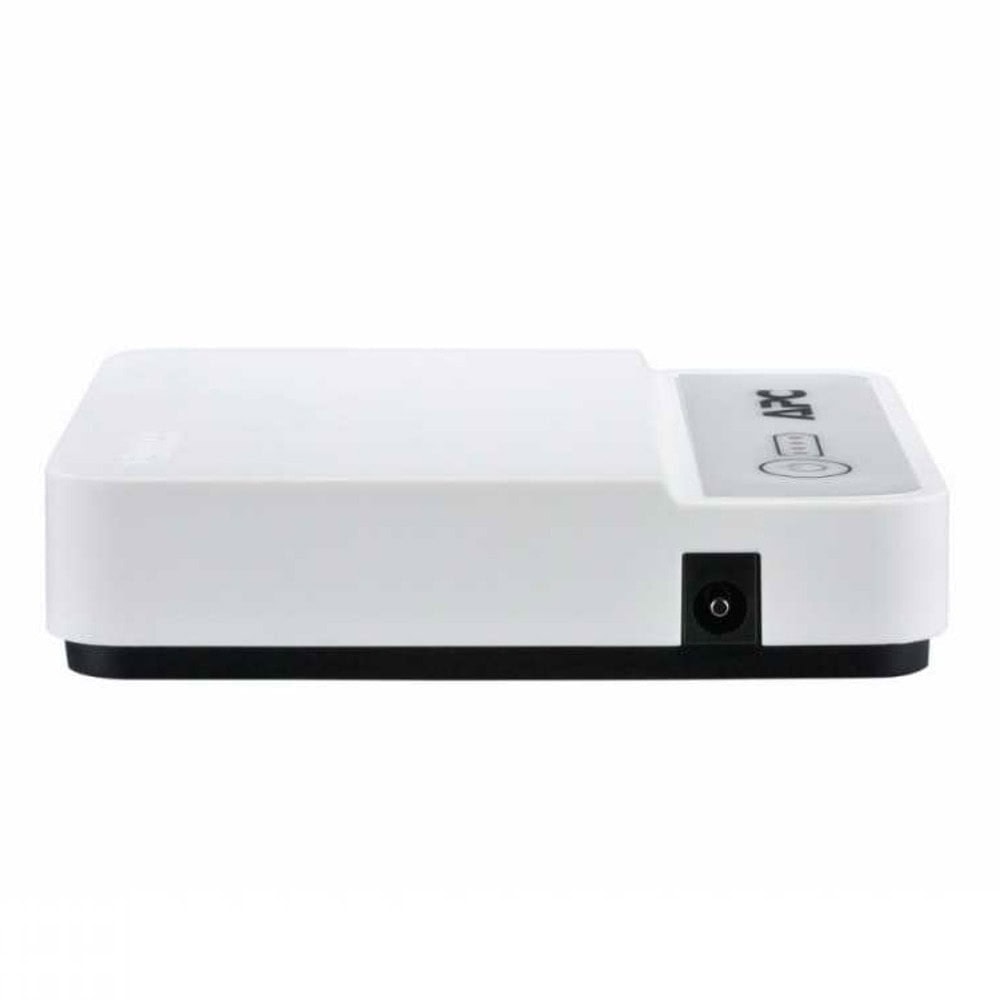

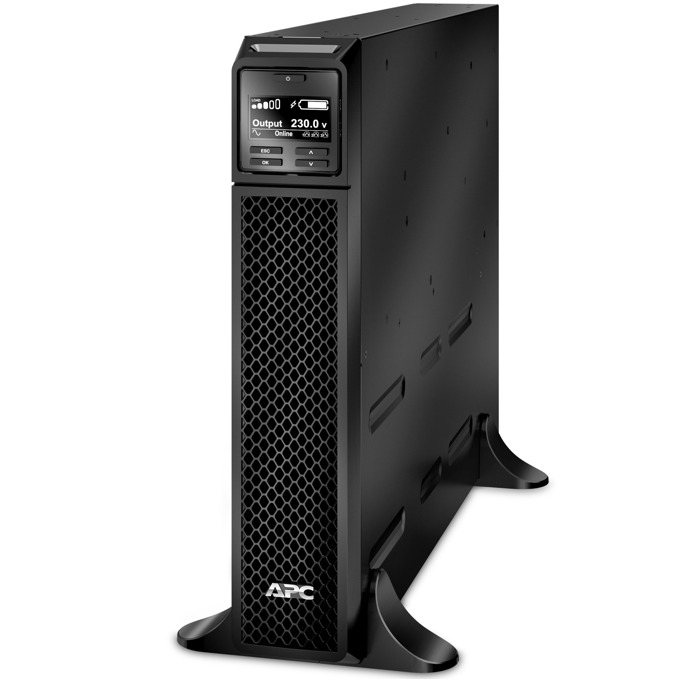

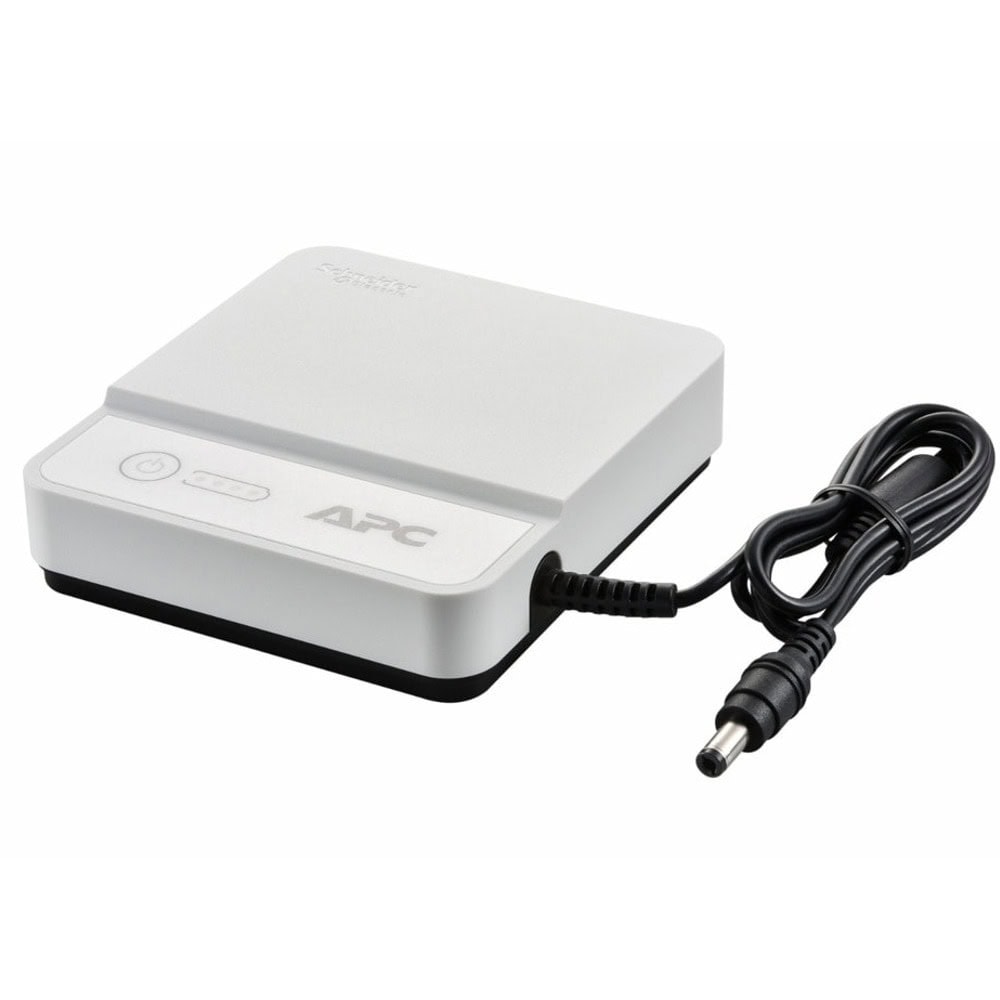

UPS APC Smart SRT в комплект с UPS APC Back-UPS Connect 12V/36W, 1500VA/500W, 230V, On-Line Rack/Tower

Technical Specifications

Output

Output power capacity

1.5kWatts / 1.5kVA

Max Configurable Power (Watts)

1.5kWatts / 1.5kVA

Nominal Output Voltage

230V

Output Voltage Distortion

Less than 2%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double Conversion Online

Waveform type

Sine wave

Output Connections

(6) IEC 320 C13 (Battery Backup)

Bypass

Built-in Bypass

Input

Nominal Input Voltage

230V

Input frequency

40 - 70 Hz (auto sensing)

Input Connections

IEC-320 C14

Cord Length

1.83meters

Input voltage range for main operations

100 - 275V

Number of Power Cords

1

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Included Battery Modules

1

Typical recharge time

3hour(s)

Nominal Battery Voltage

48V

Replacement Battery

APCRBC155

Expected Battery Life (years)

3 - 5

Extendable Run Time

1

Battery Volt-Amp-Hour Capacity

324

Extended Run Options

APC-Smart-UPS-SRT-1500VA-230V

Runtime

View Runtime Graph

View Runtime Chart

Communications & Management

Interface Port(s)

RJ-45 Serial, Smart-Slot, USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

432Joules

Physical

Maximum Height

432MM, 43.2CM

Maximum Width

85MM, 8.5CM

Maximum Depth

505MM, 50.5CM

Net Weight

20.5KG

Shipping weight

29.6KG

Shipping Height

246MM, 24.6CM

Shipping Width

594MM, 59.4CM

Shipping Depth

749MM, 74.9CM

Color

Black

Units per Pallet

12.0

Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 (non-condensing) %

Operating Elevation

0-3000meters

Storage Temperature

-20 - 50 °C

Storage Relative Humidity

0 - 95 (non-condensing) %

Storage Elevation

0-15000meters

Audible noise at 1 meter from surface of unit

50.0dBA

Online thermal dissipation

317.0BTU/hr

Protection Class

IP 20
