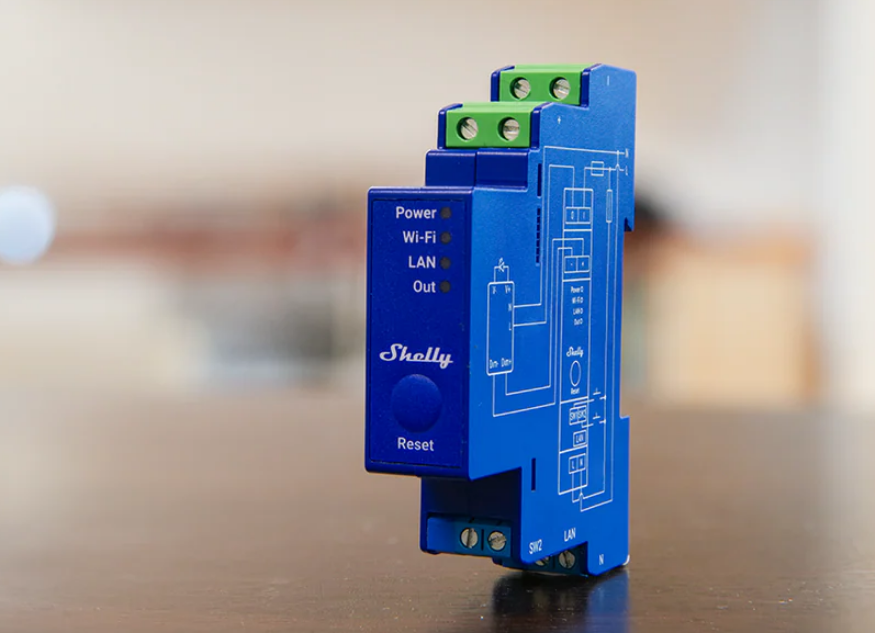

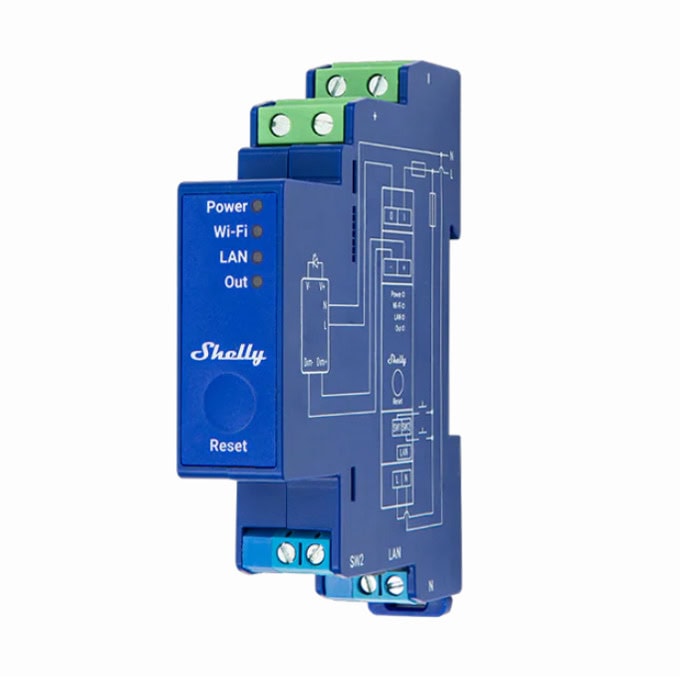

Shelly PRO Dimmer 0/1-10V PM
Professional Dimmer
Shelly Pro Dimmer 0/1-10V PM is a DIN-rail mountable smart dimmer with power monitoring. Use it to control, dim, and power measure a wide range of halogen lights, dimmable LED, and ferromagnetic transformers between 0-10V or 1-10V. Differenttypes of actions, scenarios, and schedules can be set to sync your lightingenvironment to your daily activities or business needs.
Pro Series

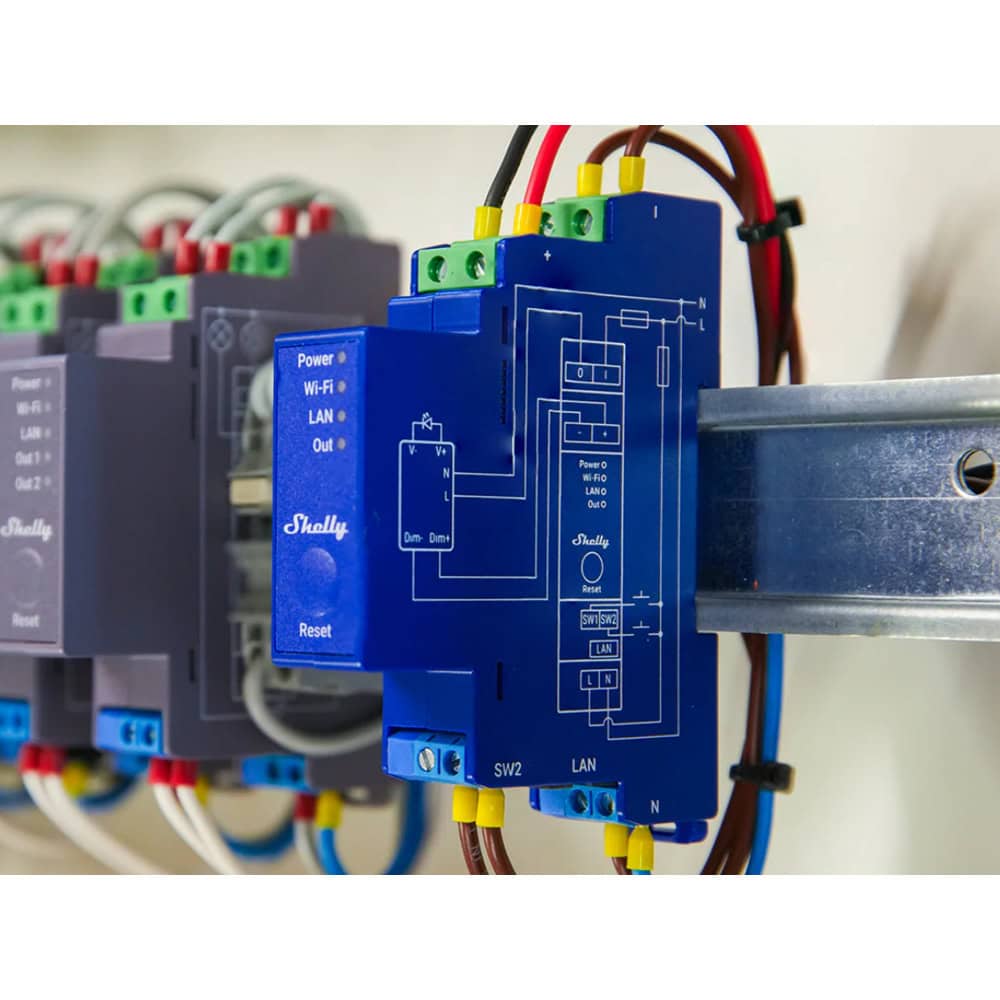

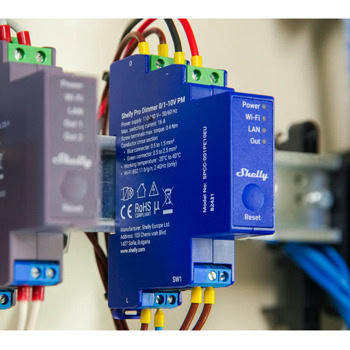

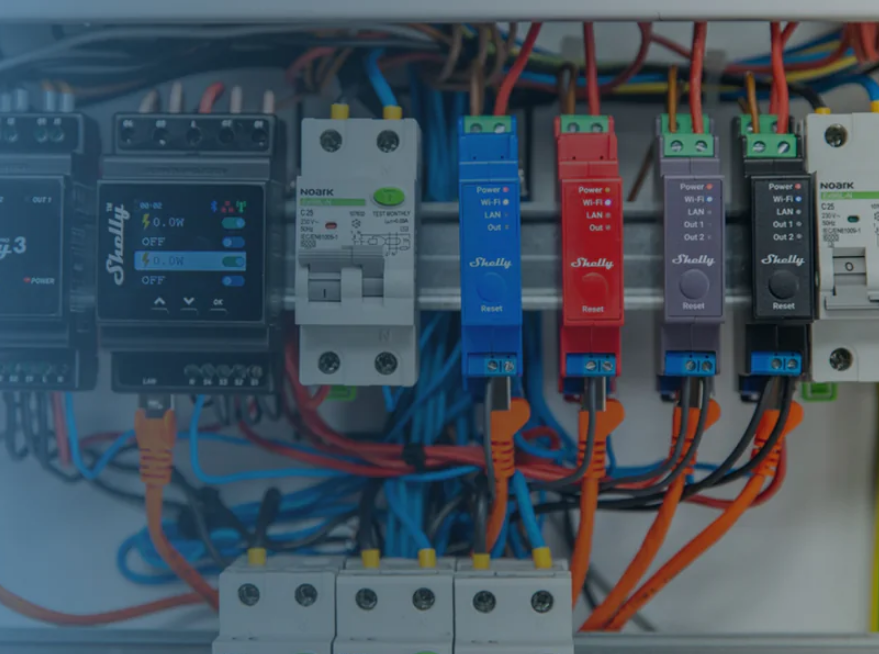

Enhanced with temperature, overpower, and overvoltage load protection, Shelly Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Shelly Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.
LAN, Wi-Fi, and Bluetooth connectivity
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as back up when needed.
Light intensity adjustment
Use the dimming function to set the brightness of your lights to your preference.
Power monitoring
Shelly Pro Dimmer 0/1-10V PM provides precise monitoring of power consumption.
Flexible input control
Use it with your existing switches, no matter if they're single or dual button.
Smart schedules
Set custom schedules based on your daily agenda, or follow the sunrise/sunset and control your lighting accordingly.
Smart scenes
Set custom scenes by combining Shelly Pro Dimmer 0/1-10V PM with your other Shelly devices
Specifications
Environmental
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Screw terminals max torque: | 0.4 Nm / 3.54 lbin |
| Conductor cross section: | 0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (blue connectors) |
| Mounting: | DIN |
| Shell material: | Plastic |
Electrical
| Power supply: | 110 - 240 V~ |
| Power consumption: | < 3 W |
| Neutral not needed: | No |
| 0-10V/1-10V voltage control type: | Current sourcing |
| External protection: | 16 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3 |
Output circuits ratings
| Max. switching voltage: | 240 V~ |
| Max. switching current: | 16 A |
Sensors, meters
| Voltmeter (AC): | Yes |
| Ammeter (AC): | Yes |
| Power and energy meters: |
|
| Measurement data storage: | No |
| Internal-temperature sensor: | Yes |
Radio
Wi-Fi
| Protocol: | 802.11 b/g/n |
| RF band: | 2412 - 2472 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
Bluetooth
| Protocol: | 4.2 |
| RF band: | 2402 - 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
Microcontroller unit
| CPU: | ESP32-D0WDQ6 |
| Clock frequency: | 40 Mhz |
| Flash: | 8 MB |
Firmware capabilities
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
| Advanced schedules | Yes |
| KVS (Key-Value Store): | Yes |
