Проектор SHARP V801U, 3LCD, WUXGA (1920x1200), 3 000 000:1, 8000m, HDMI, USB, RS232, LAN, HDBaseT

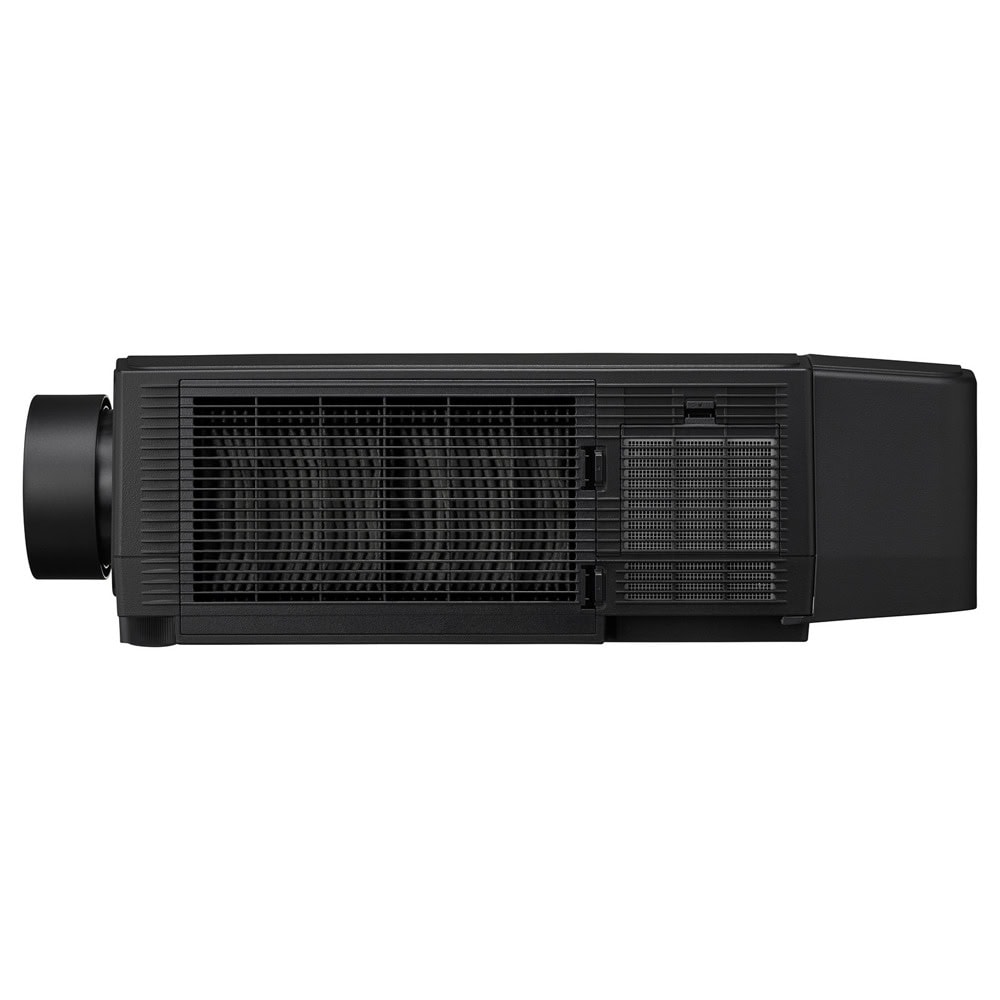

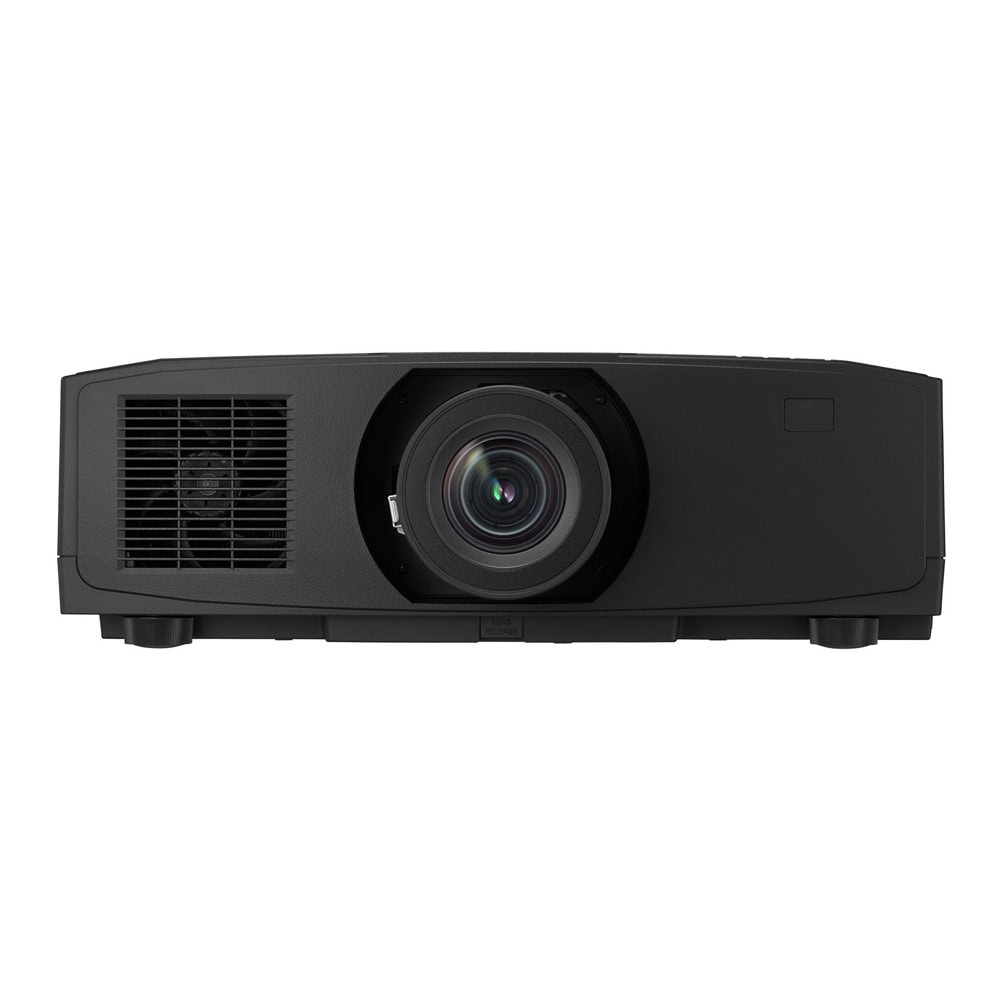

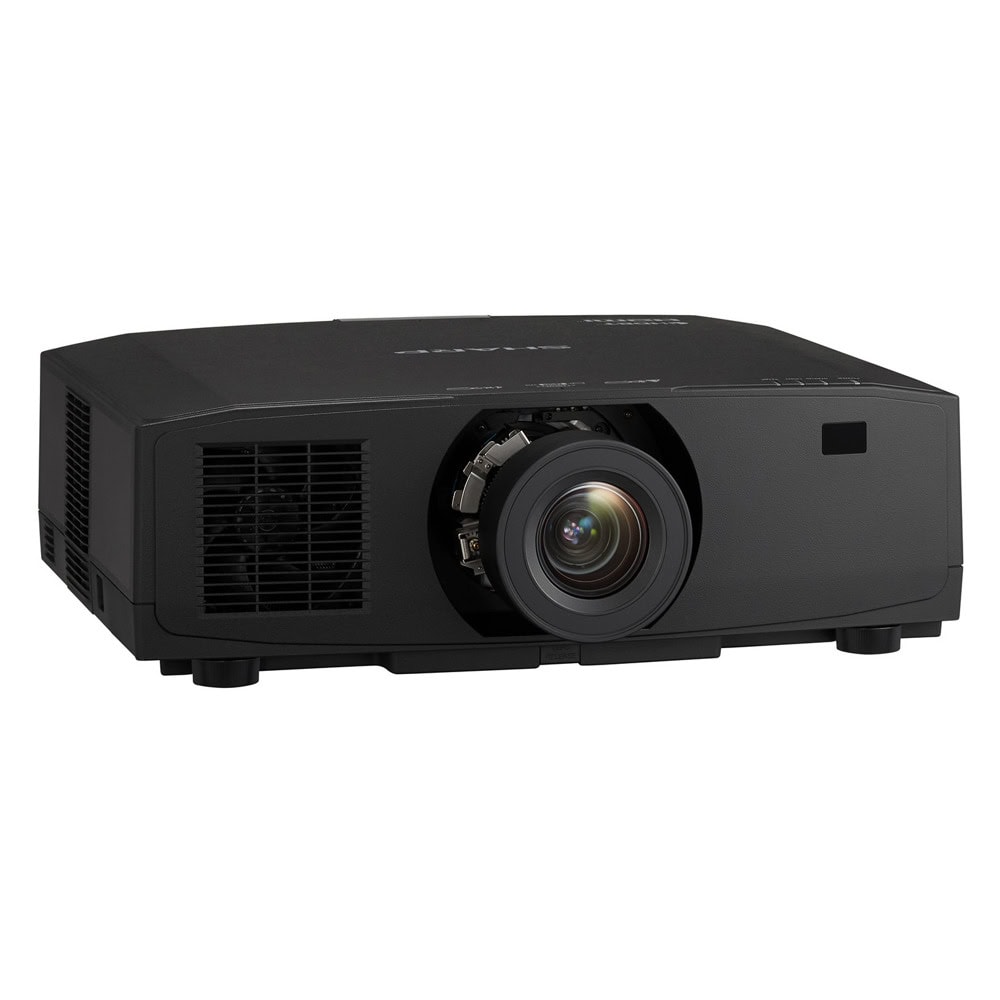

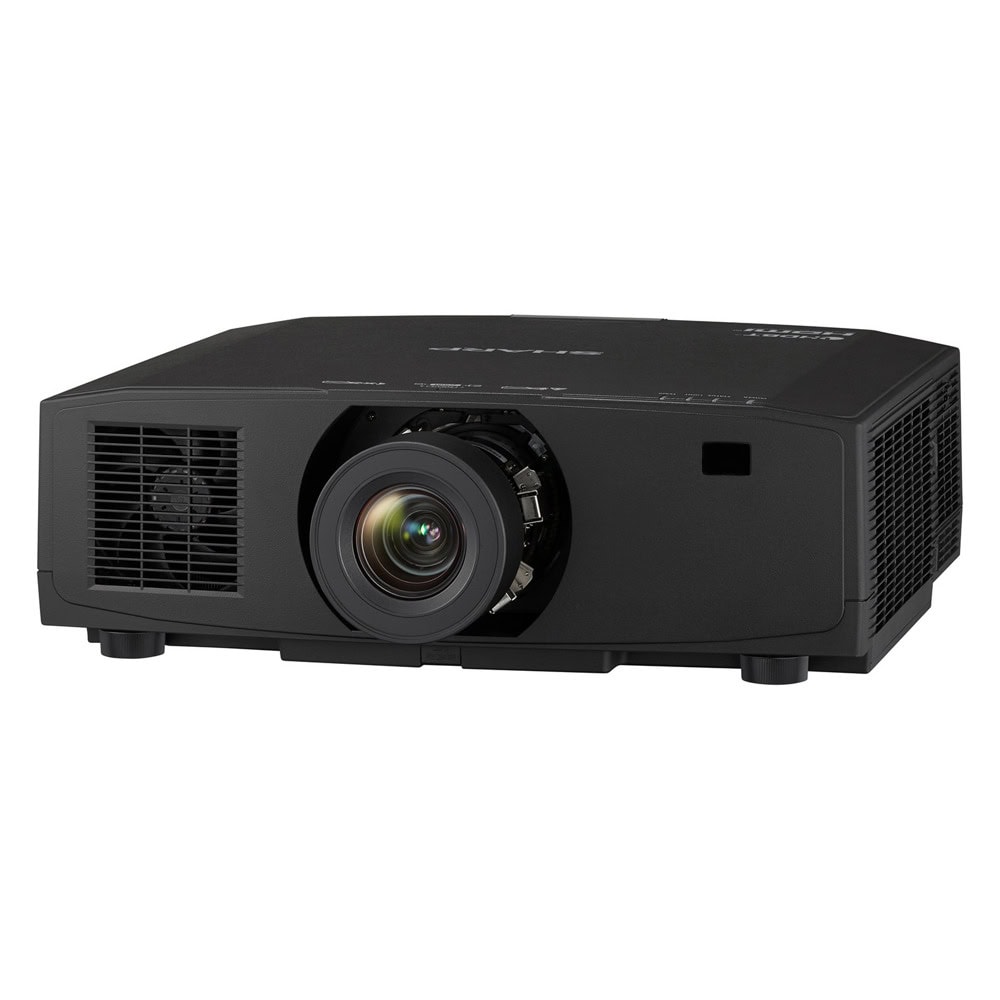

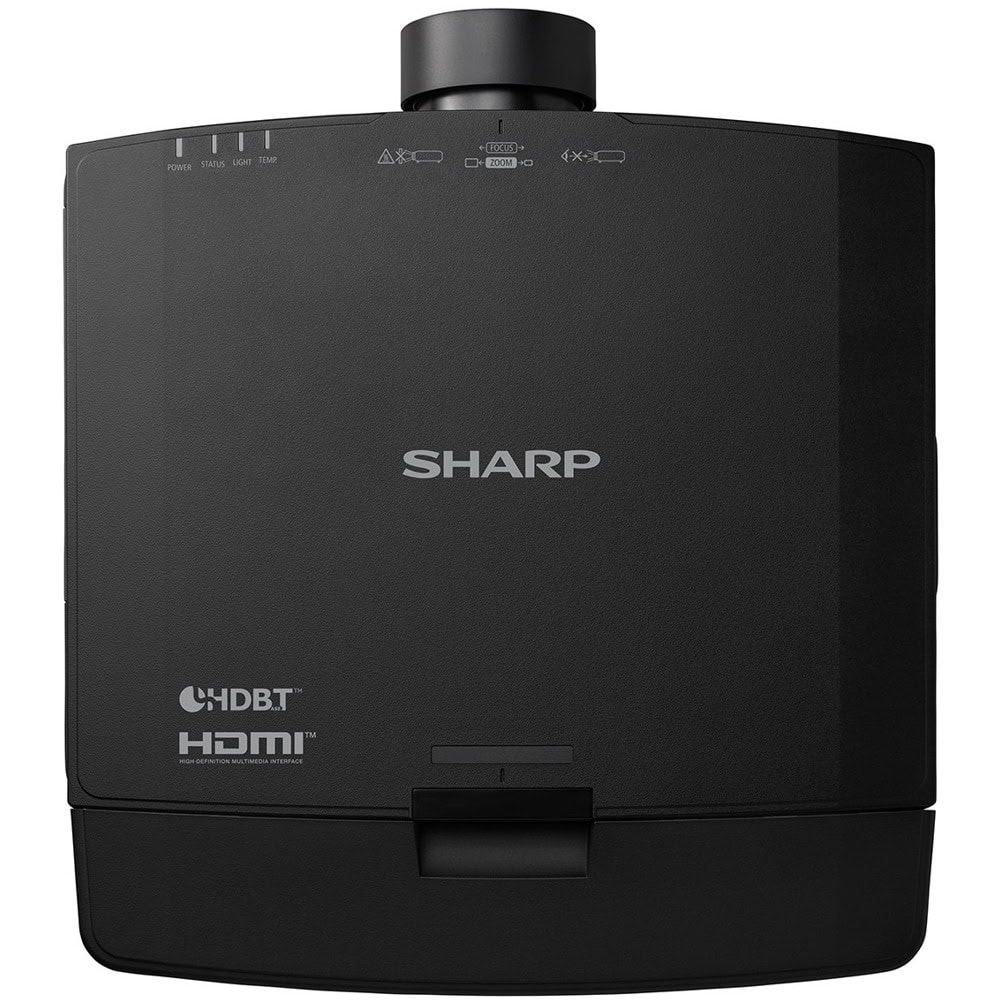

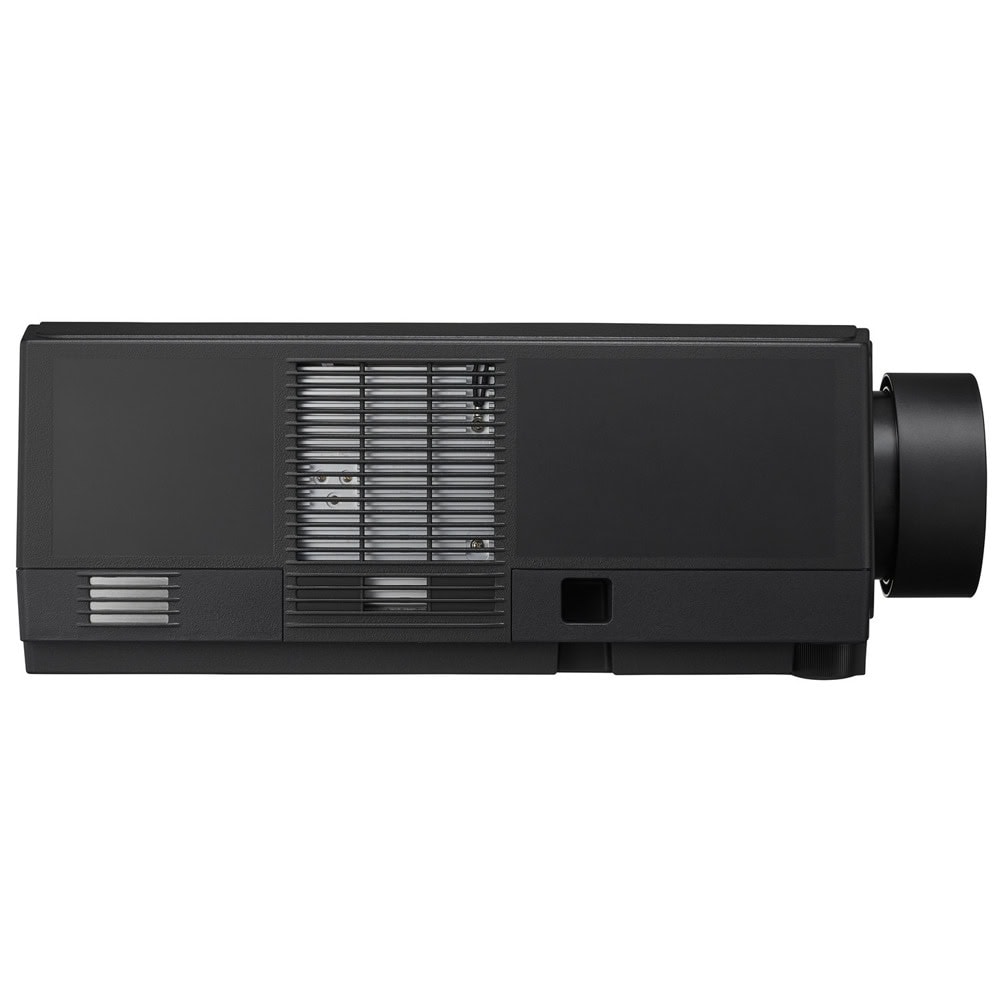

Sharp V801U

Versatile, Value-driven Performance

A highly economical projection solution, the Sharp V Series combines installation flexibility, low maintenance, and long-life laser performance in a compact, cost-efficient design. Using 3LCD technology, it delivers vivid colour and precise white point calibration with 12-bit colour processing for rich saturation and contrast making it suited for education, corporate, leisure, and simulation environments.

Compatible with existing mounts and lenses, the V Series provides a seamless upgrade path from lamp-based or earlier laser models, maximising assets and reducing costs while embracing next-generation efficiencies.

Sharp's ProAssist software enables easy remote setup and adjustment, while advanced features such as geometric correction, edge blending, and wide lens shift support flexible, precise integration.


Projection Technology

3LCD Technology

Native Resolution

1920 x 1200 (WUXGA)

Aspect Ratio

16:10

Contrast Ratio

3000000:1

Brightness

8000 Lm Normal / 8300 Lm Center / 7200 Lm Silent Mode; compliant with ISO21118-2012

Lamp

Laser Light Source

Light Source Life [hrs]

20000 1

Lens

5 motorized lens options

Lense Adjustment

Motorized

Lens shift

H:±20, V:+50,-10

Keystone Correction

+/- 30° manual horizontal / +/- 30° manual vertical

Projection Factor

depending on lens selection (std. option XP-41ZL at 1.3-3.02:1)

Projection Distance [m]

0.7 – 50.9

Screen Size (diagonal) [cm] / [inch]

Maximum: 1,270 / 500"; Minimum: 101.6 / 40"

Zoom

Motorized and manual (depending on lens)

Focus Adjustment

Motorized and manual (depending on lens)

Supported Resolutions

1080i/50/60; 1080p/50/60; 1280 x 768 (60); 1920 x 1200 (60); 2560p/1080; 3840 x 2160 (23.8/24/25/29.97/30); 480p/60; 576p/50; 720p/60

Frequency

Digital Frequency: Horizontal: 15/24 - 153 kHz; Vertical: 24-120 Hz

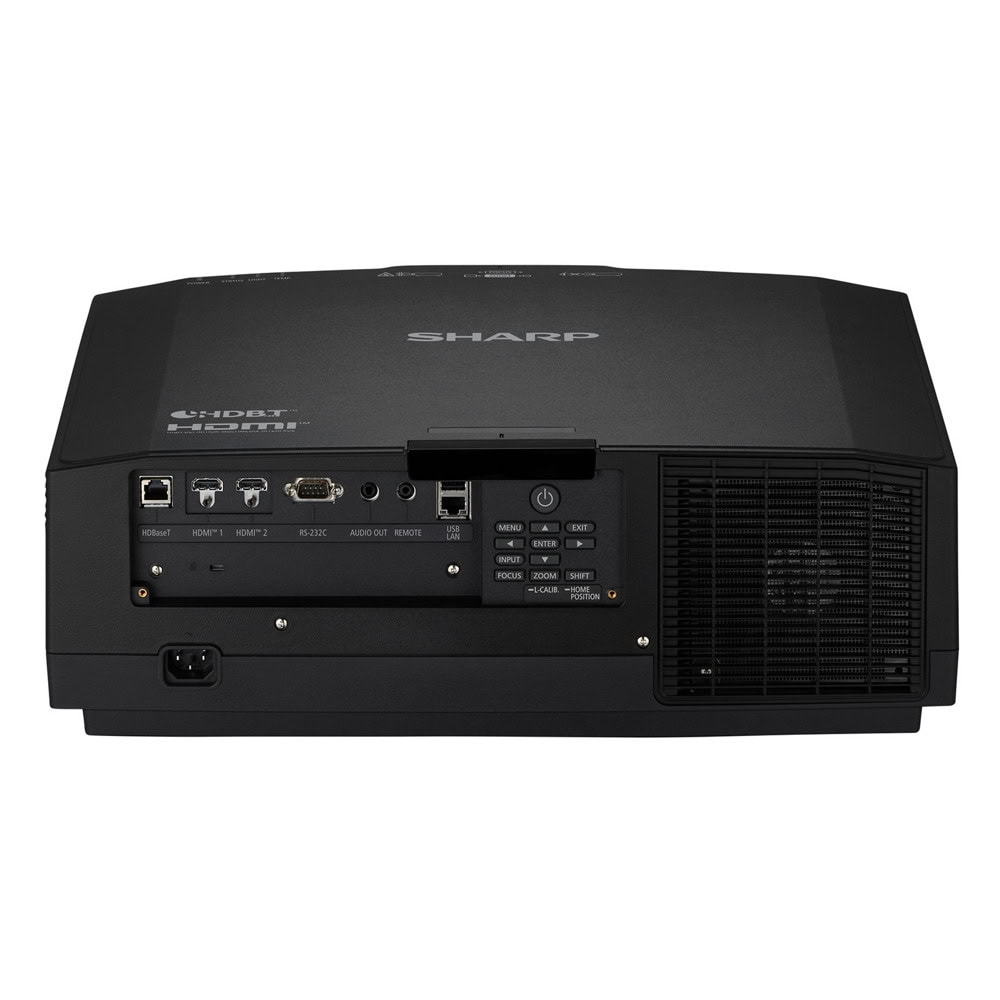

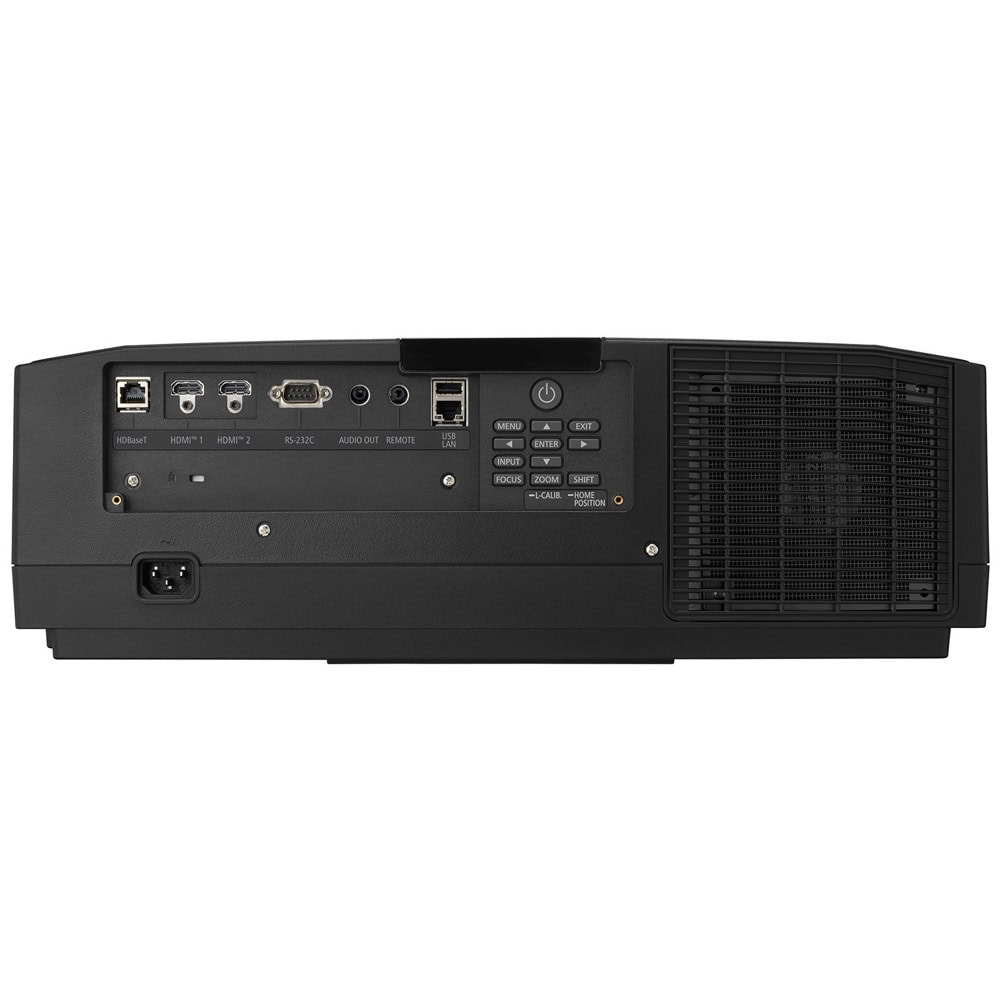

Connectivity

Digital

Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP 1.4

Audio

Input: 1 x HDBaseT audio support; 2 x HDMI audio support
Output: 1 x 3.5 mm Stereo Mini Jack (variable)

Control

Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet

LAN

1 x RJ45

USB

1 x USB A (2A power delivery)

Remote Control

Input

1 x 3.5 mm Stereo Mini Jack

Remote Control

Audio Control; Digital Zoom; Geometric Correction; HDMI; ID Select; ID set; Keystone Correction; Picture Adjust; Picture Mute; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Wired / Wireless Connection; Zoom/Focus and Lens Shift Control

Electrical

Power Supply

100-240 V AC; 50 - 60 Hz

Power Consumption [W]

467.0 Normal / 421.0 Silent Mode / 2.0 Network Stand-by / 0.5 Stand-by

Mechanical

Dimensions (W x H x D) [mm]

499 x 164 x 407 (without lens and feet)

Weight [kg]

11.2

Fan Noise [dB (A)]

42 / 32 (Normal / Silent)

Colour Versions

Black; White

Environmental Conditions

Operating Temperature [°C]

0 to 40

Operating Humidity [%]

20 to 80 non-condensing

Storage Temperature [°C]

-10 to 50

Storage Humidity [%]

20 to 80 non-condensing

Ergonomics

Safety and Ergonomics

CE; EAC; ErP; RoHS; TUEV Type Approved

Additional Features

Special Characteristics

AMX Beacon; Cinema Quality Picture (CQP) Processing for best image quality; Control ID Function; Crestron Connected; DICOM simulation; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; High Altitude Mode; HTTP Browser Control; Keystone Correction (H=±30°, V=±30°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.2 max.); Light Source Adjustment; Manual Wall Color Correction; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PJ LINK; Portrait Setting; Quick On/Off; RS-232 Control; Test Pattern; Up to 20,000 hrs Light Source Life

Green Features

Energy Efficiency

ECO scheduler; Intelligent power management; Less than 0.3W stand-by power; Longer light source life; Software scheduling; Timer function

Ecological Materials

100% recyclable packaging; Downloadable manuals

Ecological Standards

ErP compliant
