Проектор Acer PL6620, DLP, WUXGA (1920x1200), 50 000:1, 6000lm, HDMI, VGA, USB-A, RJ45, RS232

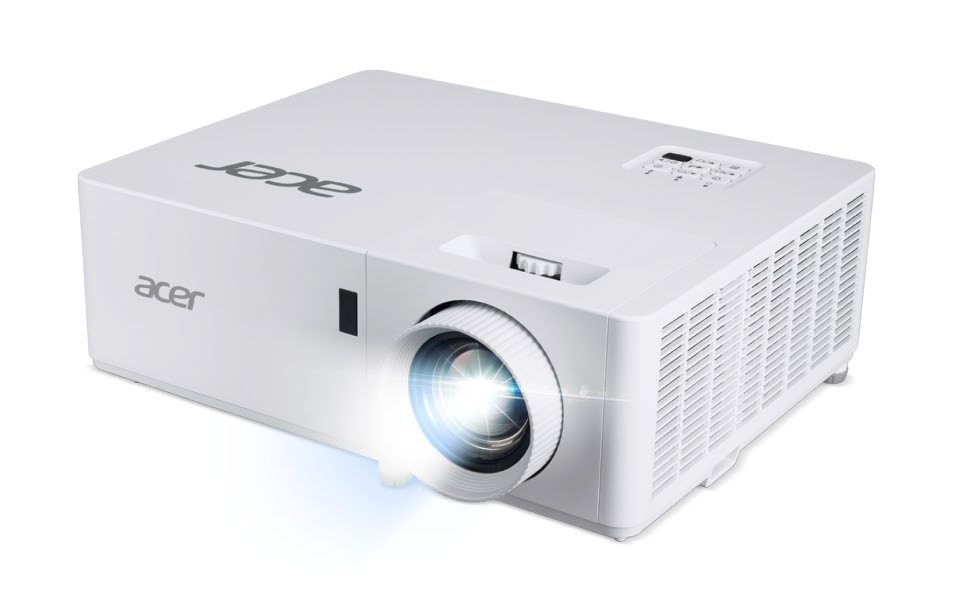

Acer PL6620

Technical Specifications

Projection technology
DLP 3D Ready & HDMI 3D

DLP Chip
0.67" BrilliantColor

Version
DarkChip 3 DMD

Resolution
WUXGA (1,920 x 1,200 px)

Display Format
16:10 (native) / 4:3 & 16:9 (supported)

Contrast
50.000:1

Displayable Colours
1.07 Billion Colors

Brightness
6,000 (standard, WUXGA), 4,800 (eco) ANSI lumens

Focus / Focal distance
F = 2.30 ~ 3 / f = 17.63 ~ 27.90 mm

Projection size (diagonal)
0.54 ~ 7.62 m

Projection distance
1.00 ~ 7.80 m

Throw ratio
1.2 ~ 2.04:1

Zoom / Digital-Zoom
1.7x / 2x

Image Offset
140% %

Lens shift
49 ~ 54 % (vertical) manual

Horizontal / Vertical frequency
15 ~ 100 kHz / 24 ~ 120 Hz

Projection Modes
360° Projection

Light technology
Laser diode

Life (hr.)
20,000 (standard), 30,000 (eco)

Keystone Correction
+/- 30° (vertical) manual, +/- 30° (horizontal) manual, 4-Corner Adjustment

Speaker
15Wx2

Dimensions / Shipping dimensions (mm)
337 x 265 x 119 / 528 x 233 x 443

Power Consumption
235 (Standard), 195 (eco), < 0.5 Watt (Standby)

Noise level
33 (Standard), 27 (eco) dB

Uniformity (%)
80 %

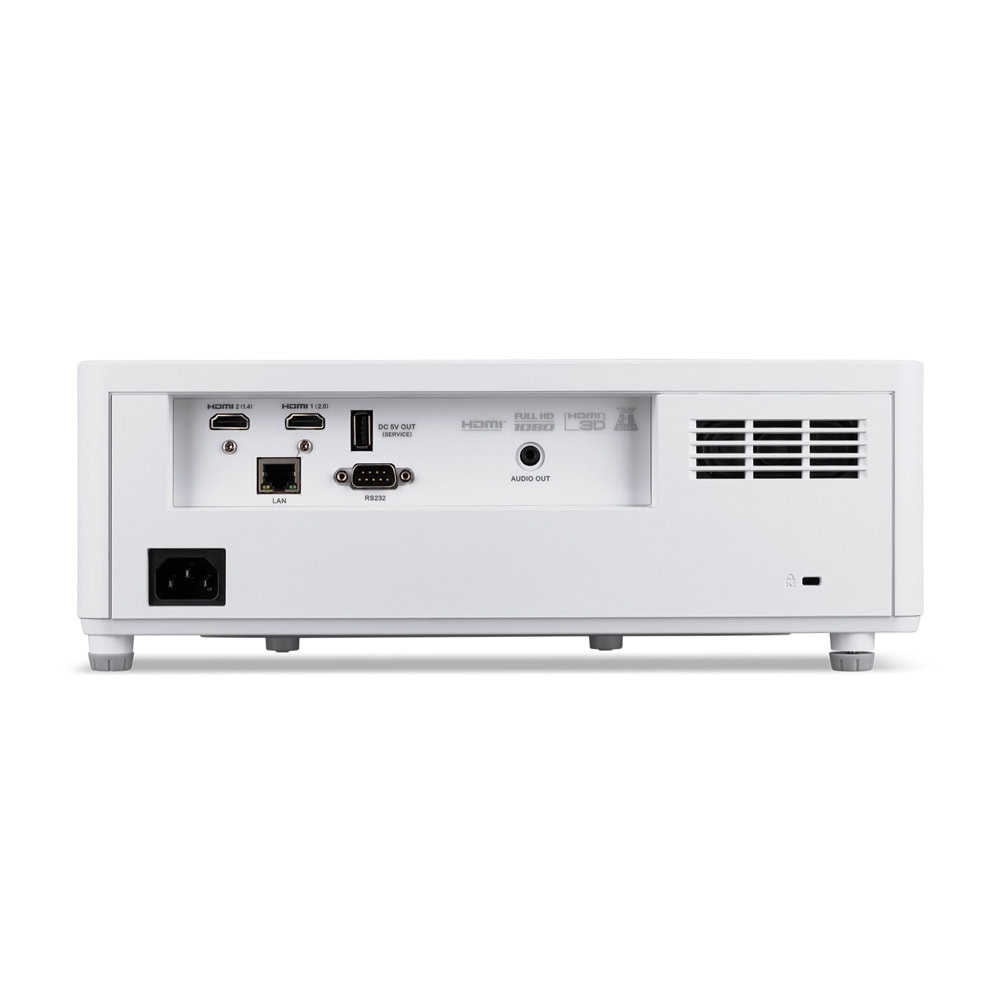

Input Ports
HDMI with HDCP
1x (1.4b)

HDMI / MHL with HDCP
1x

Output Ports
USB Type A
1x DC Out 5V

D-Sub Out (for Monitor Loop Through)
1x

Network and Control Ports
Network RJ45
1x (Monitoring)

RS232
1x
