Turn 4G into Internet for All
.png)
Share via Speedy AC1200 Wi-Fi Dual-band WiFi allows newer devices to stream on the less congested 5 GHz band, while IoT and legacy devices can connect to the 2.4 GHz band, making your video chatting, 4K playback and light control feel as smooth as possible. | Share via Fast Ethernet Share a stable wired connection for TV and PC. The LAN/WAN port can be configured as a WAN port, connecting to another ISP and enabling WAN failover if the SIM card is inserted in. |
Easy Setup and Versatile Management
.png)
Easy to Use and Move Insert your Nano SIM card and power up to get network instantly. No rigid subscription, nor complex wiring. | Network Redundacy Set up the backup to make sure your surveilance and the rest stay connected even when WAN/WISP is down. | Client Management Set a bedtime and a domain blacklist to regulate your children's online behaviour. | VPN Client and Server Connect to VPN with WireGuard/OpenVPN/Zerotier/PPTP/L2TP protocols or host your own server at home/office. |
Plug in a SIM Card to Enjoy the Network
.png)
Home Plug and play easy-to-install WiFi for every home—no rigid broadband subscription is required. | Automobile Provide decent networks for all devices on your road journey. | Surveillance Make sure the network is always on with the WAN + WISP + 4G backup function. | Booth Utilized the flexible pay-as-you-go plan to equip your temporary booth with a fast network. (SIM card is not included) |
Features
- 4G Cat. 4 with Max 150 Mbps DL 1
- 4-Stream Dual-Band Wi-Fi 5
- 867 Mbps + 300 Mbps Wi-Fi 2
- 4× Fast Ethernet Ports

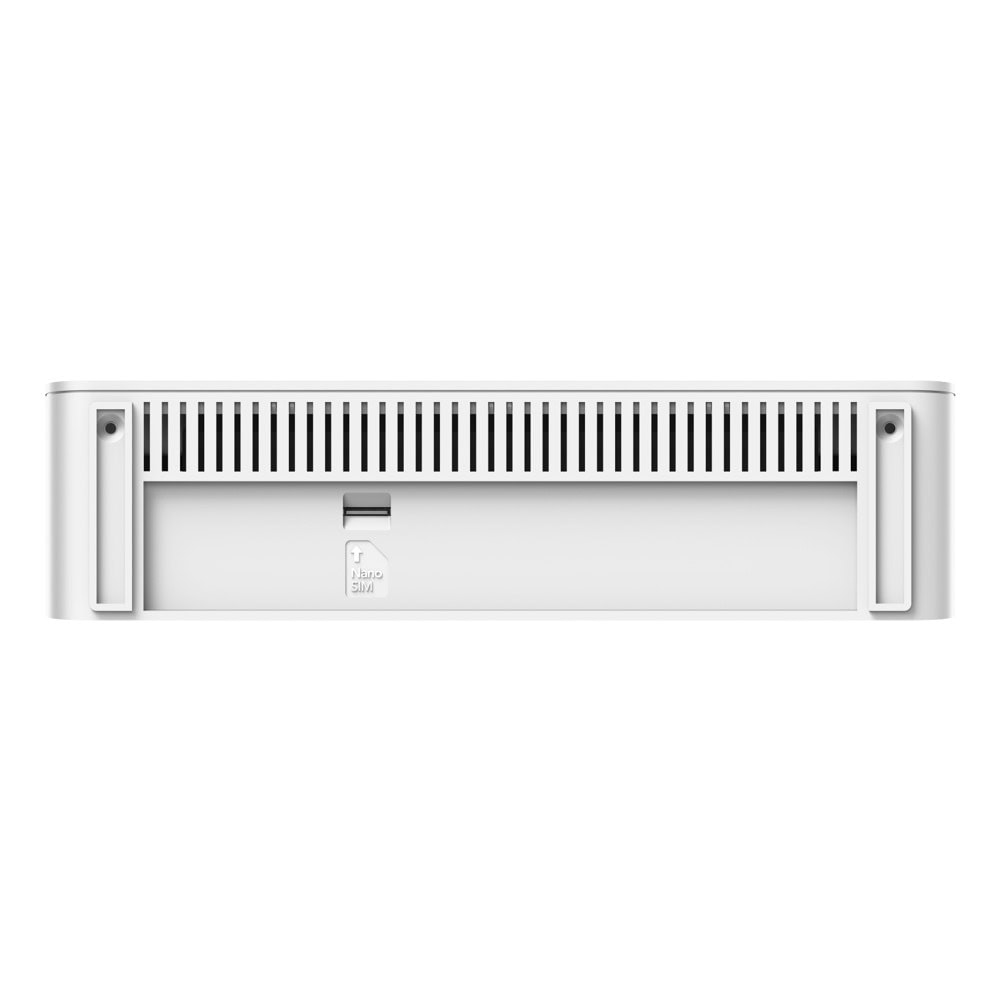

- 1× Nano SIM Slot
- Cudy Mesh, VPN Server and Client
- Cudy App, Cloud Control
Specifications
Hardware Specs
| CPU | CPU Details | 580 MHZ Single-Core, MIPS24KEC |
|---|---|---|
| Memory/Storage | Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 128 MB (1 Gbit) DDR2 | |
| Cellular | Cellular Standards | 4G Cat. 4 |
| Cellular Antennas | 2× Internal | |
| SIM Options | 1× Nano SIM Slot | |
| Available Versions | EU, US, AU | |
| EU Version Cellular | Suitable Regions | Europe, Middle East, Africa |
| Max DL Speed | 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD) | |
| Max UL Speed | 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD) | |
| Advanced | DL 2×2 MIMO | |
| Cellular Bands | LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 WCDMA: B1/5/8 | |
| Wireless | 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps | |
| 5 GHz Wi-Fi Streams | 2 Spatial Streams | |
| 2.4 GHz Wi-Fi Streams | 2 Spatial Streams | |
| Wi-Fi Antennas | 2× Internal | |
| Beamforming | Yes | |
| FEM or PA/LNA | 5 GHz: 2× Internal, 2.4 GHz: 2× Internal | |
| Range Performance | Max: 170 m (558 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. | |
| Wall Performance | Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') | |

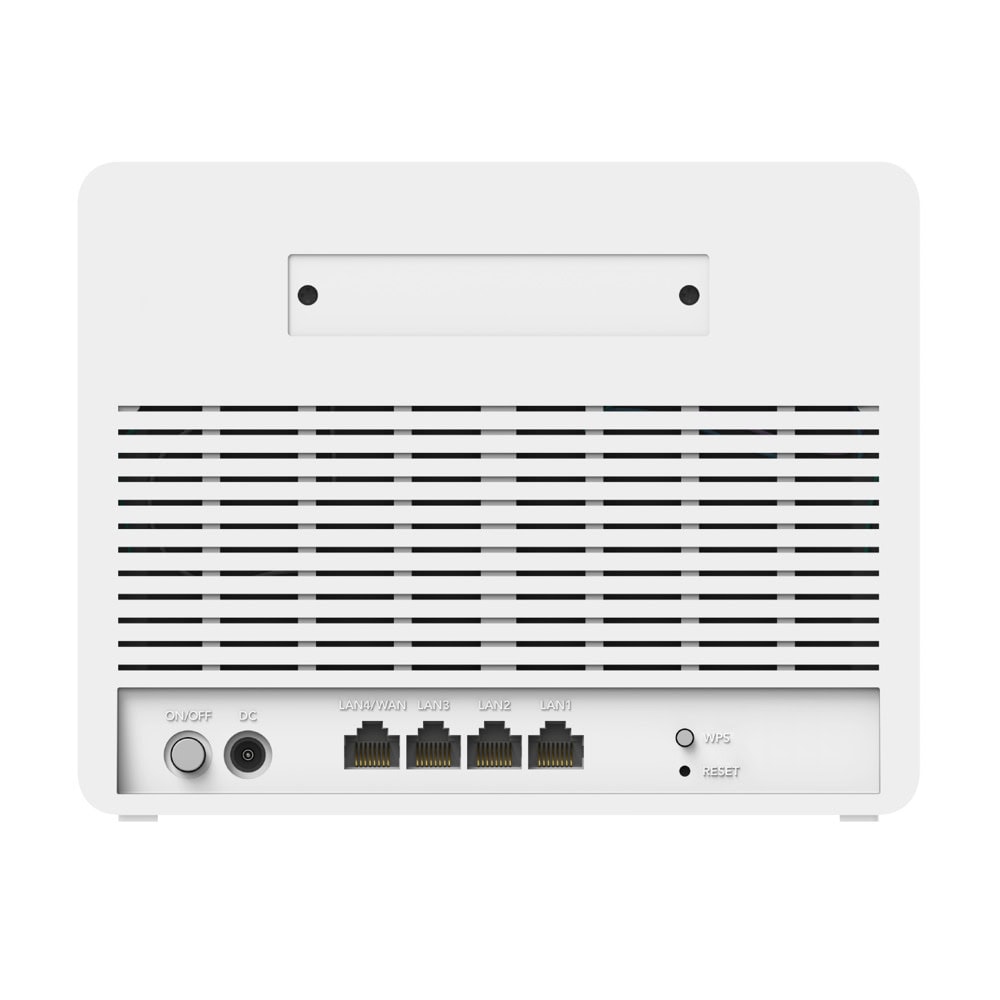

| Interfaces | 10/100 Mbps RJ45 Ports | 4 |
| Ethernet Notes | 1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports | |
| Buttons and LEDs | Physical Buttons | Power On/Off Button, WPS Button, Reset Button |

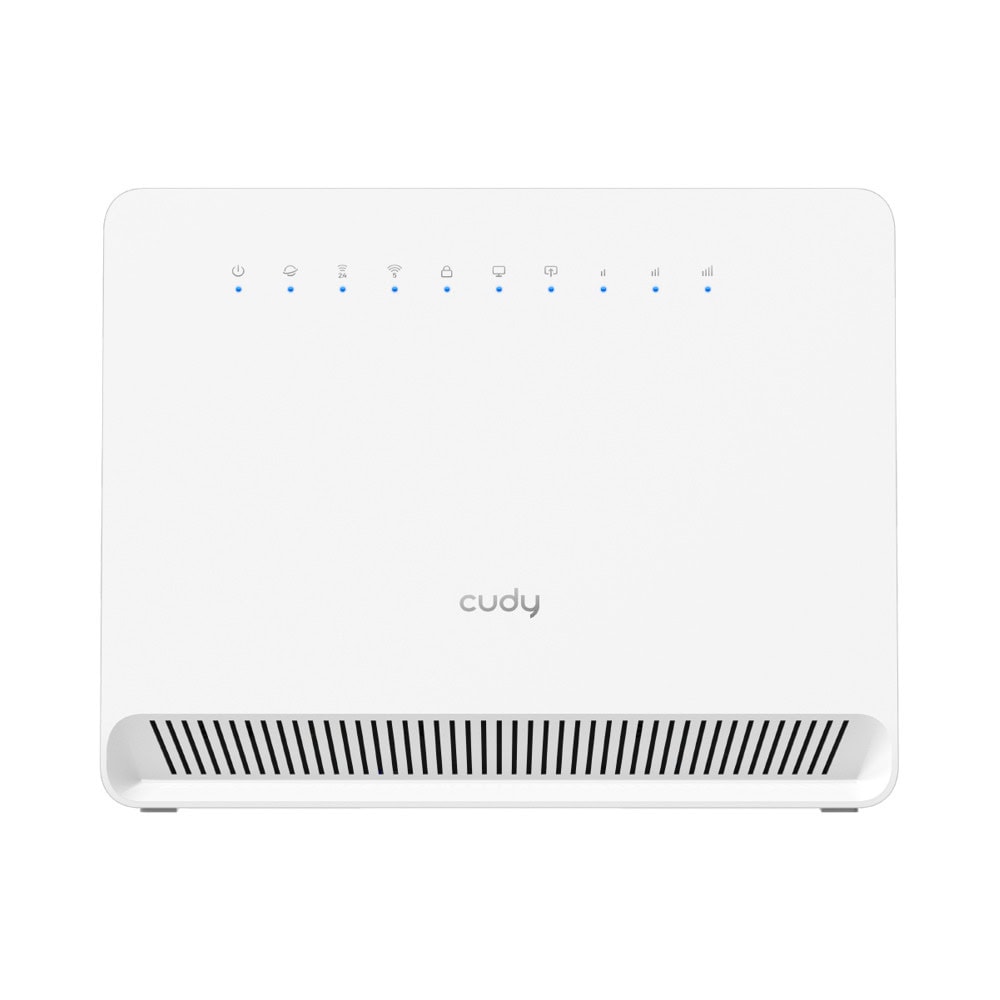

| LED | System, Internet, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, WPS, LAN, WAN/LAN, Cellular Signal Strength | |
| Power | Power Input Type | DC Jack |
| Power Methods | DC | |
| Power Input | 12V⎓1A | |
| Max Power Consumption (W) | 10W | |
| Idle Power Consumption (W) | 4W | |
| Power Adapter In the Box | Input: 100-240V~, 50/60Hz Output: 12V⎓1A | |
| Reliability | EMC | ESD: Contact: 4kV; Air: 8kV |
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing | |
| Certifications | FCC, CE | |
| Mechanical | Dimension | 190×50×148.8 mm 7.48×1.97×5.86 inches |
| Product Weight | 300 g (10.58 oz.) | |
| Installation | Desktop | |
Software Specs
| Wireless | Wi-Fi Standards | Wi-Fi 5 |
|---|---|---|
| Max Wi-Fi Modulation | 256-QAM | |
| Wi-Fi Efficiency | MU-MIMO | |
| Wi-Fi Efficiency Note | MU-MIMO available on 5 GHz | |
| Max Capacity | 128 | |
| Recommended Client Upper Limit | 40 | |
| Wi-Fi Channel Width | Auto/20/40/80 MHz | |
| Wi-Fi Security | WPA/WPA2/WPA3 | |
| Guest Network | 2.4 GHz, 5 GHz | |
| WPS | Yes | |
| General | Operation Modes |
|
| Mesh | Cudy Mesh Main | |
| Mesh Backhaul |
| |
| Cellular APN |
| |
| Cellular Mode |
| |
| WAN Mode |
| |
| Internet Failover Sequence |
| |
| Network | QoS | Per-User Rate Limiting |
| DHCP |
| |
| IP Versions | IPv4/IPv6 | |
| IPv6 Protocols |
| |
| Multicast | Yes | |
| IPTV/VLAN |
| |
| TTL Customization |
| |
| IGMP |
| |
| Forwarding |
| |
| Firewall |
| |
| Application Layer Gateway |
| |
| Utilities | VPN Server |
|
| VPN Client |
| |
| DNS Options |
| |
| DNS over TLS Providers |
| |
| SMS |
| |
| Wake on LAN | Yes | |
| Online Detection | Yes | |
| Management | Parental Controls |
|
| All Devices Management |
| |
| Per-Devices Management |
| |
| Content Management |
| |
| System | Local Control Method |
|
| Remote Control Method |
| |
| Firmware Upgrade |
| |
| Diagnostic Tools |
| |
| Languages |
| |
| Reliability |
| |
| Dashboard | Panel |
|
| Charts |
| |
| Wireless | Separate Client | Yes |
Виж още Рутери Безжични Cudy
Виж всички Рутери Безжични в категорията
декларация за съответствие_cudy_lt500e.pdf| Безжична скорост: | 1200 Mbps |
|---|---|
| Wi-Fi Стандарт: | Wi-Fi 5 (802.11ac) |
| LAN портове: | 3 x 100 Mbps |
| WAN портове: | 1 x 100 Mbps |
| Честота: | 2.4 + 5 GHz |
| Антени: | 2 Вътрешни |
| USB портове: | Няма |
| 3G/4G: | 4G |
| Преносим: | Не |
| Други: | Слот за SIM карта |
| Жична скорост: | 10/100 Mbps |
