Мултифункционално лазерно устройство Ricoh IM C2010, цветен, принтер/копир/скенер/факс, 1200 x 1200 dpi, 20 стр/мин, LAN, USB, A4

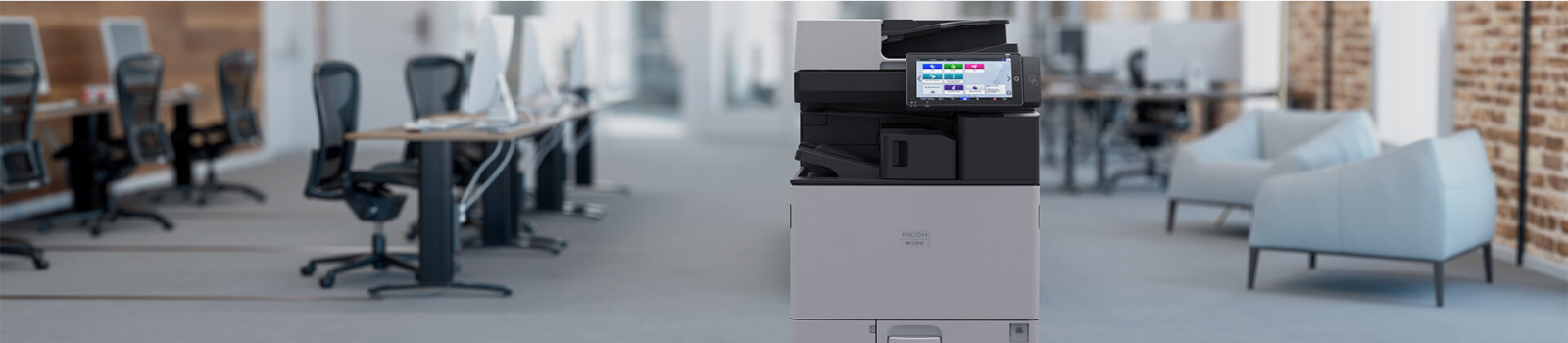

Ricoh IM C2010



Be smart and secure

Ensure that your print, copy, scan and fax workflows are always protected with the latest security features. At the same time, benefit from an enhanced user experience with easy operation and flawless results.





Specs:

Functions

Copy, print, scan, optional fax



Colour

Yes



HDD

256 GB SSD



Memory - standard

6 GB—2 GB mainframe + 4 GB Smart Operation Panel



Operation panel

10.1" Smart Operation Panel



Physical dimensions (WxDxH)—mainframe

587 x 701 x 913 mm



Weight—mainframe

89.7 kg



Standard input capacity (sheets)

1,200



Maximum input capacity (sheets)

2,300



Standard output capacity (sheets)

500
250—B4 or larger



Maximum output capacity (sheets)

1,625



Paper input configuration - standard

2 x 550-sheet paper trays, 100-sheet bypass tray, 100-sheet ARDF, duplex unit



Paper output configuration - standard

500-sheet face-down internal output tray



Supported media

Tray 1
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high gloss coated paper, coated paper

Tray 2
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high gloss coated paper, coated paper, envelope

Optional trays
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high-gloss coated paper, envelope, coated paper



Bypass tray
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high-gloss coated paper, envelope, coated paper, label paper



Maximum paper size

SRA3



Media weight (g/m2)

52–300



Interfaces - standard

Mainframe
10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
USB Host Type A—2 ports
USB Type B—1 port



Smart Operation Panel
Bluetooth 5.2
USB Host Type A—USB Flash memory
USB Host Type A—optional 1 port for USB keyboard
Bluetooth cannot be used for printing



Copy speed

20 cpm



First copy time

5.1 seconds—black and white
7.4 seconds—colour



Copy resolution

100, 200, 300, 400, 600 dpi—scanning
1,200 x 1,200 dpi (maximum)—printing



Zoom range

25%–400% in 1% steps



Enlargement ratios

115%, 122%, 141%, 200%, 400%



Reduction ratios

93%, 87%, 82%, 71%, 61%, 50%, 25%



Duplex copy

Simplex to duplex, duplex to duplex—with ARDF, book to duplex, front and back to duplex



Book copy

Booklet, magazine, layout and booklet



Print speed colour

20 ppm



Print speed black and white

20 ppm



First print time

4.5 seconds black and white, 7.0 seconds colour



Print resolution

1,200 x 1,200 dpi



Page description languages (PDLs)

Standard
PCL 5c, PCL 6, PostScript 3 emulation, PDF Direct emulation

Optional
Genuine Adobe PostScript 3, PDF Direct from Adobe



Printer drivers

Standard
PCL 5c, PCL 6, PostScript 3 emulation

Optional
Genuine Adobe PostScript 3



Duplex printing

Standard



Mobile printing

Yes



Scan speed

Via ARDF
80 ppm—200 x 200 dpi, 300 x 300 dpi



Scan methods

Scan to USB, Scan to email, Scan to folder, Scan to URL, Scan to MSB, Scan to FTP, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.



Colour scanning

Standard



Scan resolution

100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi
Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.

Scan to file types

Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A
Single- and multi-page high-compression PDF

Scan to email



Protocols
SMTP gateway, TCP/IP, POP, IMAP 4

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Scan to email file types
Single-page
TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Multi-page
TIFF, PDF (default), PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.



Scan to folder

Protocols
SMB, FTP



Resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi



Search for client folders
SMB—browsing directly to the designated folder
FTP—by folder name



Scan to folder file types
Single-page
TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF



Multi-page
TIFF, PDF (default), PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

TWAIN scanning



Scan mode
Standard, Photo, OCR, Filing
Note: Optional OCR unit required for OCR scanning.

Scan resolution
100–1,200 dpi
Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.



Fax types

G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax



Fax circuit

PSTN, PBX



Fax compatibilty

ITU-T (CCITT), G3—maximum 3 lines



Fax modem speed

2,400 bps–33.6 Kbps—G3, standard with automatic shift down



Fax compression methods

MH, MR, MMR, JBIG



Fax resolution

Standard mode
200 x 100 dpi—8 x 3.85 lines/mm

Detail mode
200 x 200 dpi—8 x 7.7 lines/mm

Super Fine mode
400 x 400 dpi—8 x 15.4 lines/mm
400 x 400 dpi—16 x 15.4 lines/mm

Note: Super Fine mode is supported with the optional SAF memory.



G3 fax transmission speed

3 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission



Fax SAF memory capacity

Standard
4 MB—approximately 320 pages

With optional SAF memory
60 MB—approximately 4,800 pages



Fax memory backup

1 hour



Quick dials

2,000 numbers



Encryption

SSD, PDF, Secure print, WEP, WPA
Authentication password
Encryption of data sent via Scan to email and Fax forwarding (S/MIME)

Authentication

802.1x wired authentication
Administrator authentication
IEEE 802.11i security (WPA2)
IPv6
Quota setting
User authentication—Windows and LDAP via Kerberos, basic, user code
WiFi Protected Setup (WPS) support



Windows

PCL 5c, PCL 6, and PostScript 3
Windows 8.1
Windows 10
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019
Windows Server 2022

Macintosh

MacOS v10.15 or later—PostScript 3 only

Unix

PCL 5c, PostScript 3
Sun Solaris, HP-UX, SCO OpenServer, Red Hat Linux, IBM AIX

SAP

PCL 5c
R/3, S/4


Standard

@Remote Embedded
Web Image Monitor

Optional

Streamline NX V3
GlobalScan NX
Enhanced Locked Print NX
Card Authentication Package

Mobile apps

RICOH Smart Device Connector



Power source

220–240 V, 50/60 Hz—Asia Pacific
110 V, 60 Hz—Taiwan

Power consumption

1,700 W or less—maximum power, Asia Pacific
1,584 W or less—maximum power, Taiwan
411.8 W—operating power, black and white
465.3 W—operating power, colour
37.7 W—Ready Mode
0.3 W—Energy Saver Mode (Sleep Mode)

Typical Electricity Consumption (TEC)

0.20 kWh

Warm-up time

24 seconds

Recovery time

From Energy Saver Mode
6.6 seconds

Green labels

The Thai Green Label Scheme

Other environmental features

Eco-friendly indicator, Energy Saver Timer, System Reset Timer
