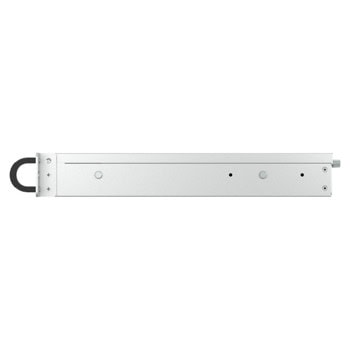

Name: Мрежови диск (NAS) Qnap TS-h765eU-8G, четириядрен Intel Atom X7405C 3.4 GHz, без твърд диск (4 x 3.5-inch SATA 6Gb/s, 3Gb/s), 8GB RAM, 2x 10/100/1000/2500 LAN, 1x USB 3.2 Gen 2
Brand: Qnap
SKU: NASQNAPTSH765EU8G
Price: 1211.63 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

Qnap TS-h765eU-8G

The 1U short-depth rackmount TS-h765eU is designed for space-constrained environments, offering an efficient and reliable storage solution for various needs. Adopting the latest Intel® Atom x7000C Series processor, the TS-h765eU comes with four 3.5-inch drive bays and three E1.S / M.2 PCIe NVMe slots for exceptional expandability, making it an ideal NAS for high performance and multitasking demands. The TS-h765eU runs the ZFS-based QuTS hero operating system that ensures data integrity and WORM protection for data immutability.

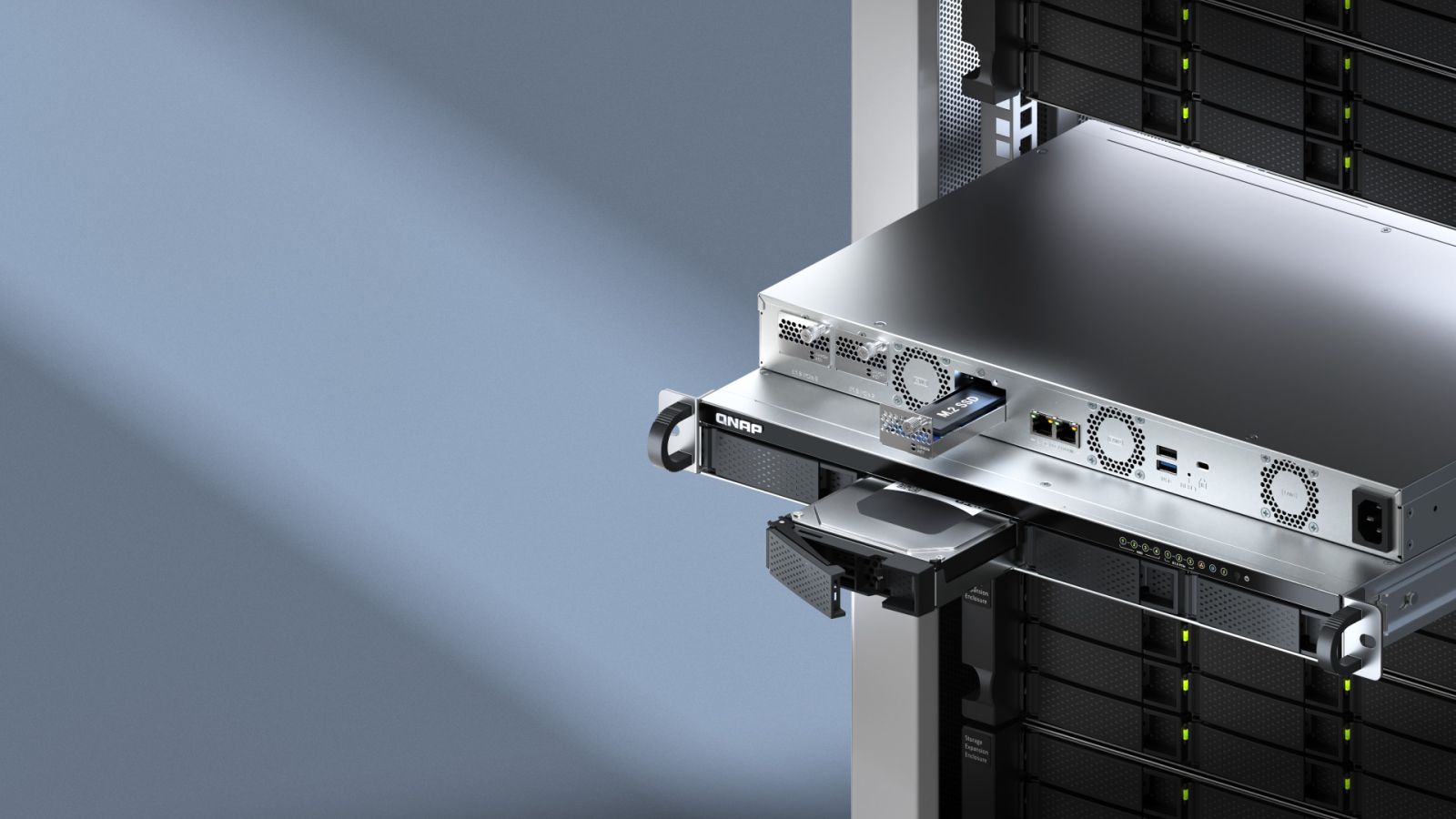

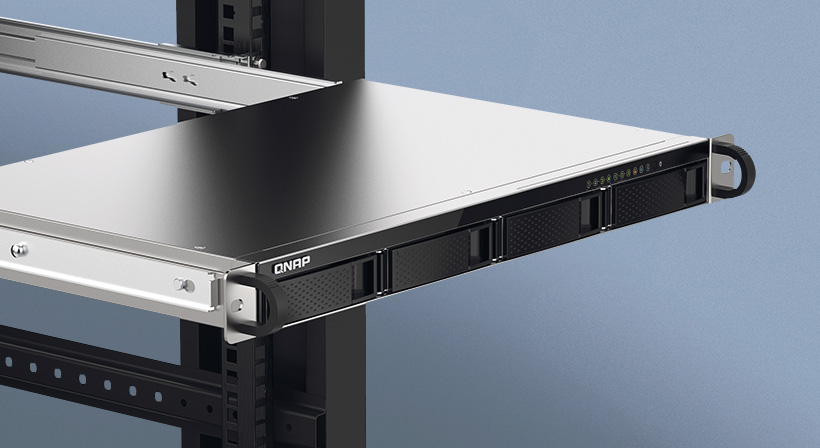

1U short-depth design for flexible deployment

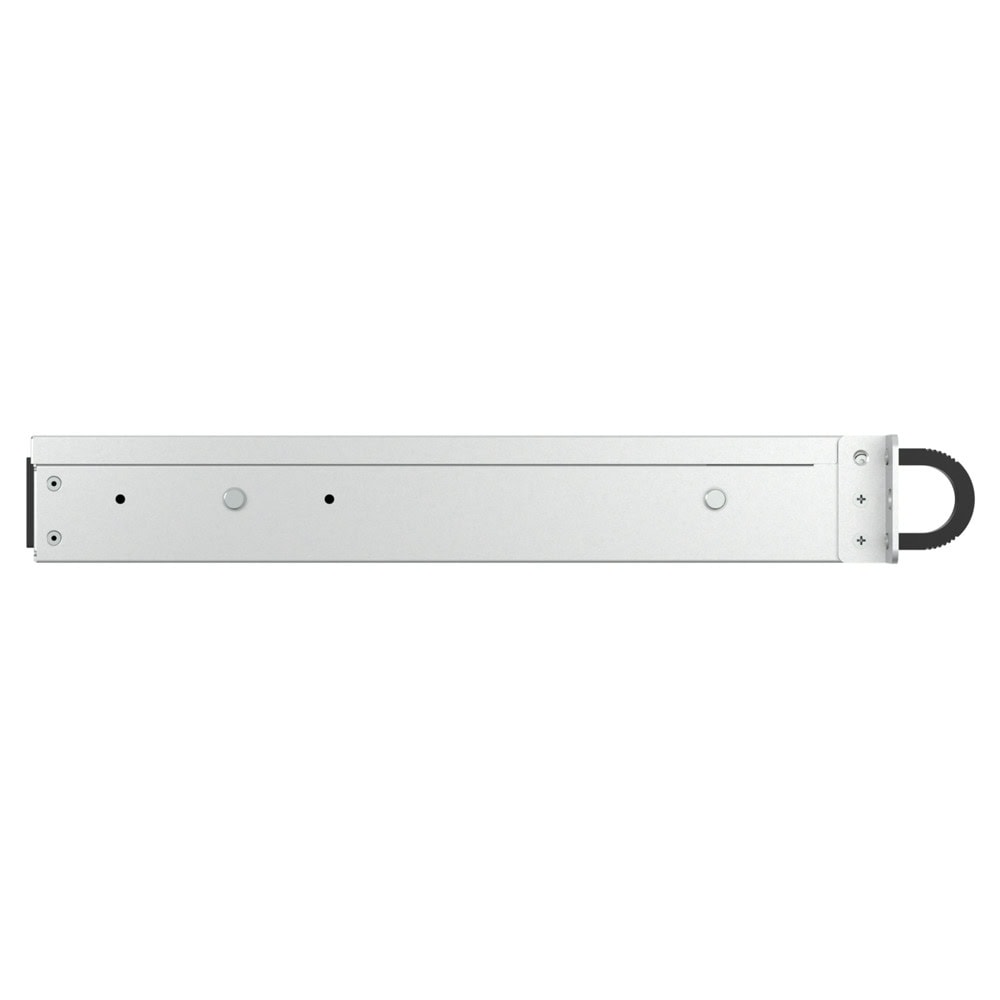

The TS-h765eU has a shorter chassis depth of only 12 inches (292.1mm), making it easy to install in small cabinets and various space-limited environments, including factories, small offices, surveillance rooms, audiovisual rooms, or in-vehicle applications.

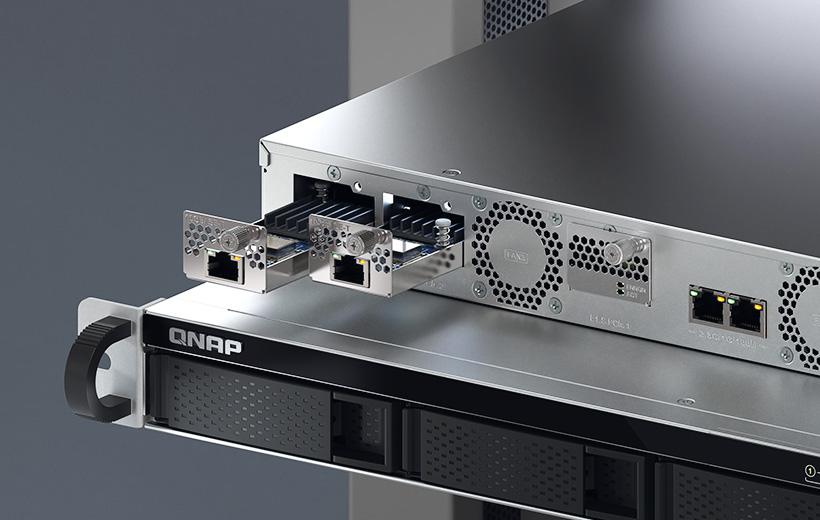

Surpass the competitor with standard 2.5GbE and flexible 10GbE upgrade

In modern business IT, a NAS with only 1GbE is a performance bottleneck. The TS-h765eU comes with faster network connectivity which


CPU	Intel Atom x7405C 4-core, up to 3.4GHz
CPU Architecture	64-bit x86
Floating Point Unit
Encryption Engine	(AES-NI)
System Memory	8 GB SODIMM DDR5, enabled in-band ECC
Maximum Memory	16 GB (1 x 16GB)
Memory Slot	1 x SODIMM DDR5
Flash Memory	8GB (Dual boot OS protection)

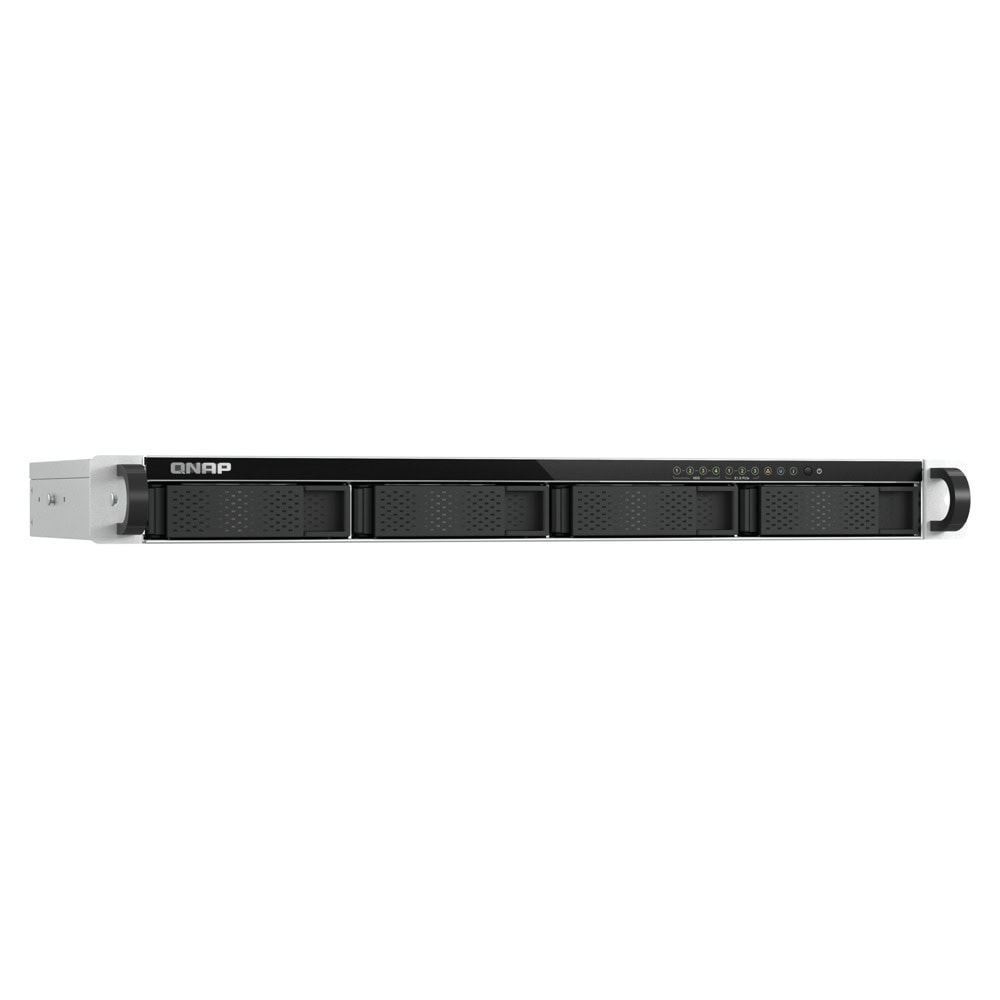

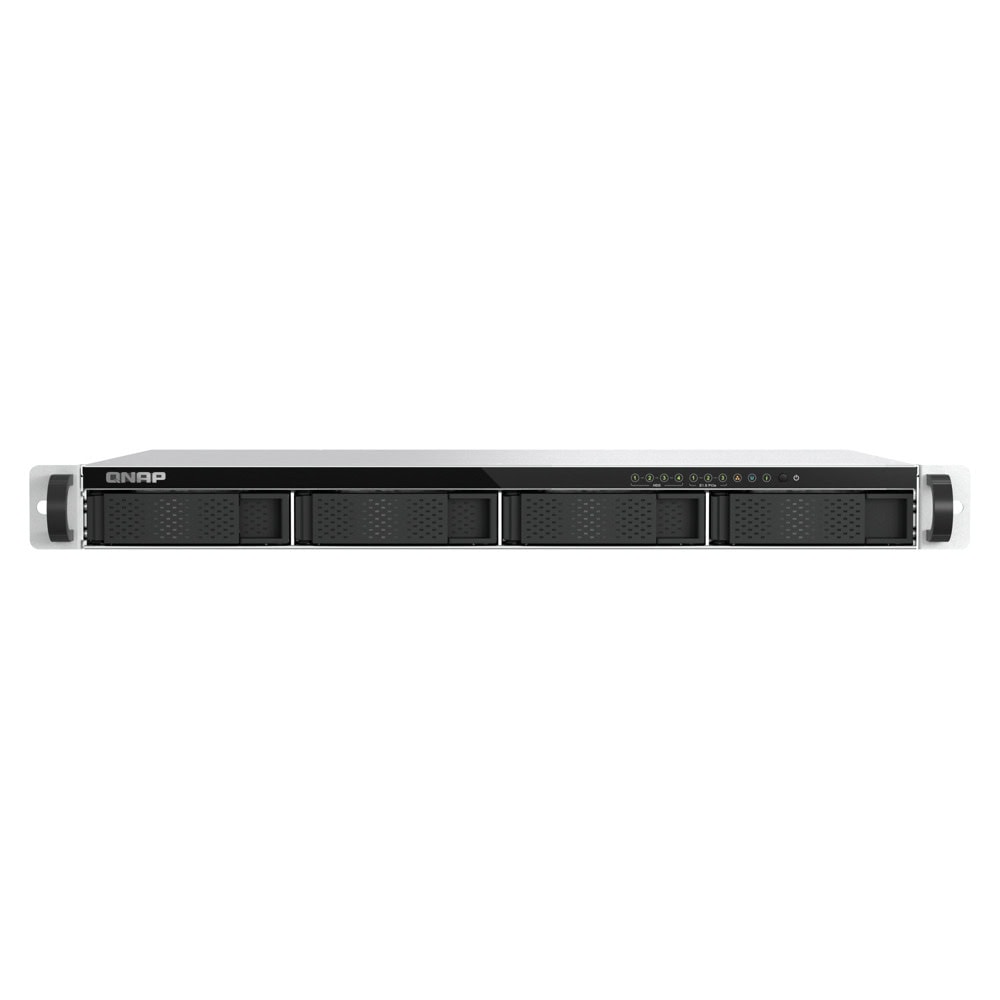

Drive Bay	4 x 3.5-inch SATA 6Gb/s, 3Gb/s 3 x E1.S up to 15mm (Pre-install adapter to support M.2 2280 for each slots)
Drive Compatibility	3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives E1.S NVMe PCIe SSDs M.2 2280 NVMe PCIe SSDs
Hot-swappable	(Not supported M.2 SSD)
M.2 Slot	3 x E1.S up to 15mm (Pre-install adapter to support M.2 2280 for each slots)
SSD Cache Acceleration Support

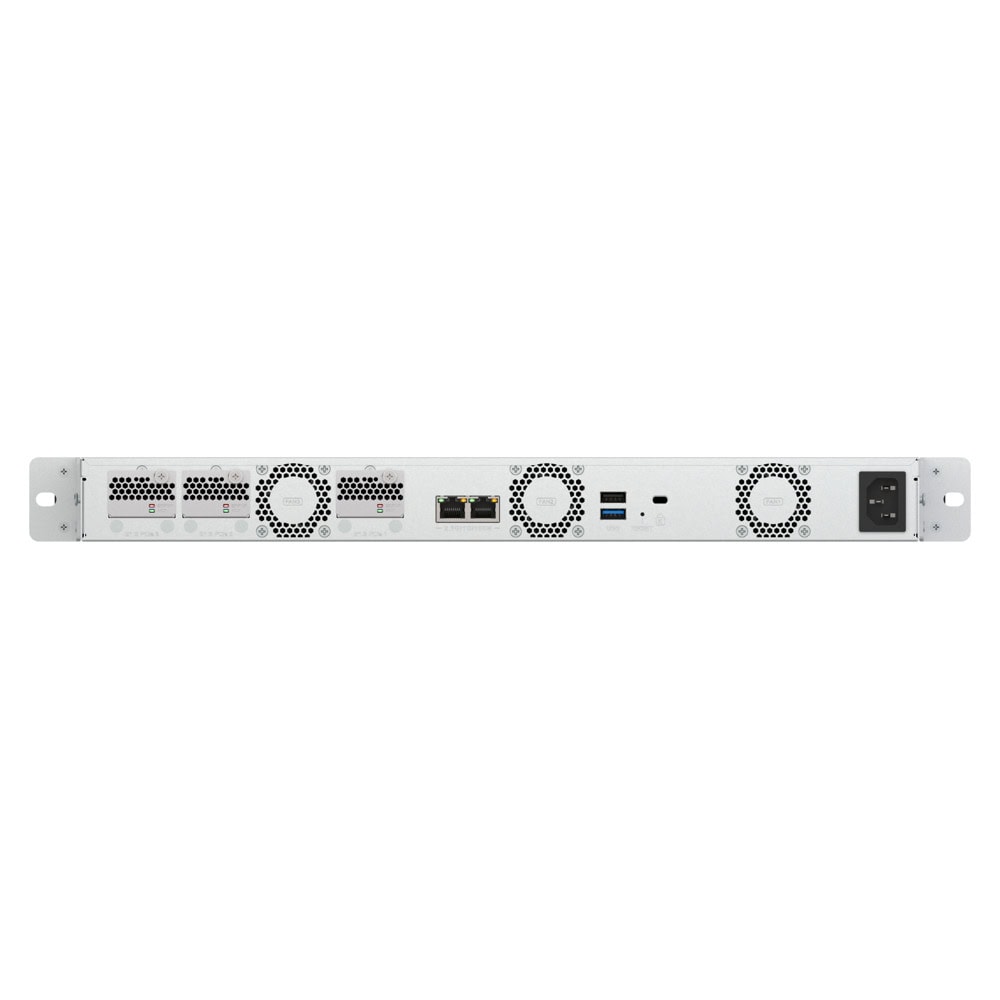

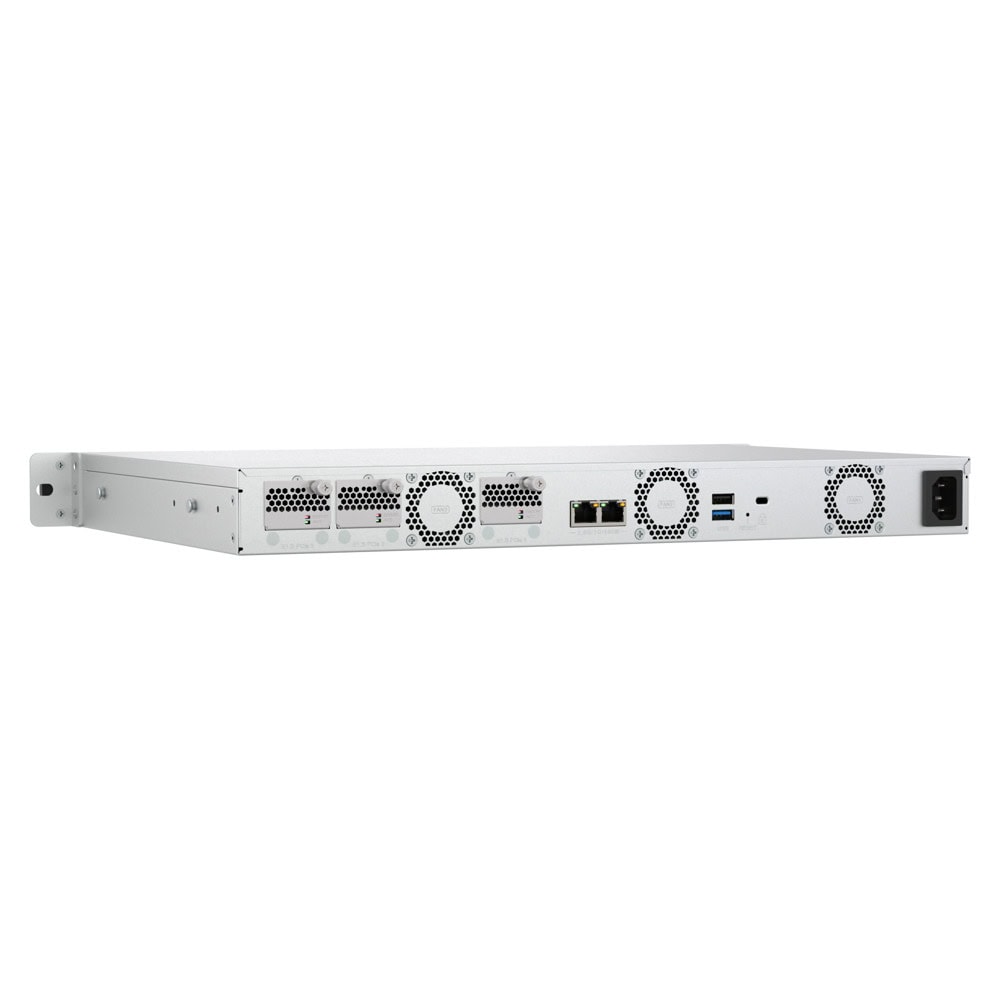

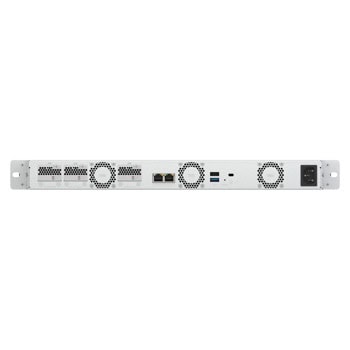

2.5 Gigabit Ethernet Port (2.5G/1G/100M)	2 (2.5G/1G/100M/10M)
10 Gigabit Ethernet Port	Optional via QXG-ES10G1T
Wake on LAN (WOL)
Jumbo Frame
USB 2.0 port	1
USB 3.2 Gen 2 (10Gbps) Port	1 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor	1U Short Depth Rackmount
LED Indicators	Power/Status, LAN, USB, HDD1-4, E1.S/PCIe SSD1~3
Buttons	Power, Reset
Dimensions (HxWxD)	43 × 430 × 292.1 mm
Weight (Net)	4.51 kg
Operating Temperature	0 - 40 °C (32°F - 104°F)
Storage Temperature	-20 - 70°C (-4°F - 158°F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit	150W, 100-240V
Fan	3 x 40mm
System Warning	Buzzer
