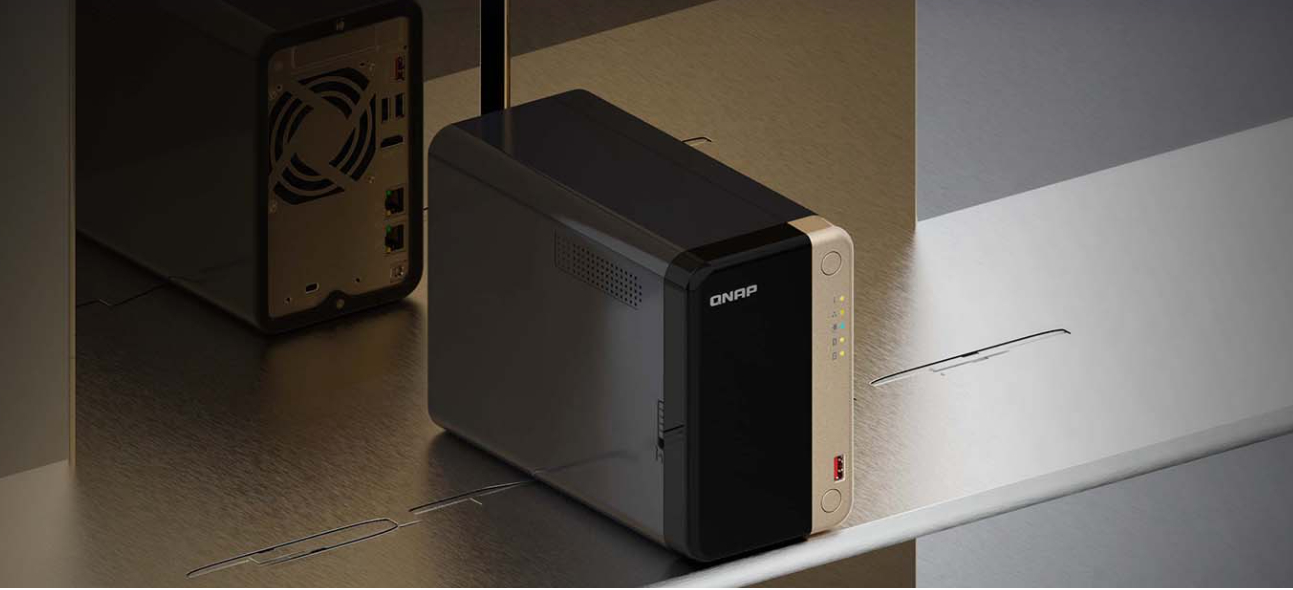

TS-264 is a compact 2-bay NAS with superior performance. Supporting up to 22 TB storage and 4 TB M.2 SSD caching* at an affordable price, the TS-264 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.
The TS-264 uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.2.)
Using two 3.5-inch 22 TB hard drives in RAID 1 and two 2 TB M.2 SSDs. Hard drives and SSD sold separately.
2.5GbE is a must!
TS-264 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
Quad-core for multitasking
Perform additional tasks, stream more media, and have more services running with an Intel® quad-core processor optimized for multitasking.
Smooth video conversion
Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices.
Upgrade to dual-port 10GbE
Futureproof your network connection by installing a PCIe dual-port 10GbE network card that delivers up to 1,644 MB/s transfer speed.
Faster USB transfer
Two USB 3.2 Gen 2 (10Gbps) ports allow faster backup to/from USB devices.
More M.2 NVMe SSDs
If two M.2 slots aren’t enough, install a QM2 PCIe expansion card for more M.2 SSD slots.
Hardware Specifications:
| Общи Характеристики | ||
| Localization | Danish, Hungarian, Czech, Thai, Chinese (traditional), Brazilian Portuguese, English, German, French, Italian, Norwegian, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Greek, Turkish, Romanian, Japanese, Korean | |
| Packaged Quantity | 1 | |
| шаси | ||
| Built-in Devices | LED panel, IR sensor | |
| Процесор | ||
| Type | Celeron | |
| Installed Qty | 1 | |
| Max Supported Qty | 1 | |
| Manufacturer | Intel | |
| Processor Number | N5105/N5095 | |
| Number of Cores | Quad-Core | |
| Max Turbo Speed | 2,9 GHz | |
| RAM | ||
| Installed Size | 8 GB | |
| Max Supported Size | 8 GB | |
| Флаш памет | ||
| Installed Size | 4 GB | |
| Контролер за съхранение | ||
| Interface Type | Serial ATA-600 | |
| производителност | ||
| Performance | Concurrent connections (CIFS): 1500, Maximum pool size: 308 TB, Maximum number of storage pool: 128, Maximum volume size: 250 TB, Maximum number of volume: 128, Maximum shared folder size: 250 TB, Maximum number of shared folder: 512, Maximum LUN size: 250 TB, Maximum number of targets LUN: 256, Minimum snapshot interval: 5 min, Maximum FTP connection: 1024, Local user account: 4096, Local group account: 512, Domain user/group account: 200000, Log recording: 3000 events per second, Virtual hosts: 32 | |
| Работа в мрежа | ||
| Network / Transport Protocol | PPTP, IPv4, IPv6, L2TP, CIFS, WireGuard, QBelt, QuFTP, OpenVPN, DDNS, IPSec, iSCSI | |
| Network Services Compatibility | Network File System v3 (NFS v3), Network File System v4 (NFS v4), Microsoft CIFS, FTP, Apple File Protocol (AFP), HTTP, HTTPS, SFTP | |
| Host Connectivity (compact list) | 2.5 Gigabit Ethernet | |
| Разширителни гнезда | ||
| Expansion Bays | 2 (total) / 2 (free) x hot-swap - 2.5 / 3.5 | |
| Слотове за разширение | ||
| Expansion Slots | 2 x M.2 2280, 1 (total) / 1 (free) x PCI Express 3.0 x2 | |
| Осигурена ОС | ||
| Storage Operating System | QNAP QTS 5.0.1 | |
| Софтуер | ||
| Type | McAfee AntiVirus, Windows Update Agent, vSphere plug-in for VMware, QNAP Virtualization Station, IronWolf Health Management | |
| Захранващо устройство | ||
| Power Consumption Operational | 12,448 Watt | |
| Voltage Required | AC 100-240 | |
| Power Provided | 65 Watt | |
| Nominal Voltage | AC 120/230 V | |
| Type | External power adapter | |
| Системни изисквания | ||
| OS Required | SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11, Ubuntu Linux 14.4 (64-bit), Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019 | |
| Размери и Тегло | ||
| Width | 10,5 cm | |
| Depth | 22,6 cm | |
| Height | 16,8 cm | |
| Weight | 1,55 kg | |
| Размери и тегло (доставка) | ||
| Shipping Weight | 2,68 kg | |
| Разни | ||
| Features | Security lock slot (cable lock sold separately), Smart Fan, On/off power switch, 70mm cooling fan, USB copy button, Built-in firewall, Reset button, Secure Erase | |
| Color Category | Black, Gold | |
| Security Slot Type | Kensington security slot | |
Виж още Мрежови дискове NAS Qnap
Виж всички Мрежови дискове NAS в категорията
Ръководство на потребителя| Формфактор: | Desktop |
|---|---|
| Капацитет: | Неокомплектован GB |
