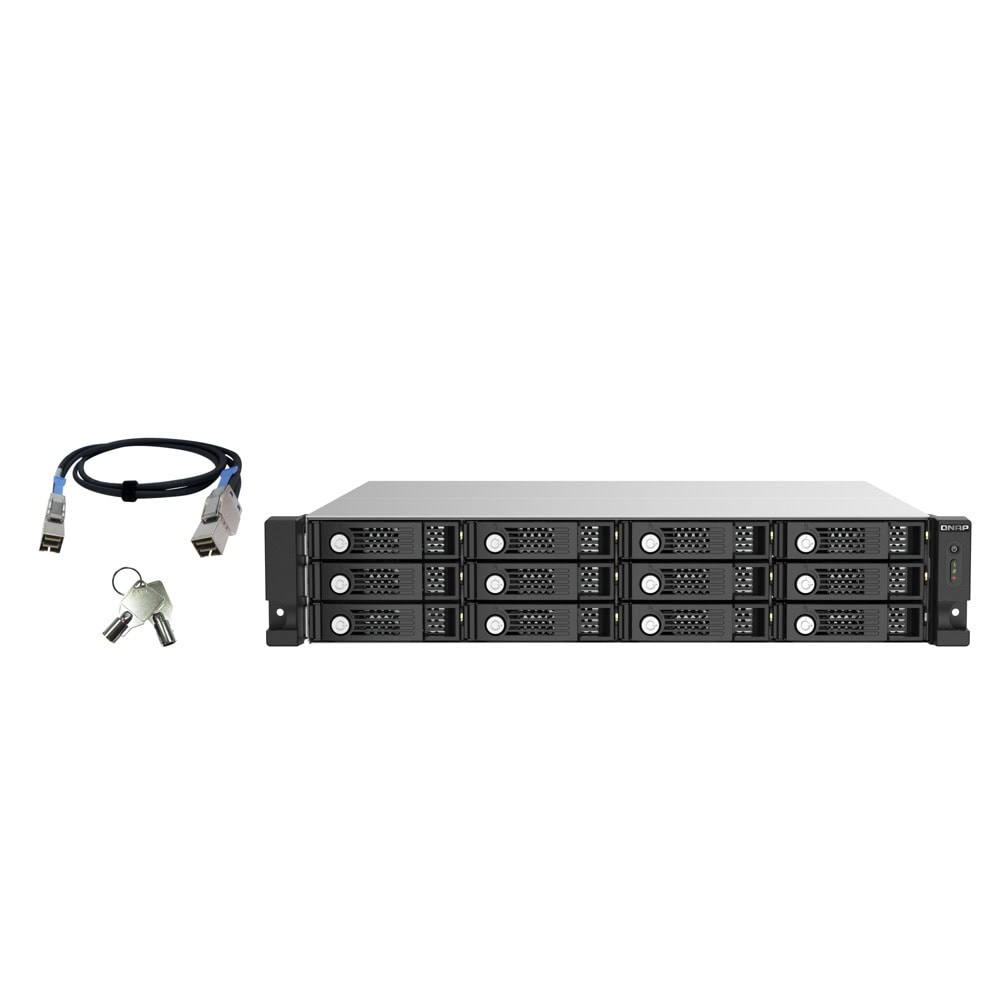

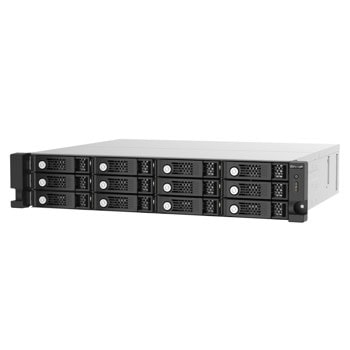

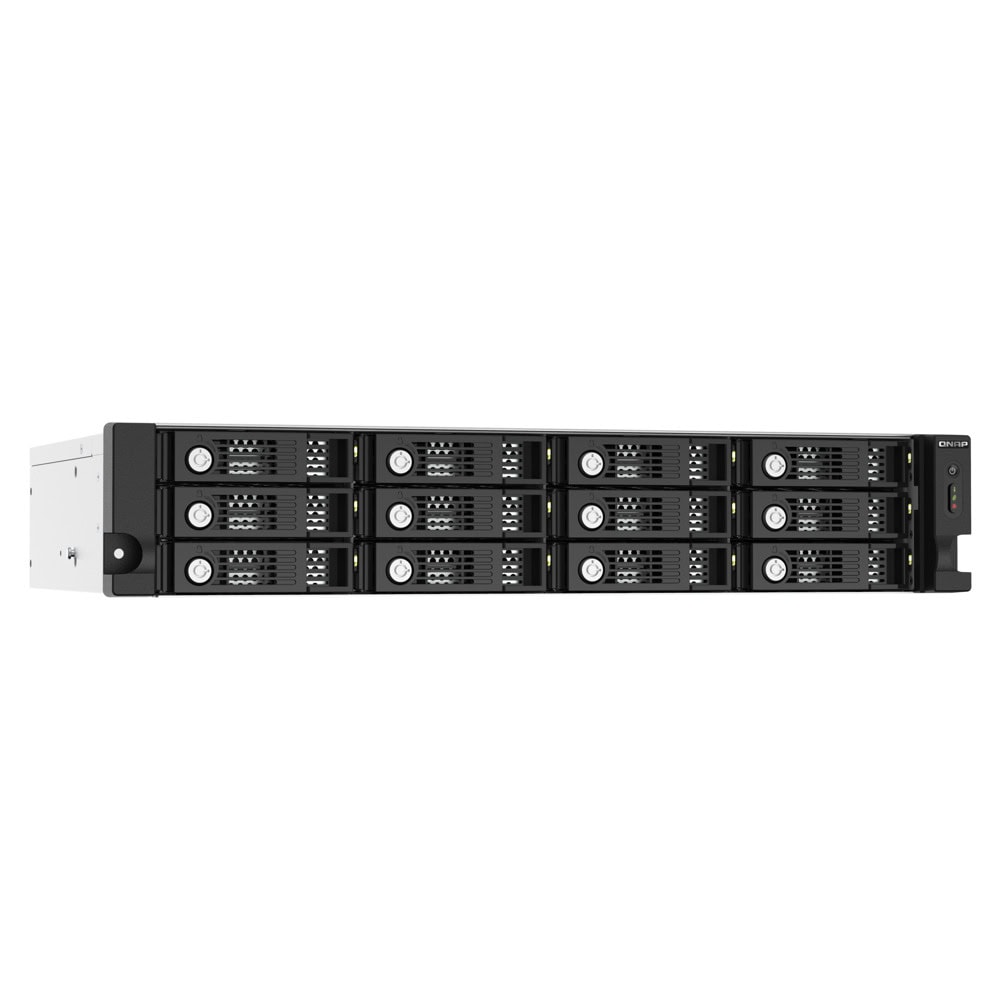

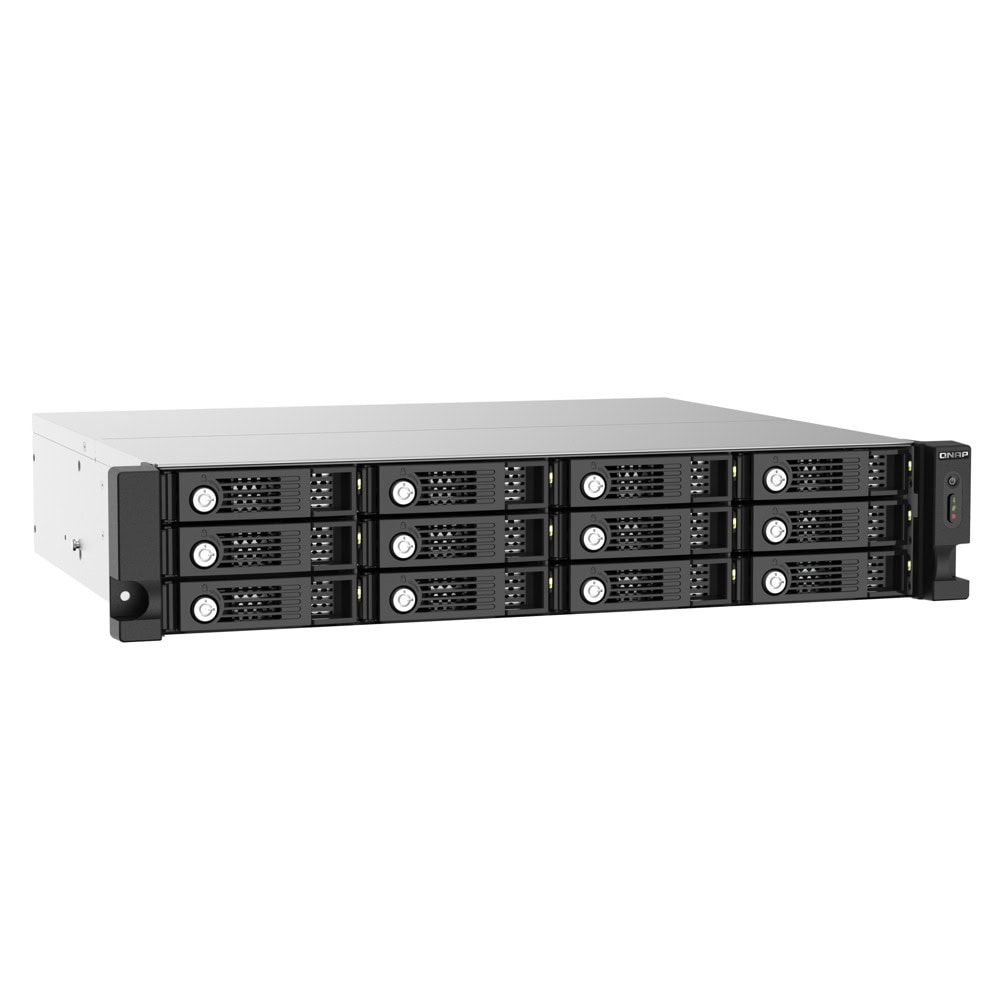

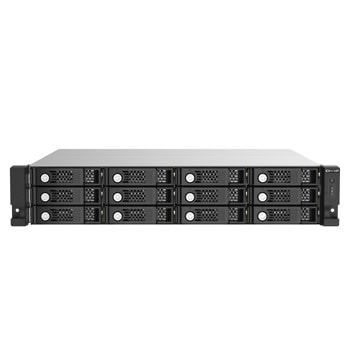

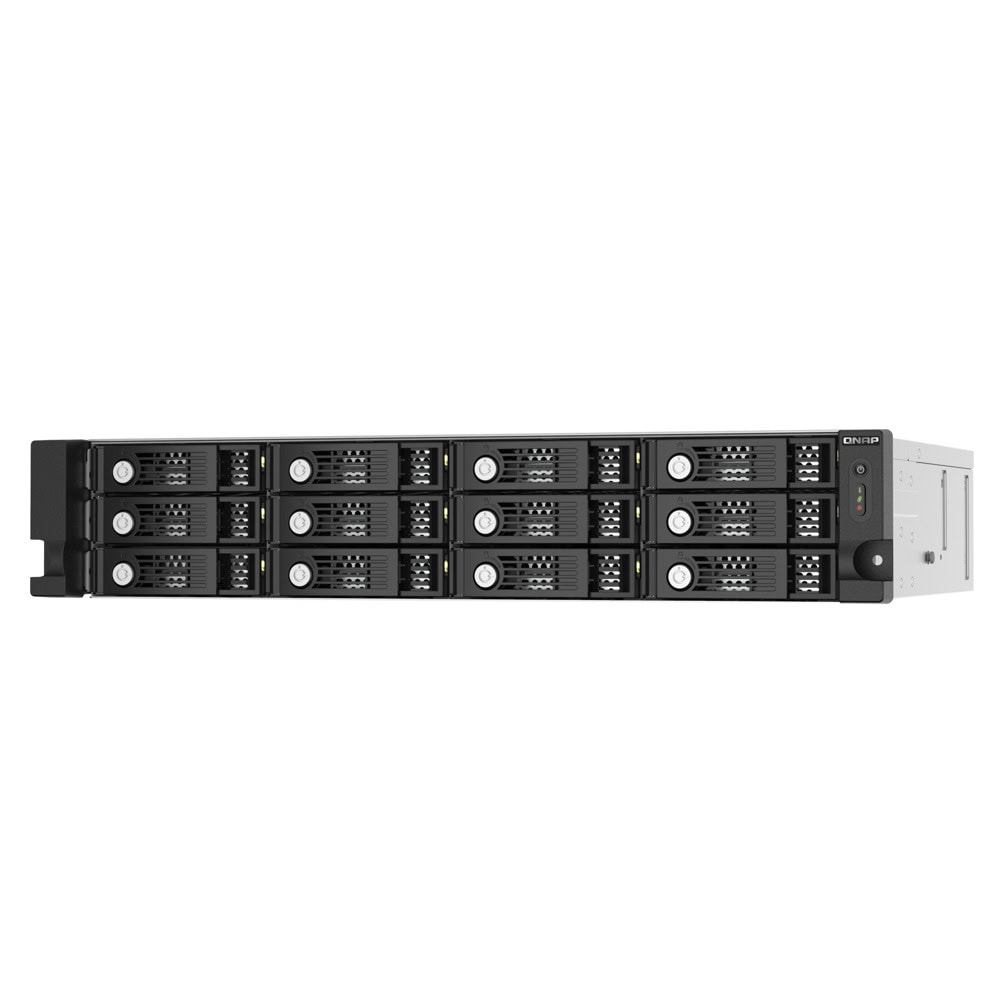

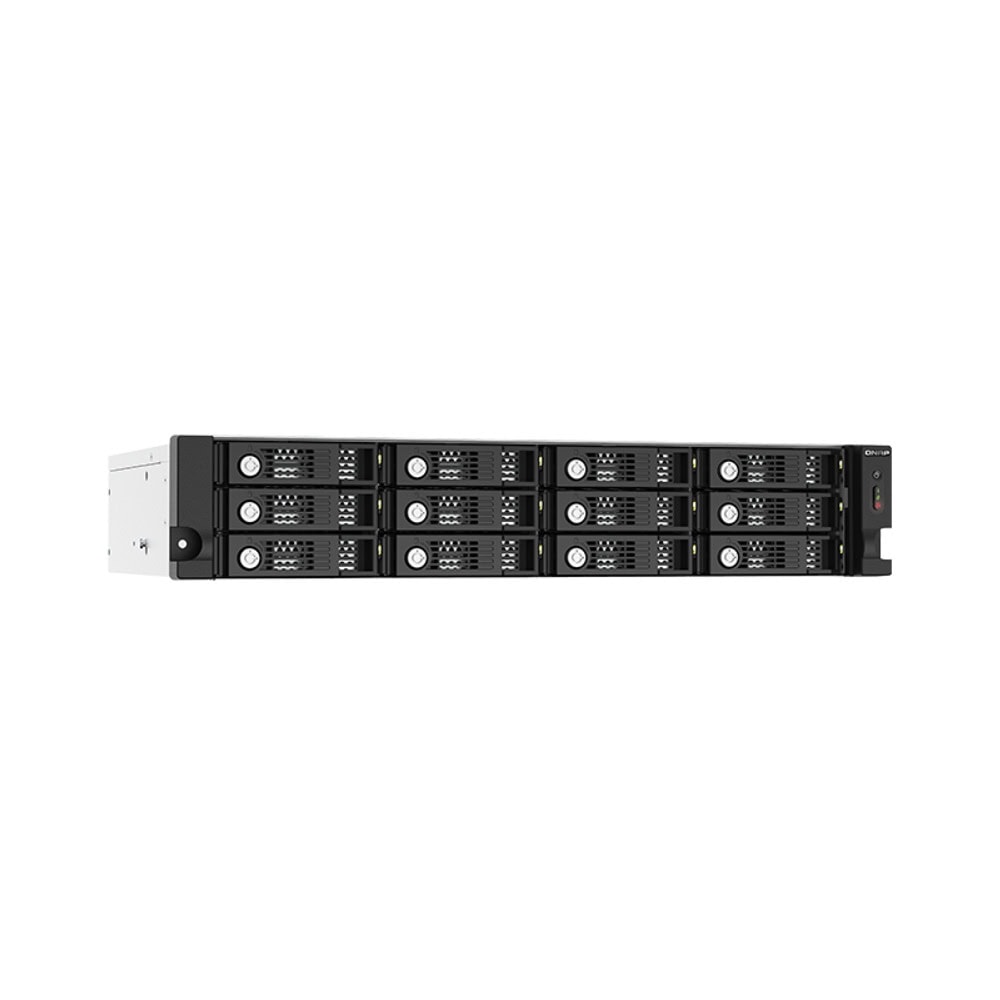

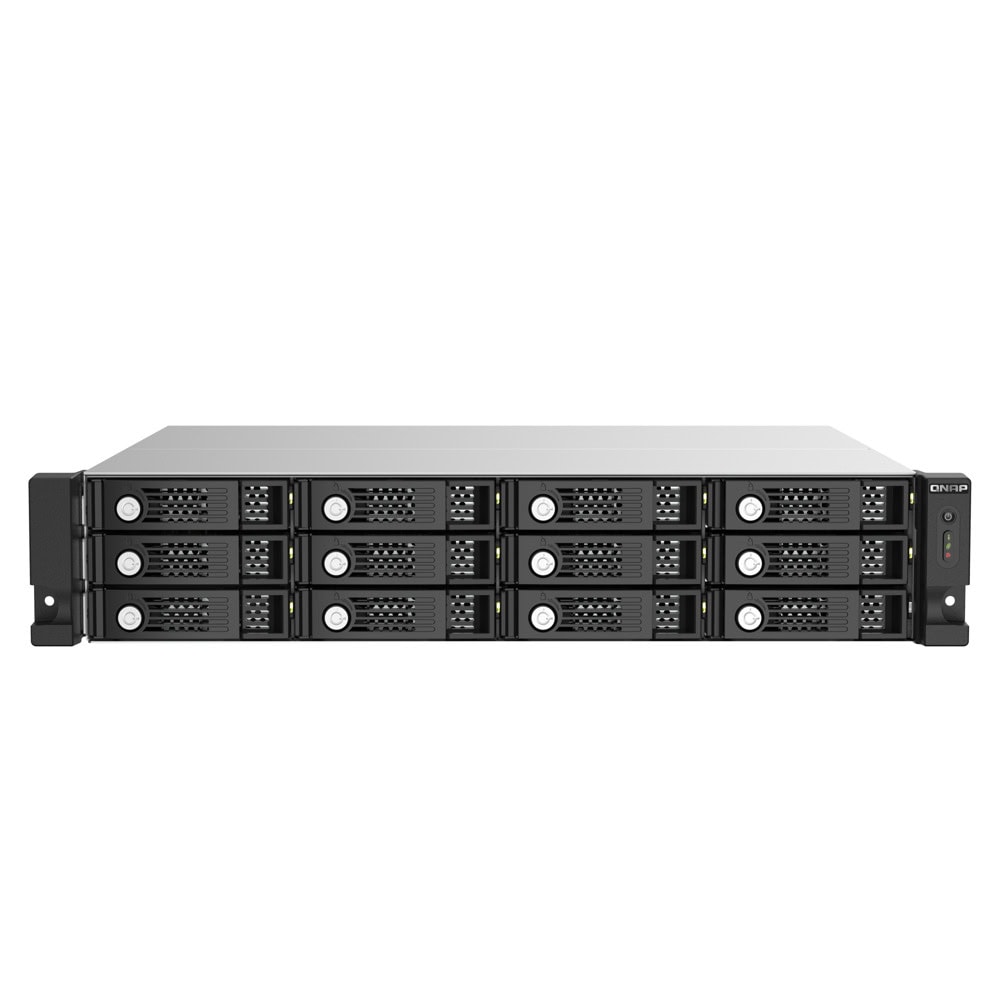

Qnap TL-R1220Sep-RP
Enterprise-grade SAS 12Gb/s storage expansion supporting multipath routing and daisy chaining
The TL-R1220Sep-RP SAS 12Gb/s storage expansion enclosure is designed for expanding the storage space of your QTS or QuTS hero NAS. Up to sixteen expansion enclosures can be daisy-chained via high-speed mini SAS HD cables to support up to 3.4PB raw capacity, ideal for archiving/backing up virtualization applications, surveillance recordings, large data, or multimedia. Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1220Sep-RP consolidates 6Gb/s infrastructure into 12Gb/s. With four mini SAS HD SFF-8644 Wide Ports, the TL-R1220Sep-RP delivers up to 192Gbps transfer speed when connected to a single host. When connected to a QTS/QuTS hero NAS that supports multipath routing, the TL-R1220Sep-RP can achieve smoother data transmission and continuous system operation.
| JBOD Connection Interface | SAS |
| Drive Bay | 12 x 3.5-inch The system is shipped without HDD. |
| Drive Compatibility | 3.5-inch bays: You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported. |
| Hot-swappable | Yes |
| Form Factor | 2U Short Depth Rackmount |
| Host Interface | 4 x 12Gb/s SAS 3.0 wide ports (4-wide port) Mini-SAS HD (SFF-8644) |

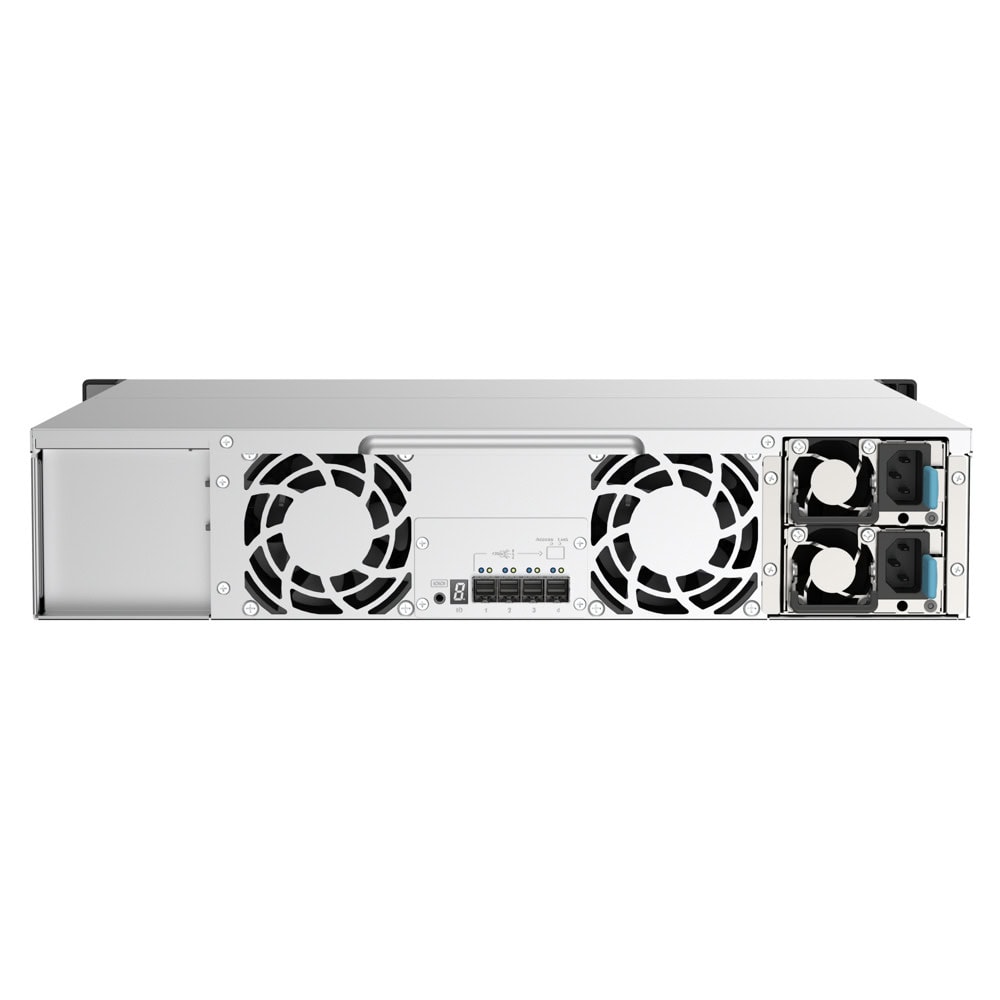

| LED Indicators | Front panel: HDD 1-12, Power, Status, Link, Fan error Rear panel: SAS connector, Enclosure ID |
| Buttons | Power |
| Dimensions (HxWxD) | 88.65 × 482 × 370.65 mm Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 9.19 kg |
| Weight (Gross) | 14.26 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 300W (x2), 100 - 240V |
| Power Consumption: Operating Mode, Typical | 163.38 W Tested with drives fully populated. |
| Fan | 2 x 80mm, 12VDC |
| System Warning | Buzzer |
| QTS / QuTS hero | Yes |
| Windows | Yes |
| Supports JBOD cascading | Yes |
| Supports expanding NAS storage pools | Yes |
| Supports Multi-path | Yes |
