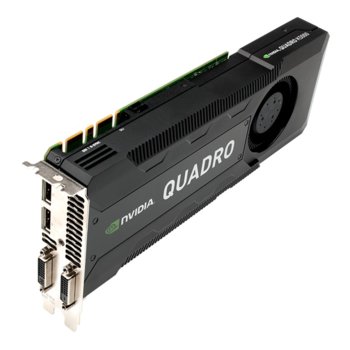

PNY nVidia Quadro K5000 4GB
VCQK5000-PB
Professional Graphics Perfected
The NVIDIA® Quadro® K5000 graphics card takes advantage of the NVIDIA Kepler™ architecture to dramatically accelerate professional applications. With the NVIDIA Quadro K5000, you can count on superior interaction when designing with the most complex models, richer scene details and effects for content creation, and faster results when processing massive datasets for scientific exploration. The Quadro K5000 features a range of innovative features, including SMX for increased per-clock throughput of key graphics operations and bindless textures that enable the GPU to reference textures directly in memory. Plus, it supports up to four displays ideal for driving large-scale visualization solutions.
Designed and built specifically for professional workstations, NVIDIA Quadro GPUs power more than 150 professional applications across a broad range of industries, including manufacturing, media and entertainment, sciences, and energy. Professionals trust them to deliver the best possible experience with applications such as, Adobe CS6, Autodesk Inventor, Dassault Systems CATIA and SolidWorks, Siemens NX, PTC Creo and many more.
Product Specifications
CUDA™ Cores 1536
GPU Memory 4GB GDDR5
Memory Interface 256-bit
Memory Bandwidth 173GB/s
System Interface PCI Express 2.0 x16
Maximum Power Consumption 122W
Idle Power 18W
Energy Star Enabling Yes
Thermal Solution Ultra-quiet active fansink
Form Factor 4.376" H x 10.50" L, Dual Slot

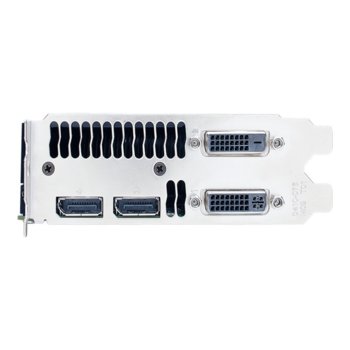

Display Connectors DVI-I DL + DVI-D DL + DP 1.2 + DP 1.2 + Stereo
DisplayPort 1.2 Yes
DisplayPort with Audio Yes
DVI-D Single-Link Connector Via included adapters
VGA Support Via included adapter
Number of Displays Supported 4
Maximum DP 1.2 Resolution 3840 x 2160 at 60Hz (direct connect)
Maximum DVI-I DL Resolution 2560 x 1600 at 60Hz
Maximum DVI-I SL Resolution 1920 x 1200 at 60Hz
Maximum VGA Resolution 2048 x 1536 at 85Hz
HDCP Support Yes
Professional 3D Support Yes, via included stereo connector bracket
Quadro Sync Compatible Yes
HD SDI Capture/Output Compatible Yes
NVIDIA GPU Direct Compatible Yes
Graphics APIs Shader Model 5.0, OpenGL 4.3, DirectX 11
Compute APIs CUDA, DirectCompute, OpenCL
NVIEW Yes
Mosaic Mode Yes (Windows 8, 7, and Linux)
NVIDIA 3D Vision and 3D Vision Pro Yes
Warranty 3 Years
PNY Part Number VCQK5000-PB
Minimum System Requirements
Windows® 8, 7, Vista, XP SP3, Linux®, or Solaris®
PCIe x16 expansion slot
1GB or more of system memory, 2GB recommended
200MB of available disk space for full driver installation
Blu-ray, DVD-ROM or CD-ROM drive
DisplayPort, DVI or VGA compatible display(s)
- See more at: https://www.pny.com/nvidia-quadro-k5000
