Видео карта nVidia Quadro K4200 SDI I/O PB 3GB, PNY, PCI-E 2.0, GDDR5, 192 bit, DisplayPort, DVI

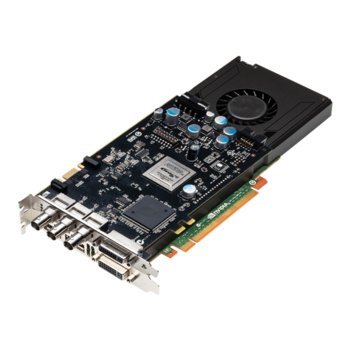

PNY nVidia Quadro K4200 SDI I/O PB 3GB
VCQK4000SDI-PB

New integrated graphics-to-video solution for Broadcast, Video and Film

With the NVIDIA Quadro K4000 SDI you can count on superior interaction when utilizing sophisticated virtual sets, augmented reality broadcast solutions, or rendering richer scene details and effects for video, film, or broadcast production.

Offering 3GB of GDDR5 graphics memory, 768 NVIDIA CUDA™ parallel processing cores and built on the latest NVIDIA Kepler™ architecture, the NVIDIA Quadro 4000K SDI delivers excellent performance across a broad range of broadcast, video and film pre- and post-production applications that require the compositing of 3D or other computer generated graphics in real-time with 2K, HD and SD video.

The NVIDIA Quadro K4000 features a range of innovative features, including SMX for increased per-clock throughput of key graphics operations and bindless textures that enable the GPU to reference textures directly in memory. Combined with the Quadro SDI Output card it allows broadcast, video and film production, post-production, and finishing professionals to preview the results of 3D compositing, editing, and color grading in real-time on high definition broadcast monitors. The 8-, 10-, or 12-bit SDI generated from programmable graphics enables a direct connection to broadcast monitors, switchers, tape decks, or SDI projectors.

CUDA™ Cores 768
GPU Memory 3GB GDDR5
Memory Interface 192-bit
Memory Bandwidth 134GB/s
K4000 System Interface PCI Express 2.0 x16
SDI Output System Interface Any available slot
K4000 Maximum Power 80W
K4000 Idle Power 18W
SDI Output Maximum Power 7W
Energy Star Enabling Yes
K000 Thermal Solution Ultra-quiet active fansink
SDI Output Thermal Solution Passive
K4000 Dimensions 4.376 H x 9.50 L, Single Slot, Full Height
SDI Output Dimensions 3.875 H x 6.60 L Single Slot
K4000 Display Connectors DVI-I DL + DP 1.2 + DP 1.2 + Stereo
DisplayPort 1.2 Yes
DisplayPort with Audio Yes
DVI-D SL connectors Yes, via included adapter
VGA connector Yes, via included adapter
Number of displays Supported 3
SDI Output Connectors 3 BNC (SDI Fill, SDI Key, Genlock)
Maximum DP 1.2 Resolution 3840 x 2160 at 60Hz (direct connect)
Maximum DVI DL Resolution 2560 x 1600 at 60Hz
Maximum DVI SL Resolution 1920 x 1200 at 60Hz
Maximum VGA Resolution 2048 x 1536 at 85Hz
HDCP Support Yes
Professional 3D Support Yes, via included stereo connector bracket
Graphics APIs Shader Model 5.0, OpenGL 4.3, DirectX 11
Compute APIs CUDA, DirectCompute, OpenCL
NVIDIA 3D Vision Pro Ready Yes

Minimum System Requirements

Windows® 8, 7, Vista, XP SP3, Linux®, or Solaris®
PCIe x16 expansion slot
1GB or more of system memory, 2GB recommended
200MB of available disk space for full driver installation
Blu-ray or DVD-ROM drive
DisplayPort, DVI, or VGA compatible display(s)

- See more at: https://www.pny.com/NVIDIA_Quadro_K4000_SDI?sku=VCQK4000SDI-PB
