Дънна платка MSI X99A TOMAHAWK, X99, LGA2011-3, DDR4, 3x PCI-Ex16 (SLI&CF), 10x SATA 6Gb/s, 1x M.2 Socket, 4x USB 3.1 Gen1, 1x USB 3.1 Type C Gen2, ATX

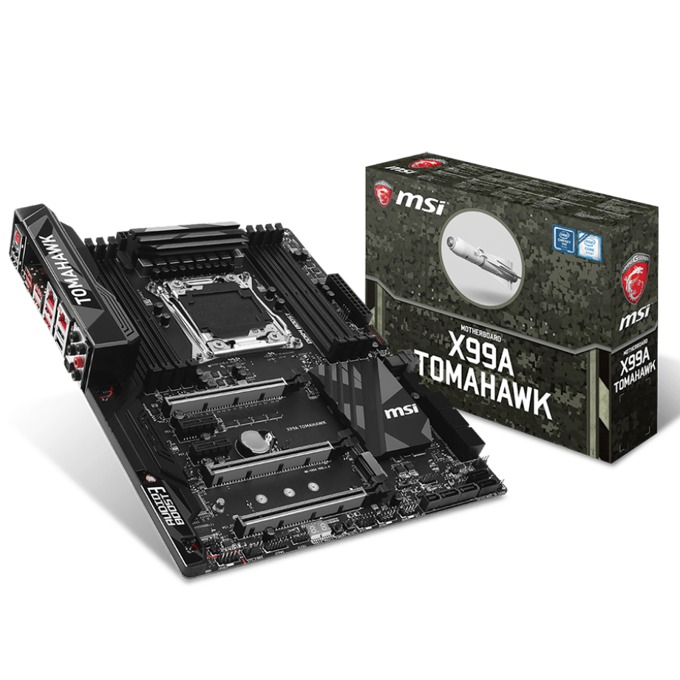

MSI X99A TOMAHAWK

NON-STOP GAMING
Equip yourself with the MSI Arsenal GAMING Series motherboards to improve your game. MSI Arsenal GAMING Series motherboards are covered in full black camouflage with LED ambient lights and is packed with gaming features, making them the perfect weapon to dominate the battlefield.

MYSTIC LIGHT EXTENSION
Dedicated HEADER for 4-PIN RGB-STRIP & LIGHTING CONTROL

Designed for anyone who simply wants to have a perfectly stylish gaming rig. With MSI's Mystic Light Extension header, it provides the most intuitive way to control the fascinated LED strip without the ordinary controller. Just install the standard 12V RGB strips onto the 4-pin Mystic Light Extension RGB-strip header, then control your lighting to any style you want. Extend the Mystic Light to whole gaming rig and your gaming room.


CPU

• Supports New Intel® Core™ i7 Processor Extreme Edition for LGA2011-3 Socket
• Supports Intel® Turbo Boost Max Technology 3.0*
* This function will be supported depend on the CPU.


Chipset

• Intel® X99 Chipset


Main Memory

• 8 x DDR4 memory slots, support up to 128GB*
- Supports DDR4 3333(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666(OC)/ 2600(OC)/ 2400/ 2200(OC)/ 2133 MHz
• Quad channel memory architecture
• Supports ECC/ non-ECC un-buffered memory
• Supports DDR4 RDIMM Memory
• Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support depends on the individual CPU physical characteristics
* For the latest information about memory, please visit http://www.msi.com


Slots

• 3 x PCIe 3.0 x16 slots
ƒ- Support x16, x16/x16, x8/x16/x8 with the CPU that supports 40 PCIe lanes.
- Support x16, x16/x8, x8/x8/x8 with the CPU that supports 28 PCIe lanes.
• 2 x PCIe 2.0 x1 slots


Multi-GPU

• Supports 3-Way AMD® CrossFire™ Technology
• Supports 3-Way NVIDIA® SLI™ Technology


USB

• ASMedia® ASM1142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port on the back panel
- 1 x USB 3.1 Gen2 (Super Speed USB 10Gbps) Type-C port on the back panel

• ASMedia® ASM1074 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel

• Intel® X99 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 connectors
-ƒ 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB 2.0 connectors)


Storage

• Intel® X99 Chipset
• 10 x SATA 6Gb/s ports (2 ports from SATAe port)
ƒ- SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10
- SATA7~10 only support IDE mode and AHCI mode

• 1 x M.2 slot (Key M)*
ƒ Supports up to PCIe 3.0 x4 and SATA 6Gb/s
ƒ Supports 2242/ 2260/ 2280/ 22110 storage devices

• 1 x U.2 port */ **
ƒ Supports PCIe 3.0 x4 NVMe storage

• 1 x SATAe port* (compatible with 2 SATA ports)*
ƒ Supports up to PCIe 2.0x2

• Supports Intel® Smart Response Technology**

* SATAe port (include SATA5~6) will be unavailable when installing M.2 SATA storage in M.2 slot (for 40-lanes CPU only). SATAe port (include SATA5~6) will be unavailable when installing M.2 storage device in M.2 port (for 28-lanes CPU only).
** This function will be supported depend on the CPU.
*For 40-lanes CPU, it supports up to PCIe 3.0 x4 and SATA 6Gb/s
*For 28-lanes CPU(i7-5820K / i7-6800K), it supports up to PCIe 2.0 x2 and SATA 6Gb/s


Audio

• Realtek® ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output


LAN

• 1x Intel® I218LM Gigabit LAN controller
• 1 x Intel® I210AT Gigabit LAN controller
- Supports Intel LAN Teaming Technology


Internal I/O Connectors

- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 10x SATA 6Gb/s connectors
- 1x SATA Express connector
- 1x M.2 slot
- 1x U.2 port
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin Water Pump connector
- 3x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x Front panel connectors
- 1x TPM module connector
- 1x Chassis Intrusion connector
- 1x Clear CMOS jumper
- 1x Power button
- 1x Reset button
- 1x Multi-BIOS switch
- 1x RGB LED connector
- 1x Slow mode booting jumper

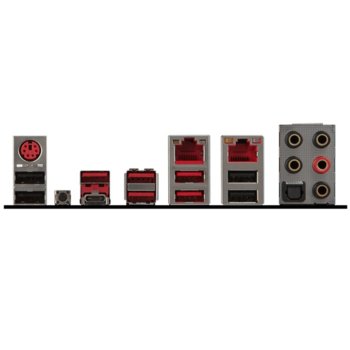

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 4 x USB 2.0 ports
- 1 x Clear CMOS button
- 1 x USB 3.1 Gen2 port
- 1 x USB 3.1 Gen2 Type-C port
- 4 x USB 3.1 Gen1 ports
- 2 x LAN (RJ45) ports
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks


Dimension

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor


Mounting

• 9 mounting holes
