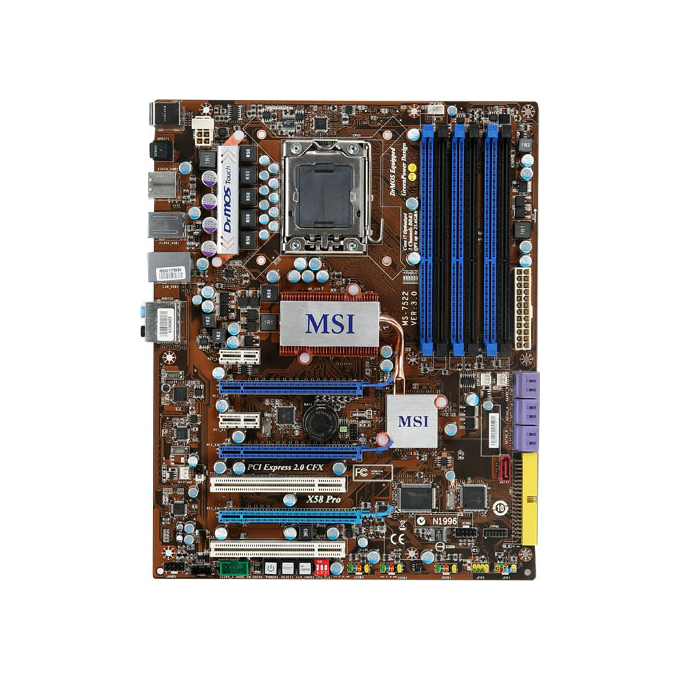

MSI X58 Pro
CPU
• Supports Intel® i7 based processors in LGA1366 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
Intel® X58 Chipset
• Supports QPI up to 6.4GT/s
Intel® ICH10R Chipset
• Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 12 ports.
• 6 SATAII ports with transfer rate up to 3Gb/s.
• PCI Master v2.3, I/O APIC.
• ACPI 2.0 compliant.
• Serial ATA RAID 0/1/5/10.
• Integrated AHCI controller.
Main Memory
• Supports six unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333 SDRAM, 24GB Max
- Supports 1Gb/ 2Gb/ 4Gb DRAM size
- Supports x8 / x16 data lines per DIMM
- Supports up to 3 channel mode
Slots
• 3 PCI Express gen2 x16 slots (operates at 16x/16x/4x)
- supports ATI® Crossfire™
• 2 PCI Express gen2 x1 slots
• 2 PCI slot, support 3.3V/ 5V PCI bus Interface
On-Board IDE /SATA
One Ultra DMA 66/100/133 IDE controller integrated in JMicron® 363
• Supports PIO, Bus Master operation modes.
• Can connect up to two Ultra ATA drives.
SATAII controller integrated in ICH10R/JMicron® 363 chipest
- Up to 3Gb/s transfer speed.
- Supports six SATAII ports by ICH10R
- Supports one SATAII port by JMicron 363.
- Supports one eSATA port by JMicron 363.
- Supports AHCI controller with SATA RAID 0/1/5/10 by ICH10R.
Audio
Chipset integrated by Realtek® ALC888S
• Flexible 8-channel audio with jack sensing
• Compliant with Azalia 1.0 Spec
• Meet Microsoft Vista Premium spce
LAN
• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111C.
IEEE 1394 / FireWire
JMicron® 381 chipset
• Supports up to two 1394 ports. (Rear panel x1, pinheader x1)
• Transfer rate is up to 400Mbps.
Internal I/O Connectors
- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- CPU / System x 5 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 1 x serial port pinheader
- 3 x USB 2.0 connectors
- 7 x Serial ATAII connectors
- 1 x ATA133 connector
- 1 x IEEE1394 connector support additional 1 port
- 1 x Reset Button
- 1 x Power Button
- 1 x SPDIF-out connector
- 1 x D-LED2 connector
- 1 x TPM module connector
Back Panel I/O Ports
- 1 x Clear CMOS button
- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x eSATA port
- 1 x IEEE1394 port
- 6 x USB 2.0 ports
- 1 x RJ45 LAN Jacks
- 1 x 6 in 1 audio jack
- 1 x Optical SPDIF-out
Dimensions
12.0in.(L) x 9.6in.(W) ATX Form Factor
