SUPERCHARGED WITH

PCIe 5.0

Get excited for next-generation storage performance that unites the latest PCIe Gen 5 controller technology and state-of-the-art 3D NAND flash, providing up to 1.8 times faster read/write speeds compared to the previous generation SSDs.

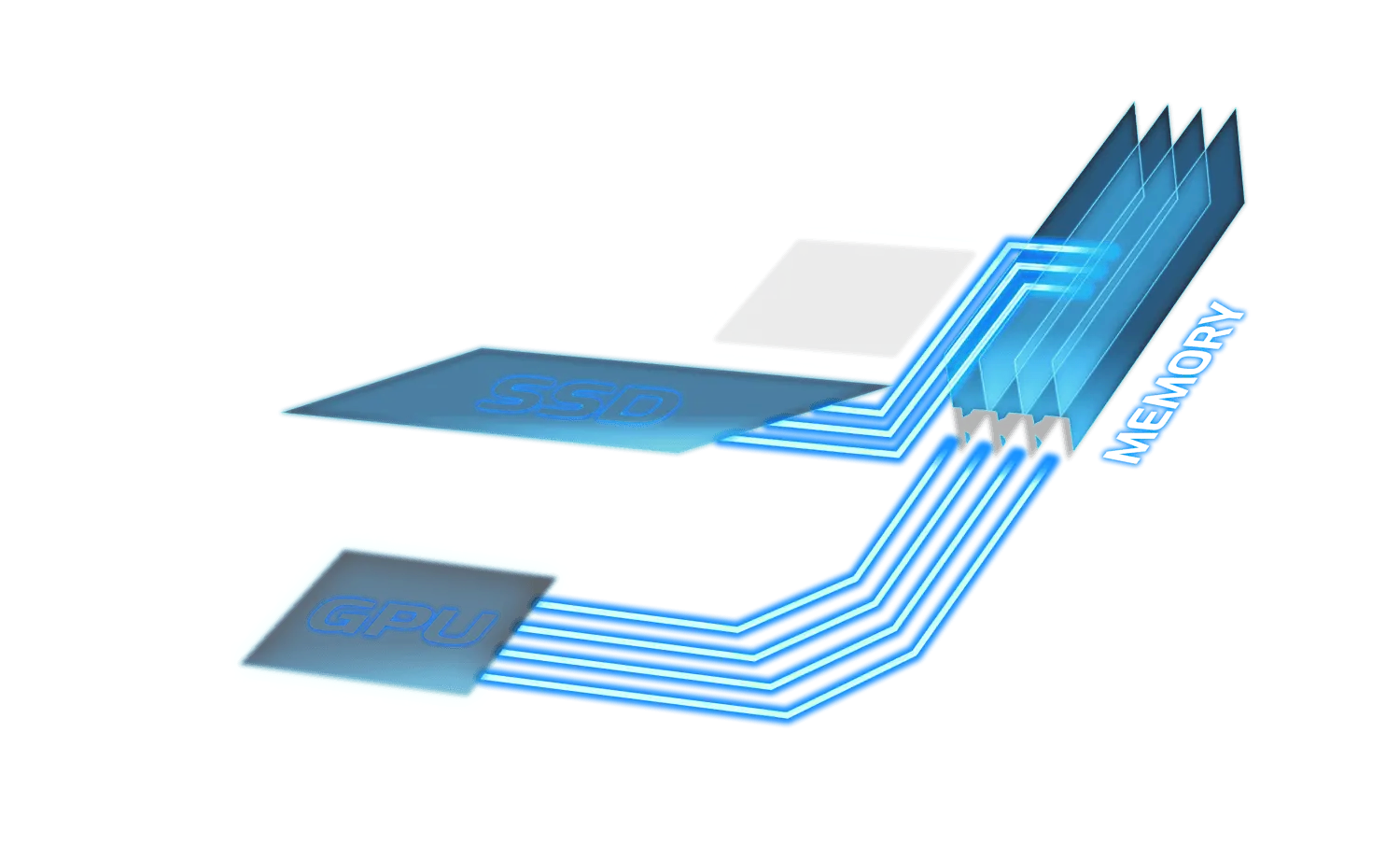

A THOROUGH SHORTCUT WITHDIRECTSTORAGE

DirectStorage accelerates loading times in gameplay and high-resolution rendering, enhancing system performance by enabling hardware decompression directly from NVMe drives to GPUs and freeing up CPU resources for multitasking.

BUILT TO WIN

With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.

CREATE. PRODUCE. DONE.

With the gamers’ first attitude, SPATIUM SSDs optimized for high-performance bandwidth and throughput enable you to wait less at loading games and play to win with minimal latency.

Category	Specification

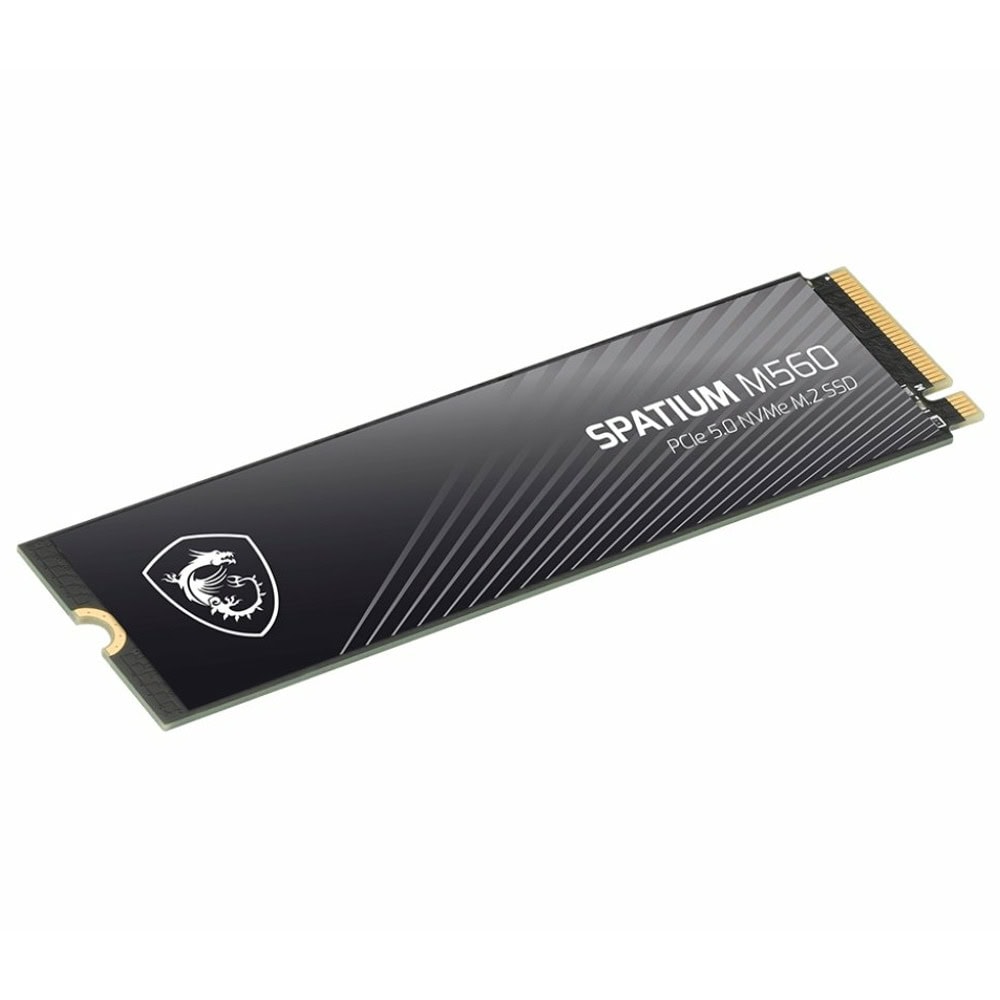

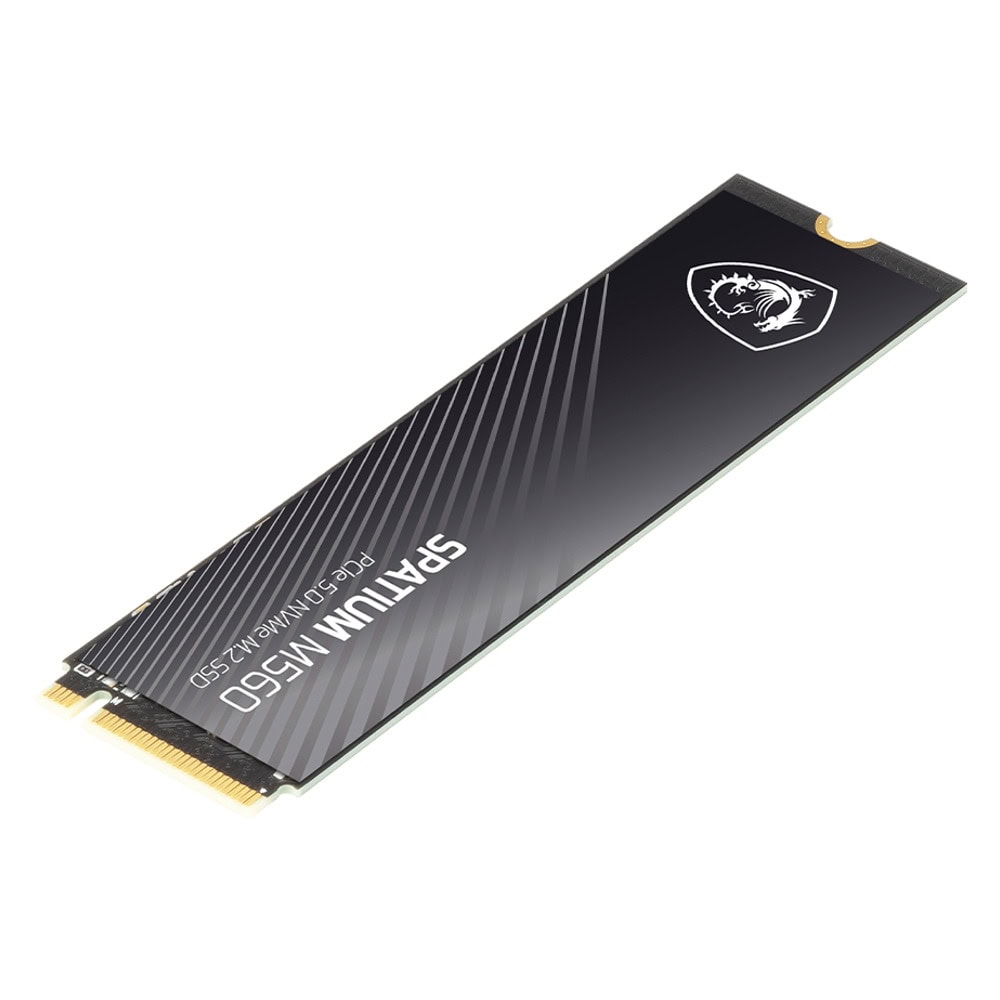

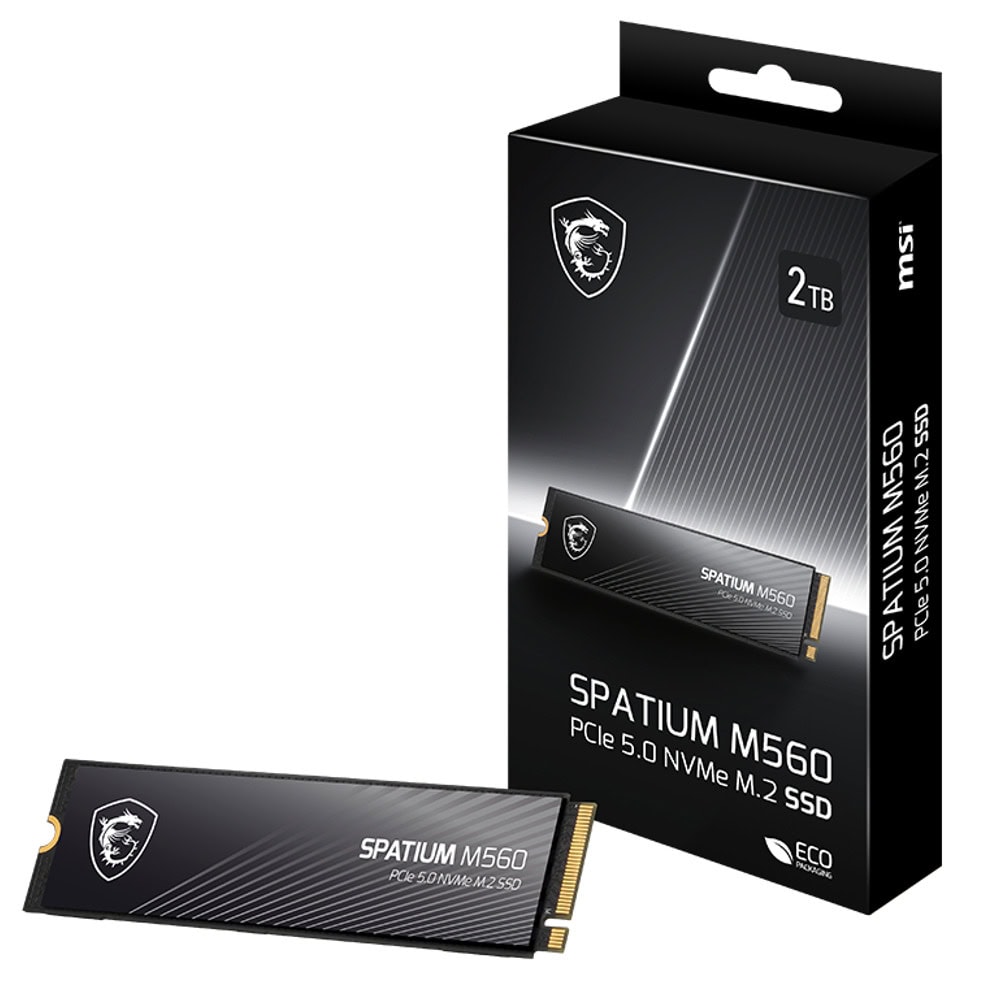

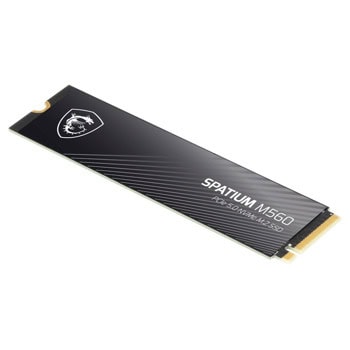

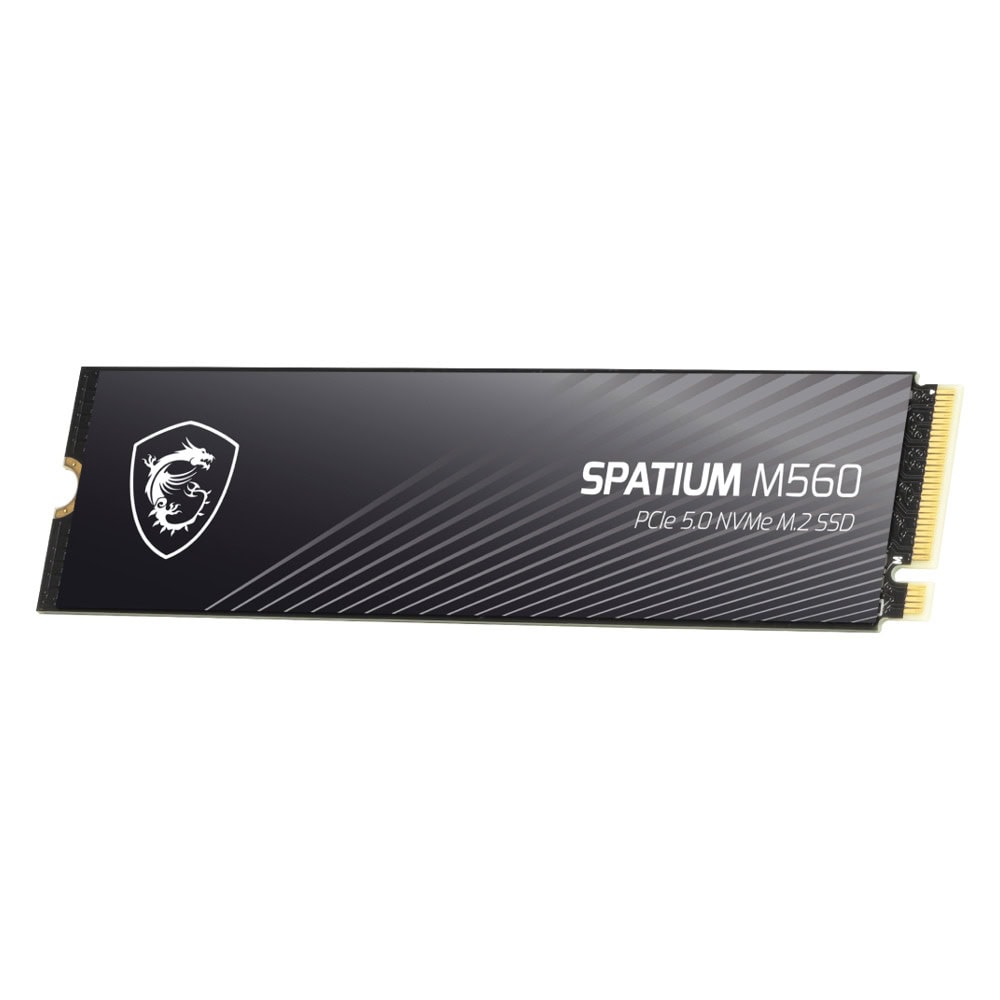

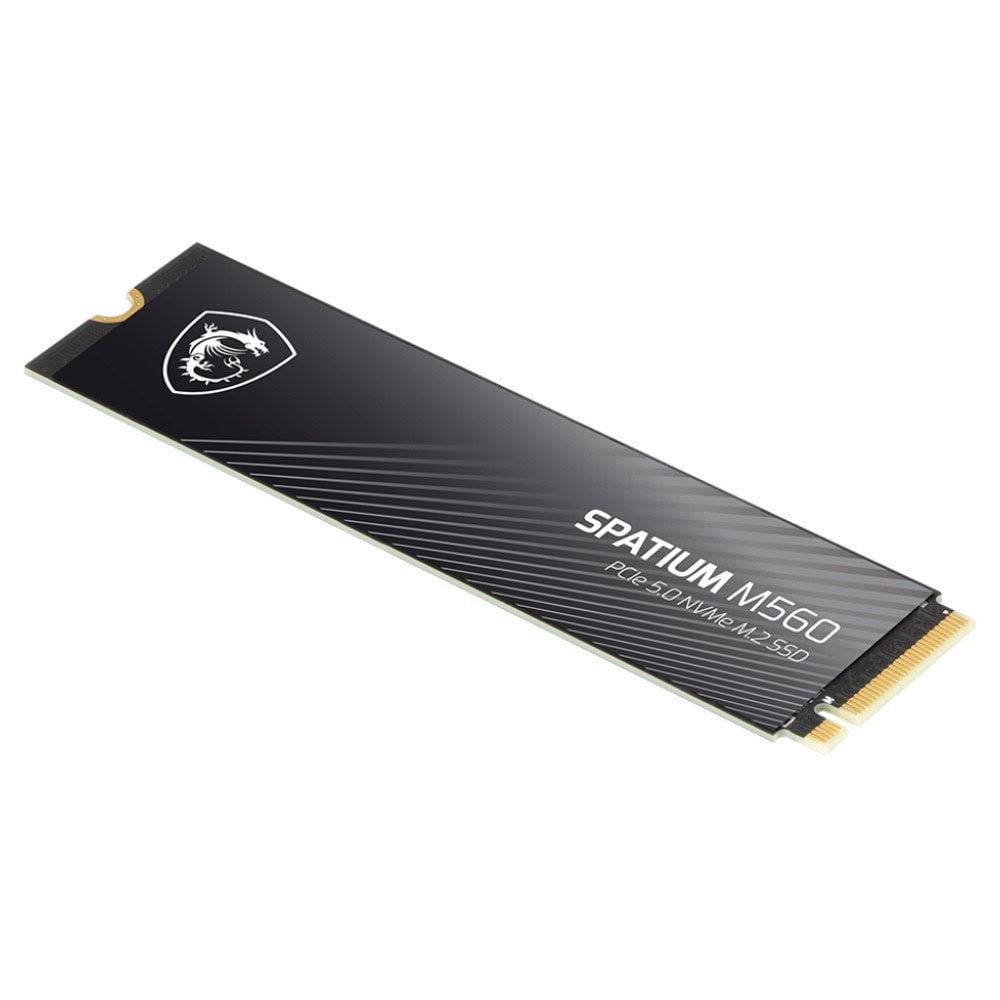

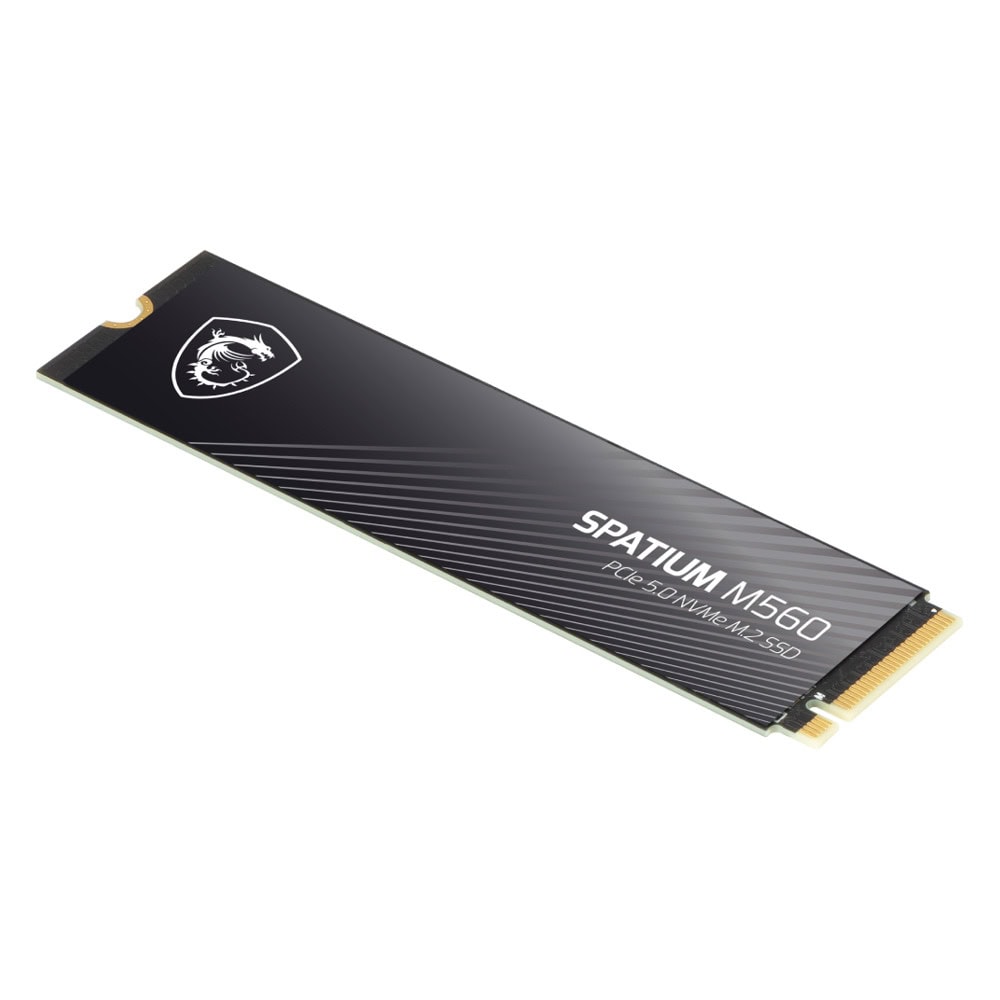

Model Name	SPATIUM M560 PCIe 5.0 NVMe M.2
Capacity	1TB / 2TB
Controller	PHISON E31T
Flash Memory	3D NAND
Form Factor	M.2 2280
Interface	PCIe Gen5x4, NVMe 2.0
Compatibility	PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1
Dimensions	80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read (MB/s)	Up to 10,200 (1TB), Up to 10,300 (2TB)
Sequential Write (MB/s)	Up to 8,400 (1TB), Up to 8,700 (2TB)
Random Read 4KB (IOPS)	Up to 1,300,000
Random Write 4KB (IOPS)	Up to 1,400,000
Maximum Operating Power (W)	5.9
Idle Power PS3 (mW)	50
Low Power L1.2 (mW)	3.5
Operating Temperatures	0°C – 70°C
Storage Temperatures	40°C – 85°C
Terabytes Written (TBW)	600 (1TB), 1200 (2TB)
MTBF (Mean Time Between Failure)	Up to 1,500,000 Hours
