GeForce RTX™ 4070 Ti SUPRIM X 12G

WITH DLSS 3

Get equipped for stellar gaming and creating with the NVIDIA^® GeForce RTX™ 4070 Ti. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.

Boost Clock / Memory Speed

Extreme Performance: 2790 MHz (MSI Center)
Boost: 2775 MHz (GAMING & SILENT Mode)
21 Gbps
12GB GDDR6X
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

TRI FROZR 3S Thermal Design

TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.

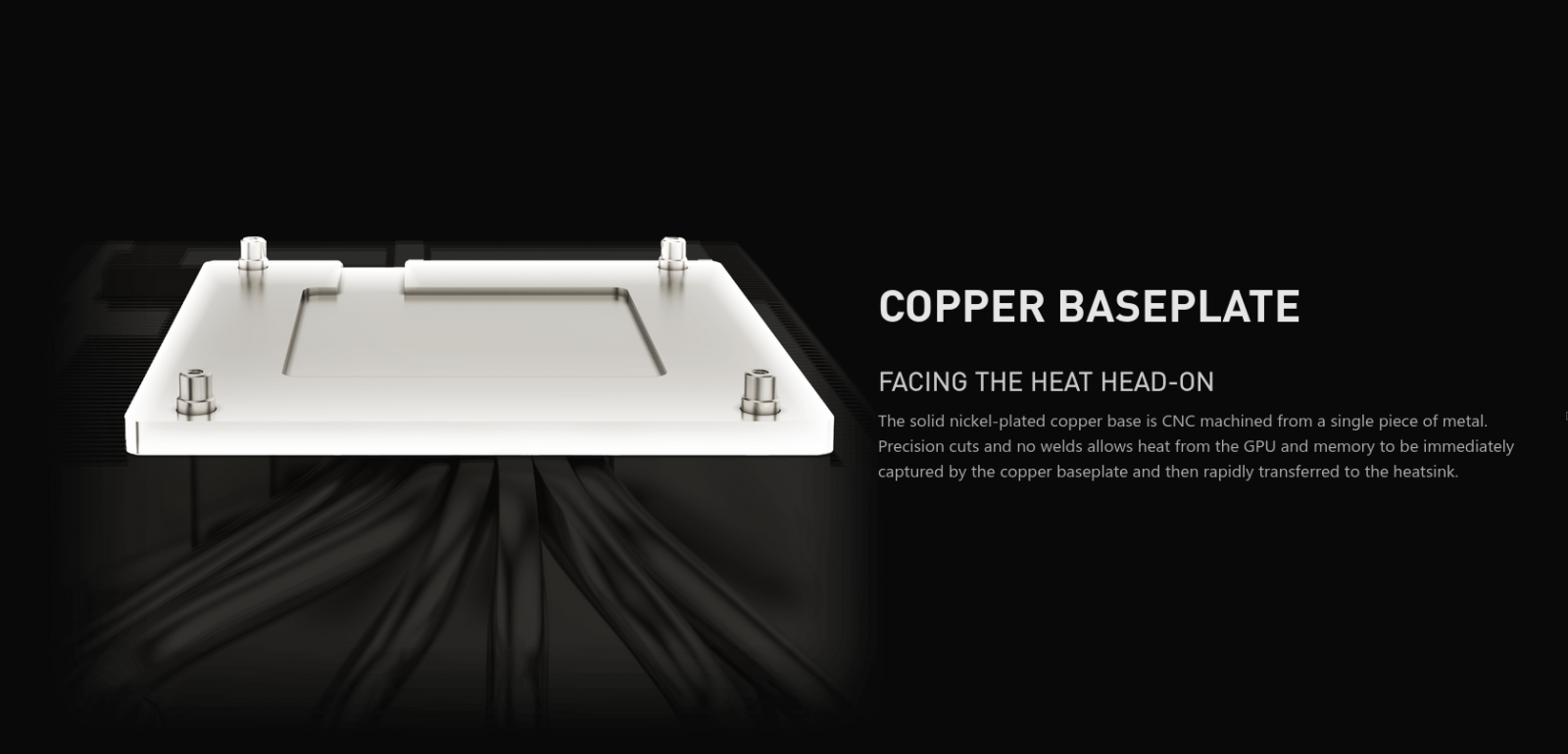

COPPER BASEPLATE: The CNC machined nickel-plated copper base captures heat from the GPU and the memory then rapidly transfers it to Core Pipes.
Core Pipe: Precision-machined heat pipes ensure max contact to the GPU baseplate and spread heat along the full length of the heatsink.
Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.

Dual BIOS

Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.

MSI Center

The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Mystic Light

Controls lighting for both MSI and compatible third-party RGB products.

CHANGE THE GAME
Ascend to a superior experience with SUPRIM. See, hear, and feel a profoundly elevated graphics card built with high-quality materials and assembled with enthusiast features.

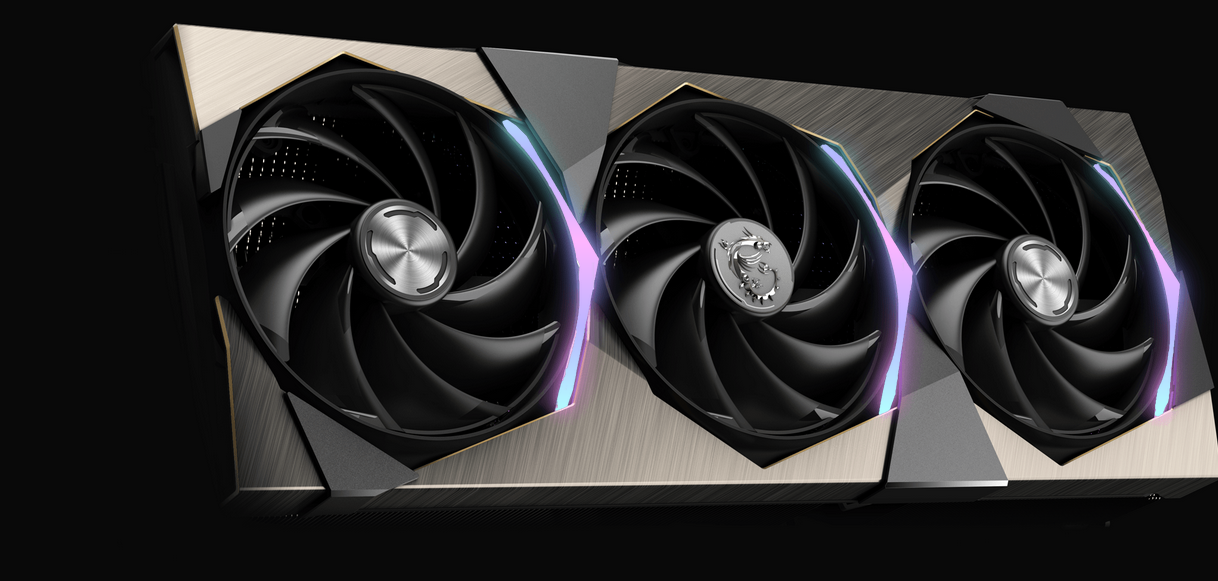

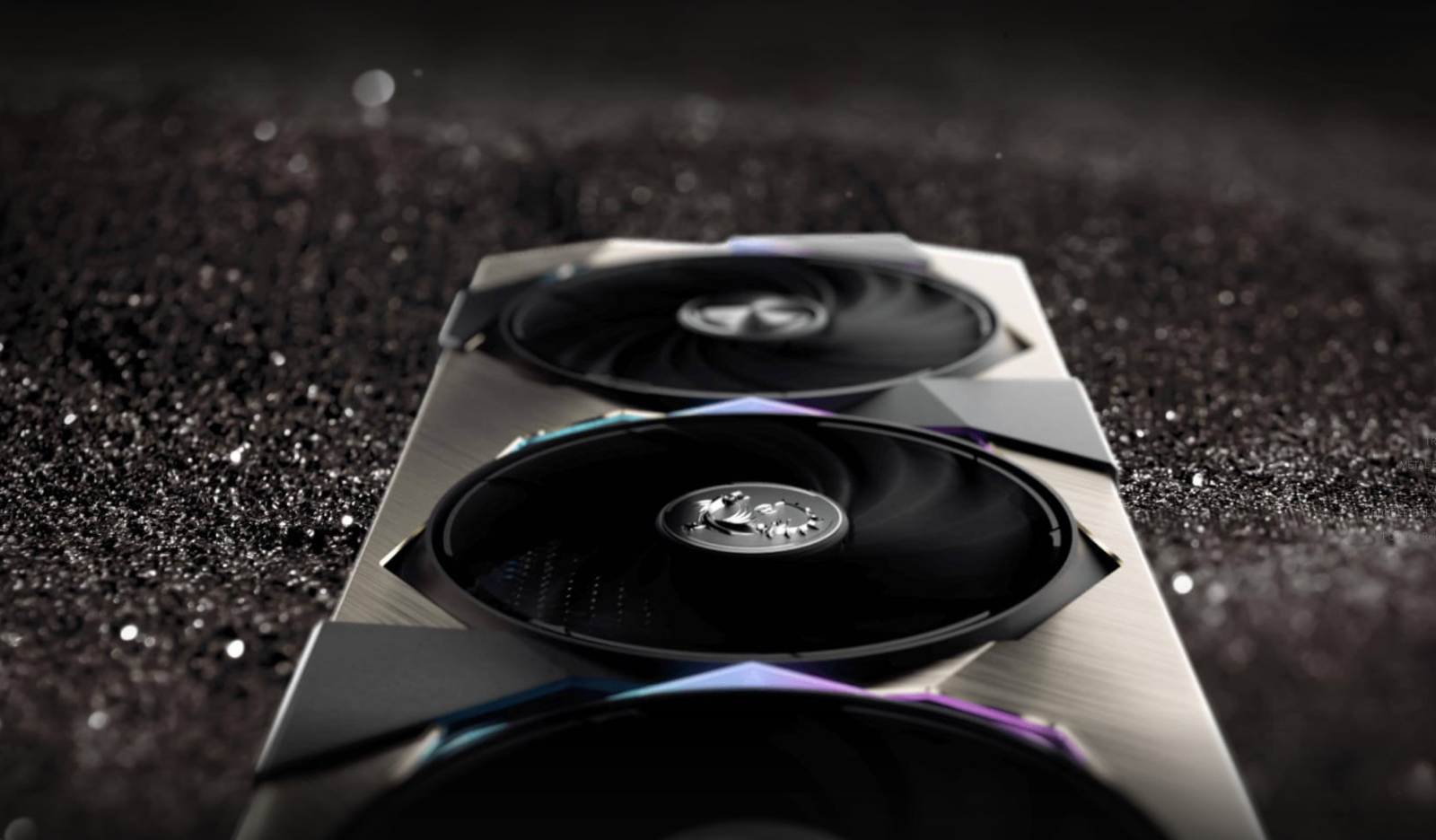

SHARP LOOKS

The second iteration of SUPRIM inherits the exterior design philosophy of its predecessor, with a brushed metal cover, octagon-shaped fan cutouts and chevrons around each fan.

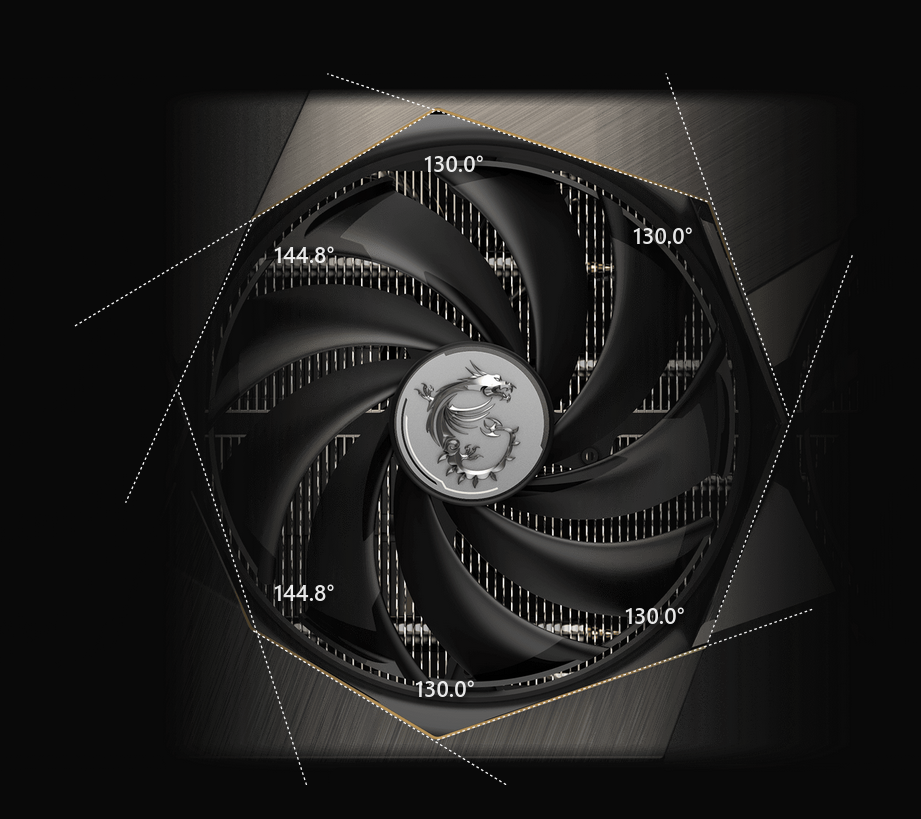

FINISHING TOUCHES

The motif of straight lines continue around the fans with octagonal cutouts featuring polished 45-degree beveled edges.

AIRFLOW CONTROL

Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.

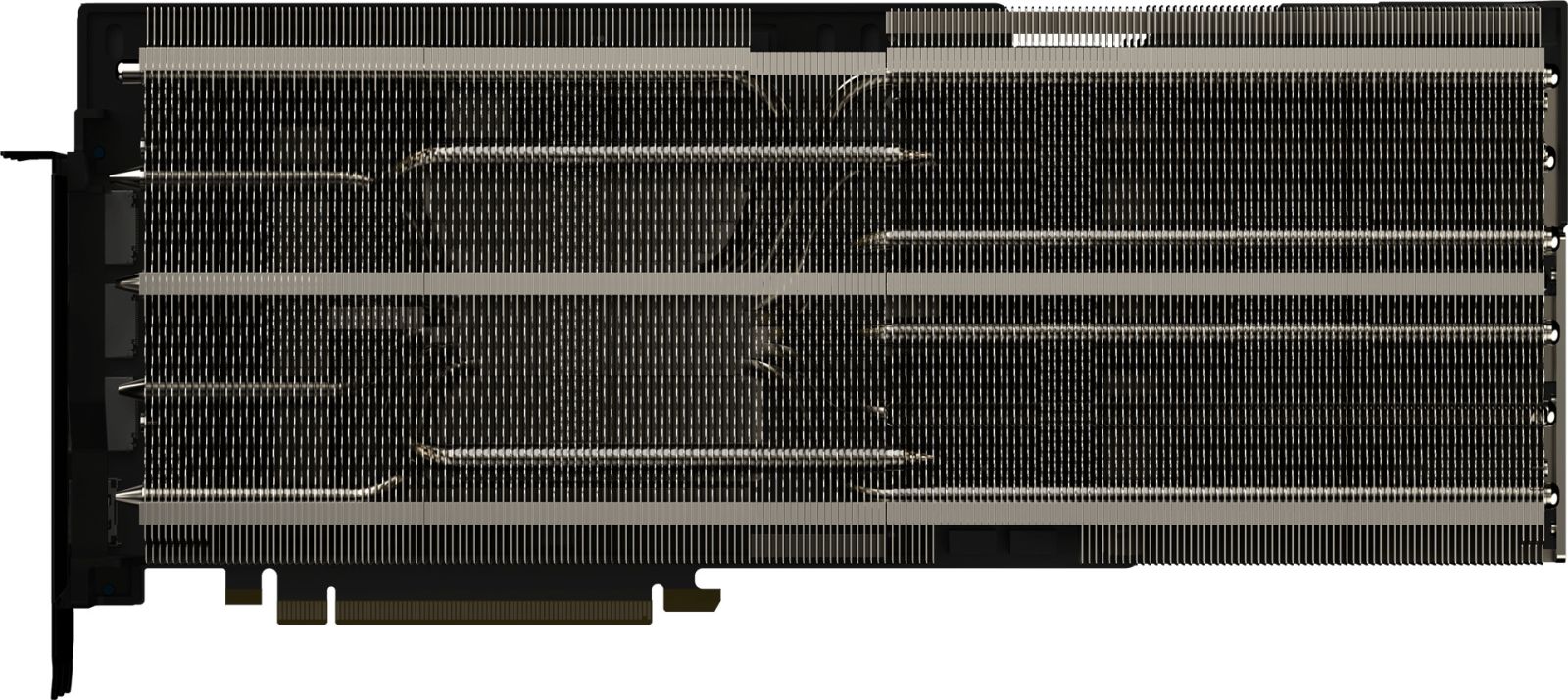

FILLED FINS

Updated heat pipe pathing has allowed more space for additional heatsink fins.

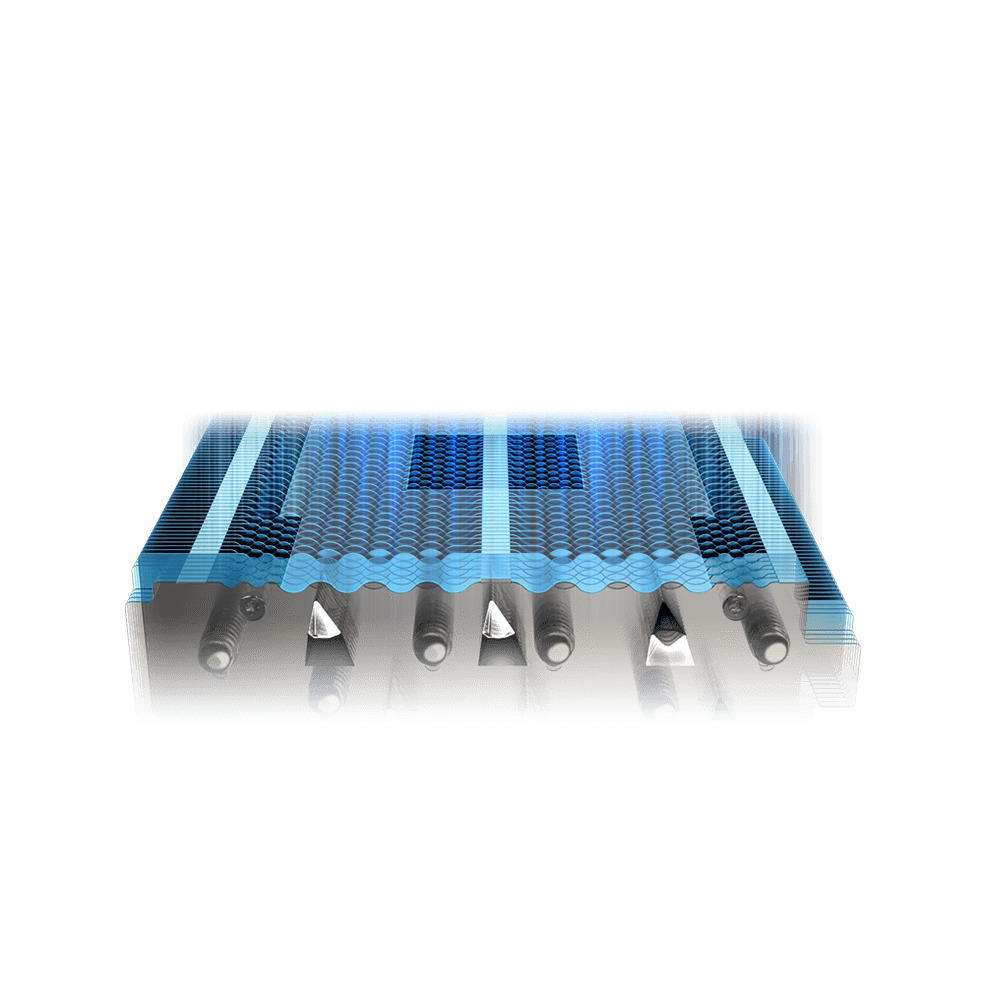

WAVE-CURVED 3.0

Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.

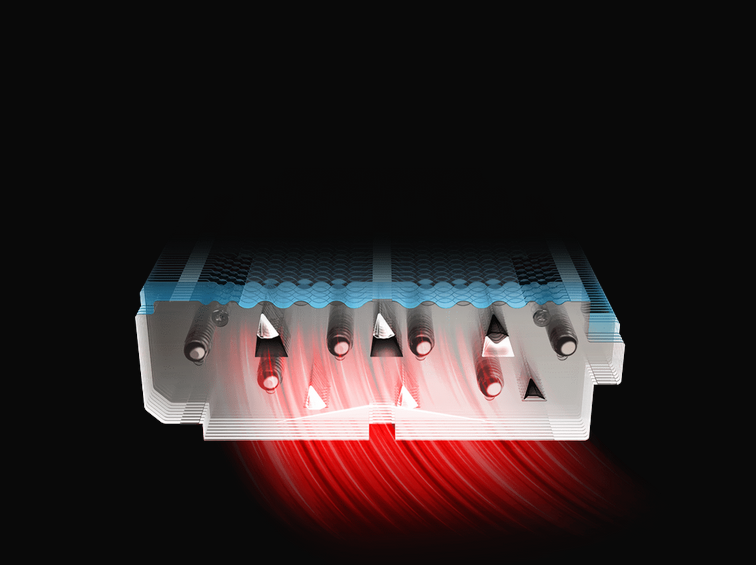

AIR ANTEGRADE FIN

Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.

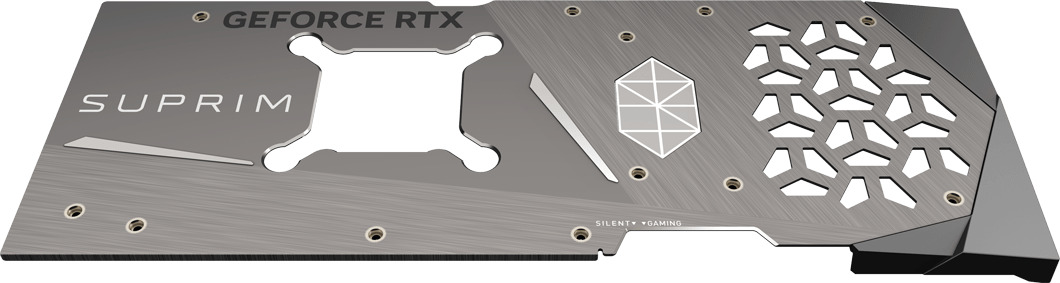

METAL BACKPLATE

Thermal pads under the sturdy metal backplate provide additional cooling while the flow-through ventilation reduces trapped heat.

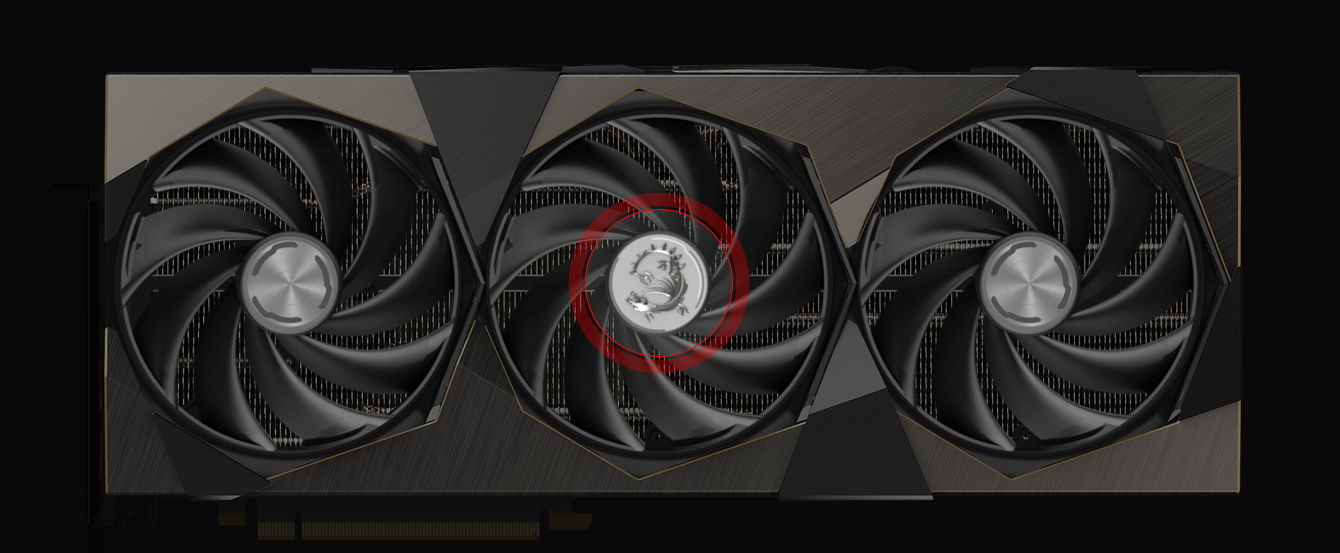

ZERO FROZR

The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.

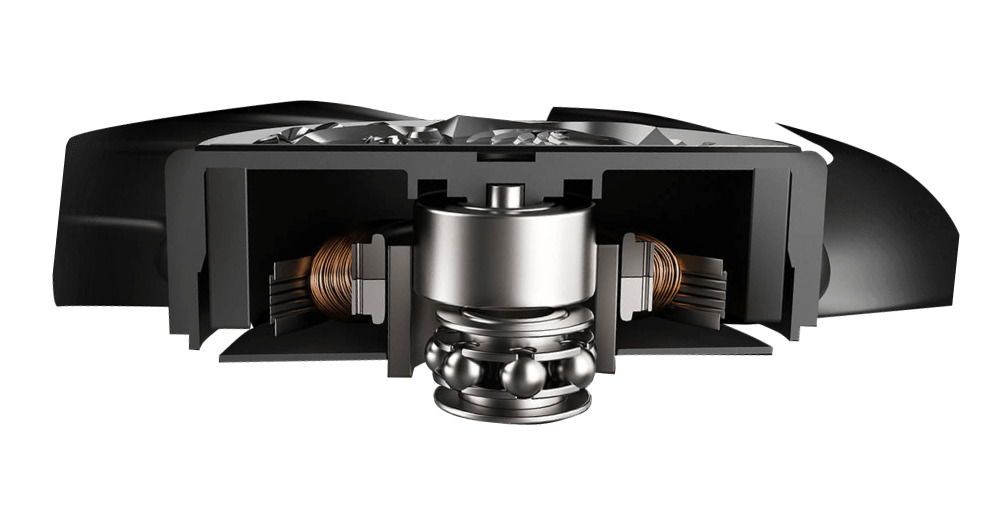

DOUBLE-BALL BEARING

Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.

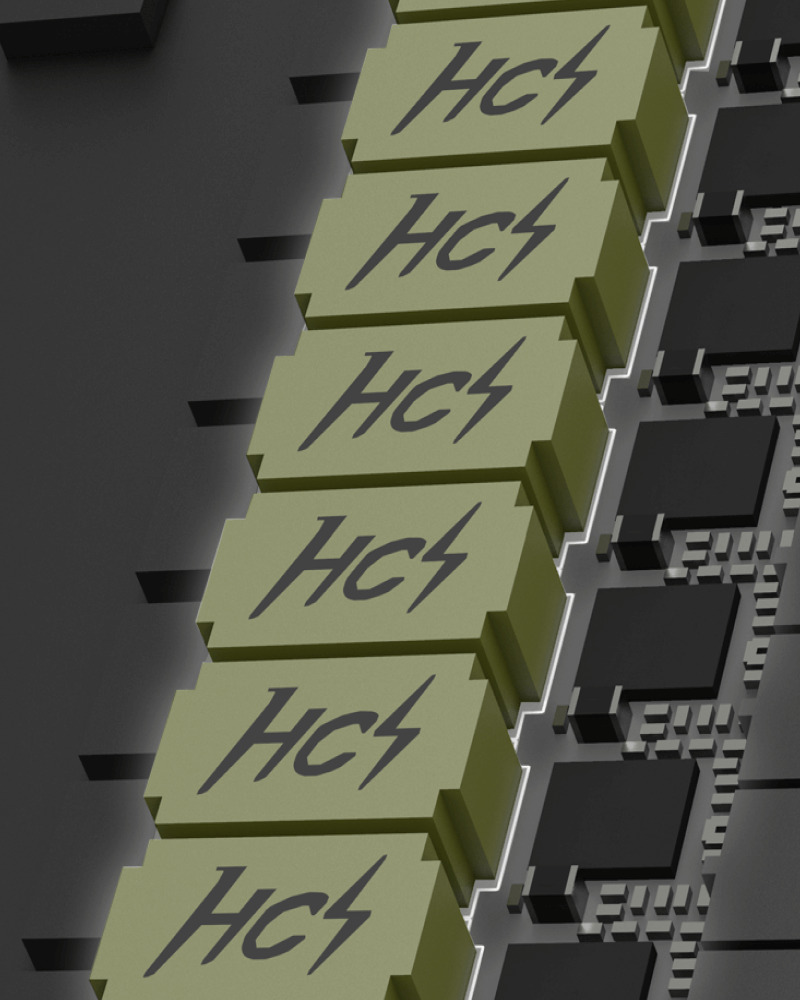

High-Efficiency CarbonyI Inductors (HCI)

Manufacturing and material improvements to our choke parts have culminated as High-Efficiency Carbonyl Inductors (HCI.) One-piece molding allows this design to operate with less choke noise and better electric filtering.

* All images and descriptions are for illustrative purposes only.
Visual representation of the products may not be perfectly accurate.

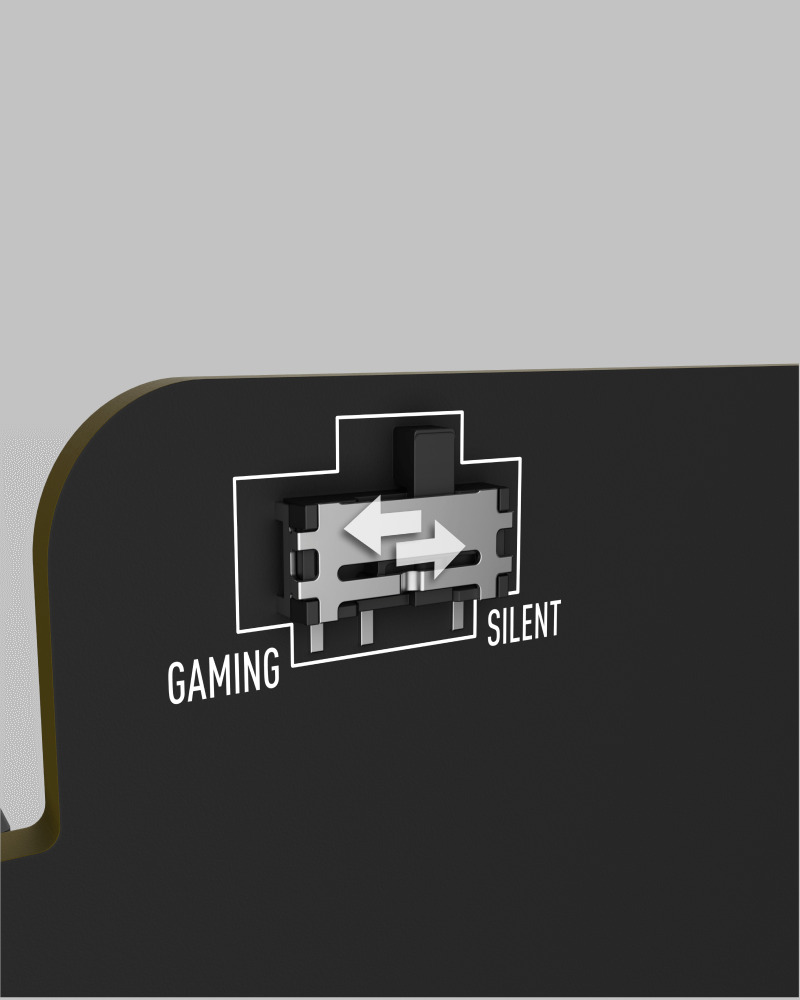

Dual BIOS

Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.

* All images and descriptions are for illustrative purposes only.
Visual representation of the products may not be perfectly accurate.

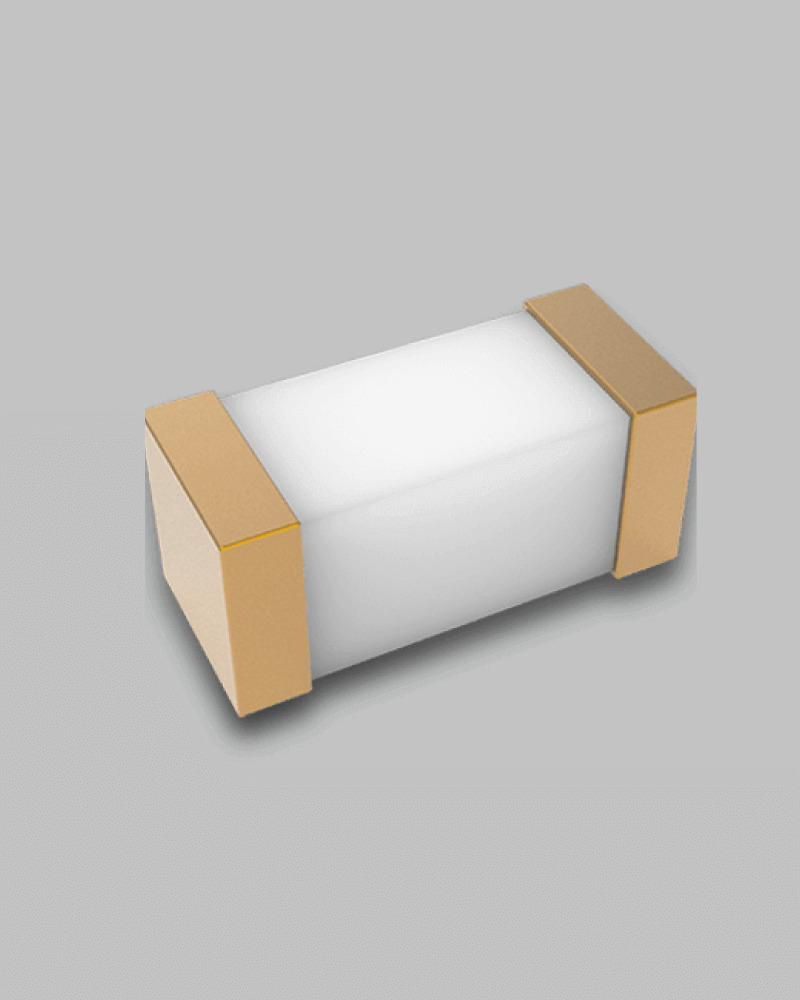

Hardened Defenses - Fuse

Additional fuses built into the custom PCB provide additional safeguards against electrical damage.

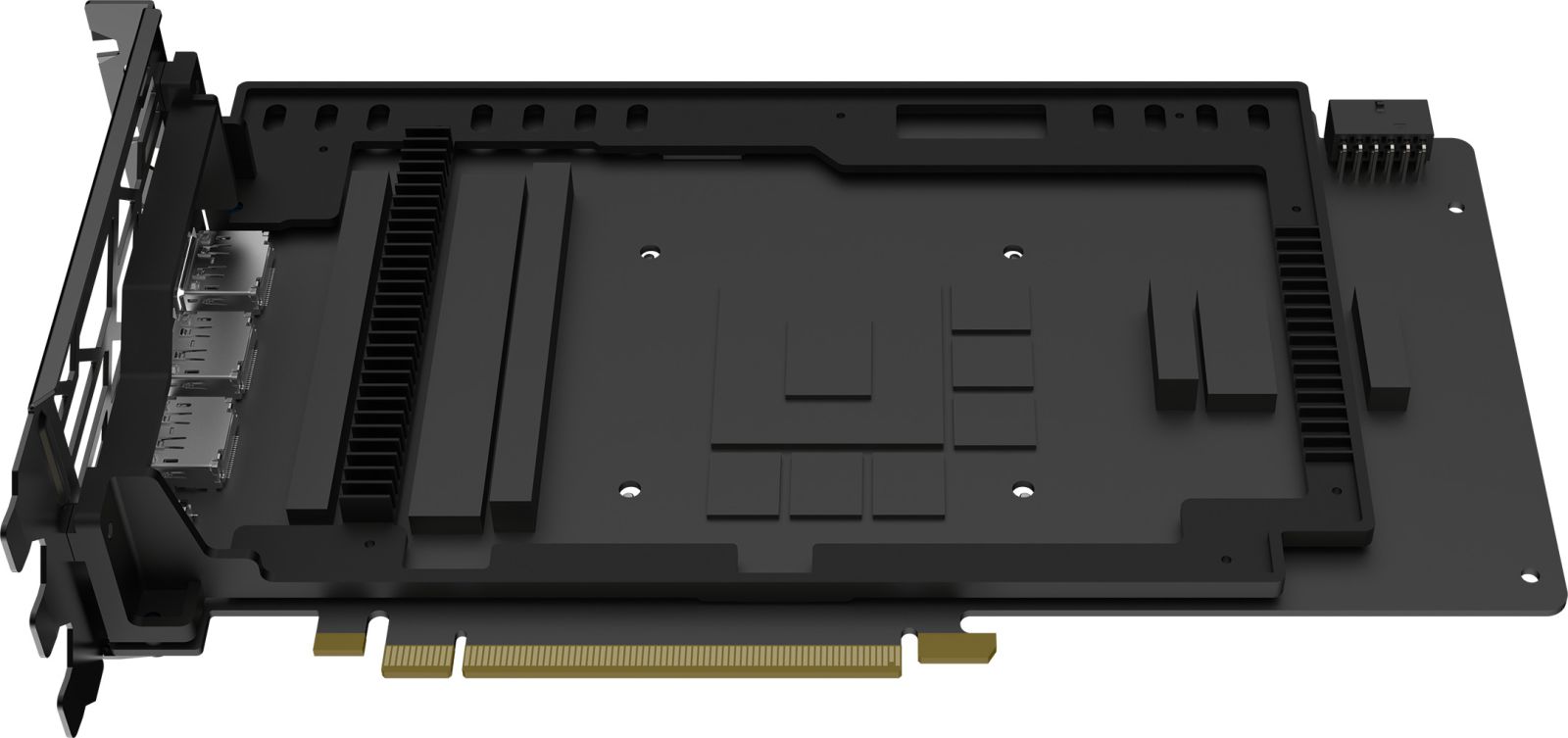

RELENTLESS DEFENSE

A die-cast anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.

Specifications:

Graphics Processing Unit NVIDIA® GeForce RTX™ 4070 Ti
Interface PCI Express® Gen 4
Core Clocks
Extreme Performance: 2790 MHz (MSI Center)
Boost: 2775 MHz (GAMING & SILENT Mode)

CUDA® CORES 7680 Units
Memory Speed 21 Gbps
Memory 12GB GDDR6X
Memory Bus 192-bit

Output
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR,
8K@60Hz HDR, and Variable Refresh Rate as
specified in HDMI 2.1a)

HDCP Support Y
Power consumption 285 W
Power connectors 16-pin x 1
Recommended PSU 750 W
Card Dimension (mm) 338 x 142 x 73 mm
Weight (Card / Package) 2019g / 3224g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680x4320
