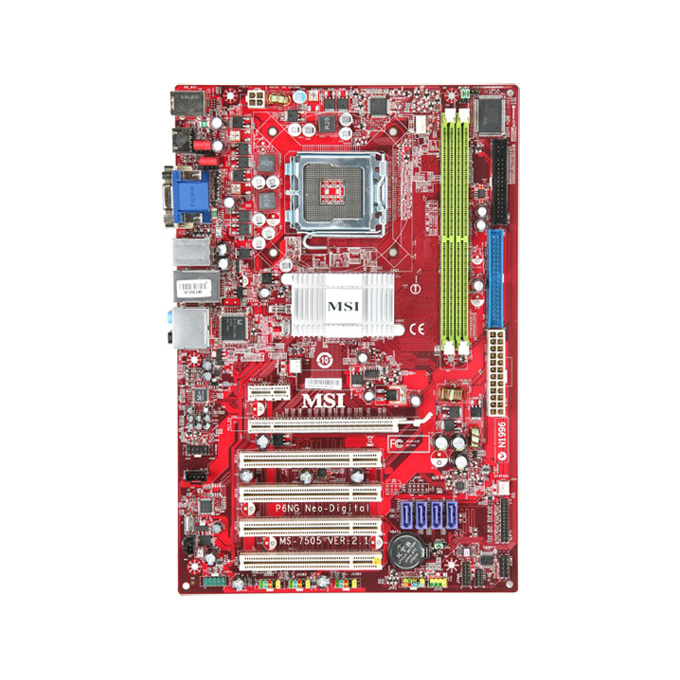

MSI P6NG NEO-DIGITAL
CPU
• Supports Socket 775 for Intel® Core2 Quad, Core2 Duo, P4, P4EE, Pentium D, Pentium XE processors
• Supports FSB 533/800/1066/1333 MHz
• Supoprts EIST techonology
• Supports Intel® Hyper-Threading (HT) Technology
For latest information on CPU support list, please check http://global.msi.com.tw/index.php?func=cpuform for more detail
Chipset
NVIDIA® Geforece7100 + nForce630i Chipset
Main Memory
• Supports single channel DDR2 533/667/800
• Two 240-pin/1.8V DDR2 DIMMs
• Supports a maximum memory size up to 4 GB
Slots
• One PCI Express X16 slot (supports PCI Express Bus specification v1.0a compliant)
• One PCI Express X1 slot (support PCI Express Bus specification v1.0a compliant)
• Four 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface)
On-Board IDE
• An IDE controller on the NVIDIA® MCP73V
- Supports PIO, Bus Master and Ultra DMA 133/100/66 operation modes
- Can connect up to 2 IDE devices
On-Board SATA
• NVIDIA® MCP73V supports 4 SATA II ports (SATA 1 to 4)
- Transfer rate is up to 3Gb/s
NV RAID
• SATA 1~4 support RAID 0/1, JBOD
Audio
• Chip integrated by Realtek® ALC888
- Flexible 8-channel audio with jack sensing
- compliant with Azalia 1.0 spec
LAN
• Supports 10/100 Fast Ethernet by Realtek® 8201CL
TPM
• Supports TPM
BIOS
• The mainboard BIOS provides """"Plug & Play"""" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
On-Board Peripherals
• 2 x USB 2.0 connectors
• 1 x Floppy disk drive connector
• 4 x serial ATA connectors
• 1 x serial port connectors
• 1 x SPDIF-out connector
• 1 x ATA133 connectors
• 1 x TPM connector
• Chassis intrusion switch connector
• Clear CMOS jumper
• 1 x Parallel port
• 1 x Serial port (COM 1)
• 1 x Graphic Card port
• 1 x PS/2 keyboard
• 1 x PS/2 mouse
• 1 x 6 in 1 audio jack
• 4 x USB 2.0
• 1 x RJ45 LAN jack
Dimensions
12 in. (L) x 7.9 in. (W) ATX Form Factor
