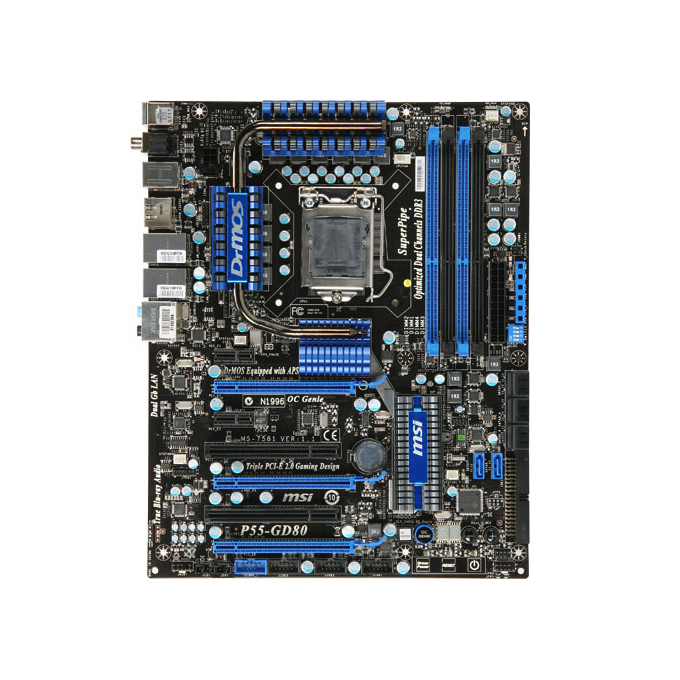

Дънна платка MSI P55-GD80, P55, LGA1156, DDR3, 3xPCI-E (SLi/CF), SB7.1, 2xLan1000, SATA RAID 0,1,5,10, 2x1394, eSATA, ATX

MSI P55-GD80

CPU
• Supports Intel® i5 / i7 based processors in LGA1156 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset
• Intel® P55 Chipset
- Supports QPI up to 6.4GT/s
- Hi-Speed USB (USB2.0) controller, 480Mb/sec.
- 6 SATAII ports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.
- Serial ATA RAID 0/1/5/10.
- Integrated AHCI controller.

Main Memory
• Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600*/1800*/2000*/2133* (OC) SDRAM, 16GB Max
- Supports 1Gb/ 2Gb/ 4Gb DRAM size
- Supports Dual channel mode

Slots

• 3 PCI Express gen2 x16 slots
- If two graphics cards are installed at PCI_E2 & PCI_E4 slots, these two PCIE x16 lanes will auto arrange from x16/ x0 to x8/ x8
- PCI_E5 supports PCIE 2.0 x4 speed only
- When PCI_E5 is in use, all PCIE x1 slots will be unavailable
- supports ATI® Crossfire™ & NVIDIA SLI
• 2 PCI Express gen2 x1 slots
• 2 PCI slots, support 3.3V/ 5V PCI bus Interface

On-Board IDE/SATA

• One Ultra DMA 66/100/133 IDE controller integrated in JMicron® 363.
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.

• SATAII controller integrated in Intel P55/JMicron® 322 / 363 chipset
- Up to 3Gb/s transfer speed.
- Supports six SATAII ports by P55
- Supports two SATAII ports by JMicron 322, support SATA RAID 0/1/JBOD.
- Supports one eSATA / USB combo port by JMicron 363.
- Supports AHCI controller with AHCI / SATA RAID 0/1/5/10 by P55.

Audio
• Chipset integrated by Realtek® ALC889
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec

LAN
• Supports two PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111DL.

IEEE1394 / FireWire
• VIA® VT6315N chipset
- Supports up to two 1394 ports. (Rear panel x1, pinheader x1)
- Transfer rate is up to 400Mbps.

Internal I/O Connectors
- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- CPU / System x 4 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 3 x USB 2.0 connectors
- 8 x Serial ATAII connectors
- 1 x ATA133 connector
- 1 x IEEE1394 connector support additional 1 port
- 1 x GreenPower Button
- 1 x Reset Button
- 1 x Power Button
- 1 x Clear CMOS Button
- 1 x SPDIF-out connector
- 1 x D-LED2 connector
- 1 x TPM module connector
- 1 x OC Genie Button
- 2 x Base Clock Control Buttons
- 1 x CPU Phase LED Panel
- 1 x Debug LED Panel

Back Panel I/O Ports
- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x eSATA / USB Combo port
- 1 x IEEE1394 port
- 7 x USB 2.0 ports
- 2 x RJ45 LAN Jacks
- 1 x 6 in 1 audio jack
- 1 x Optical SPDIF-out
- 1 x Coaxial SPDIF-out

BIOS
• The mainboard BIOS provides ""Plug & Play"" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.


Dimension
• 30.5cm(L) x 24.4cm(W) ATX Form Factor
