Дънна платка MSI P45D3 Neo-F, P45, LGA775, DDR3, PCI-E, SB7.1, Lan1000, SATA, ATX, 3г. Гаранция

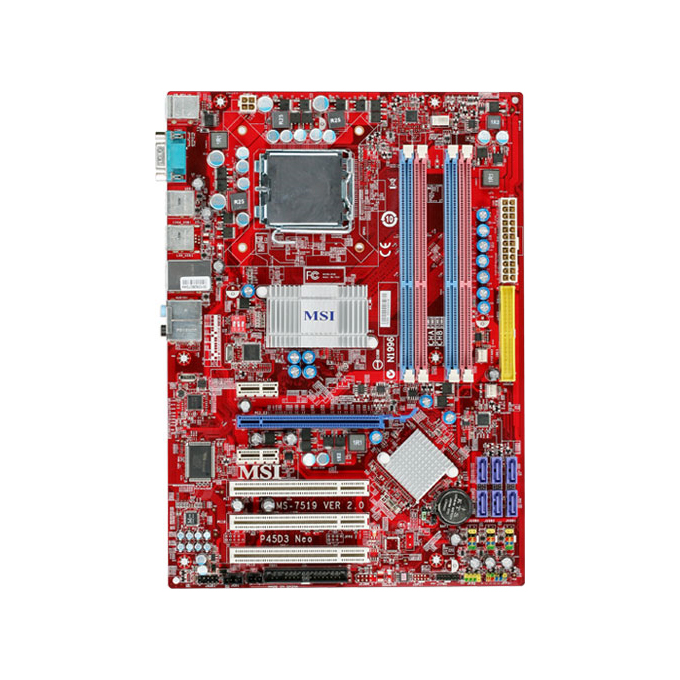

MSI P45D3 Neo-F

CPU
• Supports Intel® Core 2 Extreme/Core 2 Quad/Core 2 Duo based processors in LGA775 package.
• Supports Intel® Yorkfield, Wolfdale in the LGA775 package.
• Supports FSB 1600* (OC)/1333/1066/800 MHz.
• Support VRD 11.1 standard.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset
• Intel® P45 Chipset
- Supports FSB 800/1066/1333/1600* (OC) MHz.

• Intel® ICH10 Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 12 ports.
- 6 SATAII ports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.
- Integrated AHCI controller.

Main Memory
• Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333 SDRAM, 8GB Max

Slots
• One PCI Express x16 slot (PCI Express Bus SPEC V2.0 compliant).
• Two PCI Express x1 slots. (support PCI Express Bus specification v1.0a compliant)
• Three 32-bit v2.3 master PCI bus slots.
- Support 3.3v/5v PCI bus interface.

On-Board IDE/SATA
• One Ultra DMA 66/100/133 IDE controller integrated in JMicron® 368.
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.

• SATAII controller integrated in ICH10 chipset
- Up to 3Gb/s transfer speed.
- Supports six SATAII ports by ICH10

Audio
• Chipset integrated by Realtek® ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spce

LAN
• Supports PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111C.

Internal I/O Connectors
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU / System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 3 x USB 2.0 connectors
- 1 x Floppy disk drive connector
- 6 x Serial ATAII connectors
- 1 x ATA133 connector
- 1 x SPDIF-Out connector
- Clear CMOS Jumper
- 1 x HW-OC FSB switch
MSI Reminds You...
• The floppy disk cable will be optional.

Back Panel I/O Ports
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x Serial port
- 1 x 6 in 1 audio jack
- 6 x USB 2.0 ports
- 1 x RJ45 LAN jack

BIOS
• The mainboard BIOS provides ""Plug & Play"" BIOS which detects the peripheral devices and
expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your
mainboard specifications.

Dimension
• 30.5cm(L) x 22.0cm(W) ATX Form Factor
