Дънна платка MSI P43 Neo3-FR, P43, LGA775, DDR2, PCI-E, SB7.1, Lan1000, SATA RAID 0,1,5,10, ATX, 3г. Гаранция

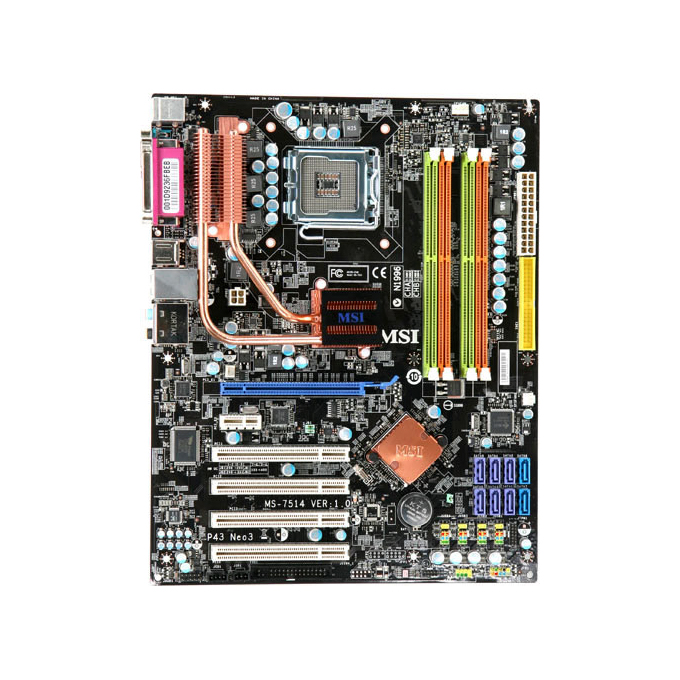

MSI P43 Neo3-FR

CPU
• Supports Intel® Core 2 Extreme/Core 2 Quad/Core 2 Duo based processors in LGA775 package.
• Supports Intel® Yorkfield, Wolfdale in the LGA775 package.
• Supports FSB 1600* (OC)/1333/1066/800 MHz.
• Support VRD 11.1 standard.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® P43 Chipset
- Supports FSB 800/1066/1333/1600* (OC) MHz.

• Intel® ICH10R Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 12 ports.
- 6 SATAII ports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.
- Serial ATA RAID 0/1/5/10. (ICH10R)
- Integrated AHCI controller.

Main Memory
• Supports four unbuffered DIMM of 1.8 Volt DDR2 667/800/1066* (OC) SDRAM, 16GB Max (To support 16GB max, please check the criteria at Intel website)

Slots
• One PCI Express x16 slot (PCI Express Bus SPEC V2.0 compliant).
• One PCI Express x1 slot. (support PCI Express Bus specification v1.0a compliant)
• Four 32-bit v2.3 master PCI bus slots.
- Support 3.3v/5v PCI bus interface.

On-Board IDE/SATA
• One Ultra DMA 66/100/133 IDE controller integrated in JMicron® 363.
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.

• SATAII controller integrated in ICH10R/JMicron® 363 chipest
- Up to 3Gb/s transfer speed.
- Supports six SATAII ports by ICH10R
- Supports two SATAII ports by JMicron 363.
- Supports AHCI controller with SATA RAID 0/1/5/10 by ICH10R (SATA1~6).
- Supports SATA RAID 0/1/JBOD by JMicron 363 (SATA7~8).
MSI Reminds You...
• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

Audio
• Chipset integrated by Realtek® ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spce

LAN
• Supports PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111C.

Internal I/O Connectors
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU / System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 4 x USB 2.0 connectors
- 1 x Floppy disk drive connector
- 8 x Serial ATAII connectors
- 1 x ATA133 connector
- 1 x SPDIF-Out connector
- Clear CMOS Jumper
- 2 x HW-OC FSB jumpers
MSI Reminds You...
• The floppy disk cable will be optional.

Back Panel I/O Ports
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x Parallel port
- 1 x Serial port
- 1 x 6 in 1 audio jack
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack

BIOS
• The mainboard BIOS provides ""Plug & Play"" BIOS which detects the peripheral devices and
expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your
mainboard specifications.

Dimension
• 30.5cm(L) x 24.5cm(W) ATX Form Factor
