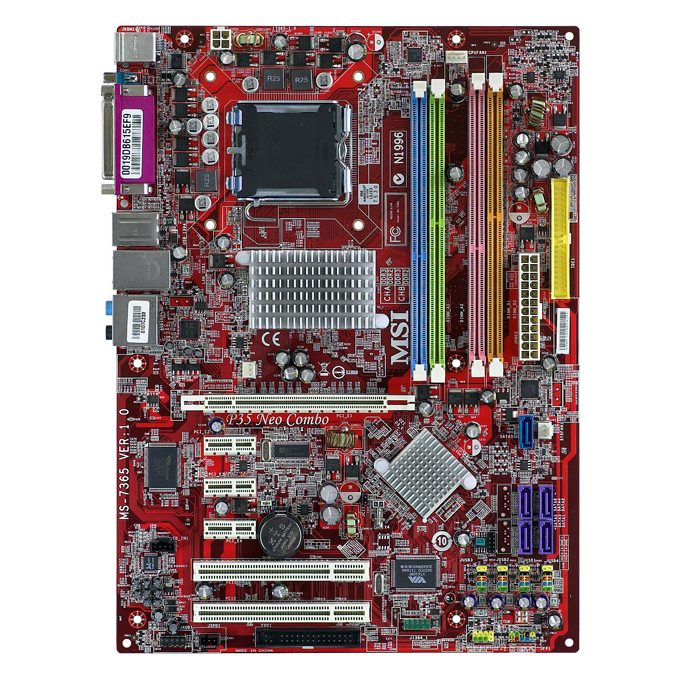

Specifications
CPU
• Supports Intel® Core 2 Quad/Core 2 Duo based processors in LGA775 package.
• Supports Intel® Yorkfield, Wolfdale.
• Supports FSB 1333/1066/800 MHz.
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® P35 Chipset
- Supports FSB 800/1066/1333MHz.
Main Memory
• Supports two unbuffered DIMM of 1.8 Volt DDR2 667/800 SDRAM. (Max: 4GB)
• Supports two unbuffered DIMM of 1.5 Volt DDR3 800/1066 SDRAM. (Max: 4GB)
• Supports dual channel memory architecture.
Slots
• One PCI Express 16X slot (PCI Express Bus SPEC V1.0a compliant)
• Three PCI Express x1 slots. (support PCI Express Bus specification v1.0a compliant)
• Two 32-bit v2.3 master PCI bus slots.
- Support 3.3v/5v PCI bus interface.
On-Board IDE/SATA
• One Ultra DMA 66/100/133 IDE controller integrated in Marvell® 88SE6111.
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.
Audio
• Chip integrated by Realtek® AL888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec.
LAN
• Supports PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111B.
Internal I/O Connectors
- ATX 24-Pin power connector
- ATX 4-pin 12V power connector
- CPU x 1 / System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x SPDIF-out pinheader
- 1 x chasis intrusion connector
- 1 x serial pinheasder
- 4 x USB 2.0 connectors
- 1 x Floppy disk drive connector
- 5/7 x Serial ATAII connectors (optional)
- 1 x ATA133 connector
- 1 x IEEE1394 connector support additional 1 port (optional)
Back Panel I/O Ports
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x Parallel port
- 1 x Serial port
- 1 x 6 in 1 audio jack
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack
- 1 x IEEE1394 port (optional)
BIOS
• The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and
expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your
mainboard specifications.
Dimension
• 30.5cm(L) x 22.5cm(W) ATX Form Factor
