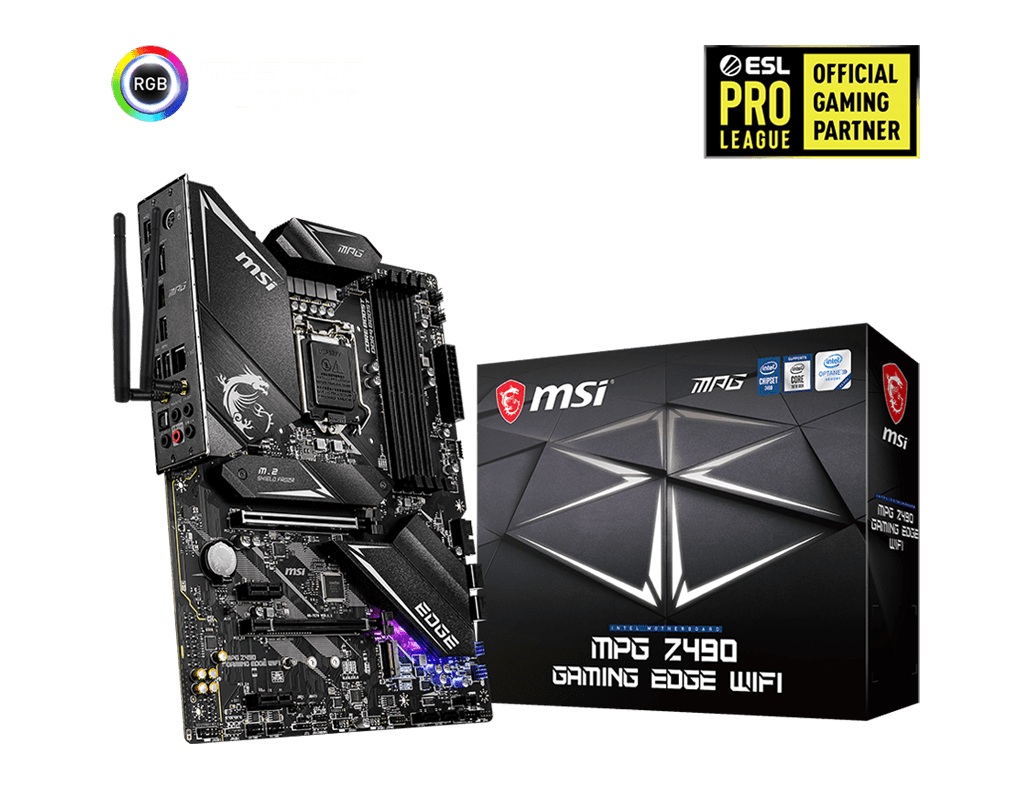

Дънна платка MSI MPG Z490 GAMING EDGE WIFI, Z490, LGA1200, DDR4, PCI-E 3.0, (DisplayPort&HDMI),(CFX), 6x SATA 6Gb/s, 2x M.2, 1x USB 3.2 Gen2x2 Type C, Wi-Fi, Bluetooth, ATX

MPG Z490 GAMING EDGE WIFI

• Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 4800(OC) MHz
• Ready 4 the Future: Support Lightning Gen 4 Solution for the future
• Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
• Premium Thermal Solution: Aluminum Cover with Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
• 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip
• Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
• Audio Boost: Reward your ears with studio grade sound quality

SPECIFICATIONS

PROCESSOR
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2

Please go to intel.com for compatibility information.
Onboard graphics output are disabled when using the F SKU processors.

CHIPSET
Intel® Z490 Chipset

MEMORY
4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/2666/2933 MHz*
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4266+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

EXPANSION SLOTS
1x PCIe 3.0 x16 slot (from CPU)
1x PCIe 3.0 x16 slot (x4 mode, from PCH)
2x PCIe x1 slots (from PCH)

ONBOARD GRAPHICS
1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz

MULTI-GPU
Supports AMD® 2-Way CrossFire™ Technology

STORAGE
Intel® Z490 Chipset
6x SATA 6Gb/s ports 1
2x M.2 slots (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
M2_2 slot supports 2242/ 2260 /2280 storage devices
Intel® Optane™ Memory Ready*** 3
SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.

RAID
Intel® Z490 Chipset
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB
Intel® Z490 Chipset
1x USB 3.2 Gen 2 10Gbps Type-A port on the back panel
7x USB 3.2 Gen 1 5Gbps (4 Type-A ports on the back panel, 2 ports through the internal USB connector, 1 Type-C internal connector)
2x USB 2.0 ports on the back panel
4x USB 2.0 ports available through the internal USB connectors, hub-GL850G
ASMedia® ASM3241
1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel

AUDIO
Realtek® ALC1200-VD1 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

LAN
1x Realtek® RTL8125B-CG 2.5G LAN Controller

WIFI & BLUETOOTH
Intel® AX201
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
WiFi 6 Pre-Certified
Supports Bluetooth® 5.1 , FIPS, FISMA
The Wireless module is pre-install in the M2 (Key-E) slot
Only support windows 10 64-bit

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water pump connector
6x 4-pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x chassis intrusion connector
1x Clear CMOS jumper
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1x TPM module connector
1x TBT connector 1
1x RTD3 connector
Thunderbolt card need support RTD3

BACK PANEL PORTS
PS/2 Combo Port
DisplayPort
USB 3.2 Gen 2 10Gbps (Type-A)
LAN Port
HD Audio Connectors
USB 2.0
HDMI Port
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 1 5Gbps (Type-A)
Wi-Fi / Bluetooth
Optical S/PDIF OUT

DIMENSIONS
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)

MOUNTING
9 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
