Дънна платка MSI MAG B460M BAZOOKA, B460, LGA1200, DDR4, PCI-E 3.0, 4x SATA 6Gb/s, 2x M.2, 4x USB 3.2 Gen1, Micro ATX

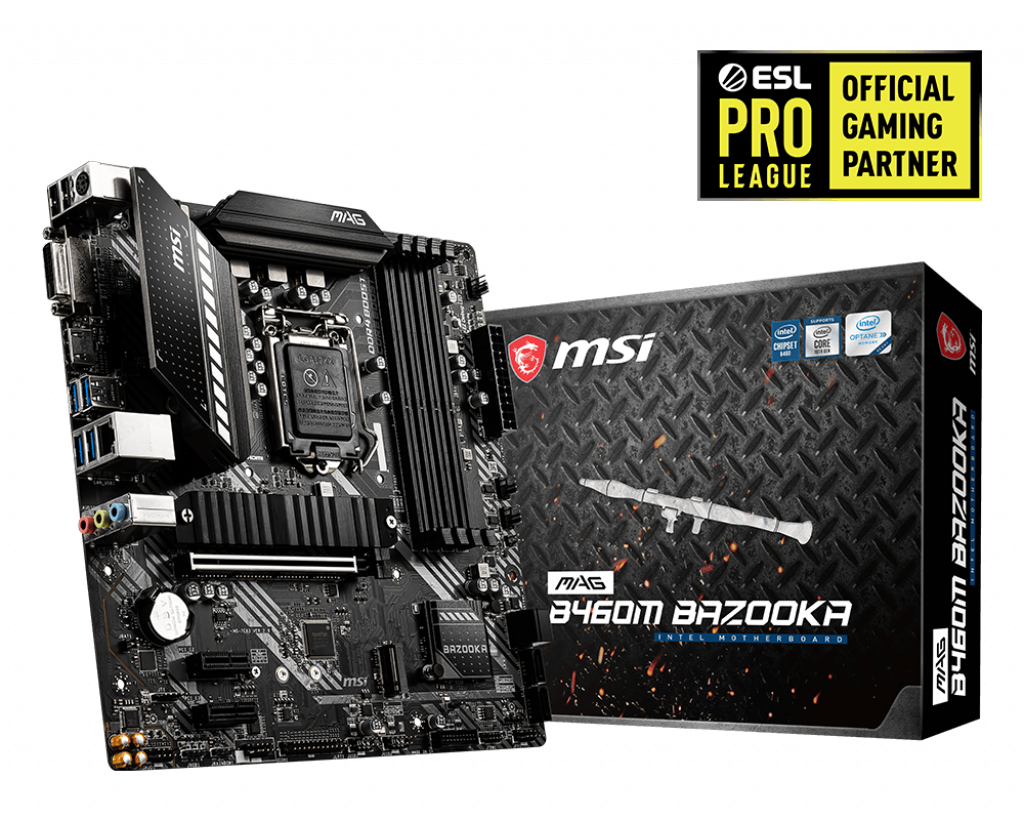

MAG B460M BAZOOKA

• Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 2933 MHz(Max)
• Enhanced Power Design: 5+1+1 Duet Rail Power System, Core Boost, DDR4 Boost
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• Gigabit LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
• Audio Boost: Reward your ears with studio grade sound quality

SPECIFICATIONS:

CPU
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2

Please go to intel.com for compatibility informationOnboard graphics output are disabled when using the F SKU processors.

CHIPSET
Intel® B460 Chipset

MEMORY
4x DDR4 memory slots, support up to 128GB 1
Intel® Core™ i7/i9
Support DDR4-2933 Memory (Max.)
Intel® Core™ i5 (Below)
Supports DDR4-2666 Memory (Max.)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT
1x PCIe 3.0 x16 slot (from CPU)
2x PCIe x1 slots (from PCH)

ONBOARD GRAPHICS
1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz

STORAGE
Intel® B460 Chipset
4x SATA 6Gb/s ports 1
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready for the M2_2 slot only 2
Supports Intel® Smart Response Technology for Intel Core™ processors
SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID
Intel® B460 Chipset
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB
Intel® B460 Chipset
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AUDIO
Realtek® ALC892 Codec
7.1-Channel High Definition Audio

LAN
1x Realtek® RTL8111H Gigabit LAN Controller

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water pump connector
2x 4-pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x parallel port connector
1x serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
1x TPM module connector

BACK PANEL PORTS
PS/2 Combo Port
Gigabit LAN
USB 2.0 Ports
DVI-D
HDMI Port
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
HD Audio Connectors
MAG B460M BAZOOKA back panel ports

LED FEATURES
4x EZ Debug LED

I/O CONTROLLER
NUVOTON NCT6687 Controller Chip

HARDWARE MONITOR
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control

FORM FACTOR
mATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

BIOS FEATURES
1x 128 Mb flash
UEFI AMI BIOS
ACPI 6.2, SM BIOS 3.2
Multi-language
