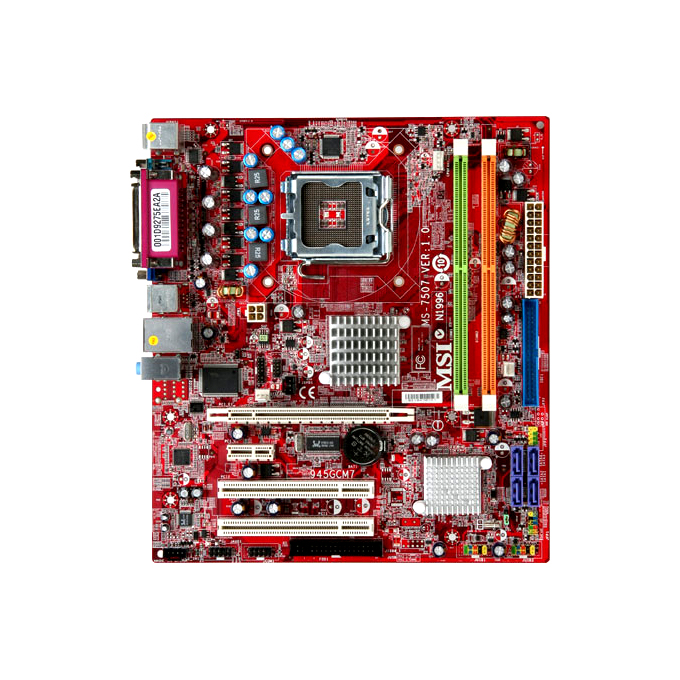

Дънна платка MSI 945GCM7-F, 945GC, LGA775, DDR2, VGA+PCI-E, SB7.1, Lan1000, SATA RAID, mATX

CPU

• Supports Socket 775 for Intel® Core 2 Duo, P4 5XX, 6XX, Pentium D 8XX, 9XX and Celeron D processors.
• Supports FSB 1333/1066/800/533MHz.
• Supports EIST technology.
• Supports Intel® Hyper-Threading technology.
• Supports Intel® Dual Core Technology to 800MHz and up.

Chipset

• Intel® 945GC Chipset
- Integrated Intel® GMA 950 graphics core

• Intel® ICH7/ICH7R Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 4 SATAII ports with transfer rate up to 3Gb/s.
- 1 channel Ultra ATA 100 bus master IDE controller.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.
- Serial ATA RAID 0/1/0+1 for ICH7R.
- Integrated AHCI controller for ICH7R.

Main Memory
• Supports two unbuffered DIMM of 1.8 Volt DDR2 SDRAM
• Supports dual channel DDR2 memory architecture.
• Supports DDR2 400/533/667 memory interface. (4GB Max)

Slots
• One PCI Express x16 slot.
• One PCI Express x1 slot
• Two 32-bit v2.3 master PCI bus slots. (support 3.3v/5v PCI bus interface)

On-Board IDE/SATA
• One Ultra DMA 66/100 IDE controllers integrated in ICH7/ICH7R
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.

• SATAII controller integrated in ICH7/ICH7R
- Up to 3Gb/sec transfer speed.
- Can connect up to four SATAII devices.
- Serial ATA RAID 0/1/0+1 for ICH7R.

Audio
• High Definition link controller integrated in Intel® ICH7/ICH7R chip.
• Audio codec Realtek® ALC888, supports HD 5.1-channel audio-out.
• Audio codec Realtek® ALC888, supports HD 7.1-channel audio-out.
- Compliant with Azalia Rev 1.0 spec.


LAN
• Supports 10 / 100 Mb/s Fast Ethernet by Realtek RTL8101E.
• Supports 10 / 100 /1000 Mb/s Fast Ethernet by Realtek RTL8111C.
- Supports ACPI Power Management.

IEEE1394
• JMicron® 381 chipset
- Supports up to two 1394 ports. (Rear panel x1, pinheader x1)
- Transfer rate is up to 400Mbps.

TPM
- Supports TPM.

Internal I/O Connectors
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- 1 x CPU / System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- 2 x Front panel connectors
- 2 x USB 2.0 connector support additional 4 ports
- 1 x Floppy disk drive connector
- 4 x Serial ATAII connectors
- 1 x ATA100 connector
- 1 x SPDIF-out connector
- 1 x serial port pinheader
- Chassis intrusion switch connector
- Clear CMOS jumper

Back Panel I/O Ports
- 1 x Parallel port
- 1 x Serial port (COM 1)
- 1 x Graphics Card port
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack

BIOS
• The mainboard BIOS provides ""Plug & Play"" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.

Dimension
• 24.4cm(L) x 21.8cm(W) Micro-ATX Form Factor
