Мрежови диск (NAS) Asustor Nimbustor AS5402T, двуядрен Intel Celeron N5105 2.0/2.9GHz, без твърд диск (2x SATA/4x M.2 slots), 4GB DDR4, 2x 2.5GbE, 3x USB 3.2 Gen 2

Asustor Nimbustor AS5402T



Packed Full of Value

Intel’s all-new N5105 10 nm Quad-Core Celeron SoC at 2.0 GHz. With a boost frequency of up to 2.9 GHz, the powerful performance of the CPU ensures that working with the NAS is as smooth as butter while remaining affordable.





Upgradeable 4GB DDR4-2933 RAM

The AS54 comes with four Gigabytes of DDR4 RAM and can be upgraded up to 16GB. DDR4 RAM provides up to 30% greater performance than DDR3 while also lowering energy requirements by 40%.

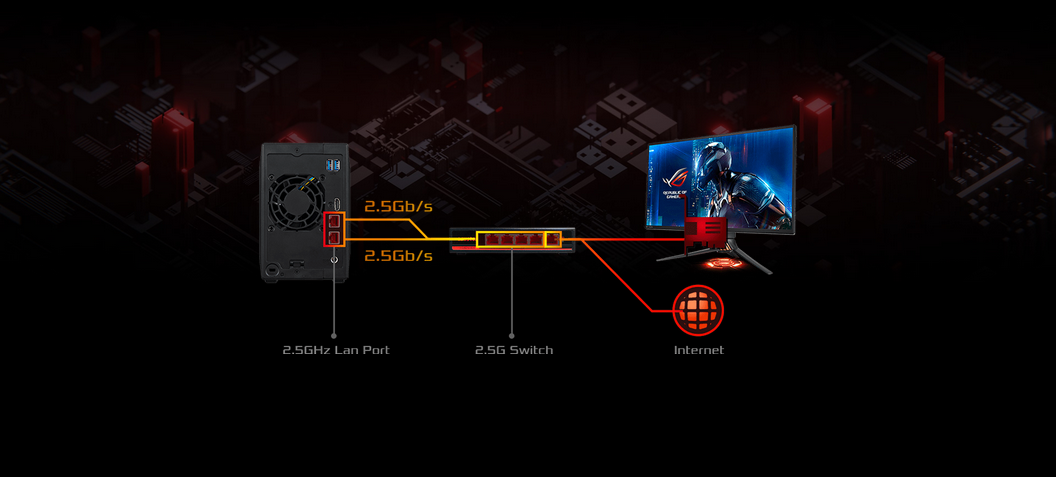

End of the Road…for Gigabit Ethernet

2.5GbE is not the future. It’s now. With 2.5GbE ubiquitous on enthusiast motherboards and available as an affordable USB adapter, the ubiquity of 2.5GbE makes all transfers fast. Break barriers even further by combining the dual 2.5-Gigabit Ethernet ports in SMB Multichannel to enjoy speeds exceeding 2.5 Gbps.

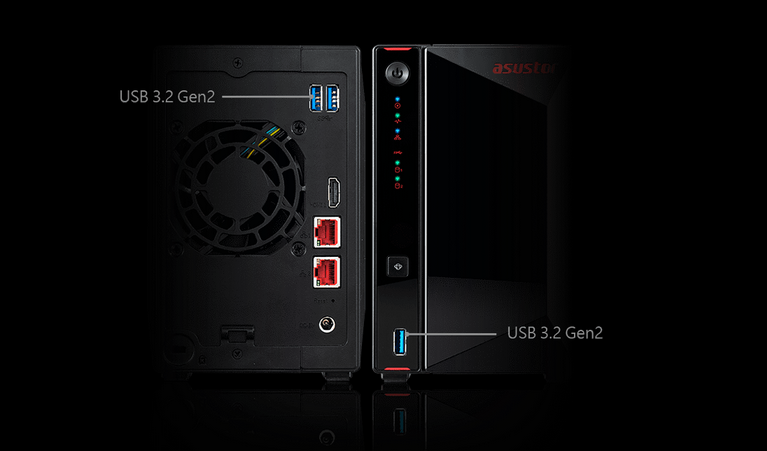

USB 3.2 Gen 2 – Double Performance

The AS54 series upgrades the USB interface to USB 3.2 Gen 2x1. This means that the USB ports are up to twice the speed of the USB ports found on the previous generation of NAS devices at 10 Gbps. Plug in multiple expansion devices for extra storage or utilize the USB ports for backups and other peripherals for a truly custom experience.





Hardware Specifications
CPU	CPU Model	Intel Celeron N5105
	CPU Architecture	x64 64-bit
	CPU Frequency	Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory	Memory	4GB SO-DIMM DDR4
	Memory Module Pre-installed	4GB (1x 4GB)
	Total Memory Slots	2
	Memory Expandable up to	16GB (2x 8GB)
Support mixed capacity
	Flash Memory	8GB eMMC
Storage	Drive Bays	2
	M.2 Drive Slots	4
	Compatible Drive Type
3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe
	Maximum Drive Bays with Expansion Unit	14
	Supports Hot Swappable Drives
External Ports	Expansion	3x USB 3.2 Gen 2x1
	Network	2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
	Multimedia Output	1x HDMI 2.0b
Others	System Fan	1x 70mm
	Infrared Receiver
	Power Supply Unit / Adapter	65W x1
	Input Power Voltage	100V to 240V AC
	Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Operation	Power Consumption	22.9 W (Operation); 12.7 W (Disk Hibernation); 0.71 W (Sleep Mode)
	Noise Level	18.6dB (HDD idle)
	Operation Temperature	0°C~40°C (32°F~104°F)
	Humidity	5% to 95% RH
Size and Weight	Size	170 (H) x 114 (W) x 230 (D) mm
	Weight	1.71 kg



Software & Features
General Specifications	Supported OS	Windows 7, 8, 10, 11, Server 2008, Server 2012, Server 2016, Server 2019, Server 2022 macOS UNIX, Linux, and BSD
	Supported Languages	Deutsch, English, Français, Italiano, Nederlands, Русский, 日本語, 한글, 简体中文, 繁體中文, Česká, Polski, Svenska, Dansk, Norsk, Suomi, Português, Türkçe, Español, Magyar, ภาษาไทย
	Supported Browsers	Firefox Chrome Safari Microsoft Edge
Network	Network Protocols	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
	Connection and transmission	TCP/IP (IPv4 & IPv6) Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover Jumbo Frame (MTU) VLAN EZ Connect Wireless Network
File Management & Sharing	File System	Internal Disk: EXT4 ,Btrfs External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs
	File Explorer	Web-based File Management ISO File Mounting Share Links Task Monitor Browse Files on Local PC Thumbnail Previews Data Access via External Optical Drive Supports video playback
	Network Recycle Bin	Share folder-based Maintains original directory structure and file permission On-click restore Supports scheduled emptying Filtering rules File size File extension Deletion Settings File size File date
Storage management	Volume	Support Multiple Volumes with Spare Drives Volume Type: Single, JBOD, RAID 0, RAID 1 Support for Online RAID Level Migration Support for Online RAID Capacity Expansion
	M.2 Volume	Support Multiple Volumes with Spare Drives M.2 Volume: Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 Support for RAID Level Migration Support for RAID Capacity Expansion
	MyArchive	Hot swappable design enables easy transfer or exchange of high amounts of data Works on any empty bay on an ASUSTOR NAS File system support: EXT4, NTFS, HFS+, Btrfs and exFAT Supports AES 256-bit encryption on EXT4 and Btrfs Supports Btrfs snapshots Supports decryption with a USB key
	iSCSI/IP-SAN	Maximum Targets: 256 Maximum LUNs: 256 Maximum Snapshot Versions of a Single LUN: 256 Target Masking LUN Mapping ISO File Mounting Supports MPIO Persistent (SCSI-3) Reservations
	Disk Management	Scheduled Bad Block Scans Scheduled S.M.A.R.T Scans
Access & Security	Access Control	Maximum Number of Users: 4096 Maximum Number of Groups: 512 Maximum Number of Shared Folders: 512 Maximum Number of Concurrent Connections: 512 Supports Windows Active Directory Supports Windows Active Directory / LDAP
	ACL	Provides both Windows ACL and Linux ACL permission configuration methods Can enable Windows ACL for specific shared folders Comprehensive support for Windows’ 13 types of advanced permission settings Can view Windows ACL permission settings from within ADM Supports local users and groups Exclusive permission reset function allows users to quickly restore default permissions
	SSD Cache	SSD-like performance with traditional hard drives Supports read-only access and read-write cache mode
	System Administration	Log Type: System Log, Connection Log, File Access Log Real-time Online User Monitor Real-time System Monitor User Quota Virtual Drive (ISO Mounting, Maximum 16) UPS Support
	Security	AES 256-Bit Encryption Firewall: Prevent Unauthorized Access Alert Notifications: E-mail, SMS Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH Built-in Hardware Encryption Engine
	Network Defender	Auto black list Trusted list Black/White list Supports IP/IP range/geolocation
Backup	Backup Solutions	Rsync (Remote Sync) Backup Cloud Backup FTP Backup External Backup One Touch Backup EZ Sync
	Snapshots	Btrfs Snapshots 256 snapshots iSCSI LUNs
Others	ASUSTOR Hightlight	System Migration EZ Connect Dr. ASUSTOR 2-way Backup Task Monitor
	Eco-Friendly Design	System Automatically Enters Sleep Mode (Schedule S3) Auto-Standby for Both Internal and External Disks Auto Fan Control LED Night Mode Power Schedule: On, Off, Restart, and Sleep
	Energy Control	Configurable Disk Hibernation and Sleep Mode Wait Time Configurable Time Period for Sleep Mode Activation Automatic Sleep
