Мрежова камера PixEye MEGA, 2Mpix, PoE

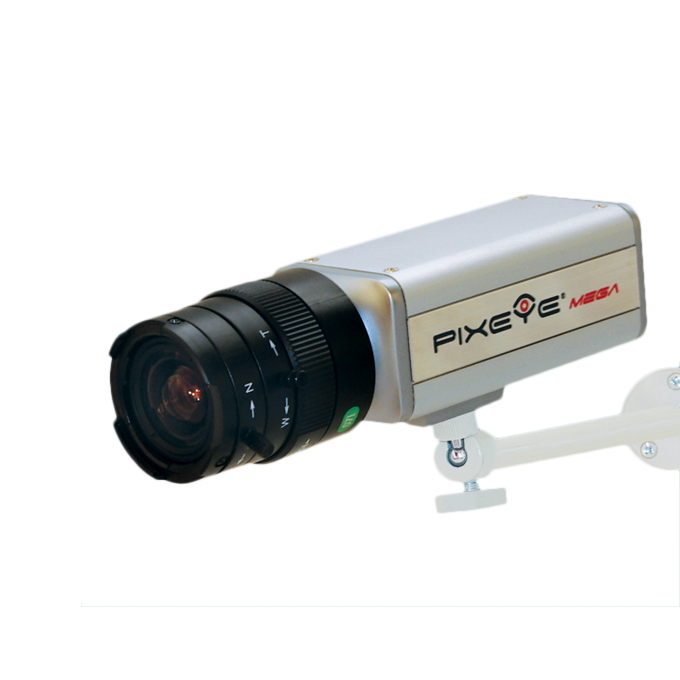

Megapixel IP camera PIXEYE MEGA

* High quality 2 MPix CMOS sensor
* Resolutions from 320x240 to 1600x1200
* Progressive Scan, AWB, BLC
* MJPEG comression
* Digital Pan-Tilt-Zoom (No moving parts)
* Integrated webserver and intuitive web interface
* Power Over Ehternet (POE)
* Compact size
* Low Light Mode

High resolution IP camera. 2 Megapixel videosurveillance over the standard Ethernet network.

Technical specifications:

* Video Sensor: New generation 2 MPix CMOS ultra low noise sensor
* Optical format: 1/3”
* Progressive Scan
* Dynamic range: >71 dB
* Light sensitivity:
* 0,5 lx (with IR filter), 0,03 lx (without IR filter)
* Automatic exposure (AE/AES)
* Sensor Auto gain control (AGC)
* Auto white ballance (AWB)
* Backlight compensation (BLC)
* Flicker noise filter – 50/60Hz
* Pixel Binning Mode 2x2
* Digital Pan-Tilt-Zoom.
* Lenses: Standard C or CS mount, megapixel type

Settings and Configuration:

Device configuration via password protected intuitive web interface - remote via the network.

Some of the configuration options:

* Network settings - IP address, network mask, gateway, DHCP.
* Video stream configuration - resolution from 320x240 to 1600x1200, 4:3 and 16:9 modes, compression level, camera exposure (auto, manual, limited), image parameters.
* Flexible firmware upgrade via the network.

Interface:

100Base-T Ethernet - RJ-45+POE.

Videocodec:
High quality MJPEG compression.

Video Streaming Performance:
* 1600x1200 @ 15 frames/second MJPEG;
* HDTV 720p(1280x720) @ 25 frames/second MJPEG;
* PAL D1 (720x576) @ 30 frames/second MJPEG.

Power:
Power over ethernet - POE – IEEE 802.3af with POE switch or POE injector (36-60V DC).

Power consumption:
2W

Standards compliance:

* EN55022 class B - Emission
* EN55024 - Immunity
* EN60950-1 - Safety

Operating temperature range:
Industrial: -20°C to +50°C

Dimensions:
95 x 42 x 45mm (without lens and stand)

Weight:
300g (without lens and stand)

*Камерата се предлага без обектив - допълнително могат да бъдат доставени обективи Tamron & Alaud
