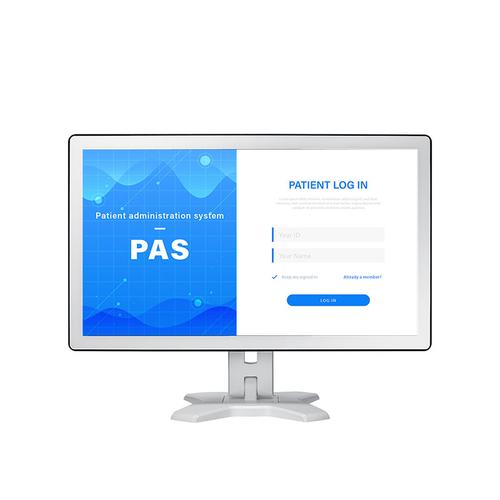

Name: Монитор Ag Neovo TX-2401 WHITE
Availability: OutOfStock

Design
Product colour	White

International Protection (IP) code	IP65

Glass thickness	3.3 mm

Market positioning	Medical

Detachable stand	Y
Display
Pixel pitch	0.274 x 0.274 mm

Contrast ratio (typical)	3000:1

Viewing angle, horizontal	178°

Viewing angle, vertical	178°

Display diagonal	60.5 cm (23.8)

Response time	5 ms

Display resolution	1920 x 1080 pixels

Digital horizontal frequency	30 - 84 kHz

Digital vertical frequency	56 - 76 Hz

Touch technology	Multi-touch

Touchscreen technology	Projected capacitive system

Touchscreen type	Tabletop

Display technology	LED

Number of simultaneous touchpoints	10

Native aspect ratio	16:9

HD type	Full HD

Panel type	VA

Screen shape	Flat

Display number of colours	16.7 million colours

Surface hardness	7H

NTSC coverage (typical)	72%

Display brightness (typical)	250 cd/m²

RGB colour space	NTSC
Ergonomics
Cable lock slot	Y

Height adjustment	N

Tilt angle range	-5 - 180°

Cable management	Y

Panel mounting interface	100 x 100 mm

Tilt adjustment	Y

Cable lock slot type	Kensington

VESA mounting	Y
General Information
Marketing Information	The TX-2401 White touch screen monitor adopts PCAP multi-touch technology that is relatively unaffected by surface contaminants and allows 10-point multi-touch capabilities, offering an accurate and responsive touch experience. It is even responsive to latex gloves. Featuring a medical-grade power supply and versatile connectivity (e.g., DisplayPort, HDMI, and VGA inputs), the TX-2401 White is built for flexible use, such as patient check-in, patient queue management, medical research laboratories, or medical computer carts. The monitor is complemented by front IP65 and IK08 ratings, white metal casing, and an edge-to-edge 7H tempered glass overlay, ensuring durability and easy cleaning for continuous operation in healthcare environments. 10-POINT PCAP TOUCH SCREEN The TX-2401 White touch screen adopts PCAP touch technology with 10-point multi-touch capabilities that are unaffected by contamination, offering a fast, accurate, and responsive touch experience. The seamless touch experience is identical to that of smartphones and tablets, and is even responsive to latex gloves. ENHANCED SAFETY WITH MEDICAL-GRADE POWER SUPPLY Compliance with the IEC / EN 60601-1 standard power supply ensures the safety of your staff and patients in clinical settings, preventing electric shocks, as well as energy-related and heat-related hazards. EASY TO MAINTAIN FOR NON-STOP USE A commercial-grade panel, high-quality components and 7H scratch-resistant tempered glass screen ensure the display can be 24/7 constant used. Additionally, the screen is resistant to chemical disinfectants like alcohol for frequent cleaning. FRONT IP65 DUST AND WATER PROTECTION The TX-2401 White multi-touch monitor with a front-sided IP65 rating is designed to protect from dust and liquid spills, making it ideal for high-use public locations. HIGH IMPACT-RESISTANT AGAINST VANDALISM The touch display with an IK08 rating and metal casing prevents damage from impacts or acts of vandalism in high-traffic areas, ensuring a long service life. MULTIPLE LAYOUTS FOR PUBLIC ACCESS Thanks to VESA compatibility, the TX-2401 White offers flexible mounting options, such as desk mounting, attaching to a monitor arm, or integrating into a medical cart. The included ergonomic stand allows for a significant -2 to 180 degrees of tilt adjustment, facilitating additional flexibility when using. The display features 178 degrees of wide viewing angles to provide consistent colour performance for better viewing. VERSATILE CONNECTIVITY The TX-2401 White provides maximum versatility and enables users to connect to their own devices, such as a high-performance PC or media player, using the DisplayPort, HDMI, or VGA inputs. CABLE MANAGEMENT A specially designed monitor stand with integrated cable management keeps cables organized, prevents them from interfering when adjusting the screen up or down, and provides a clutter-free space. SEAMLESS INTEGRATION Touch support works with various operating systems, compatible with Windows, Linux, macOS, and certain Android versions. This enables more choice of the operating system you use.
Multimedia
Built-in speaker(s)	N

Built-in camera	N
Operational conditions
Operating relative humidity (H-H)	20 - 80%

Storage temperature (T-T)	-20 - 60 °C

Operating temperature (T-T)	0 - 40 °C

Storage relative humidity (H-H)	10 - 90%
Packaging content
Cables included	AC, HDMI, VGA, USB

Quick start guide	Y

Power adapter included	Y
Packaging data
Package weight	11.4 kg

Package depth	660 mm

Package height	530 mm

Package width	370 mm

Package type	Box
Ports & interfaces
Headphone outputs	1

VGA (D-Sub) ports quantity	1

HDMI ports quantity	1

Headphone connectivity	3.5 mm

HDMI version	1.3

DisplayPorts quantity	1

DisplayPort version	1.2a

Headphone out	Y

Built-in USB hub	N

USB Touch port	Y

USB Touch ports quantity	1
Power
Power consumption (typical)	17 W

Power consumption (off)	0.2 W

Power consumption (standby)	0.4 W
Sustainability
Sustainability certificates	RoHS, Low Voltage Directive (LVD), UKCA, WEEE, CE, REACH
Weight & dimensions
Width (with stand)	575.1 mm

Height (with stand)	451.3 mm

Depth (with stand)	279.7 mm

Weight (without stand)	5.7 kg

Height (without stand)	34.7 cm

Width (without stand)	57.5 cm

Depth (without stand)	4.24 cm

Weight (with stand)	7.8 kg
