Design | ||
---|---|---|
Product colour | Black | |
Housing material | Metal | |
International Protection (IP) code | IP65 | |
Glass thickness | 3.3 mm | |
Market positioning | Business | |
Detachable stand | Y | |
Display | ||
Pixel pitch | 0.274 x 0.274 mm | |
Contrast ratio (typical) | 3000:1 | |
Viewing angle, horizontal | 178° | |
Viewing angle, vertical | 178° | |
Display diagonal | 60.5 cm (23.8) | |
Response time | 5 ms | |
Display resolution | 1920 x 1080 pixels | |
Digital horizontal frequency | 30 - 84 kHz | |
Digital vertical frequency | 56 - 76 Hz | |
Touch technology | Multi-touch | |
Touchscreen technology | Projected capacitive system | |
Touchscreen type | Tabletop | |
Display technology | LED | |
Number of simultaneous touchpoints | 10 | |
Native aspect ratio | 16:9 | |
HD type | Full HD | |
Panel type | VA | |
Screen shape | Flat | |
Display number of colours | 16.7 million colours | |
Surface hardness | 7H | |
NTSC coverage (typical) | 72% | |
Display brightness (typical) | 250 cd/m² | |
RGB colour space | NTSC | |
Ergonomics | ||
Cable lock slot | Y | |
Height adjustment | N | |
Tilt angle range | -5 - 180° | |
Cable management | Y | |
Panel mounting interface | 100 x 100 mm | |
Tilt adjustment | Y | |
Cable lock slot type | Kensington | |
VESA mounting | Y | |
General Information | ||

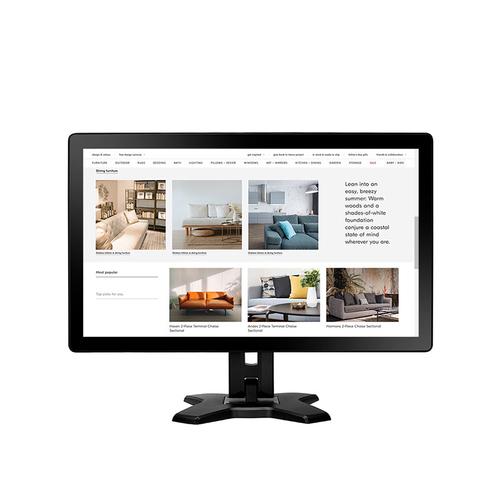

Marketing Information | The TX-2401 touch screen monitor adopts PCAP multi-touch technology that is relatively unaffected by contamination, offering 10-point multi-touch capability, giving an accurate and responsive touch experience, even responsiveness to latex gloves. Featuring DisplayPort, HDMI and VGA input connectivity, the TX-2401 touch monitor is built for flexible use such as self-check-in, endless aisle, self-ordering and price checking. The screen is complemented by the IP65 and IK08 rating, metal casing, and an edge-to-edge 7H tempered glass design, enhancing durability for continuous operation in public and high-traffic spaces. 10-POINT PCAP TOUCH SCREEN The TX-2401 touch screen adopts PCAP touch technology with a 10-point multi-touch capability that is unaffected by contamination, giving a fast, accurate, and responsive touch experience. These seamless touch senses are identical to those used in smartphones and tablets, even responsive to latex gloves. EASY TO MAINTAIN FOR NON-STOP USE A commercial-grade panel, high-quality components and 7H scratch-resistant tempered glass screen ensure the display can be 24/7 constant used. Additionally, the screen is resistant to chemical disinfectants like alcohol for frequent cleaning. FRONT IP65 DUST AND WATER PROTECTION The TX-2401 multi-touch monitor with a front-sided IP65 rating is designed to protect from dust and liquid spills, making it ideal for high-use public locations. HIGH IMPACT-RESISTANT AGAINST VANDALISM The touch display with an IK08 rating and metal casing prevents damage from impacts or acts of vandalism in high-traffic areas, ensuring a long service life. MULTIPLE LAYOUTS FOR PUBLIC ACCESS Thanks to VESA compatibility, the TX-2401 offers flexible mounting options, from desk mount to wall mount or attached to a monitor arm. The included ergonomic stand allows a huge -2 to 180 degrees of tilt adjustment, creating extra ergonomics when using. The display is 178-degrees wide viewing angles to provide consistent colour performance for better viewing. VERSATILE CONNECTIVITY The TX-2401 provides maximum versatility and facilitates users to connect to their own devices, such as a high-performance PC or a media player, using the DisplayPort, HDMI or VGA inputs. CABLE MANAGEMENT A specially designed monitor stand with integrated cable management keeps cables organized, prevents them from interfering when adjusting the screen up or down, and provides a clutter-free space. SEAMLESS INTEGRATION Touch support works with various operating systems, compatible with Windows, Linux, macOS, and certain Android versions. This enables more choice of the operating system you use. | |
Multimedia | ||
Built-in speaker(s) | N | |
Built-in camera | N | |
Operational conditions | ||
Operating relative humidity (H-H) | 20 - 80% | |
Storage temperature (T-T) | -20 - 60 °C | |
Operating temperature (T-T) | 0 - 40 °C | |
Storage relative humidity (H-H) | 10 - 90% | |
Packaging content | ||
Cables included | AC, HDMI, USB, VGA | |
Quick start guide | Y | |
Power adapter included | Y | |
Packaging data | ||
Package weight | 11.4 kg | |
Package depth | 660 mm | |
Package height | 530 mm | |
Package width | 370 mm | |
Package type | Box | |
Ports & interfaces | ||
Headphone outputs | 1 | |
VGA (D-Sub) ports quantity | 1 | |
HDMI ports quantity | 1 | |
Headphone connectivity | 3.5 mm | |
HDMI version | 1.3 | |
DisplayPorts quantity | 1 | |
DisplayPort version | 1.2a | |
Headphone out | Y | |
Built-in USB hub | N | |
USB Touch port | Y | |
USB Touch ports quantity | 1 | |
Power | ||
Power consumption (typical) | 17 W | |
Power consumption (off) | 0.2 W | |
Power consumption (standby) | 0.4 W | |
Energy efficiency scale | A to G | |
Energy efficiency class (SDR) | E | |
Energy consumption (SDR) per 1000 hours | 17 kWh | |
Sustainability | ||
Sustainability certificates | CE, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE | |
Weight & dimensions | ||
Width (with stand) | 575.1 mm | |
Height (with stand) | 451.3 mm | |
Depth (with stand) | 279.7 mm | |
Weight (without stand) | 5.7 kg | |
Height (without stand) | 34.7 cm | |
Width (without stand) | 57.5 cm | |
Depth (without stand) | 4.24 cm | |
Weight (with stand) | 7.8 kg |
