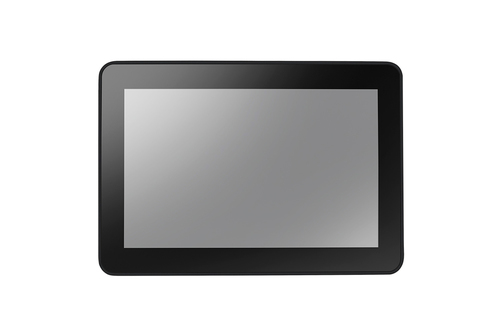

Name: Монитор Ag Neovo TX-10 25.4CM
Availability: OutOfStock

Design
Certification	CE, LVD, BSMI, RoHS, REACH, WEEE

Product colour	Black

International Protection (IP) code	IP65

Glass thickness	3.3 mm

Market positioning	Business
Display
Pixel pitch	0.169 x 0.169 mm

Contrast ratio (typical)	1300:1

Horizontal scan range	31 - 50 kHz

Viewing angle, horizontal	170°

Viewing angle, vertical	170°

Vertical scan range	56 - 60 Hz

Display diagonal	25.6 cm (10.1)

Response time	5 ms

Display resolution	1280 x 800 pixels

Backlight type	LED

Maximum refresh rate	60 Hz

Touch technology	Multi-touch

Touchscreen technology	Projected capacitive system

Touchscreen type	Kiosk

Display technology	LED

Number of simultaneous touchpoints	10

Native aspect ratio	16:9

HD type	WXGA

Panel type	VA

Screen shape	Flat

Display number of colours	16.2 million colours

Surface hardness	7H

NTSC coverage (typical)	45%

Display brightness (typical)	500 cd/m²

RGB colour space	NTSC
Ergonomics
Plug and Play	Y

LED indicators	Y

Wall mountable	Y

Height adjustment	N

Cable management	Y

Panel mounting interface	100 x 100 mm

VESA mounting	Y
General Information
Marketing Information	The TX-10 Multi-touch Interactive Display, with its 10.1-inch, 10-point touch screen, brings the experience of a tablet into the form factor of a monitor. Its foam seal design supports seamless integration into kiosks and its front-side IP65 rating protects the screen from dust and water. External mounting brackets are provided for installation in a wide variety of application environments—in a meeting room as a scheduling display, or in a number of public, commercial, and industrial interactive applications. Allowing for either landscape or portrait orientation, the TX-10 multi-touch interactive display is the perfect fit.
Logistics data
Harmonized System (HS) code	85285210
Multimedia
Built-in microphone	N

Built-in speaker(s)	N

Built-in camera	N
Operational conditions
Operating relative humidity (H-H)	20 - 80%

Storage temperature (T-T)	-20 - 60 °C

Operating temperature (T-T)	0 - 50 °C

Storage relative humidity (H-H)	10 - 90%
Other features
Placement supported	Horizontal/Vertical

Mobile operating systems supported	Android
Packaging content
Cables included	AC, DisplayPort, USB, VGA

Quick start guide	Y
Packaging data
Package weight	2.4 kg

Package depth	160 mm

Package height	325 mm

Package width	370 mm
Performance
Windows operating systems supported	Windows 10, Windows 7, Windows 8

Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave

Linux operating systems supported	Y

Number of simultaneous touchpoints (Windows 7)	10

Operating hours (hours/days)	24/7
Ports & interfaces
Headphone outputs	1

VGA (D-Sub) ports quantity	1

HDMI ports quantity	1

Headphone connectivity	3.5 mm

HDMI version	1.3a

DisplayPorts quantity	1

Headphone out	Y

Built-in USB hub	N

USB Touch port	Y

USB Touch ports quantity	1
Power
Power consumption (typical)	7 W

Power supply type	DC

AC adapter output voltage	12 V

Power consumption (off)	0.3 W

Power consumption (standby)	1.1 W

AC input voltage	240 V

Energy efficiency scale	A to G

Energy efficiency class (SDR)	D

Energy consumption (SDR) per 1000 hours	7.5 kWh
Sustainability
Sustainability compliance	Y

Sustainability certificates	CE, REACH, RoHS, WEEE
Weight & dimensions
Weight (without stand)	1.4 kg

Height (without stand)	18.3 cm

Width (without stand)	26.1 cm

Depth (without stand)	3.94 cm
