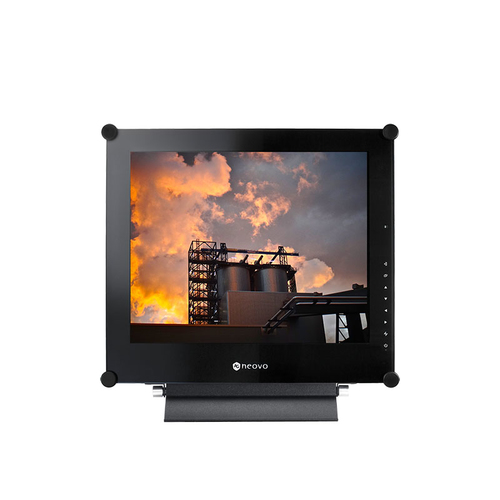

Name: Монитор Ag Neovo Technology SX-17G 17IN
Availability: OutOfStock

Design
Certification	CB, CE, FCC, WEEE, REACH, BSMI

Product colour	Black

LED indicators	Yes

Mounting type	Freestanding/Wall-mounted

Tilt adjustment	Yes

Tilt angle	20°

Tilt angle range	0 - 20°
Display
Display type	LCD

Display brightness	250 cd/m²

Viewing angle, horizontal	170°

Viewing angle, vertical	160°

Display number of colours	16.78 million colours

Pixel pitch	0.264 x 0.264 mm

Horizontal scan range	24 - 83 kHz

Vertical scan range	50 - 75 Hz

Contrast ratio (typical)	20000000:1

Response time	3 ms

Panel type	TN

Display aspect ratio	4:3

Backlight type	LED

RGB colour space	NTSC

NTSC coverage (typical)	72%

Anti-glare screen	Yes

Glass thickness	3 mm
General Information
Marketing Information	Ideal for legacy and modern surveillance applications, the SX-Series is equipped with analogue and digital connectivity as well as Composite output for video looping. Built to last and perform in 24/7 operations, it features AG Neovo’s Anti-Burn-in™ technology, preventing image ghosting and ensuring professionals view the present, not the past. Coupled with NeoV™ Optical Glass and metal casing, the display is shielded from incidental damage and impact to withstand the most demanding environments. Highly versatile and compatible, the SX-Series is the optimal display solution for seamless video surveillance transition. Industry-leading Reliability The SX-Series is specially designed to transcend the challenge of enduring 24/7 operations. AG Neovo’s Anti-Burn-inTM technology also prevents image ghosting while performing nonstop mission-critical operations. Its metal casing and NeoVTM Optical Glass not only protect the SX-Series from damage but also keep maintenance easy. Optimised for Surveillance and Security Built with cutting-edge super-resolution technology, the SX-Series can upscale images at a higher and more detailed resolution for better clearness. Besides, geared specifically for a surveillance control room, a user-friendly CCTV mode is pre-configured to maximise image clarity in the scenario of low light surveillance footage at night. Highly Versatile and Compatible The SX-Series supports multiple video input sources, from legacy video cameras to the latest HDMI and DisplayPort equipment. Its lockable Composite input and loop through Composite output make it easy to connect to other gear without the need for a splitter.
Operational conditions
Operating temperature (T-T)	0 - 40 °C

Storage temperature (T-T)	-20 - 60 °C

Operating relative humidity (H-H)	10 - 90%

Storage relative humidity (H-H)	5 - 95%
Packaging content
Quantity	1

AC adapter included	Yes

Cables included	AC, Audio, VGA
Performance
Built-in speaker(s)	Yes

VESA mounting	Yes

Panel mounting interface	75 x 75,100 x 100 mm

Cable lock slot	Yes

Cable lock slot type	Kensington

Number of built-in speakers	2

Speaker power	2 W
Ports & interfaces
DC-in jack	Yes

HDMI ports quantity	1

HDMI version	1.4

DVI-D ports quantity	1

VGA (D-Sub) ports quantity	1

USB 2.0 ports quantity	1

Composite video in	1

Composite video out	1

3.5 mm (1/8-inch) in	Yes

USB port	Yes
Power
Power source type	DC

AC adapter output voltage	12 V

AC adapter output current	1.58 A

Power consumption (typical)	15 W

Power consumption (standby)	0.5 W

Power consumption (off)	0.3 W

Power supply type	External
Technical details
Compliance certificates	CE, REACH, RoHS, WEEE
Weight & dimensions
Width	409.4 mm

Depth	64.5 mm

Height	361.9 mm

Weight	6.1 kg

Package width	506 mm

Package depth	225 mm

Package height	506 mm

Package weight	7.3 kg

Package type	Box

Width (with stand)	409.4 mm

Depth (with stand)	175 mm

Height (with stand)	398.2 mm

Weight (with stand)	6.1 kg
