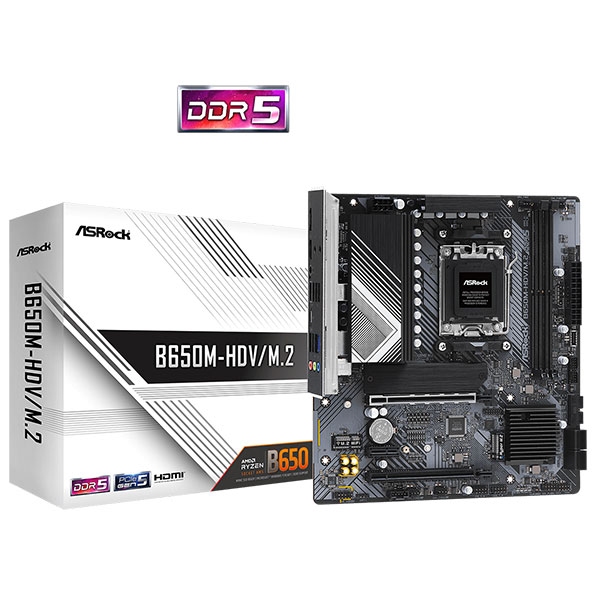

Name: MB ASROCK B650M-HDV/M.2, DP/HDMI, 2xD5, 2xM.2
Brand: ASROCK
Availability: OutOfStock

{{

Серия	B650M-HDV
Физически размер	Micro ATX
Чипсет	AMD B650
Сокет	AM5
Съвместими процесори	Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Тип BIOS	AMI
Памет	Two DDR Channels Небуферирана AMD EXPO
Тип на паметта	DDR5
Честота на паметта	6400 MHz
Dual channel	Да
Формат на паметта	DIMM 288-pin
ECC support	Non-ECC
Memory Registered / Buffered	Unbuffered
Слотове за памет	2
Максимална памет	64 GB
Слотове	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode; Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2); - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; - Supports AMD CrossFire™; - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Брой процесорни гнезда	1
Видео	Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU); - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Контролер на съхранението	Storage Controller: Supports: Ниво 0, Ниво 1, Ниво 10 SATA III-600 (4) Storage Controller: Supports: Ниво 0, Ниво 1, Ниво 10 PCI Express 5.0 x4 (1 x M.2 (Key M)) Storage Controller: Supports: Ниво 0, Ниво 1, Ниво 10 PCI Express 4.0 x4 (1 x M.2 (Key M))
Дисков интерфейс	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode; Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode; - 4 x SATA3 6.0 Gb/s Connectors
SATA	4 x SATA3 6.0 Gb/s
M.2 slot	M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
RAID	0,1,10
LAN порт	2.5 Gigabit LAN 10/100/1000/2500 Mb/s; - Dragon RTL8125BG; - Supports Dragon 2.5G LAN Software; - Smart Auto Adjust Bandwidth Control; - Visual User Friendly UI; - Visual Network Usage Statistics; - Optimized Default Setting for Game, Browser, and Streaming Modes; - User Customized Priority Control
LAN standards	2.5 Gbps
LAN controller	Dragon RTL8125BG
Wi-Fi controller	Wi-Fi Controller: 1 x M.2 (Key E)
Wi-Fi antenna	2
Звук	7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
Звуков изход	HD Audio (8-channel)
Аудио стандарти	High Definition Audio
Портове	1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen 1 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 2 x aerial 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack
Разширителни слотове	1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1 1 x M.2 socket (2230 M.2 Key E slot) 1 x M.2 socket (2260/2280 M.2 Key M slot) 1 x M.2 socket (2280 M.2 Key M slot)
PCI slots	1x PCI Express 4.0 x1, 2x PCI Express 4.0 x16
PCIe x1	2
PCIe x16	1 x PCIe 4.0 x16
Вътрешен интерфейс	1 x USB-C 3.2 Gen 2 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x SPI - header 1 x audio - header 1 x speaker - header 1 x Thunderbolt - header
Функции	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology
Софтуер	ASRock A-Tuning
Съвместими операционни системи	Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit
Конектори	1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 1 x CPU Fan Connector (4-pin); - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control); - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card); - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports); - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports); - 1 x Front Panel Type C USB 3.2 Gen2 Header
Конектори за захранване	24-pin main power connector, 8-pin ATX12V connector
Стандарти	FCC Part 15, EuP Ready, ErP Ready, RoHS 2011/65/EU, EMC 2014/30/EU, DisplayPort 1.4, HDCP 2.3
Включени кабели	2 x Serial ATA cable
Аксесоари	2 x M.2 screws
Височина	226 мм
Ширина	22.6 cm
Дълбочина	24.4 cm
Други характеристики	ASRock Instant Flash, ASRock Full HD UEFI, Dr.MOS MOSFET, ASRock Steel Slots, 2oz Copper PCB, Water Pump Header, pre-mounted I/O shield, ASRock POST Status Checker (PSC), 8+2+1 Phase Power Design, ASRock Auto Driver Installer, BIOS FlashBack button, 50A Power Stage
Гаранция	36 месеца
Код на продукта	B650M-HDV-M2

}}
