Efficient cooling:
The WF10 series of Lanberg server cabinets is also dedicated to those who are looking for solutions for use in demanding temperature conditions. Our cabinets allow you to achieve optimum performance without sacrificing functionality, aesthetics and security.

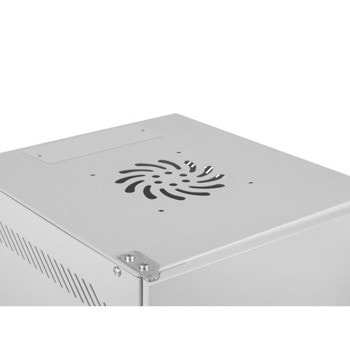

Thanks to the ventilation hole in the ceiling panel, we provide excellent airflow and effective cooling. We offer users even greater control over the temperature inside the cabinet, which is key to maintaining optimal operating conditions for equipment
Specifications
Type of cabinet
Wall mount
Size
10"
ICT height
6 U
Assembly type
Self-assembly
Working depth
238 mm
Front door type
Metal
Door type
Single-leaf
Maximum static load
20 kg
Slot amount for fans
1
Number of vertical rails
2
Thermostat
No
LCD panel
No
Colour
Gray
RAL color
RAL7035
Weatherproof rating
IP20
Front door thickness
1 mm
Upper & lower panel thickness
1 mm
Side panel thickness
1 mm
Mounting rails thickness
1.4 mm
Frame thickness
1.1 mm
Other elements sheet thickness
1.1 mm
Depth
310 mm
Width
280 mm
Height
336 mm
Weight
5.45 kg
Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, IEC297-2:1982
Grounding Details
Bottom panel, Front door
